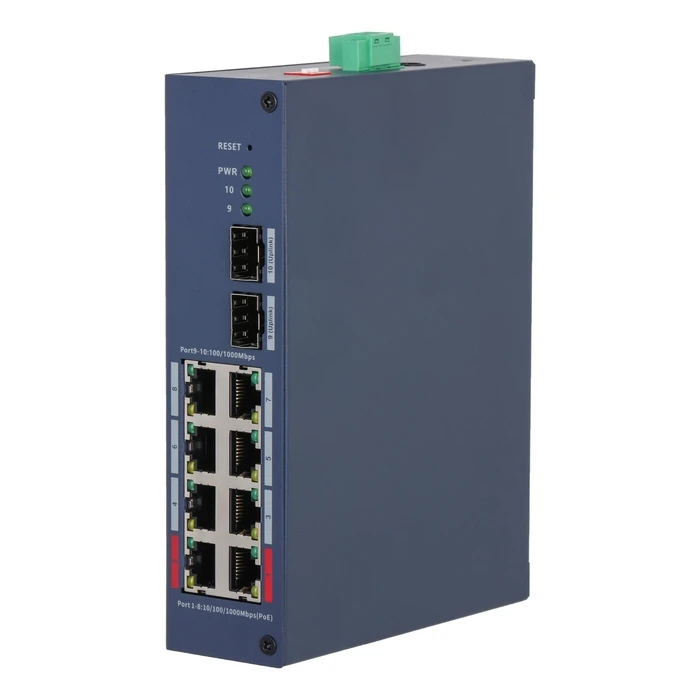

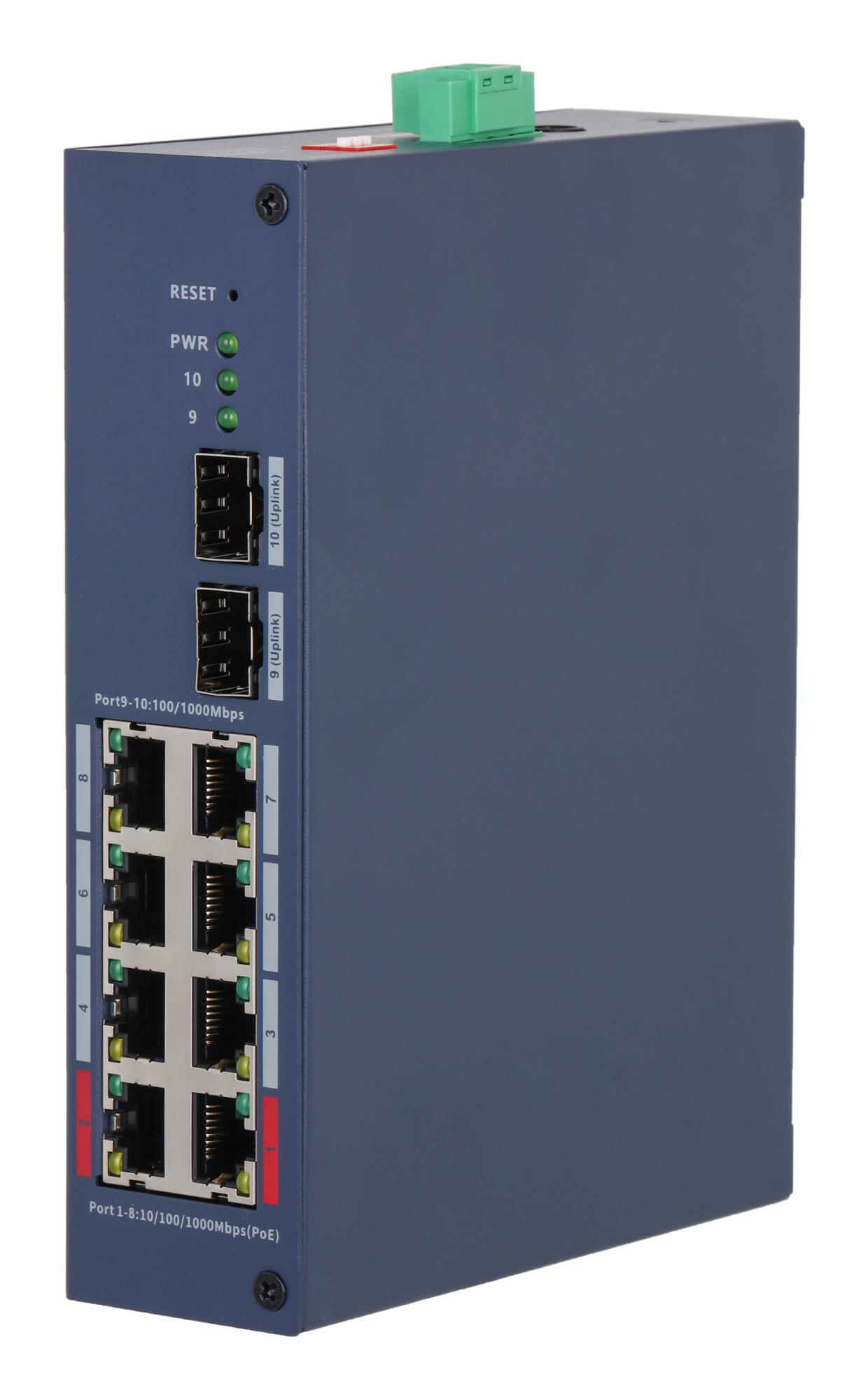

Dahua CHS4210-8GT-110 10-Port Cloud Managed Hardened Gigabit Switch (8 PoE)

Description

Technical Specifications

• Brand
  Dahua
• Model / MPN
  CHS4210-8GT-110
• SKU
  1462635
• EAN / Barcode
  6937552482982
• Product Type
  10-Port Cloud Managed Hardened Gigabit Switch
• Switch Type
  Managed
• Switch Layer
  Layer 2 (L2)
• Ports
  8 × RJ-45 10/100/1000 Mbps PoE ports (Ports 1–8); 2 × uplink ports (Ports 9–10)
• Port Standards
  IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.3az, 802.3ad
• PoE Standards
  IEEE 802.3af, IEEE 802.3at, Hi-PoE (datasheet variant also lists IEEE 802.3bt)
• PoE Power per Port
  Port 1 up to 90 W; Ports 2–8 up to 30 W
• Total PoE Budget
  Up to 110 W
• Switching Capacity
  20 Gbps
• Packet Forwarding Rate
  14.88 Mpps
• MAC Table Size
  8K
• Jumbo Frame
  9K bytes (S4210 datasheet variant)
• VLANs Supported
  4K
• Management
  Cloud managed; mobile app management; topology visualization; one-stop maintenance
• Dimensions (L×W×H)
  171.8 mm × 139.4 mm × 42 mm
• Product Weight (net)
  660 g
• Package / Gross Weight
  1600 g
• Casing Material
  Iron (full metal design)
• Mounting
  Desktop mount and DIN-rail mount
• Operating Temperature
  –30 °C to +65 °C (regional listing); variant lists –10 °C to +55 °C
• Operating Humidity
  10%–90% RH, non-condensing
• Ingress / Impact Protection
  IP30, IK06
• Power Supply
  External dual power supply (terminal block and DC), 48–57 VDC
• Power Consumption
  Idle ~2 W (regional), variant lists 3.5 W idle / 110 W full load
• ESD / Surge Protection
  8 kV air discharge; 4 kV common mode lightning protection
• Use Cases
  PoE for IP cameras, access points and other powered devices in hardened/wide-temp environments
