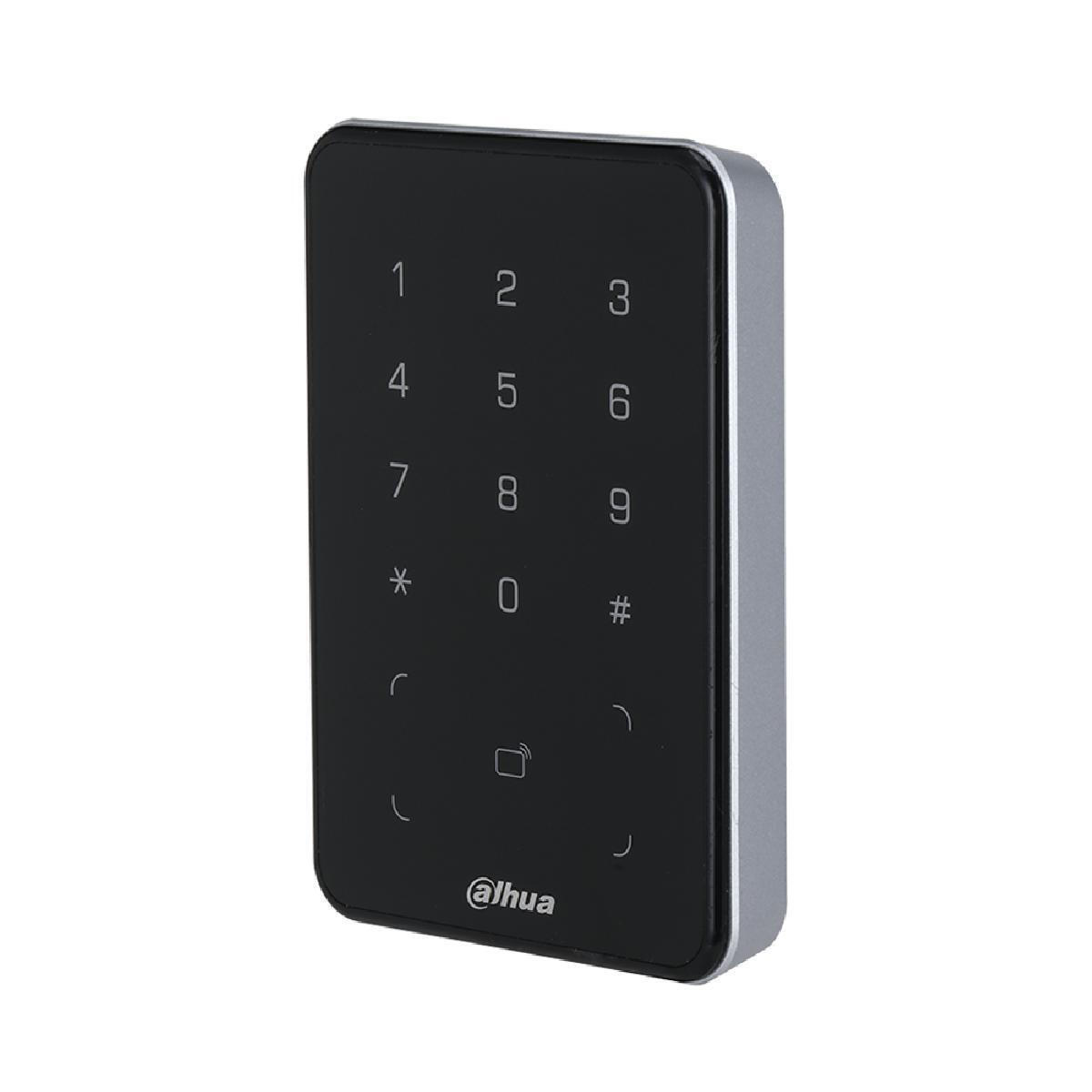

The Dahua ASR2101A is a basic access control reader with a built-in 12-key keypad and card reader, supporting authentication via access card/chip and password (PIN). It features a buzzer, Wiegand interface, RS-485 port and tamper protection. Rated IP66 for outdoor use, powered by 12 V (0.5 A), with...
More
Dahua ASR2101A Access Control Card & PIN Reader (DH.AS.210.1A)
Product Code: 1127679998
Available in 4 - 10 days
157,77 €
or
4,93€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Dahua ASR2101A is a basic access control reader with a built-in 12-key keypad and card reader, supporting authentication via access card/chip and password (PIN). It features a buzzer, Wiegand interface, RS-485 port and tamper protection. Rated IP66 for outdoor use, powered by 12 V (0.5 A), with typical power consumption 0.9 W and max 1.7 W. Operating range: -30 to 70 °C and 5–95% relative humidity. Device dimensions: 123 x 86 x 15 mm. Identifiers: SKU WLONONWCRAYW1, EAN 6939554950858, MPN 1.0.01.25.11198.
-
TypeBasic access control reader
-
BrandDahua
-
ModelASR2101A (DH.AS.210.1A)
-
Authentication typeAccess chip/card, Password (PIN)
-
Access chip/card readerYes
-
Keypad integratedYes
-
Keypad number of keys12
-
Fingerprint readerNo
-
BuzzerYes
-
Wiegand interfaceYes
-
RS-485 ports1
-
Tamper protectionYes
-
Input voltage12 V
-
Input current0.5 A
-
Power consumption (typical)0.9 W
-
Power consumption (max)1.7 W
-
Operating temperature-30 - 70 °C
-
Operating relative humidity5 - 95%
-
International Protection (IP) codeIP66
-
Dimensions (HxWxD)123 x 86 x 15 mm
-
Height123 mm
-
Width86 mm
-
Depth15 mm
-
Built-in displayNo
-
Front cameraNo
-
Package dimensions (W x D x H)185 x 163 x 71 mm
-
Package width185 mm
-
Package depth163 mm
-
Package height71 mm
-
EAN6939554950858
-
MPN1.0.01.25.11198
-
SKUWLONONWCRAYW1
Ratings
Description
The Dahua ASR2101A is a basic access control reader with a built-in 12-key keypad and card reader, supporting authentication via access card/chip and password (PIN). It features a buzzer, Wiegand interface, RS-485 port and tamper protection. Rated IP66 for outdoor use, powered by 12 V (0.5 A), with typical power consumption 0.9 W and max 1.7 W. Operating range: -30 to 70 °C and 5–95% relative humidity. Device dimensions: 123 x 86 x 15 mm. Identifiers: SKU WLONONWCRAYW1, EAN 6939554950858, MPN 1.0.01.25.11198.
Technical Specifications
-
TypeBasic access control reader
-
BrandDahua
-
ModelASR2101A (DH.AS.210.1A)
-
Authentication typeAccess chip/card, Password (PIN)
-
Access chip/card readerYes
-
Keypad integratedYes
-
Keypad number of keys12
-
Fingerprint readerNo
-
BuzzerYes
-
Wiegand interfaceYes
-
RS-485 ports1
-
Tamper protectionYes
-
Input voltage12 V
-
Input current0.5 A
-
Power consumption (typical)0.9 W
-
Power consumption (max)1.7 W
-
Operating temperature-30 - 70 °C
-
Operating relative humidity5 - 95%
-
International Protection (IP) codeIP66
-
Dimensions (HxWxD)123 x 86 x 15 mm
-
Height123 mm
-
Width86 mm
-
Depth15 mm
-
Built-in displayNo
-
Front cameraNo
-
Package dimensions (W x D x H)185 x 163 x 71 mm
-
Package width185 mm
-
Package depth163 mm
-
Package height71 mm
-
EAN6939554950858
-
MPN1.0.01.25.11198
-
SKUWLONONWCRAYW1
