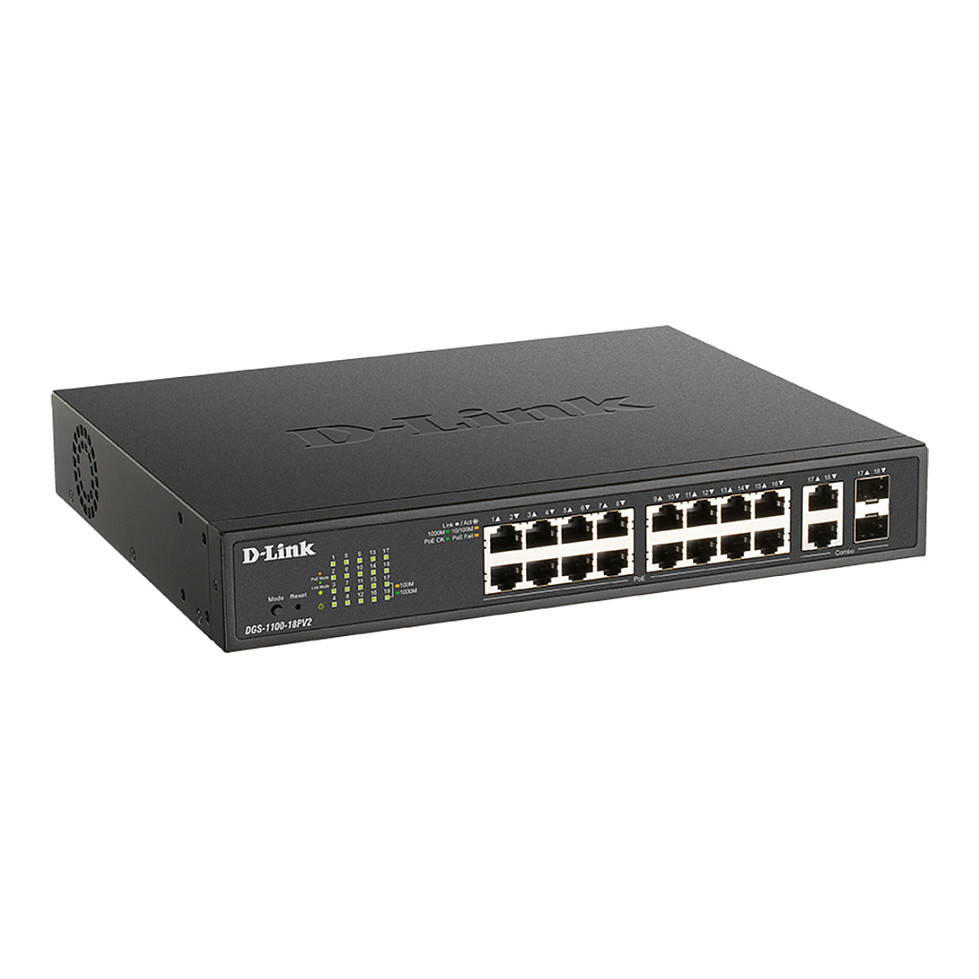

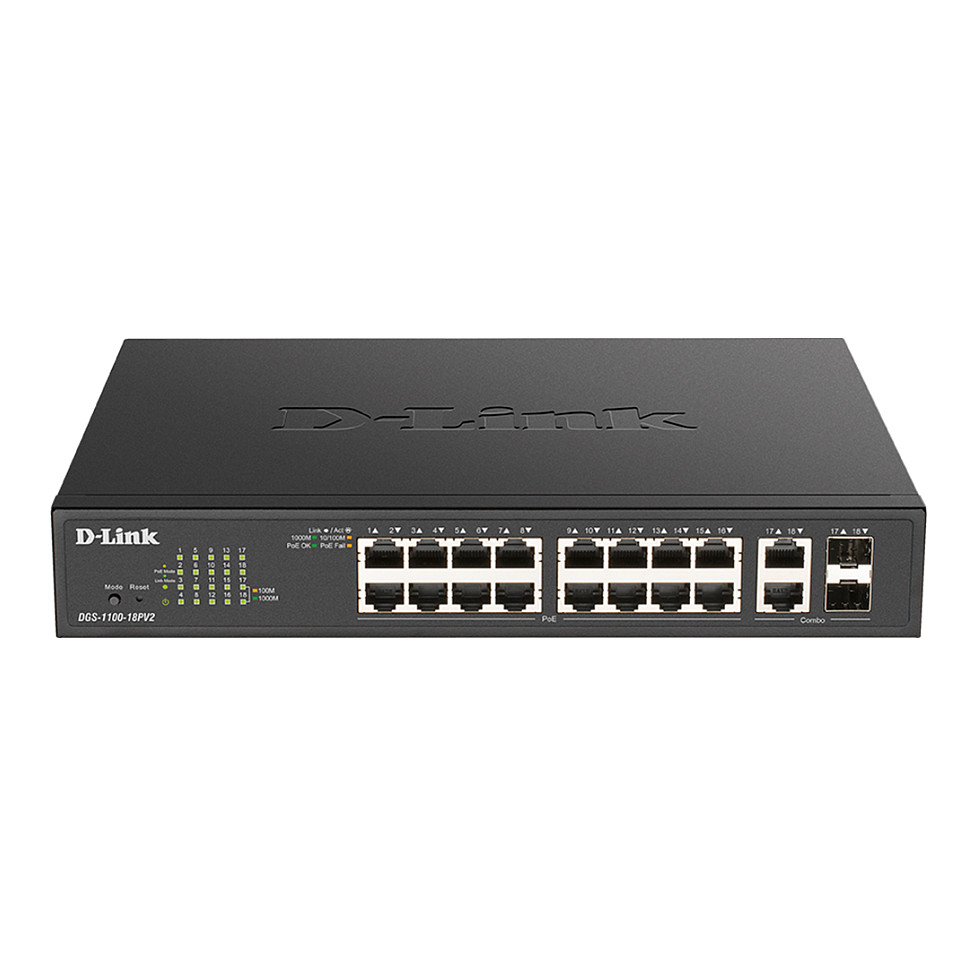

D-Link DGS-1100-18PV2 18-Port PoE+ Gigabit Smart Managed Switch

Description

Technical Specifications

• Brand
  D-Link
• Model
  DGS-1100-18PV2
• MPN
  DGS-1100-18PV2
• SKU
  21162041
• EAN / Barcode
  0790069453366
• Product Type
  Layer 2 Smart Managed Gigabit Switch
• Total Ports
  18
• Copper Ports
  16 x 10/100/1000BASE-T PoE+ ports
• Uplink Ports
  2 x RJ45/SFP combo ports
• PoE Standards
  IEEE 802.3af, IEEE 802.3at (PoE+)
• Max PoE per Port
  30 W
• Total PoE Budget
  130 W
• Switching Capacity
  36 Gbps
• Forwarding Rate
  26.78 Mpps
• Jumbo Frame Support
  9,216 bytes
• MAC Address Table
  (not explicitly specified in available sources)

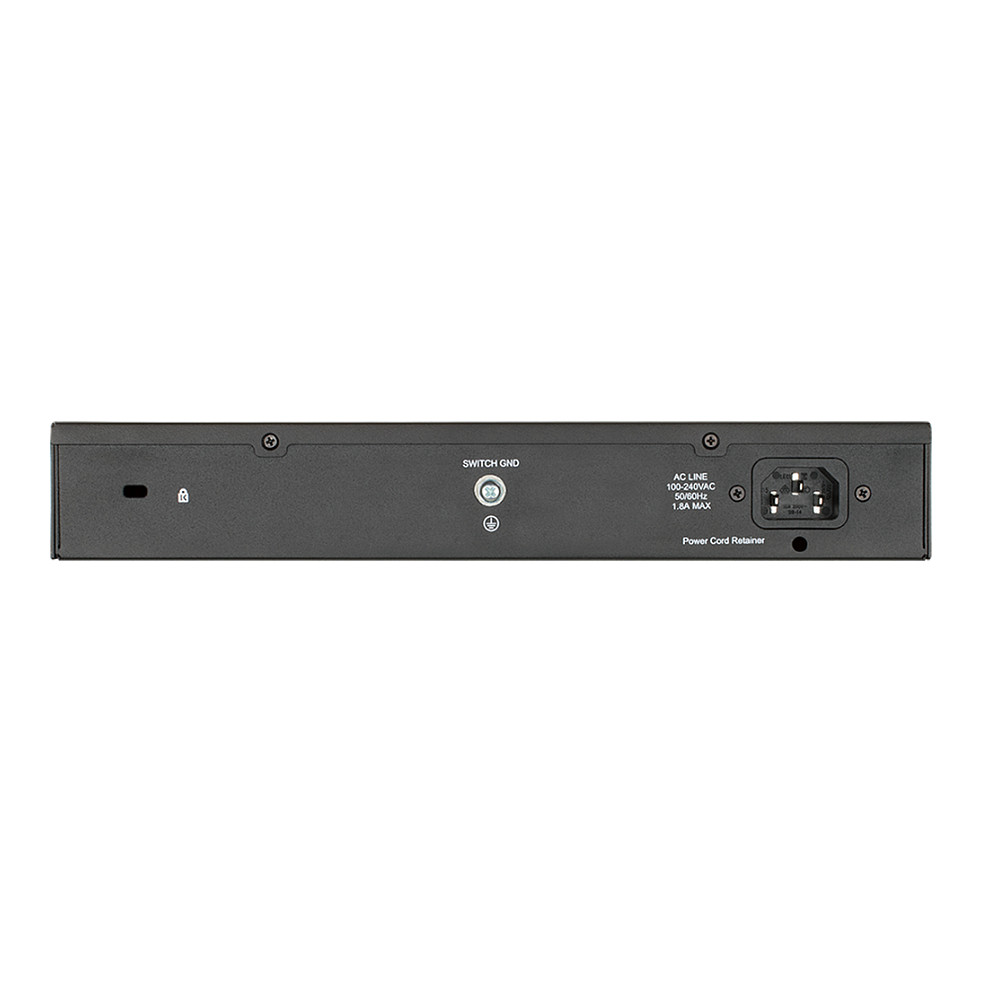

• Power Input
  AC 100-240 V
• Power Consumption (max)
  168 W
• Cooling
  Fixed fan
• Dimensions (W x D x H)
  280 x 230 x 44 mm
• Product Weight
  2.10 kg
• Operating Temperature Range
  -5 to 50 °C
• Management Interfaces
  Web-based GUI, D-Link Network Assistant (client utility)
• VLAN Support
  802.1Q VLAN, port-based VLAN, Surveillance VLAN, Voice VLAN
• QoS
  Bandwidth Control, priority queuing and QoS features
• Multicast
  IGMP Snooping
• Security / Control
  Static MAC, Storm Control, Loopback Detection
• Troubleshooting Tools
  Cable Diagnostics, Loopback Detection
• Energy Efficiency
  IEEE 802.3az (Energy Efficient Ethernet), D-Link Green features
• Certifications / Compliance
  FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, cUL, UL, LVD, CB
• Target Use
  Small/medium business networks, IP surveillance, VoIP deployments
