The Cudy GS1016L v1 is an unmanaged Layer 2 switch featuring 16 Gigabit RJ-45 ports (10/100/1000 Mbps). It provides a switching capacity of 32 Gbit/s, a throughput of 23.808 Mpps, a MAC address table of 8192 entries and a 4 MB packet buffer. The switch supports store-and-forward forwarding, jumbo...
More

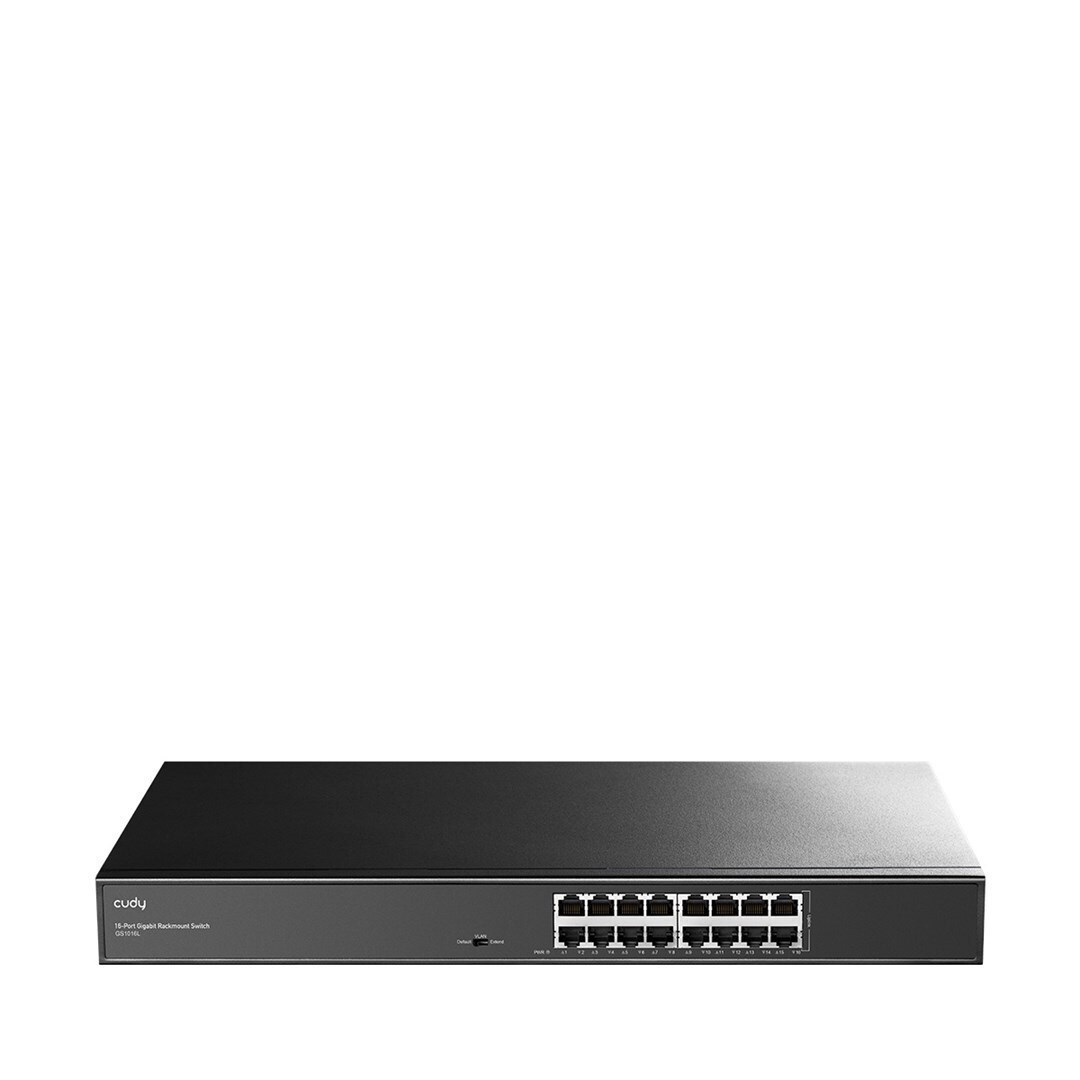

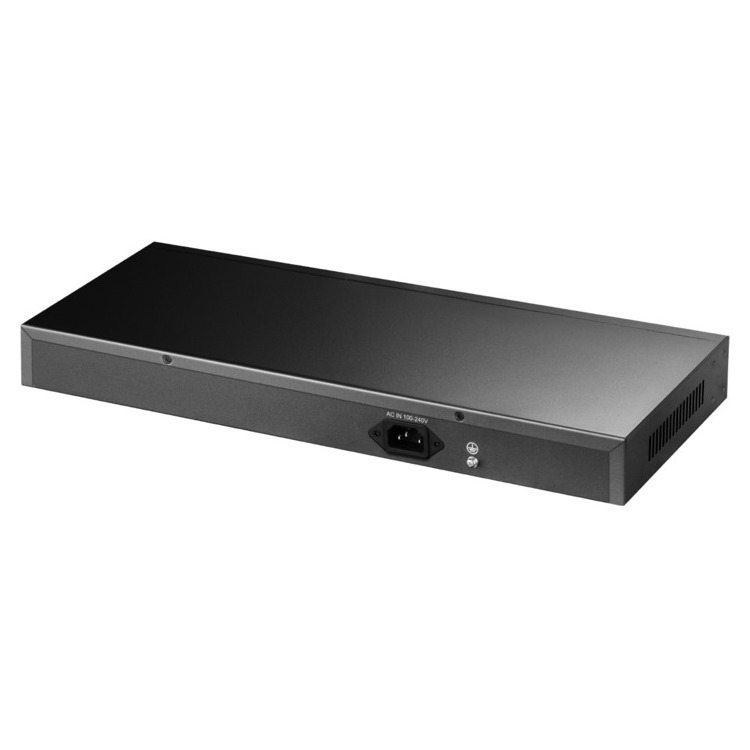

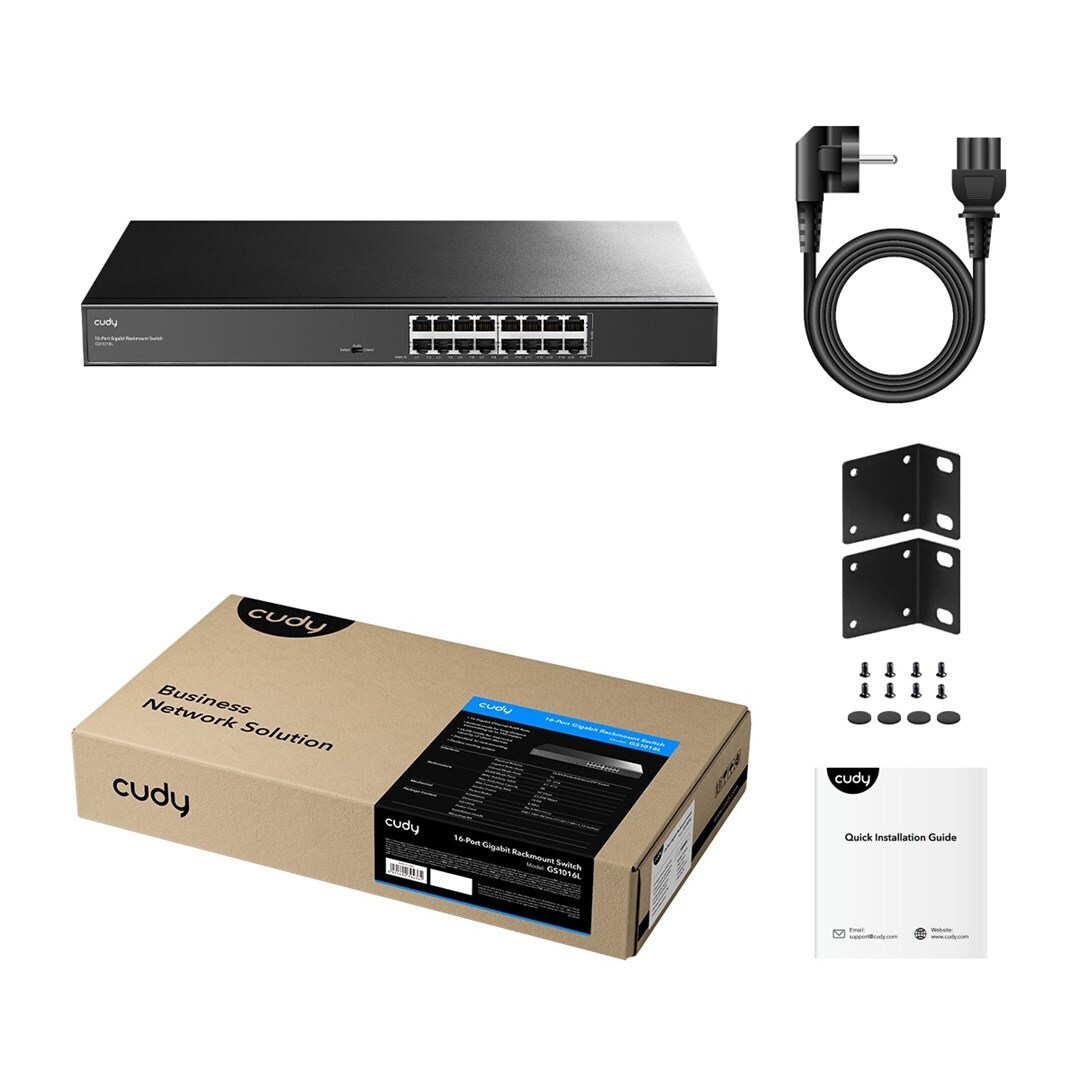

Cudy GS1016L v1 Unmanaged L2 Switch, 16-Port Gigabit Ethernet (10/100/1000 Mbps)
Product Code: 1127679976
Available in 4 - 10 days
77,08 €
or
2,41€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Cudy GS1016L v1 is an unmanaged Layer 2 switch featuring 16 Gigabit RJ-45 ports (10/100/1000 Mbps). It provides a switching capacity of 32 Gbit/s, a throughput of 23.808 Mpps, a MAC address table of 8192 entries and a 4 MB packet buffer. The switch supports store-and-forward forwarding, jumbo frames (value listed: 15), auto MDI/MDI-X and auto-negotiation. Designed for rack mounting, the unit is powered by an included AC power supply (100–240 V) with typical power consumption of 15 W. Operating temperature range 0–40 °C and humidity 10–85%. Physical dimensions: 440 x 44 x 180 mm, weight 1.6 kg. Ideal for small-to-medium business and professional networks requiring multiple Gigabit ports.
-
Product TypeUnmanaged
-
Network LayerL2
-
PoENo
-
Ethernet Ports (RJ-45)16
-
Port Speed1000 Mbps (Gigabit)
-
Ethernet LAN Data Rates10/100/1000 Mbit/s
-
Copper Ethernet Ports Quantity16
-
Copper Ethernet Cabling Technology10BASE-T, 100BASE-TX, 1000BASE-T
-
Switching Capacity32 Gbit/s
-
Throughput23.808 Mpps
-
MAC Address Table8192 entries
-
Packet Buffer Memory4 MB
-
Store-and-forwardYes
-
Jumbo Frames SupportYes (value listed: 15)
-
Auto MDI/MDI-XYes
-
Auto-negotiationYes
-
Supported Cable TypesCat3, Cat4, Cat5, Cat5e, Cat6
-
Networking StandardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3u
-
Rack MountingYes
-
Power SourceAC
-
Power Supply IncludedYes
-
AC Input Voltage100 - 240 V
-
Power Consumption (Typical)15 W
-
ColourBlack
-
Dimensions (W x H x D)440 x 44 x 180 mm
-
Product Weight1.6 kg
-
Package Weight2.28 kg
-
Package Dimensions (W x H x D)48.7 x 8.4 x 26.7 cm
-
Operating Temperature0 - 40 °C
-
Storage Temperature-40 - 70 °C
-
Operating Relative Humidity10 - 85%
-
Storage Relative Humidity5 - 85%
-
Transmission Distance (max)0.1 km
-
Model Number (MPN)GS1016L
-
EAN6971690794361
-
SKUWLONONWCRPBSB
Ratings
Description
The Cudy GS1016L v1 is an unmanaged Layer 2 switch featuring 16 Gigabit RJ-45 ports (10/100/1000 Mbps). It provides a switching capacity of 32 Gbit/s, a throughput of 23.808 Mpps, a MAC address table of 8192 entries and a 4 MB packet buffer. The switch supports store-and-forward forwarding, jumbo frames (value listed: 15), auto MDI/MDI-X and auto-negotiation. Designed for rack mounting, the unit is powered by an included AC power supply (100–240 V) with typical power consumption of 15 W. Operating temperature range 0–40 °C and humidity 10–85%. Physical dimensions: 440 x 44 x 180 mm, weight 1.6 kg. Ideal for small-to-medium business and professional networks requiring multiple Gigabit ports.
Technical Specifications
-
Product TypeUnmanaged
-
Network LayerL2
-
PoENo
-
Ethernet Ports (RJ-45)16
-
Port Speed1000 Mbps (Gigabit)
-
Ethernet LAN Data Rates10/100/1000 Mbit/s
-
Copper Ethernet Ports Quantity16
-
Copper Ethernet Cabling Technology10BASE-T, 100BASE-TX, 1000BASE-T
-
Switching Capacity32 Gbit/s
-
Throughput23.808 Mpps
-
MAC Address Table8192 entries
-
Packet Buffer Memory4 MB
-
Store-and-forwardYes
-
Jumbo Frames SupportYes (value listed: 15)
-
Auto MDI/MDI-XYes
-
Auto-negotiationYes
-
Supported Cable TypesCat3, Cat4, Cat5, Cat5e, Cat6
-
Networking StandardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3u
-
Rack MountingYes
-
Power SourceAC
-
Power Supply IncludedYes
-
AC Input Voltage100 - 240 V
-
Power Consumption (Typical)15 W
-
ColourBlack
-
Dimensions (W x H x D)440 x 44 x 180 mm
-
Product Weight1.6 kg
-
Package Weight2.28 kg
-
Package Dimensions (W x H x D)48.7 x 8.4 x 26.7 cm
-
Operating Temperature0 - 40 °C
-
Storage Temperature-40 - 70 °C
-
Operating Relative Humidity10 - 85%
-
Storage Relative Humidity5 - 85%
-
Transmission Distance (max)0.1 km
-
Model Number (MPN)GS1016L
-
EAN6971690794361
-
SKUWLONONWCRPBSB
