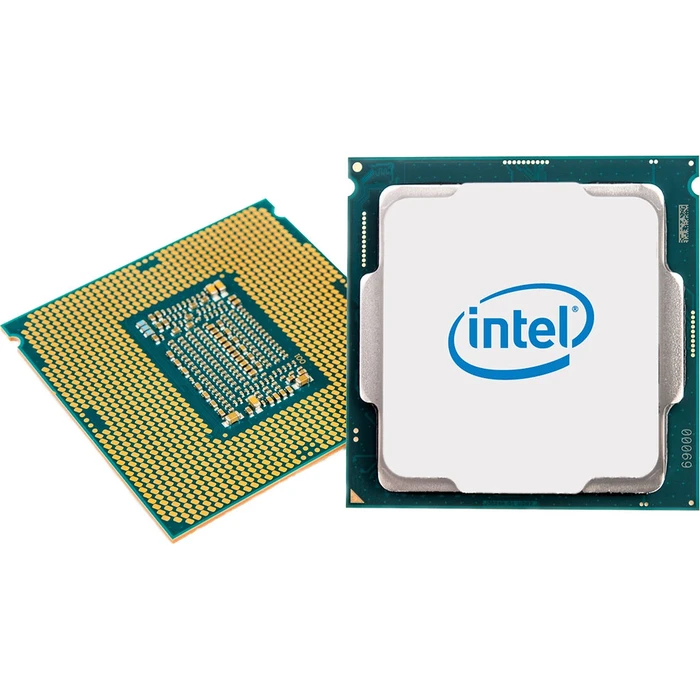

The Intel Core i5-13400F is a powerful and efficient 13th generation desktop processor designed to enhance both productivity and gaming experiences.

Processor Overview

This processor features 10 cores and 16 threads, operating at a base clock speed of 2.5 GHz and can boost up to 4.6 GHz depending on workload demands. Built on Intel's advanced 10nm process technology, it is part of the Raptor Lake-S generation.

Hybrid Core Architecture

The Core i5-13400F utilizes Intel's Hybrid Core architecture, combining:

• 6 Performance-cores (P-Cores) for intensive applications
• 4 Efficient-cores (E-Cores) for background tasks

This design allows for intelligent workload distribution through the built-in Intel Thread Director.

Cache and Memory

With a total of 20 MB of cache, including shared L3 cache, it supports dual-channel DDR5 memory up to 4800 MHz and offers compatibility with DDR4 memory up to 3200 MT/s.

Graphics and Expansion

The Intel Core i5-13400F does not feature integrated graphics, requiring users to use a separate dedicated graphics card. It supports PCI Express 5.0 with 16 lanes for multiple expansion options.

Thermal Design and Power

This processor has a TDP of 65W and operates effectively under temperatures with a maximum junction temperature of 100°C.

Additional Features

• Intel Thread Director: Efficient workload management
• Dual-Channel DDR5/DDR4 Memory: Flexibility in memory options
• 3-Year Warranty: Standard backing from Intel

In summary, the Intel Core i5-13400F is an excellent choice for desktop users requiring both power and efficiency.
