The HPE Aruba J9054C Compatible SFP is a third-party compatible optical transceiver module designed for 100Base-FX Ethernet networking over multimode fiber. It operates at 1310nm and supports distances up to 2 km using a duplex LC connector. The module is MSA compliant, hot-swappable, and supports...
More
Converters and Adapters HPE Aruba J9054C Compatible SFP 1310nm MMF 2km LC
Product Code: 1200657851
Available in 4 - 10 days
89,04 €
or
2,78€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

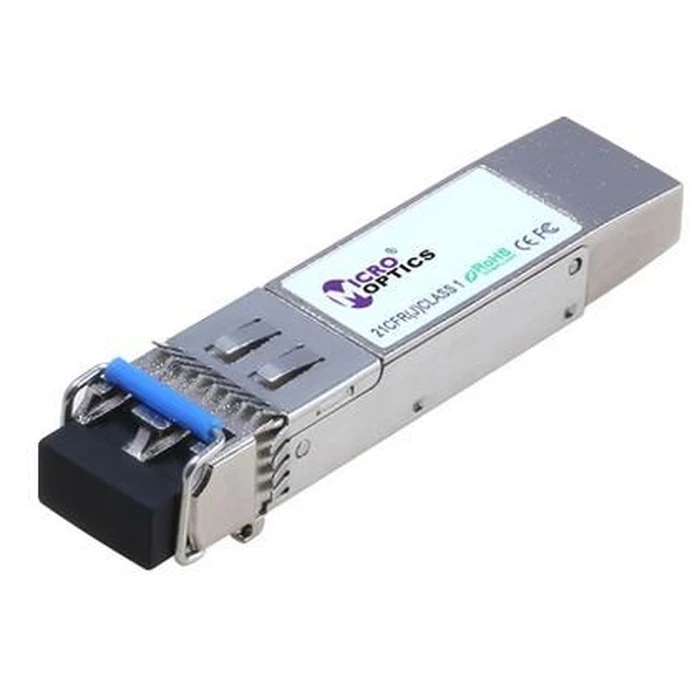

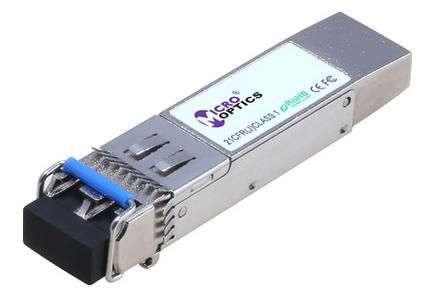

The HPE Aruba J9054C Compatible SFP is a third-party compatible optical transceiver module designed for 100Base-FX Ethernet networking over multimode fiber. It operates at 1310nm and supports distances up to 2 km using a duplex LC connector. The module is MSA compliant, hot-swappable, and supports DDM/DOM diagnostic monitoring. It is compatible with HPE Aruba and HP ProCurve platforms, including selected 2930F and 2920 switch series. The transceiver uses a high-quality FP laser transmitter and a 1310nm PIN photodiode receiver, with typical operating temperature from 0°C to 70°C. This compact module is intended for reliable short-range multimode fiber connectivity in enterprise networks.
-
Product TypeSFP Optical Transceiver Module
-
CompatibilityHPE Aruba, HP ProCurve
-
SKUMO-J9054C
-
MPNMO-J9054C
-
EAN5711783248590
-
Network Type100Base-FX
-
Form FactorSFP
-
Media TypeMultimode Fiber (MMF)
-
Fiber Type62.5/125 µm or 50/125 µm graded-index
-
Fiber CountDuplex
-
Connector TypeDual LC/UPC
-
Wavelength1310 nm
-
Maximum Distance2 km
-
Supported Data Rates0.1 Gbps to 0.155 Gbps
-
Guaranteed Link Budget11 dB
-
Minimum Transmit Power-19 dBm
-
Maximum Transmit Power-14 dBm
-
Receiver Sensitivity-30 dBm
-
Transmitter TypeFP Laser
-
Receiver Type1310 nm PIN Photodiode
-
DDM/DOMSupported
-
Hot SwappableYes
-
ComplianceMSA compliant
-
Temperature Range0°C to 70°C
-
Compatible Switch SeriesAruba 2930F, Aruba 2920, HP ProCurve selected models
-
Product Dimensions0.3 x 0.5 x 2.2 inches
-
Product Weight0.15 lbs
Ratings
Description
The HPE Aruba J9054C Compatible SFP is a third-party compatible optical transceiver module designed for 100Base-FX Ethernet networking over multimode fiber. It operates at 1310nm and supports distances up to 2 km using a duplex LC connector. The module is MSA compliant, hot-swappable, and supports DDM/DOM diagnostic monitoring. It is compatible with HPE Aruba and HP ProCurve platforms, including selected 2930F and 2920 switch series. The transceiver uses a high-quality FP laser transmitter and a 1310nm PIN photodiode receiver, with typical operating temperature from 0°C to 70°C. This compact module is intended for reliable short-range multimode fiber connectivity in enterprise networks.
Technical Specifications
-
Product TypeSFP Optical Transceiver Module
-
CompatibilityHPE Aruba, HP ProCurve
-
SKUMO-J9054C
-
MPNMO-J9054C
-
EAN5711783248590
-
Network Type100Base-FX
-
Form FactorSFP
-
Media TypeMultimode Fiber (MMF)
-
Fiber Type62.5/125 µm or 50/125 µm graded-index
-
Fiber CountDuplex
-
Connector TypeDual LC/UPC
-
Wavelength1310 nm
-
Maximum Distance2 km
-
Supported Data Rates0.1 Gbps to 0.155 Gbps
-
Guaranteed Link Budget11 dB
-
Minimum Transmit Power-19 dBm
-
Maximum Transmit Power-14 dBm
-
Receiver Sensitivity-30 dBm
-
Transmitter TypeFP Laser
-
Receiver Type1310 nm PIN Photodiode
-
DDM/DOMSupported
-
Hot SwappableYes
-
ComplianceMSA compliant
-
Temperature Range0°C to 70°C
-
Compatible Switch SeriesAruba 2930F, Aruba 2920, HP ProCurve selected models
-
Product Dimensions0.3 x 0.5 x 2.2 inches
-
Product Weight0.15 lbs
