The ELECTRA-S-SFP-L is a Small Form Factor LC Duplex Pluggable SFP transceiver for Gigabit Ethernet network links. It is a hot pluggable optical transceiver module using an LC duplex connector and conforms to the SFP MSA standard INF 8074i. The module supports data rates from 1 to 4 Gbps and is...
More

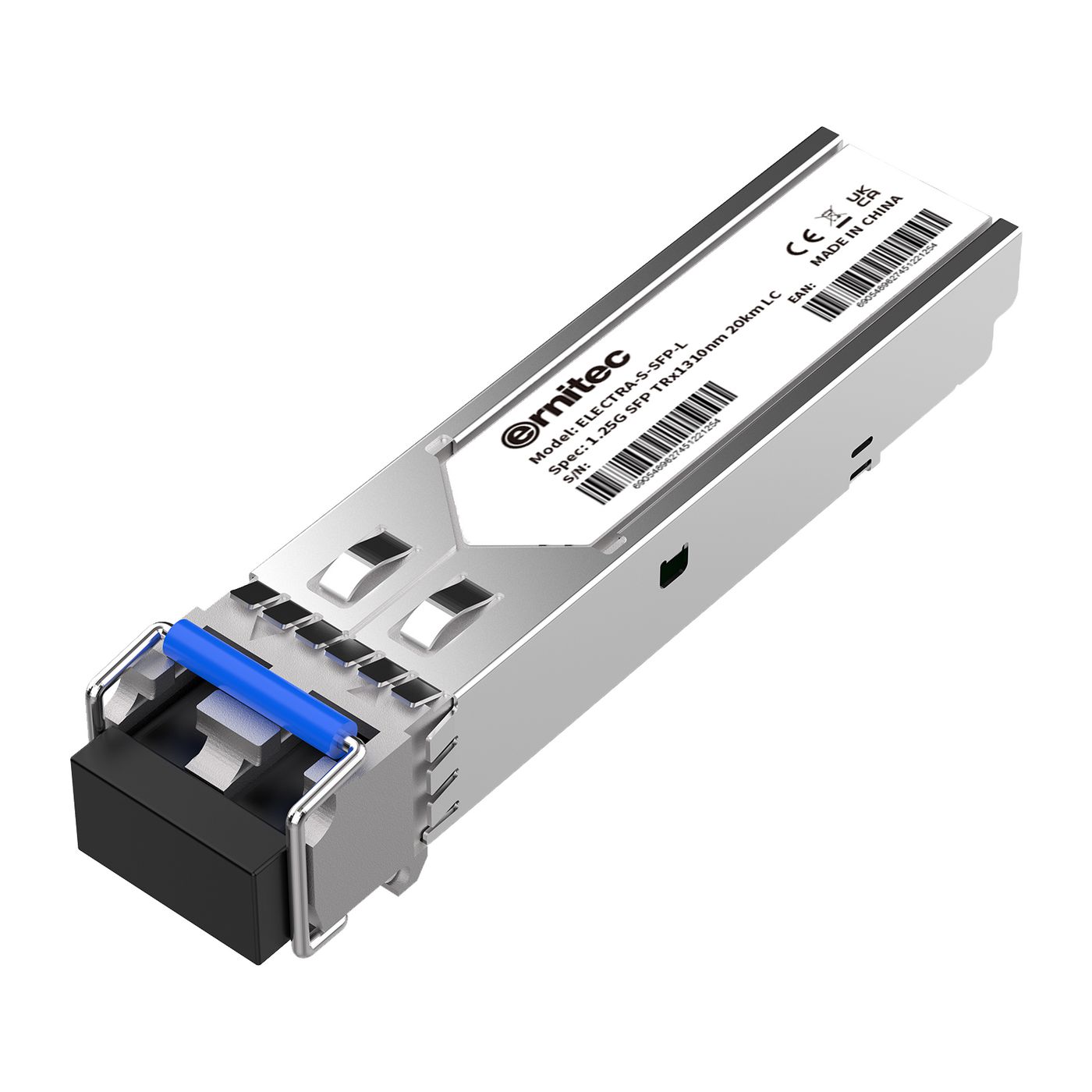

Converters Adapters Small Form Factor LC Duplex Pluggable SFP transceiver
Product Code: 1200653997
Available in 4 - 10 days
12,16 €
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The ELECTRA-S-SFP-L is a Small Form Factor LC Duplex Pluggable SFP transceiver for Gigabit Ethernet network links. It is a hot pluggable optical transceiver module using an LC duplex connector and conforms to the SFP MSA standard INF 8074i. The module supports data rates from 1 to 4 Gbps and is suitable for 1000BASE SX and 1000BASE LX type applications depending on the optical variant and wavelength. It uses the SFF 8472 MSA electrical interface with I2C at 100 kHz and 400 kHz, LOS indication with TTL logic, and AC coupled differential Tx inputs with 100 ohm termination. Power is supplied at 3.3 V with typical consumption around 0.5 to 1.0 W. Typical reach ranges from 300 m on OM3 multimode up to 10 km on single mode fiber, depending on variant. Identifiers include SKU ELECTRA-S-SFP-L, MPN ELECTRA-S-SFP-L, and EAN 5711783178071. No specific brand could be confirmed from the available information.
-
Product TypeSFP transceiver
-
Form FactorSmall Form Factor Pluggable
-
Connector TypeLC duplex
-
Hot PluggableYes
-
Data Rate1 to 4 Gbps
-
Ethernet StandardGigabit Ethernet
-
ComplianceSFP MSA INF 8074i
-
Electrical InterfaceSFF 8472 MSA
-
I2C Interface100 kHz / 400 kHz
-
LOS SignalTTL logic
-
Tx Input TypeAC coupled differential
-
Tx Termination100 ohm
-
Acceptable Differential Swing500 to 2400 mV
-
Recommended Differential Swing500 to 1200 mV
-
Supply Voltage3.3 V ±5%
-
Typical Power Consumption0.5 to 1.0 W
-
Digital Diagnostics MonitoringOptional or standard depending on variant
-
Typical Reach300 m OM3 multimode to 10 km single mode depending on variant
-
Example Wavelengths850 nm 1310 nm 1550 nm depending on variant
-
Retention Cycles50 insertion and removal cycles
-
Transceiver Retention Force11.5 to 90 N
-
Cage Retention ForceUp to 180 N
-
Kickout Spring Force11.5 to 22 N
-
Commercial Temperature Range0 to 70 C typical
-
Extended Temperature Range40 to 85 C or 10 to 85 C depending on variant
-
ModelELECTRA-S-SFP-L
-
SKUELECTRA-S-SFP-L
-
MPNELECTRA-S-SFP-L
-
EAN5711783178071
Ratings
Description
The ELECTRA-S-SFP-L is a Small Form Factor LC Duplex Pluggable SFP transceiver for Gigabit Ethernet network links. It is a hot pluggable optical transceiver module using an LC duplex connector and conforms to the SFP MSA standard INF 8074i. The module supports data rates from 1 to 4 Gbps and is suitable for 1000BASE SX and 1000BASE LX type applications depending on the optical variant and wavelength. It uses the SFF 8472 MSA electrical interface with I2C at 100 kHz and 400 kHz, LOS indication with TTL logic, and AC coupled differential Tx inputs with 100 ohm termination. Power is supplied at 3.3 V with typical consumption around 0.5 to 1.0 W. Typical reach ranges from 300 m on OM3 multimode up to 10 km on single mode fiber, depending on variant. Identifiers include SKU ELECTRA-S-SFP-L, MPN ELECTRA-S-SFP-L, and EAN 5711783178071. No specific brand could be confirmed from the available information.
Technical Specifications
-
Product TypeSFP transceiver
-
Form FactorSmall Form Factor Pluggable
-
Connector TypeLC duplex
-
Hot PluggableYes
-
Data Rate1 to 4 Gbps
-
Ethernet StandardGigabit Ethernet
-
ComplianceSFP MSA INF 8074i
-
Electrical InterfaceSFF 8472 MSA
-
I2C Interface100 kHz / 400 kHz
-
LOS SignalTTL logic
-
Tx Input TypeAC coupled differential
-
Tx Termination100 ohm
-
Acceptable Differential Swing500 to 2400 mV
-
Recommended Differential Swing500 to 1200 mV
-
Supply Voltage3.3 V ±5%
-
Typical Power Consumption0.5 to 1.0 W
-
Digital Diagnostics MonitoringOptional or standard depending on variant
-
Typical Reach300 m OM3 multimode to 10 km single mode depending on variant
-
Example Wavelengths850 nm 1310 nm 1550 nm depending on variant
-
Retention Cycles50 insertion and removal cycles
-
Transceiver Retention Force11.5 to 90 N
-
Cage Retention ForceUp to 180 N
-
Kickout Spring Force11.5 to 22 N
-
Commercial Temperature Range0 to 70 C typical
-
Extended Temperature Range40 to 85 C or 10 to 85 C depending on variant
-
ModelELECTRA-S-SFP-L
-
SKUELECTRA-S-SFP-L
-
MPNELECTRA-S-SFP-L
-
EAN5711783178071
