Converter Planet 10/100Base-TX to100Base-FX PoE (Multi-mode, 2km)
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT
Converter Planet 10/100TX - 100Base-FX (SC) Single Mode Bridge Fiber

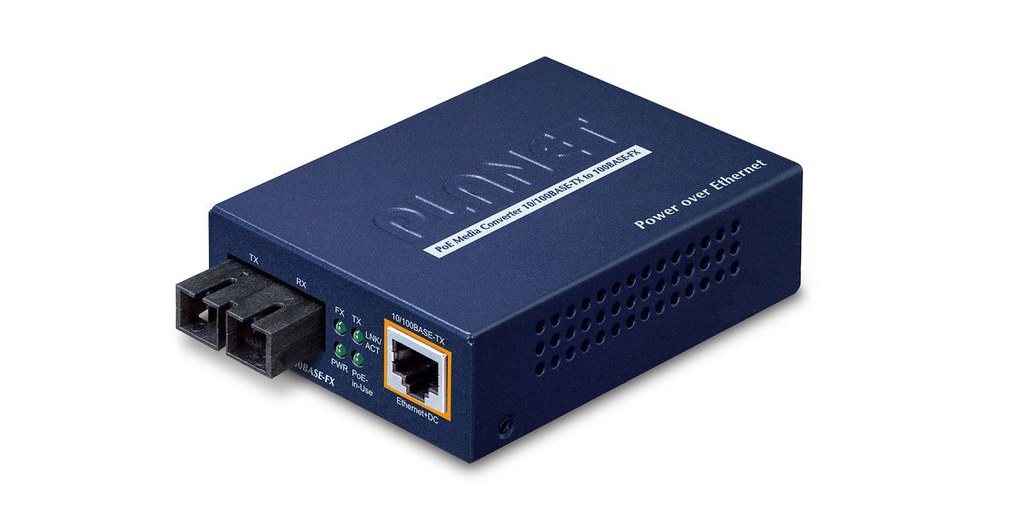

The Planet FTP-802 is a high-performance PoE (Power over Ethernet) media converter that serves as a vital connection between copper and fiber optic networks. By converting 10/100Base-TX (twisted-pair) signals into 100Base-FX (fiber optic), it provides seamless connectivity and enables users to extend their network reach.
This converter is ideal for deploying remote PoE-powered devices such as wireless access points or IP cameras. With its ability to manage long-distance and reliable data transmission, it simplifies installations in challenging environments.
Key Features:
- Media Conversion: Ports support conversion between 10/100Base-TX and 100Base-FX.
- PoE Injector: Delivers up to 48V DC power, compliant with IEEE 802.3af.
- Extended Range: Operates up to 2 km with multi-mode fiber.
- Plug-and-Play: Auto-negotiation ensures easy installation.
- Reliability: Store-and-forward technology minimizes packet loss.
- Link Fault Pass-Through: Monitors link status in real-time.
- Compact Design: Suitable for tight mounting spaces.
-
ModelFTP-802
-
Media Conversion10/100Base-TX ↔ 100Base-FX
-
Fiber TypeMulti-mode (50/125μm or 62.5/125μm)
-
Fiber DistanceUp to 2 km
-
Fiber ConnectorSC
-
Wavelength1310 nm
-
Copper Port1 x RJ-45 (10/100Base-TX, auto-negotiation, auto-MDI/MDI-X)
-
PoE StandardIEEE 802.3af (PoE Injector, 48V DC)
-
Data Rate10/100 Mbps (copper), 100 Mbps (fiber)
-
Duplex ModeFull/Half-duplex (auto-negotiation)
-
Flow ControlIEEE 802.3x (full-duplex)
-
LED IndicatorsPWR, FX LNK/ACT, TX LNK/ACT, PoE in Use
-
Operating Temperature0°C to 40°C
-
Storage Temperature-20°C to 70°C
-
Humidity10% to 90% (non-condensing)
-
Power SupplyExternal adapter (typically 5V DC, 2A)
-
Dimensions (H x W x D)26 x 70 x 97 mm
-
Weight (Net)Approximately 0.2 kg (0.44 lbs)
Ratings
Description
The Planet FTP-802 is a high-performance PoE (Power over Ethernet) media converter that serves as a vital connection between copper and fiber optic networks. By converting 10/100Base-TX (twisted-pair) signals into 100Base-FX (fiber optic), it provides seamless connectivity and enables users to extend their network reach.
This converter is ideal for deploying remote PoE-powered devices such as wireless access points or IP cameras. With its ability to manage long-distance and reliable data transmission, it simplifies installations in challenging environments.
Key Features:
- Media Conversion: Ports support conversion between 10/100Base-TX and 100Base-FX.
- PoE Injector: Delivers up to 48V DC power, compliant with IEEE 802.3af.
- Extended Range: Operates up to 2 km with multi-mode fiber.
- Plug-and-Play: Auto-negotiation ensures easy installation.
- Reliability: Store-and-forward technology minimizes packet loss.
- Link Fault Pass-Through: Monitors link status in real-time.
- Compact Design: Suitable for tight mounting spaces.
Technical Specifications
-
ModelFTP-802
-
Media Conversion10/100Base-TX ↔ 100Base-FX
-
Fiber TypeMulti-mode (50/125μm or 62.5/125μm)
-
Fiber DistanceUp to 2 km
-
Fiber ConnectorSC
-
Wavelength1310 nm
-
Copper Port1 x RJ-45 (10/100Base-TX, auto-negotiation, auto-MDI/MDI-X)
-
PoE StandardIEEE 802.3af (PoE Injector, 48V DC)
-
Data Rate10/100 Mbps (copper), 100 Mbps (fiber)
-
Duplex ModeFull/Half-duplex (auto-negotiation)
-
Flow ControlIEEE 802.3x (full-duplex)
-
LED IndicatorsPWR, FX LNK/ACT, TX LNK/ACT, PoE in Use
-
Operating Temperature0°C to 40°C
-
Storage Temperature-20°C to 70°C
-
Humidity10% to 90% (non-condensing)
-
Power SupplyExternal adapter (typically 5V DC, 2A)
-
Dimensions (H x W x D)26 x 70 x 97 mm
-
Weight (Net)Approximately 0.2 kg (0.44 lbs)
