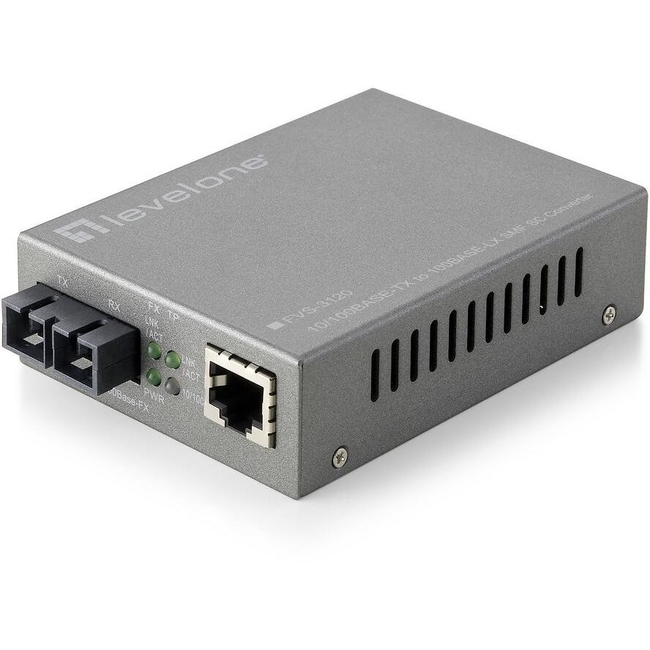

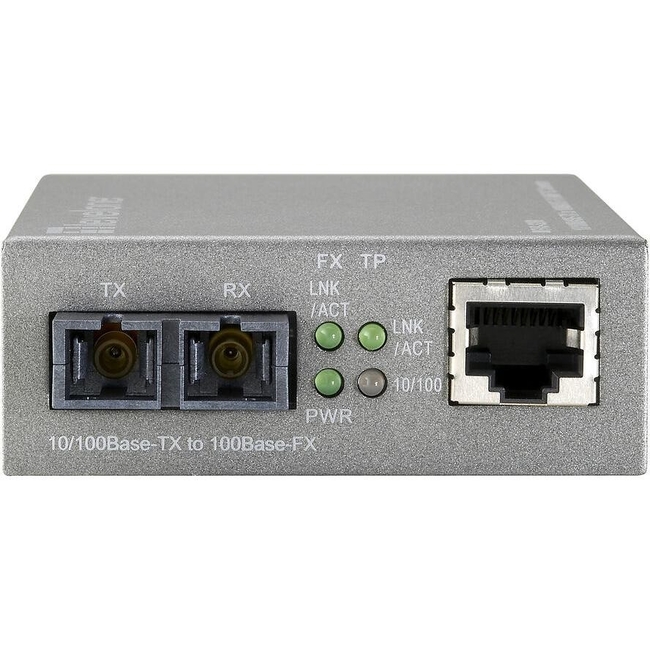

Converter LevelOne FVS-3120 10/100TX>100LX SC SM

Technical Specifications

• input voltage
  5 v
• input current
  1A
• Power consumption (standard operation)
  1.5W
• External power supply
  yes
• Maximum data transfer rate
  100Mbps
• Converter input interface
  10Base-T, 100Base-TX
• Converter output interface
  100Base LX
• mesh standard
  IEEE 802.1Q, IEEE 802.3, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
• Ethernet interfaces type
  Fast Ethernet
• Ethernet LAN data transfer rates
  10,100Mbps
• Jumbo frames support
  yes
• Support data flow control
  yes
• transmission technology
  Wired
• Number of Ethernet LAN ports (RJ-45)
  1
• Number of fiber connectors
  1
• Optical cable connector
  SC
• packaging width
  160mm
• packing depth
  220mm
• packing height
  60mm
• package weight
  460g
• operating temperatur
  0 - 50 °C
• Operating relative humidity
  5 - 90%
• Width
  70.3mm
• depth
  94mm
• Height
  26.2mm
