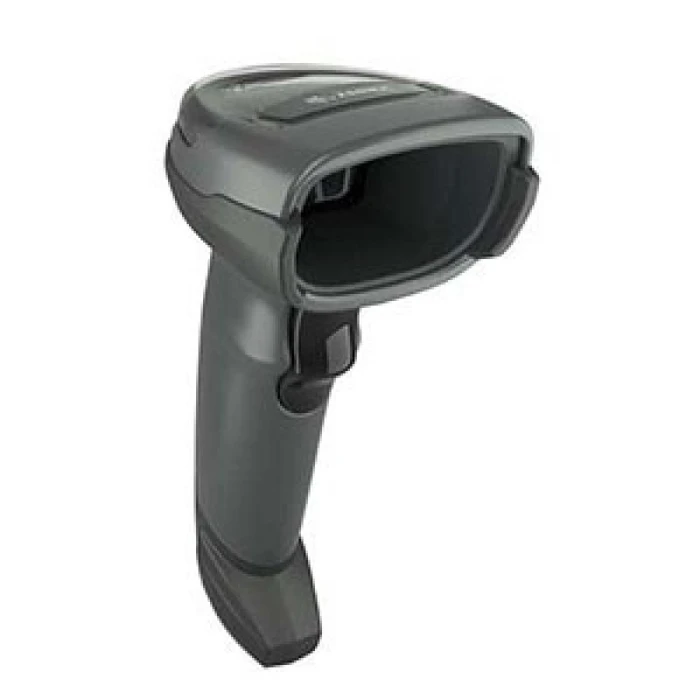

Barcode Scanner Zebra DS4608-SR DS4608SR

Technical Specifications

• Typ
  Barcode scanner - handheld
• colour
  Twilight Black
• interface type
  USB
• Scan-Elementtyp
  2D-Imager
• sensor resolution
  1280 x 800
• wavelength of the light source
  617 nm
• Scanmodus
  Single Pass
• Skew (City)
  60
• Pitch (Grad)
  60
• Print Contrast Signal (PCS)
  15%
• decryption function
  Code 93, Code 39, NW-7, GS1 DataBar, QR-Code, MaxiCode, Aztec-Code, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 von 5, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, Micro QR-Code, DotCode, Composite, Han Xin, Koreaner 3 von 5, Base 32
• TTL Decoding
  decoded
• connection technology
  Wired
• Notification on success
  Beep, LED display
• functions
  Checkpoint Electronic Article Surveillance (EAS)
• interfaces
  1 x USB - Type A
• Accessories included
  lineup
• Cables included
  1 x USB-Kabel - extern - 2.1 m
• Labelling
  EN55024, EN 61000-4-2, IP52, CAN/CSA C22.2 No. 60950-1-07, EN 60950-1 Second Edition, EN 50581:2012, IEC 60950-1:2005, IEC 62471:2006, EN 62471:2008, FCC CFR47 Part 15 B Class B, EN 55032 Class B, IEC 62368-1, ICES-003 issue 6 Class B, EN 60950-1:2006+A2:2013, EN 60601-1-2:2015, EN 62368-1:2014, EN 55035, 2011/65/EU, IEC 60601-1-2:2014
• Required electric power
  340 mA (typical), 150 mA (Standby)
• Broad
  6.7 cm
• depth
  9.8 cm
• Height
  16.5 cm
• weight
  161.9 g
• services and support
  Limited Warranty - 5 Years
• Min operating temperature
  0 °C
• Max operating temperature
  50 °C
• Permissible humidity during operation
  5 - 95% (non-condensing)
• Drop Specification
  1.8 m above concrete floor
