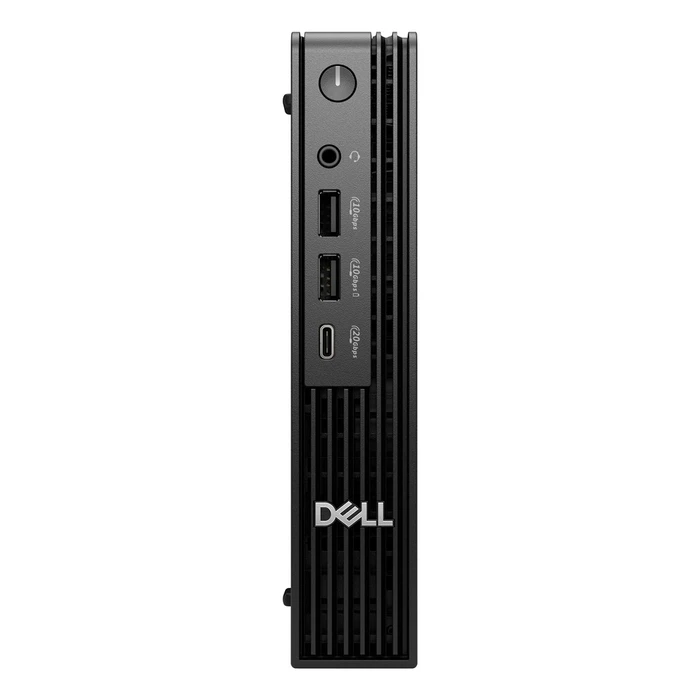

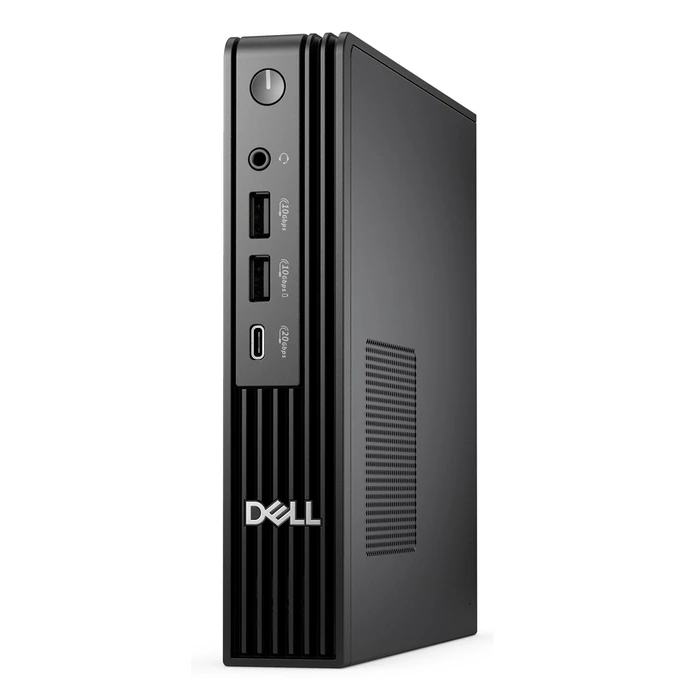

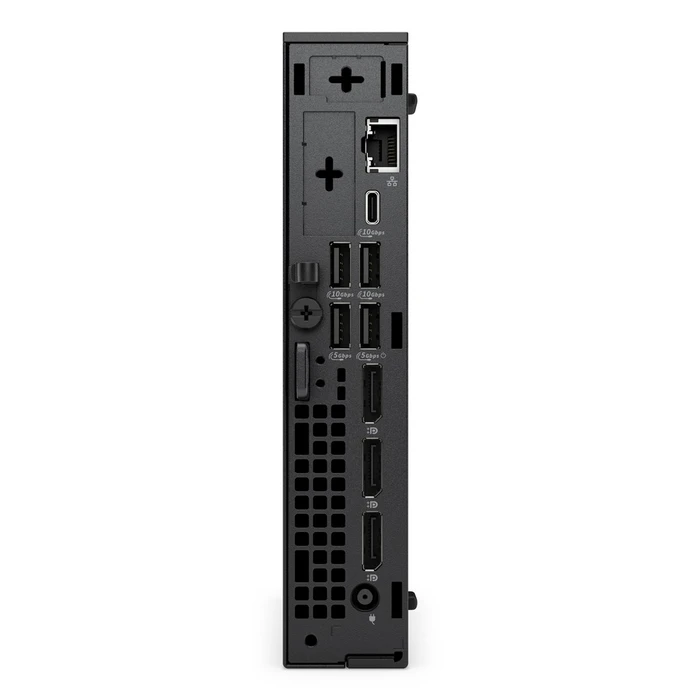

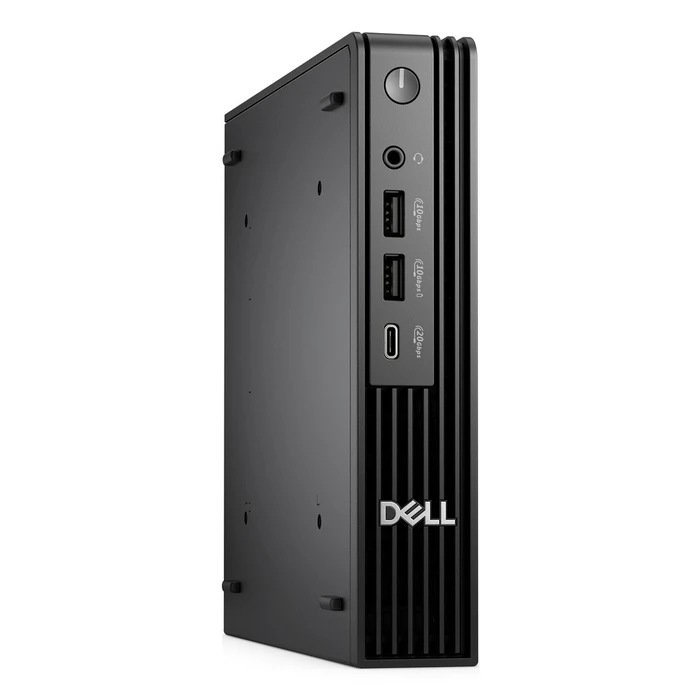

Mini PC Dell Pro QBM1250 Plus Intel Core Ultra 5 235 16GB DDR5-SDRAM 512GB SSD Windows 11 Pro Micro Mini Black

Technical Specifications

• Processor family
  Intel Core Ultra 5
• Processor cache
  24 MB
• Processor model
  235
• Processor cores
  14
• Processor manufacturer
  Intel
• Number of processors installed
  1
• Processor threads
  14
• Processor cache type
  Smart Cache
• Processor boost frequency
  5 GHz
• Efficient-core Max Turbo Frequency
  4.4 GHz
• Performance-core Max Turbo Frequency
  5 GHz
• Processor generation
  Intel Core Ultra (Series 2)
• Efficient cores
  8
• Processor base power
  65 W
• Performance cores
  6
• Performance-core base frequency
  3.4 GHz
• Efficient-core base frequency
  2.9 GHz
• Maximum turbo power
  121 W
• Discrete graphics card model
  Not available
• On-board graphics card
  Yes
• On-board graphics card family
  Intel® Graphics
• On-board graphics card model
  Intel® Graphics
• Discrete graphics card
  No
• On-board GPU manufacturer
  Intel
• Maximum internal memory
  64 GB
• Non-ECC
  Yes
• Memory layout (slots x size)
  1 x 16 GB
• Internal memory
  16 GB
• Memory channels
  Single-channel
• Internal memory type
  DDR5-SDRAM
• Memory slots
  2x SO-DIMM
• Memory data transfer rate
  5600 MT/s
• Product colour
  Black
• Cable lock slot
  Yes
• Placement supported
  Horizontal/Vertical
• Cable lock slot type
  Kensington
• Chassis type
  Micro PC
• Power supply
  180 W
• Power supply input voltage
  100 - 240 V
• Power supply input frequency
  50 / 60 Hz
• Operating relative humidity (H-H)
  20 - 80%
• Storage relative humidity (H-H)
  5 - 95%
• Storage temperature (T-T)
  -40 - 65 °C
• Non-operating altitude
  -15.2 - 10668 m
• Operating temperature (T-T)
  10 - 35 °C
• Operating altitude
  -15.2 - 3048 m
• Non-operating vibration
  1.37 G
• Non-operating shock
  105 G
• Operating shock
  40 G
• Operating vibration
  0.26 G
• Width
  36 mm
• Weight
  1.43 kg
• Depth
  178 mm
• Height
  182 mm
• Ethernet LAN data rates
  10
• Bluetooth
  Yes
• Antenna type
  2x2
• LAN controller
  Intel WGI219LM
• Top Wi-Fi standard
  Wi-Fi 6E (802.11ax)
• Cabling technology
  10/100/1000Base-T(X)
• Wi-Fi standards
  Wi-Fi 4 (802.11n)
• Wi-Fi
  Yes
• Ethernet LAN
  Yes
• WLAN controller model
  Intel Wi-Fi 6E AX211
• WLAN controller manufacturer
  Intel
• Motherboard chipset
  Intel Q870
• Audio chip
  Realtek ALC3204
• Trusted Platform Module (TPM)
  Yes
• Product type
  Mini PC
• Audio system
  High Definition Audio
• Market positioning
  Business
• Trusted Platform Module (TPM) version
  2.0
• Input device model
  Dell Pro Keyboard and Mouse - KM5221W - UK (QWERTY) - Black
• Display included
  No
• Trial software
  McAfee Business Protection 1-year,No Microsoft Office License included (Fed and Premier, Exception Only)
• Operating system installed
  Windows 11 Pro
• Operating system architecture
  64-bit
• Optical drive type
  No
• Number of storage drives installed
  1
• Storage media
  SSD
• Total storage capacity
  512 GB
• SSD capacity
  512 GB
• Total SSDs capacity
  512 GB
• NVMe
  Yes
• SSD interface
  PCI Express 4.0
• SSD form factor
  M.2
• Number of SSDs installed
  1
• SSD memory type
  TLC
• DC-in jack
  Yes
• DisplayPorts quantity
  3
• DisplayPort version
  1.4a
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  4
• Combo headphone/mic port
  Yes
• Ethernet LAN (RJ-45) ports
  1
• Number of rear USB ports
  5
• Number of front audio ports
  1
• Number of front USB ports
  3
• USB 3.2 Gen 2x2 Type-C ports quantity
  1
• Doesn't contain
  PVC/BFR
• Sustainability certificates
  EPEAT Climate +
• Carbon emissions, manufacturing (kg of CO2e)
  45.0306
• Carbon emissions, logistics (kg of CO2e)
  2.2596
• Total carbon footprint (kg of CO2e)
  80.7
• PAIA version
  GaBi version 1, 2024
• Carbon emissions, energy usage (kg of CO2e)
  32.8449
• Carbon emissions, end-of-life (kg of CO2e)
  0.56
• GPU performance up to
  6 TOPs
• Total processor performance up to
  27 TOPs
• AI software frameworks supported by NPU
  Windows ML
• NPU performance up to
  13 TOPs
• Neural processor unit (NPU)
  Intel AI Boost
• Windows Studio effects support
  Yes
• Sparsity support
  Yes
