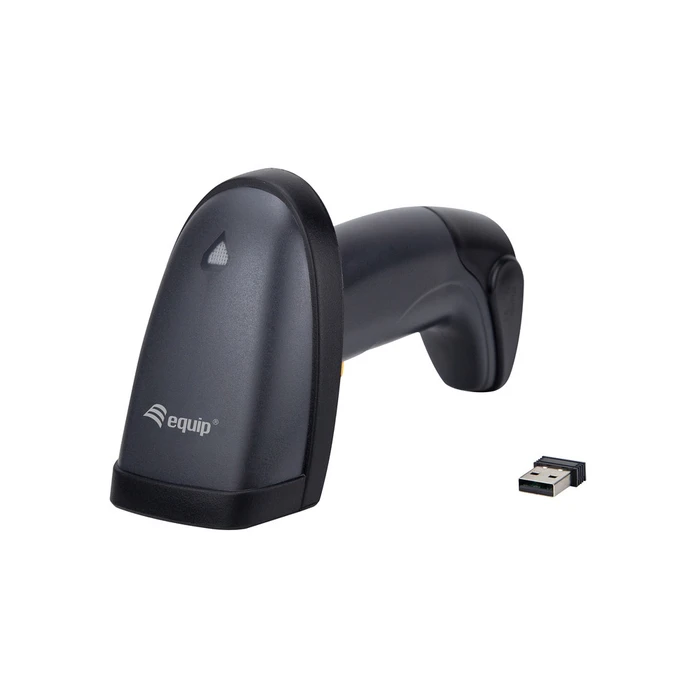

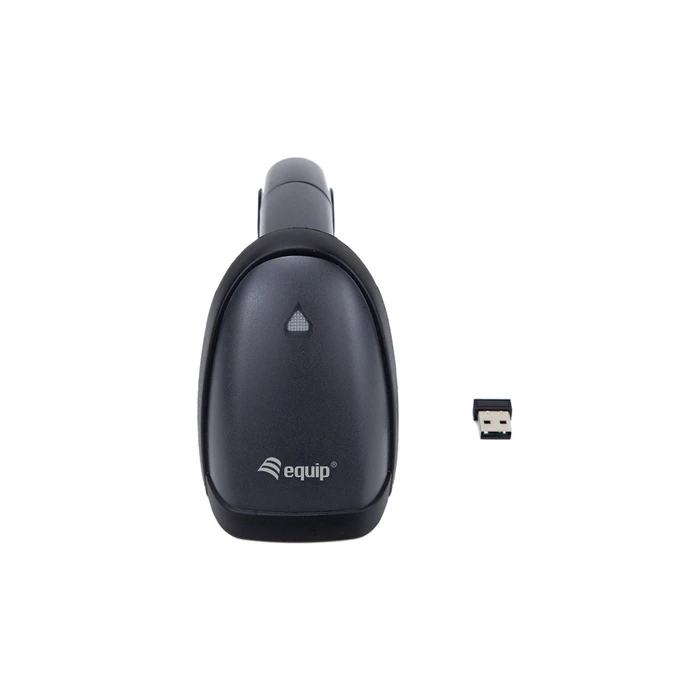

Barcode Scanner Equip Omni-Direktional Laser USB 1D2D Black

Technical Specifications

• Receiver Type
  Nano receiver
• Packaging width
  150mm
• Packaging depth
  207mm
• Packaging height
  100mm
• Package weight
  465g
• Type
  Portable barcode reader
• Scanner type
  1D/2D
• Sensor type
  LED
• 2D (matrix & stacked) barcodes supported
  Data matrix, PDF417, QR Code
• Linear (1D) barcodes supported
  Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, Industrial 2 of 5, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, UPC-A, UPC-E
• Trigger mode
  Auto-induction, Constant, Manual
• Working distance
  150cm
• Reading speed (max)
  220 readings/second
• Tilt reading angle
  0-360°
• Slope reading angle
  -30 - 30°
• Yaw reading angle
  -35 - 35°
• Transmission technology
  Wireless
• Standard interfaces
  RF Wireless
• Radio frequency
  2400MHz
• Cable length
  1.8m
• Product color
  Black
• Housing material
  Acrylonitrile butadiene styrene (ABS)
• International protection class (IP code)
  IP54
• Protective function
  Drip-proof, waterproof
• Country of origin
  China
• operating temperatur
  -20 - 60 °C
• Storage temperature range
  -45 - 85 °C
• Relative humidity in operation
  5 - 95%
• Energy source
  battery pack
• Battery technology
  Lithium Ion (Li-Ion)
• Battery type
  Integrated battery
• Number of batteries supported
  1
• Battery capacity
  1500mAh
• Battery voltage
  3.7V
• Battery range
  20 hrs
• Width
  72mm
• depth
  101mm
• Height
  175mm
• Weight
  187g
• Battery capacity
  5.55Wh
• Sustainability certificates
  CE, RoHS
• Compliance certificates
  CE, RoHS
