The UNI-T UT216C is a 600 A True RMS digital clamp meter for AC/DC current and voltage measurement, designed for server rooms, IT systems and general electrical work. Key features include True RMS measurement, auto-ranging, inrush current measurement, NCV (non-contact voltage), flashlight, display...
More

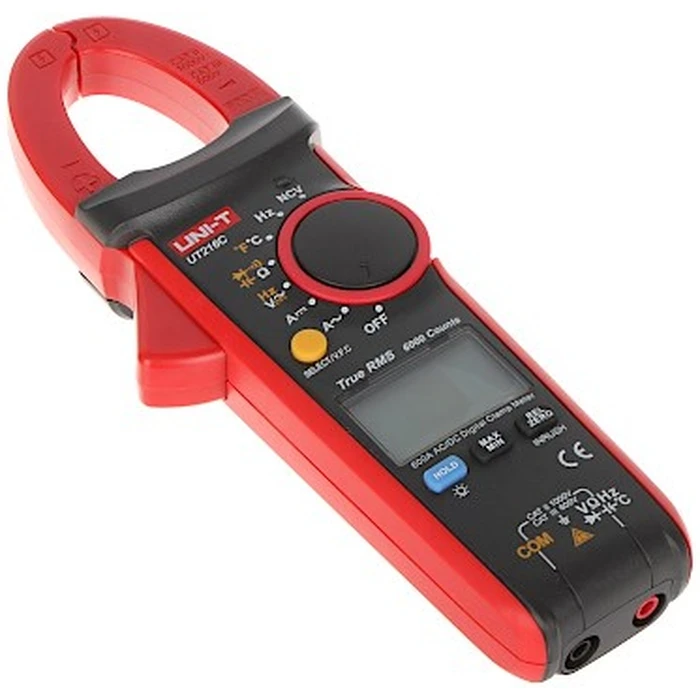

Clamp Meter UT-216C UNI-T (UT216C)
Product Code: 1127676078
Available in 4 - 10 days
129,42 €
or
4,04€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The UNI-T UT216C is a 600 A True RMS digital clamp meter for AC/DC current and voltage measurement, designed for server rooms, IT systems and general electrical work. Key features include True RMS measurement, auto-ranging, inrush current measurement, NCV (non-contact voltage), flashlight, display backlight, 6000-count LCD with analog bargraph, MAX/MIN, REL (relative) mode, data hold and auto power off. Jaw opening is 30 mm, product dimensions ~220 × 75 × 40 mm, weight ~231.7 g (with battery). Safety certifications include CE, UKCA and cETLus; rated CAT III 600 V / CAT II 1000 V per manufacturer documentation. Packaging referenced in product PDF includes a gift box and carrying bag.
-
BrandUNI-T (Uni-Trend)
-
ModelUT-216C (UT216C)
-
Product Type600 A True RMS digital clamp meter
-
AC Current RangeUp to 600 A
-
DC Current RangeUp to 600 A
-
AC Current Accuracy±(2.5% + 5 digits)
-
DC Current Accuracy±(2.5% + 5 digits)
-
AC Voltage RangeUp to 750 V
-
AC Voltage Accuracy±(1.2% + 5 digits)
-
AC Voltage Frequency Response40–400 Hz
-
DC Voltage RangeUp to 1000 V
-
DC Voltage Accuracy±(0.8% + 1 digit)
-
Resistance RangeUp to 60 MΩ
-
Resistance Accuracy±(1% + 2 digits)
-
Capacitance RangeUp to 60 mF
-
Capacitance Accuracy±(4% + 5 digits)
-
Frequency Range10 Hz to 1 MHz
-
Frequency Accuracy±(0.1% + 4 digits)
-
Temperature Range-40 °C to 1000 °C (also -40 °F to 1832 °F)
-
Temperature Accuracy±(2% + 5 digits)
-
Display Count6000 counts
-
Analog Bar GraphYes
-
BacklightYes
-
NCV (Non-contact Voltage)Yes
-
Inrush Current MeasurementYes
-
Continuity TestYes (buzzer)
-
Diode TestYes
-
Relative ModeYes
-
MAX/MIN ModeYes
-
Data HoldYes
-
Auto RangingYes
-
Auto Power OffYes
-
Input Impedance (DC)10 MΩ
-
Continuity Threshold< 30 Ω
-
Jaw Opening / Max Cable Diameter30 mm
-
Sampling Rate3 readings/second
-
Display Size38 mm × 24 mm
-
Product Dimensions220 × 75 × 40 mm
-
Product Weight (with battery)231.7 g
-
ColorRed and grey
-
ConstructionDouble injection molded grip
-
Safety/CertificationsCE, UKCA, cETLus (manufacturer lists CAT III 600 V / CAT II 1000 V)
-
Package / Accessories (as listed in PDF)Gift box; carrying bag (PDF also references carton quantities)
Ratings
Description
The UNI-T UT216C is a 600 A True RMS digital clamp meter for AC/DC current and voltage measurement, designed for server rooms, IT systems and general electrical work. Key features include True RMS measurement, auto-ranging, inrush current measurement, NCV (non-contact voltage), flashlight, display backlight, 6000-count LCD with analog bargraph, MAX/MIN, REL (relative) mode, data hold and auto power off. Jaw opening is 30 mm, product dimensions ~220 × 75 × 40 mm, weight ~231.7 g (with battery). Safety certifications include CE, UKCA and cETLus; rated CAT III 600 V / CAT II 1000 V per manufacturer documentation. Packaging referenced in product PDF includes a gift box and carrying bag.
Technical Specifications
-
BrandUNI-T (Uni-Trend)
-
ModelUT-216C (UT216C)
-
Product Type600 A True RMS digital clamp meter
-
AC Current RangeUp to 600 A
-
DC Current RangeUp to 600 A
-
AC Current Accuracy±(2.5% + 5 digits)
-
DC Current Accuracy±(2.5% + 5 digits)
-
AC Voltage RangeUp to 750 V
-
AC Voltage Accuracy±(1.2% + 5 digits)
-
AC Voltage Frequency Response40–400 Hz
-
DC Voltage RangeUp to 1000 V
-
DC Voltage Accuracy±(0.8% + 1 digit)
-
Resistance RangeUp to 60 MΩ
-
Resistance Accuracy±(1% + 2 digits)
-
Capacitance RangeUp to 60 mF
-
Capacitance Accuracy±(4% + 5 digits)
-
Frequency Range10 Hz to 1 MHz
-
Frequency Accuracy±(0.1% + 4 digits)
-
Temperature Range-40 °C to 1000 °C (also -40 °F to 1832 °F)
-
Temperature Accuracy±(2% + 5 digits)
-
Display Count6000 counts
-
Analog Bar GraphYes
-
BacklightYes
-
NCV (Non-contact Voltage)Yes
-
Inrush Current MeasurementYes
-
Continuity TestYes (buzzer)
-
Diode TestYes
-
Relative ModeYes
-
MAX/MIN ModeYes
-
Data HoldYes
-
Auto RangingYes
-
Auto Power OffYes
-
Input Impedance (DC)10 MΩ
-
Continuity Threshold< 30 Ω
-
Jaw Opening / Max Cable Diameter30 mm
-
Sampling Rate3 readings/second
-
Display Size38 mm × 24 mm
-
Product Dimensions220 × 75 × 40 mm
-
Product Weight (with battery)231.7 g
-
ColorRed and grey
-
ConstructionDouble injection molded grip
-
Safety/CertificationsCE, UKCA, cETLus (manufacturer lists CAT III 600 V / CAT II 1000 V)
-
Package / Accessories (as listed in PDF)Gift box; carrying bag (PDF also references carton quantities)
