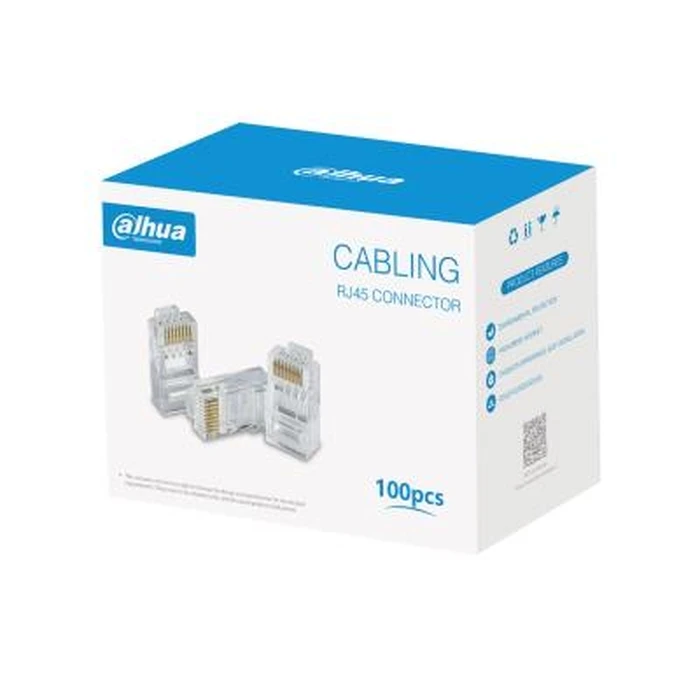

Βύσματα Dahua Cable Acc Jack Rj45 100Pack Pfm976-631
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Βύσματα Δικτύου Logilink Patchst.RJ45 Cat6 Unshielded 100pcs Trek Zw
Ακροδέκτης Cablexpert 8p8c Rj45 Ftp Pass Through, Σακουλάκι 50 Τεμ GM-8P8C-PTF-50
Βύσμα Δικτύου Digitus field connector CAT 8.1 shielded tool-free assembly

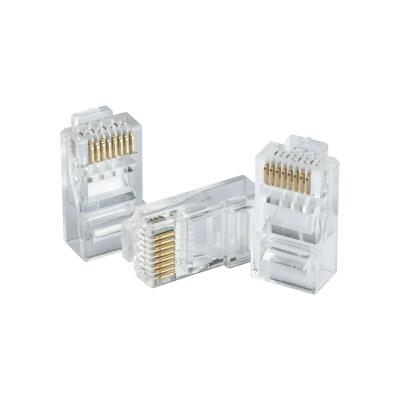

The Dahua DH-PFM976-631 is an exceptional choice for Ethernet cable terminations, especially designed for unshielded CAT6 RJ45 connectors. This product is sold in a 100-pack, ensuring that you have plenty of connectors available for your networking needs.
One of the standout features of this connector is the pass-through design, which allows for easy cable feeding before crimping. The transparent housing offers visibility, making the installation process straightforward and efficient.
Some key specifications include:
- Category: CAT6, unshielded UTP RJ45 connector
- Material: Made of durable PC (polycarbonate) with brass contacts
- Gold Plating Thickness: 15U" for enhanced conductivity
- Retention Strength: 50 N for robust connections
- Lifespan: Up to 750 cycles of insertion and withdrawal
This connector also meets significant environmental specifications, including a wide operating temperature range from 25°C to +55°C which ensures reliability in diverse situations.
In summary, the Dahua DH-PFM976-631 is engineered to provide robust performance and longevity, making it an essential part of any networking toolkit.
-
CategoryCAT6, unshielded UTP RJ45 connector
-
DesignPass-through style with hole for cable feeding
-
MaterialPC (polycarbonate) + brass contacts
-
Gold Plating Thickness15U"
-
Flammability RatingUL94V-2
-
Operating Voltage150 VAC RMS
-
Operating Current1.5 A
-
Contact Resistance?20 mΩ
-
Insulation Resistance?1000 MΩ @ 500 VDC
-
Withstand Voltage1000 VDC/VAC peak @ 0.5 mA
-
Retention Strength50 N for 60 ±5 seconds
-
Insertion Force?30 N
-
Lifespan750 cycles
-
Operating Temperature25°C to +55°C
-
Storage Temperature10°C to +40°C
-
Storage Humidity<80%
-
Storage Time12 months
-
Single Strand Cable Diameter2123 AWG
-
Single Strand Insulated Cable Diameter1.091.20 mm
-
Outer Sheath Diameter?6.4 mm
Ratings
Description
The Dahua DH-PFM976-631 is an exceptional choice for Ethernet cable terminations, especially designed for unshielded CAT6 RJ45 connectors. This product is sold in a 100-pack, ensuring that you have plenty of connectors available for your networking needs.
One of the standout features of this connector is the pass-through design, which allows for easy cable feeding before crimping. The transparent housing offers visibility, making the installation process straightforward and efficient.
Some key specifications include:
- Category: CAT6, unshielded UTP RJ45 connector
- Material: Made of durable PC (polycarbonate) with brass contacts
- Gold Plating Thickness: 15U" for enhanced conductivity
- Retention Strength: 50 N for robust connections
- Lifespan: Up to 750 cycles of insertion and withdrawal
This connector also meets significant environmental specifications, including a wide operating temperature range from 25°C to +55°C which ensures reliability in diverse situations.
In summary, the Dahua DH-PFM976-631 is engineered to provide robust performance and longevity, making it an essential part of any networking toolkit.
Technical Specifications
-
CategoryCAT6, unshielded UTP RJ45 connector
-
DesignPass-through style with hole for cable feeding
-
MaterialPC (polycarbonate) + brass contacts
-
Gold Plating Thickness15U"
-
Flammability RatingUL94V-2
-
Operating Voltage150 VAC RMS
-
Operating Current1.5 A
-
Contact Resistance?20 mΩ
-
Insulation Resistance?1000 MΩ @ 500 VDC
-
Withstand Voltage1000 VDC/VAC peak @ 0.5 mA
-
Retention Strength50 N for 60 ±5 seconds
-
Insertion Force?30 N
-
Lifespan750 cycles
-
Operating Temperature25°C to +55°C
-
Storage Temperature10°C to +40°C
-
Storage Humidity<80%
-
Storage Time12 months
-
Single Strand Cable Diameter2123 AWG
-
Single Strand Insulated Cable Diameter1.091.20 mm
-
Outer Sheath Diameter?6.4 mm
