Sku: 1117569262
Βύσμα Δικτύου Goodconnections RJ45 Plug Cat.8.1 field-assembly
10,10 €
Product Availability
για καλύτερη τιμή!
Need help?
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
Call us now!
Methods of Pickup/Shipment
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Share this:
Detailed Description

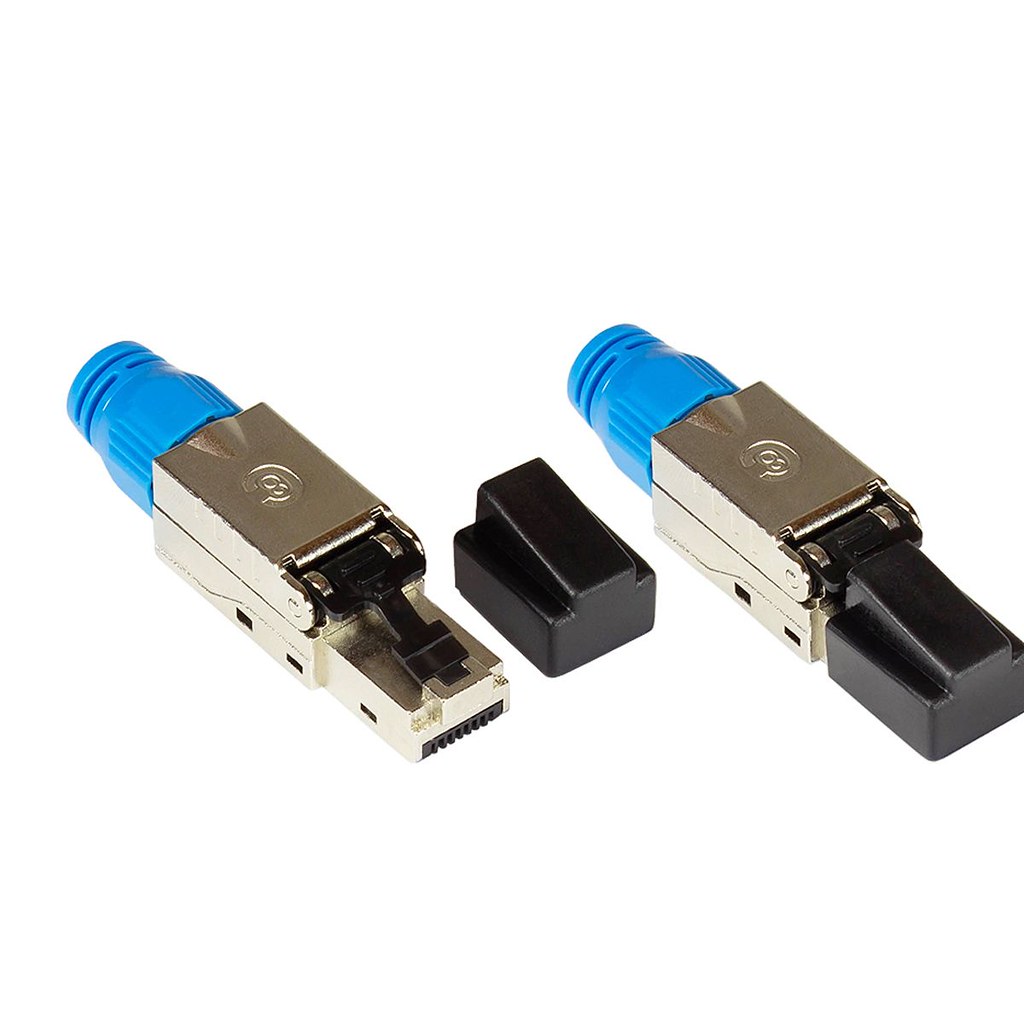

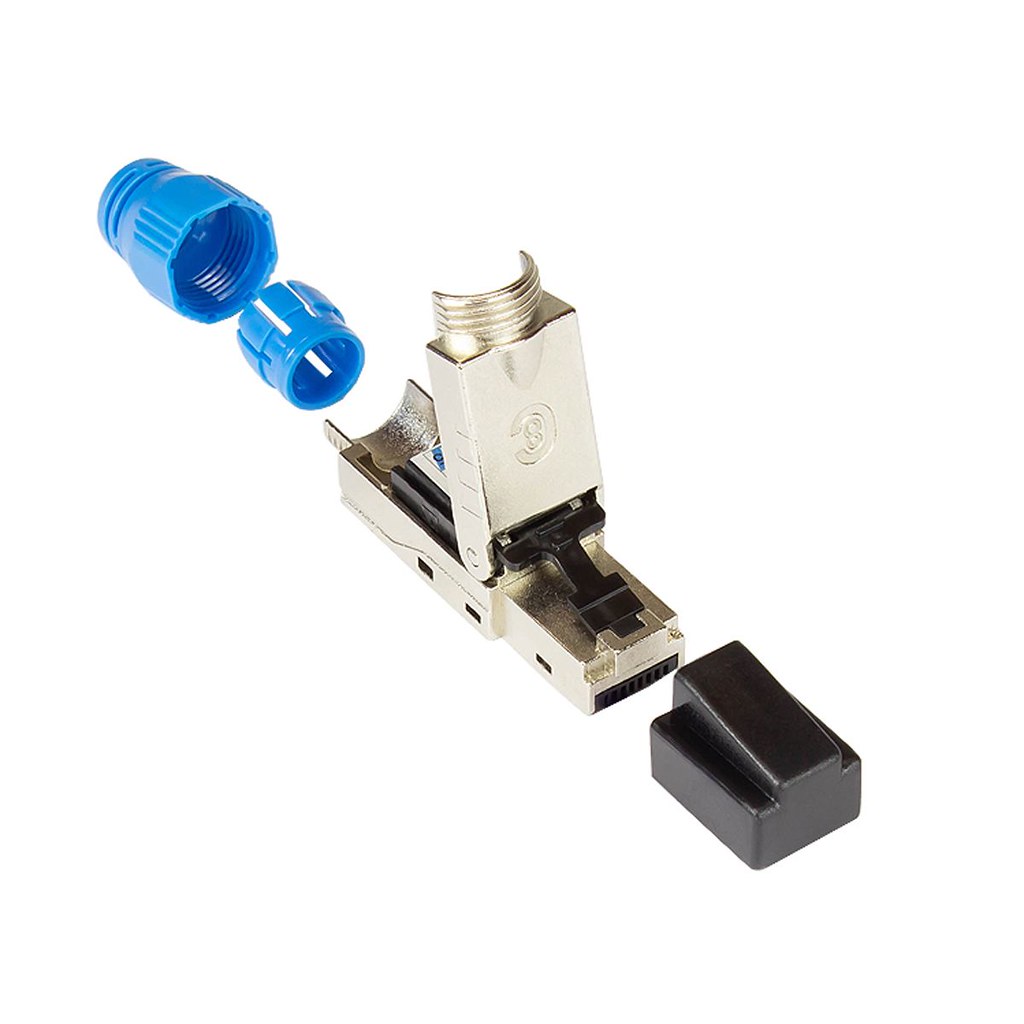

The Goodconnections RJ45 Plug Cat.8.1 field-assembly is a high-performance solution for custom-length Cat8.1 network cables. Designed for exceptional transmission capabilities, this connector supports ultra-fast data transmission speeds of up to 40 Gbit/s with a bandwidth of 2 GHz (2000 MHz).
Ideal for demanding applications, it is suitable for:
- Data centers
- IP cameras
- Building control systems
- Wi-Fi access points
Key Technical Specifications:
- Category/Standard: Cat 8.1 / Class I
- Connector Type: 8P8C RJ45 plug; shielded with STP protection
- Transmission Performance: Maximum data rate of 40 Gbit/s
This premium connector ensures long-lasting performance and stability, enhancing your network's capabilities while also being easy to install.
Specifications
-
category
- Cat 8.1 / Class I
-
connector_type
- 8P8C RJ45 plug
-
maximum_data_rate
- 40 Gbit/s
-
bandwidth
- 2 GHz (2000 MHz)
-
solid_conductor_awg
- 22/1 to 26/1
-
stranded_conductor_awg
- 22/7 to 26/7
-
outer_diameter_compatibility
- 5.0 to 8.5 mm
-
transmission_length_permanent_link
- up to 24 m
-
transmission_length_channel_link
- up to 30 m
-
poe_support
- Compatible with PoE, PoE+, PoE++, 4PPoE
-
contacts_material
- 3 μin gold-plated
-
shielding_housing_material
- die-cast zinc alloy with nickel plating
-
cable_diameter_compatibility
- 5.0–8.5 mm
-
operating_temperature
- -10°C to +60°C
-
storage_temperature
- -40°C to +70°C
-
mating_cycles
- at least 750
-
size_length
- 46.7 mm
-
size_width
- 14.4 mm
-
size_height
- 11.6 mm
