Busch-Jaeger Nebenstellen-Einsatz flex (1-fach) for 230 V installations. Electrical side-station insert/module (MPN 2CKA006800A3050, EAN 4011395295397) used to extend and group flex / free@home compatible control points (comfort switches, presence detectors, motion sensors). Nominal voltage 230 V...
More

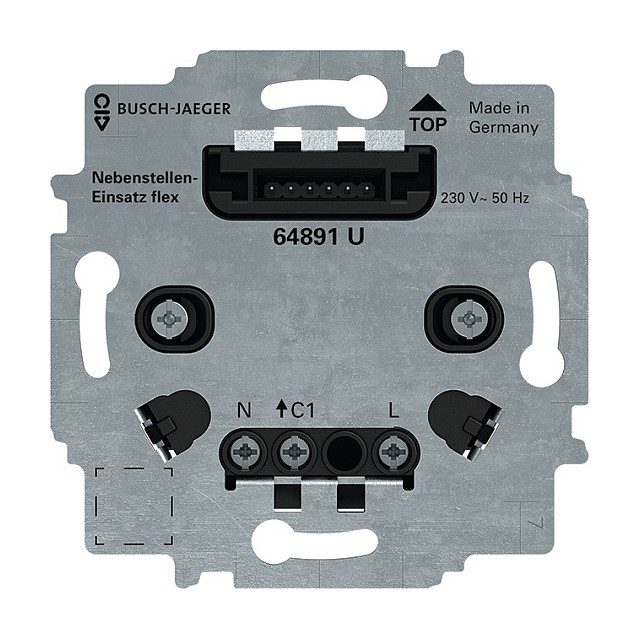

Busch-Jaeger Nebenstellen-Einsatz flex 1-fach 230 V (MPN 2CKA006800A3050, EAN 4011395295397)
Product Code: 1173703248
Available in 4 - 6 days
73,09 €
or
2,28€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 220 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Busch-Jaeger Nebenstellen-Einsatz flex (1-fach) for 230 V installations. Electrical side-station insert/module (MPN 2CKA006800A3050, EAN 4011395295397) used to extend and group flex / free@home compatible control points (comfort switches, presence detectors, motion sensors). Nominal voltage 230 V AC, 50 Hz. Requires 3-wire connection (neutral conductor required). Flush-mounted (Unterputz) into standard UP boxes per DIN 49073. IP20, operating temperature -25 °C to +55 °C. Supports grouping (up to 9 flex inserts), max side-station cable length ~100 m. Device dimensions ~71 x 71 x 30 mm (installation depth ~25 mm). Product weight approx. 80 g. Note: some listings indicate limited availability or assortment changes; naming/part-number labeling varies between retailers.
-
BrandBusch-Jaeger
-
Model / MPN2CKA006800A3050
-
EAN4011395295397
-
Product TypeNebenstellen-Einsatz (side-station insert), flex 1-fach
-
Nominal Voltage230 V AC
-
Frequency50 Hz
-
Connection3-wire connection (neutral conductor required)
-
MountingFlush-mounted (Unterputz) — standard UP device boxes per DIN 49073
-
Protection Class / IP RatingIP20
-
Operating Temperature-25 °C to +55 °C
-
Power Loss< 0.3 W
-
Max Group ControlUp to 9 flex inserts
-
Max Side-Station Cable Length100 m
-
Dimensions (device)71 x 71 x 30 mm
-
Installation Depth~25 mm
-
Product Weight80 g
-
Permissible Conductor Cross-SectionUp to 2 x 2.5 mm²
-
CompatibilityBusch-flexTronics®, Busch-free@home® wireless; compatible with flex 1-gang / 2-gang control elements and related sensors
-
System UseExtend Busch-Komfortschalter, Busch-Wächter, Busch-Präsenzmelder; enable group control and Wechselschaltungen
-
Color / MaterialNot explicitly specified by manufacturer
-
NotesNeutral conductor required; some reseller/manufacturer pages show naming/part-number variations and limited availability
Ratings
Description
Busch-Jaeger Nebenstellen-Einsatz flex (1-fach) for 230 V installations. Electrical side-station insert/module (MPN 2CKA006800A3050, EAN 4011395295397) used to extend and group flex / free@home compatible control points (comfort switches, presence detectors, motion sensors). Nominal voltage 230 V AC, 50 Hz. Requires 3-wire connection (neutral conductor required). Flush-mounted (Unterputz) into standard UP boxes per DIN 49073. IP20, operating temperature -25 °C to +55 °C. Supports grouping (up to 9 flex inserts), max side-station cable length ~100 m. Device dimensions ~71 x 71 x 30 mm (installation depth ~25 mm). Product weight approx. 80 g. Note: some listings indicate limited availability or assortment changes; naming/part-number labeling varies between retailers.
Technical Specifications
-
BrandBusch-Jaeger
-
Model / MPN2CKA006800A3050
-
EAN4011395295397
-
Product TypeNebenstellen-Einsatz (side-station insert), flex 1-fach
-
Nominal Voltage230 V AC
-
Frequency50 Hz
-
Connection3-wire connection (neutral conductor required)
-
MountingFlush-mounted (Unterputz) — standard UP device boxes per DIN 49073
-
Protection Class / IP RatingIP20
-
Operating Temperature-25 °C to +55 °C
-
Power Loss< 0.3 W
-
Max Group ControlUp to 9 flex inserts
-
Max Side-Station Cable Length100 m
-
Dimensions (device)71 x 71 x 30 mm
-
Installation Depth~25 mm
-
Product Weight80 g
-
Permissible Conductor Cross-SectionUp to 2 x 2.5 mm²
-
CompatibilityBusch-flexTronics®, Busch-free@home® wireless; compatible with flex 1-gang / 2-gang control elements and related sensors
-
System UseExtend Busch-Komfortschalter, Busch-Wächter, Busch-Präsenzmelder; enable group control and Wechselschaltungen
-
Color / MaterialNot explicitly specified by manufacturer
-
NotesNeutral conductor required; some reseller/manufacturer pages show naming/part-number variations and limited availability
