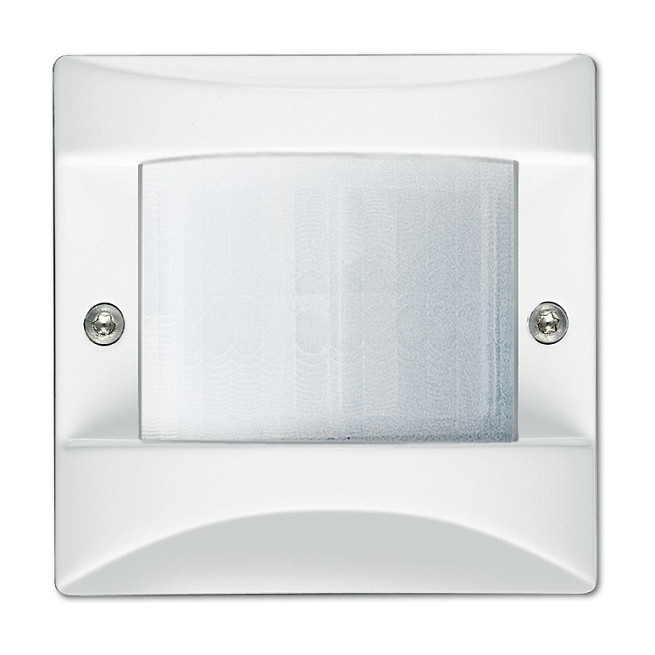

Busch-Jaeger Busch-Wächter 180 UP sensor with combined lens (Kombilinse) for the Allwetter 44 outdoor range (IP44 when used with Allwetter 44 frame). Flush-mounted (unterputz) passive infrared (PIR) motion detector and automatic switch that controls loads depending on movement and ambient light....
More
Busch-Jaeger Busch-Wächter 180 UP Sensor for Allwetter 44 with Kombi lens, alpinwhite (2CKA006800A1674)
Product Code: 1173703445
Available in 4 - 6 days
199,30 €
or
6,22€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 598 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Busch-Jaeger Busch-Wächter 180 UP sensor with combined lens (Kombilinse) for the Allwetter 44 outdoor range (IP44 when used with Allwetter 44 frame). Flush-mounted (unterputz) passive infrared (PIR) motion detector and automatic switch that controls loads depending on movement and ambient light. Colour: alpin white. Manufacturer model/MPN: 2CKA006800A1674. EAN: 4011395836705. Requires a compatible UP switching insert (e.g. Busch universal relay 6401 U-102) sold separately. Detection angle 180° horizontal; detection range up to 12 m (manufacturer notes up to 15 m frontal / 10 m lateral for this IP44 outdoor variant). Brightness threshold approx. 250 lux. Switch-off delay adjustable from 10 s to 30 min (plus short pulse options). Temperature rating -25 °C to +55 °C. Monitoring: 40 sectors / 160 switching segments. Material: thermoplastic. Includes sealing ring and screws for mounting.
-
BrandBUSCH-JAEGER
-
Model / MPN2CKA006800A1674
-
EAN / Barcode4011395836705
-
Product NameBusch-Wächter 180 UP Sensor for Allwetter 44 with Kombilinse
-
ColorAlpinweiß (alpine white)
-
ApplicationOutdoor (Allwetter 44, IP44 with frame)
-
Mounting TypeUnterputz (flush-mounted)
-
Sensor TypePassive Infrared (PIR)
-
Detection Angle180° horizontal
-
Detection RangeUp to 12 m (manufacturer: up to 15 m frontal / 10 m lateral for IP44 outdoor variant)
-
Brightness ThresholdApprox. 250 lux
-
Switch-off DelayAdjustable, 10 s to 30 min (plus short-time pulse 1 s options)
-
Protection RatingIP44 (only in combination with Allwetter 44 frame)
-
Temperature Range-25 °C to +55 °C
-
Recommended Mounting Height~120 cm
-
Monitoring Density40 sectors with 160 switching segments
-
CompatibilityRequires UP switching insert (e.g. Busch-Universal-Relais-Einsatz 6401 U-102) sold separately
-
LensKombilinse (combined lens)
-
MaterialThermoplastic
-
Mounting AccessoriesScrew mounting; sealing ring included according to manufacturer
-
FunctionsAutomatic switching based on motion and ambient light; designed to detect movement down to ground level
-
Packaging NotesUP insert not included; sold as sensor head/cover element for Allwetter 44 system
Ratings
Description
Busch-Jaeger Busch-Wächter 180 UP sensor with combined lens (Kombilinse) for the Allwetter 44 outdoor range (IP44 when used with Allwetter 44 frame). Flush-mounted (unterputz) passive infrared (PIR) motion detector and automatic switch that controls loads depending on movement and ambient light. Colour: alpin white. Manufacturer model/MPN: 2CKA006800A1674. EAN: 4011395836705. Requires a compatible UP switching insert (e.g. Busch universal relay 6401 U-102) sold separately. Detection angle 180° horizontal; detection range up to 12 m (manufacturer notes up to 15 m frontal / 10 m lateral for this IP44 outdoor variant). Brightness threshold approx. 250 lux. Switch-off delay adjustable from 10 s to 30 min (plus short pulse options). Temperature rating -25 °C to +55 °C. Monitoring: 40 sectors / 160 switching segments. Material: thermoplastic. Includes sealing ring and screws for mounting.
Technical Specifications
-
BrandBUSCH-JAEGER
-
Model / MPN2CKA006800A1674
-
EAN / Barcode4011395836705
-
Product NameBusch-Wächter 180 UP Sensor for Allwetter 44 with Kombilinse
-
ColorAlpinweiß (alpine white)
-
ApplicationOutdoor (Allwetter 44, IP44 with frame)
-
Mounting TypeUnterputz (flush-mounted)
-
Sensor TypePassive Infrared (PIR)
-
Detection Angle180° horizontal
-
Detection RangeUp to 12 m (manufacturer: up to 15 m frontal / 10 m lateral for IP44 outdoor variant)
-
Brightness ThresholdApprox. 250 lux
-
Switch-off DelayAdjustable, 10 s to 30 min (plus short-time pulse 1 s options)
-
Protection RatingIP44 (only in combination with Allwetter 44 frame)
-
Temperature Range-25 °C to +55 °C
-
Recommended Mounting Height~120 cm
-
Monitoring Density40 sectors with 160 switching segments
-
CompatibilityRequires UP switching insert (e.g. Busch-Universal-Relais-Einsatz 6401 U-102) sold separately
-
LensKombilinse (combined lens)
-
MaterialThermoplastic
-
Mounting AccessoriesScrew mounting; sealing ring included according to manufacturer
-
FunctionsAutomatic switching based on motion and ambient light; designed to detect movement down to ground level
-
Packaging NotesUP insert not included; sold as sensor head/cover element for Allwetter 44 system
