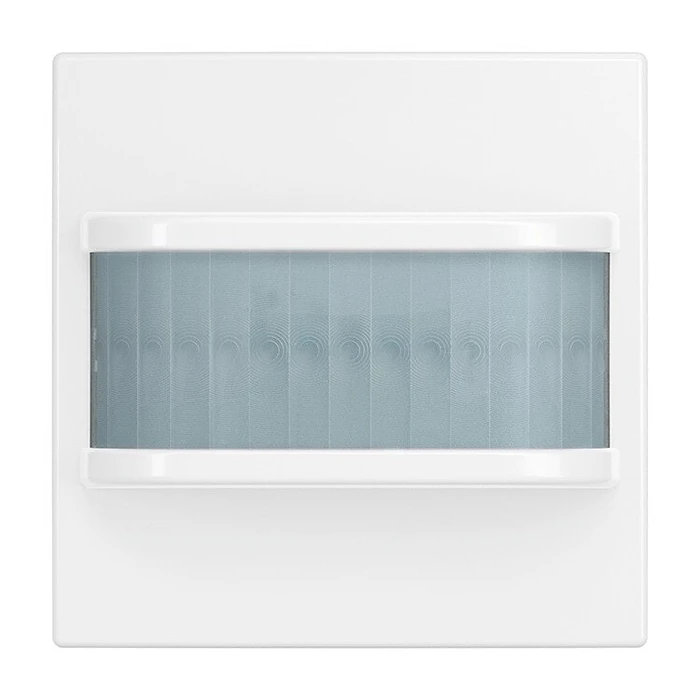

Busch-Jaeger BJ 64762-914 BW 180 flex Komfort Sensor (flush-mounted PIR motion detector, alpin white)

Description

Technical Specifications

• Brand
  Busch-Jaeger
• Model / Product name
  BUSCH-JAEGER BJ 64762-914 BW 180 flex Komfort Sensor
• MPN
  2CKA006800A2956
• SKU
  21314582
• EAN
  4011395295045
• Product type
  Flush-mounted PIR motion detector / movement sensor
• Detection angle
  180°
• Detection range
  Up to 12 m (front and side)
• Detection zones / density
  14 sectors with 56 switching segments
• Pet-immune feature
  "Tierschneise" / pet-immune corridor
• Brightness threshold
  5–500 lux (day operation possible)
• Switch-off delay options
  Approx. 10 seconds to 30 minutes; short-time pulse 1 second
• Teach / test functions
  Yes — detection display and light-independent test mode
• Manual functions
  Manual push-button function; Dauerlicht / Dauer-Aus (permanent-on/permanent-off)
• Extension / compatibility
  Works only with separate Busch flex relay inserts; compatible flex inserts include 64811 U, 64814 U, 64821 U, 64851 U, 64891 U; supports master/slave extension
• Dimming support
  Yes, in combination with dimmer insert flex (optional light-value memory)
• Additional inputs
  Push-button input on flush-mounted insert
• Mounting type
  Flush-mounted (Unterputz)
• Recommended mounting height
  0.8–1.2 m
• Installation/build-up height
  22 mm
• Opening angle
  180°
• Protection rating
  IP20
• Operating temperature
  -5 °C to +45 °C
• Storage temperature
  -25 °C to +70 °C
• Dimensions (product)
  55 x 55 x 35 mm
• Housing material
  Plastic / thermoplastic
• Color
  Alpinweiß (white)
• Package contents (sensor-only)
  Sensor only (flush-mounted cover); insert/frame not included (insert required separately)
• Notes
  Intended for indoor use only; full set versions available that include relay insert and frame
