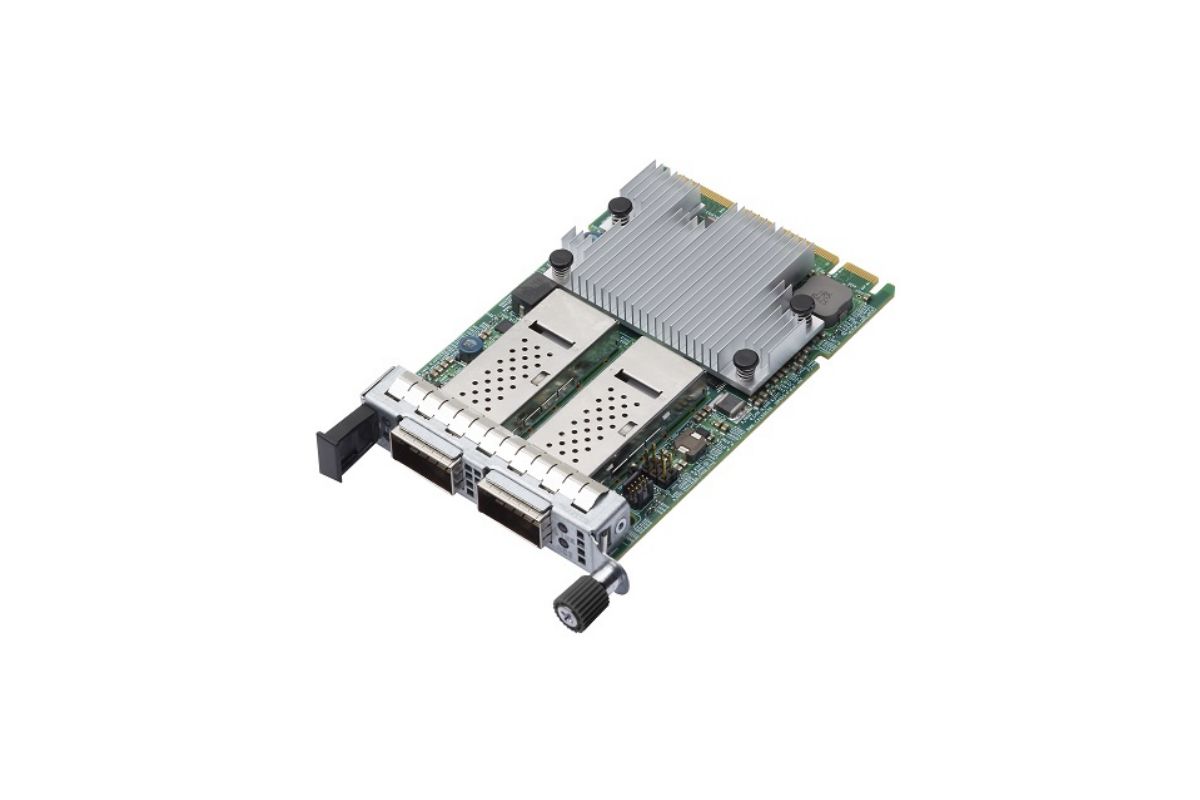

The Broadcom N2100G (BCM957508-N2100G) is a dual-port 100GbE network adapter in OCP 3.0 small form factor. Each of the two QSFP56 ports supports 100 Gb/s (50G PAM4 or 25G NRZ signaling). The card uses the Broadcom BCM57508 controller, provides PCI Express 4.0 x16 connectivity (backwards compatible with PCIe 3.0), and supports BroadSAFE security, SR-IOV (up to 1,000 virtual functions), Multi-Host (up to 4 hosts), iSCSI boot, Wake-on-LAN, MSI/MSI-X and OCP 3.0 FRU management. Compatible with QSFP56/QSFP28/QSFP+ optical transceivers and DAC cables. Targeted at high-density, low-latency data center and virtualization applications.
-
BrandBroadcom
-
Model / MPNBCM957508-N2100G
-
SeriesN2100G (NetXtreme E-Series)
-
Port Count2 (dual-port)
-
Port Speed100 Gb/s per port
-
Total Bandwidth200 Gb/s aggregate
-
Connector TypeQSFP56 (2 x QSFP56)
-
PCIe InterfacePCIe 4.0 x16 (backwards compatible with PCIe 3.0)
-
Form FactorOCP 3.0 Small Form Factor (SFF)
-
ControllerBroadcom BCM57508
-
Signaling50G PAM4 and 25G NRZ
-
SR-IOV SupportYes, up to 1,000 virtual functions
-
Multi-Host SupportYes, up to 4 hosts
-
SecurityBroadSAFE technology
-
Boot/ManagementiSCSI boot, Wake-on-LAN, FRU identification (OCP 3.0)
-
CompatibilitySupports QSFP56, QSFP28, QSFP+ transceivers and copper DACs
-
Standards ComplianceSFF-8402 (QSFP MSA), OCP 3.0 Design Spec v1.0
-
DriversSupported on major OS distributions (Broadcom driver stack)
-
Typical ApplicationsData center, cloud, virtualization, high-performance networking
-
Original Product Weight~113 g
-
Estimated Package Weight~400 g
-
MaterialsPCB, metal bracket/shielding, electrical components
-
Warranty NoteSubject to manufacturer terms; many resellers list final-sale restrictions
Ratings
Description
The Broadcom N2100G (BCM957508-N2100G) is a dual-port 100GbE network adapter in OCP 3.0 small form factor. Each of the two QSFP56 ports supports 100 Gb/s (50G PAM4 or 25G NRZ signaling). The card uses the Broadcom BCM57508 controller, provides PCI Express 4.0 x16 connectivity (backwards compatible with PCIe 3.0), and supports BroadSAFE security, SR-IOV (up to 1,000 virtual functions), Multi-Host (up to 4 hosts), iSCSI boot, Wake-on-LAN, MSI/MSI-X and OCP 3.0 FRU management. Compatible with QSFP56/QSFP28/QSFP+ optical transceivers and DAC cables. Targeted at high-density, low-latency data center and virtualization applications.
Technical Specifications
-
BrandBroadcom
-
Model / MPNBCM957508-N2100G
-
SeriesN2100G (NetXtreme E-Series)
-
Port Count2 (dual-port)
-
Port Speed100 Gb/s per port
-
Total Bandwidth200 Gb/s aggregate
-
Connector TypeQSFP56 (2 x QSFP56)
-
PCIe InterfacePCIe 4.0 x16 (backwards compatible with PCIe 3.0)
-
Form FactorOCP 3.0 Small Form Factor (SFF)
-
ControllerBroadcom BCM57508
-
Signaling50G PAM4 and 25G NRZ
-
SR-IOV SupportYes, up to 1,000 virtual functions
-
Multi-Host SupportYes, up to 4 hosts
-
SecurityBroadSAFE technology
-
Boot/ManagementiSCSI boot, Wake-on-LAN, FRU identification (OCP 3.0)
-
CompatibilitySupports QSFP56, QSFP28, QSFP+ transceivers and copper DACs
-
Standards ComplianceSFF-8402 (QSFP MSA), OCP 3.0 Design Spec v1.0
-
DriversSupported on major OS distributions (Broadcom driver stack)
-
Typical ApplicationsData center, cloud, virtualization, high-performance networking
-
Original Product Weight~113 g
-
Estimated Package Weight~400 g
-
MaterialsPCB, metal bracket/shielding, electrical components
-
Warranty NoteSubject to manufacturer terms; many resellers list final-sale restrictions
