The BrightSign XD1036 is an XD6-series 4K digital signage media player (expanded I/O model) designed for high-performance signage and kiosk applications. Key features include a single HDMI 2.0a output with native 4K support, dual 10-bit 4K@60p video decoding, HDR10, Chromium-compatible HTML5/CSS/JS...
More

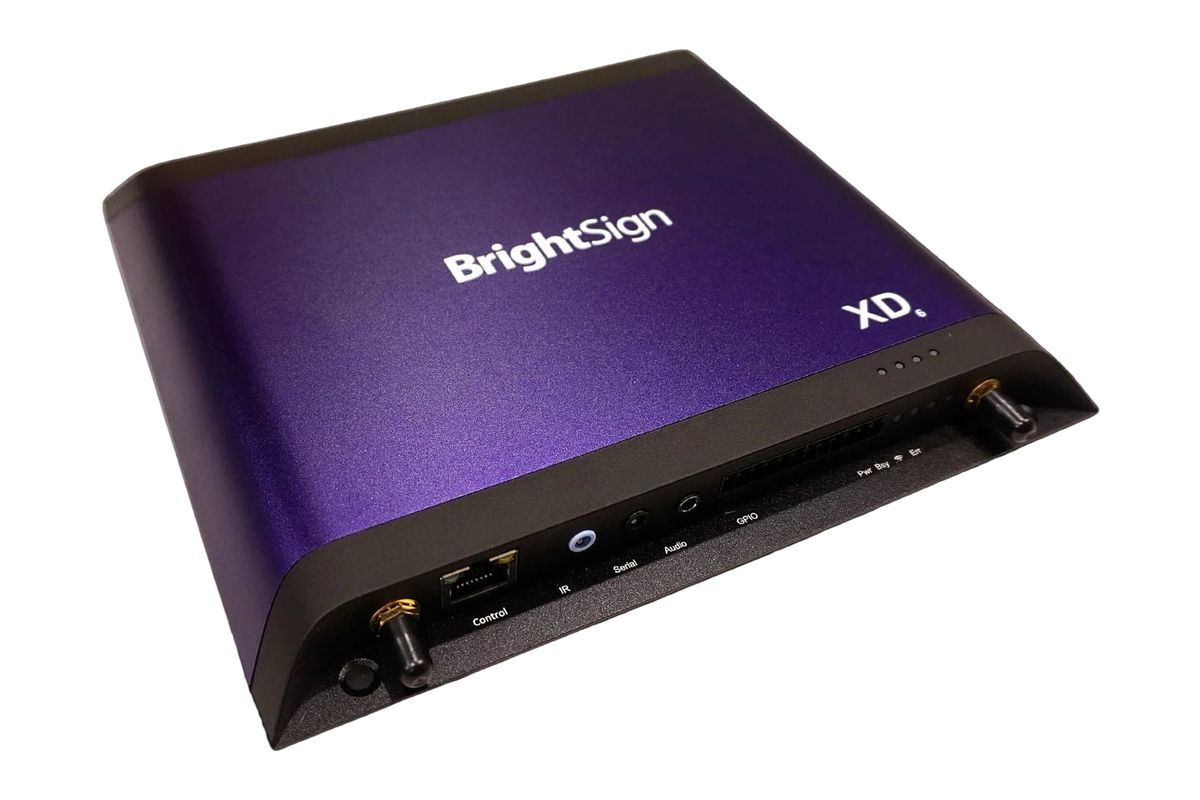

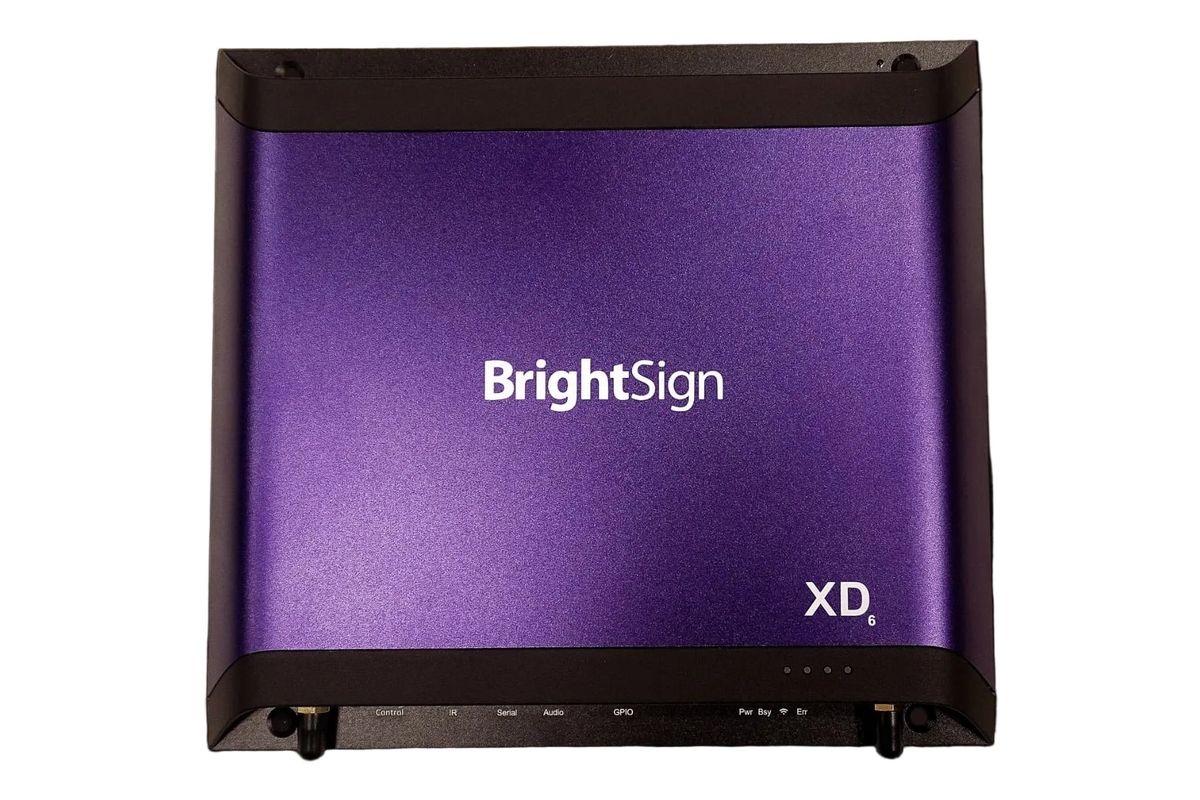

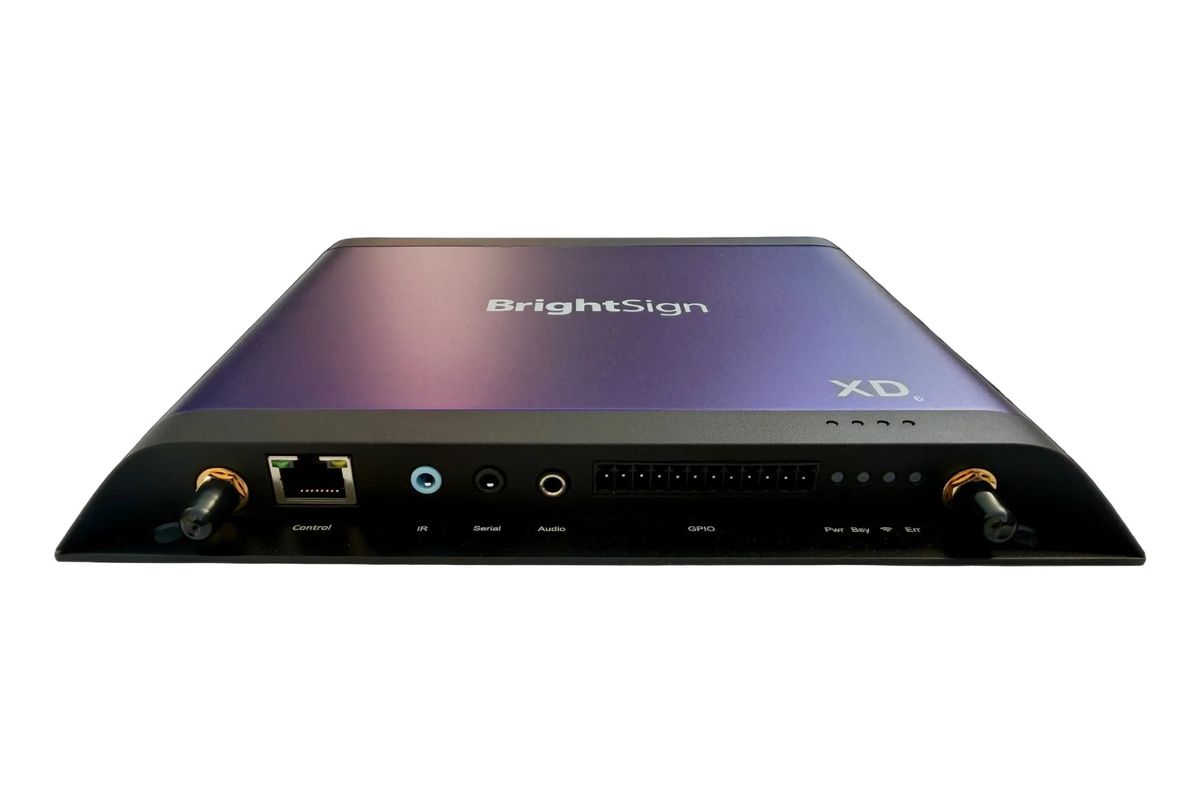

BrightSign XD1036 Digital Signage Player with GPIO
Product Code: 1117728528
Available in 1 - 3 days
1.010,58 €
or
31,56€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 3032 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The BrightSign XD1036 is an XD6-series 4K digital signage media player (expanded I/O model) designed for high-performance signage and kiosk applications. Key features include a single HDMI 2.0a output with native 4K support, dual 10-bit 4K@60p video decoding, HDR10, Chromium-compatible HTML5/CSS/JS support, 4K IP streaming, and an on-board NPU for accelerated tasks. I/O includes Gigabit Ethernet plus a secondary 100Base-T port, 1x USB-C, 1x USB-A, microSD slot, M.2 E-key for optional Wi‑Fi/Bluetooth, 3.5 mm audio line in/out, 3.5 mm IR and serial ports, and a 12-pin Phoenix connector for GPIO (supports bi-directional GPIO per BrightSign docs). Dimensions are 205 x 185.9 x 19.2 mm and product weight is ~590 g. Power is via a 12V DC 3A locking power supply (PoE supported in some configurations). BrightSign OS compatibility, robust industrial design and up to 5-year warranty depending on vendor.
-
BrandBrightSign
-
Model / MPNXD1036
-
SeriesXD6 (XD6-series)
-
Product TypeDigital signage media player / media player
-
Video Output1 x HDMI 2.0a output
-
Max Resolution4K UHD (3840x2160) up to 60Hz
-
4K DecodingDual 10-bit 4K video decoding @60p
-
Full HD DecodingDual Full HD 60p decoding
-
HDRHDR10 support
-
HTML5 SupportChromium-compatible HTML5, CSS, JavaScript, WebGL
-
Streaming4K IP streaming support
-
NPUOn-board NPU for accelerated workloads
-
EthernetGigabit Ethernet (1000Base-T) + secondary 100Base-T port
-
Wi‑FiOptional via M.2 E-key module (vendor dependent)
-
BluetoothOptional via module/adapter
-
USB1 x USB-C, 1 x USB-A
-
StorageInternal storage; microSD slot; variants with pre-installed microSD available
-
M.2 SlotM.2 E-key for optional Wi‑Fi/Bluetooth module
-
GPIO12-pin Phoenix connector for GPIO (documentation references 4 GPIO or up to 8 bi-directional depending on context)
-
Serial / IR3.5 mm serial port and 3.5 mm IR port
-
Audio I/O3.5 mm line in / line out
-
Supported CodecsH.265/HEVC, H.264/AVC, VP9, AV1 and others
-
Supported ContainersMP4, MOV, MKV, WEBM, TS, MPG, MPEG, PS, M2P, MPV, AVI, MJPG
-
Dimensions205 x 185.9 x 19.2 mm
-
Weight590 g
-
Color / FinishBlack (retail/spec listings note black with purple accents)
-
Operating Temperature0°C to 50°C
-
Power12V DC, 3A locking/proprietary PSU; PoE supported in some configurations
-
MountingWall-mountable / compact form factor for signage installations
-
WarrantyUp to 5-year warranty (per vendor listing)
-
Use CasesDigital signage, kiosks, touch-screen displays, interactive installations
Ratings
Description
The BrightSign XD1036 is an XD6-series 4K digital signage media player (expanded I/O model) designed for high-performance signage and kiosk applications. Key features include a single HDMI 2.0a output with native 4K support, dual 10-bit 4K@60p video decoding, HDR10, Chromium-compatible HTML5/CSS/JS support, 4K IP streaming, and an on-board NPU for accelerated tasks. I/O includes Gigabit Ethernet plus a secondary 100Base-T port, 1x USB-C, 1x USB-A, microSD slot, M.2 E-key for optional Wi‑Fi/Bluetooth, 3.5 mm audio line in/out, 3.5 mm IR and serial ports, and a 12-pin Phoenix connector for GPIO (supports bi-directional GPIO per BrightSign docs). Dimensions are 205 x 185.9 x 19.2 mm and product weight is ~590 g. Power is via a 12V DC 3A locking power supply (PoE supported in some configurations). BrightSign OS compatibility, robust industrial design and up to 5-year warranty depending on vendor.
Technical Specifications
-
BrandBrightSign
-
Model / MPNXD1036
-
SeriesXD6 (XD6-series)
-
Product TypeDigital signage media player / media player
-
Video Output1 x HDMI 2.0a output
-
Max Resolution4K UHD (3840x2160) up to 60Hz
-
4K DecodingDual 10-bit 4K video decoding @60p
-
Full HD DecodingDual Full HD 60p decoding
-
HDRHDR10 support
-
HTML5 SupportChromium-compatible HTML5, CSS, JavaScript, WebGL
-
Streaming4K IP streaming support
-
NPUOn-board NPU for accelerated workloads
-
EthernetGigabit Ethernet (1000Base-T) + secondary 100Base-T port
-
Wi‑FiOptional via M.2 E-key module (vendor dependent)
-
BluetoothOptional via module/adapter
-
USB1 x USB-C, 1 x USB-A
-
StorageInternal storage; microSD slot; variants with pre-installed microSD available
-
M.2 SlotM.2 E-key for optional Wi‑Fi/Bluetooth module
-
GPIO12-pin Phoenix connector for GPIO (documentation references 4 GPIO or up to 8 bi-directional depending on context)
-
Serial / IR3.5 mm serial port and 3.5 mm IR port
-
Audio I/O3.5 mm line in / line out
-
Supported CodecsH.265/HEVC, H.264/AVC, VP9, AV1 and others
-
Supported ContainersMP4, MOV, MKV, WEBM, TS, MPG, MPEG, PS, M2P, MPV, AVI, MJPG
-
Dimensions205 x 185.9 x 19.2 mm
-
Weight590 g
-
Color / FinishBlack (retail/spec listings note black with purple accents)
-
Operating Temperature0°C to 50°C
-
Power12V DC, 3A locking/proprietary PSU; PoE supported in some configurations
-
MountingWall-mountable / compact form factor for signage installations
-
WarrantyUp to 5-year warranty (per vendor listing)
-
Use CasesDigital signage, kiosks, touch-screen displays, interactive installations
