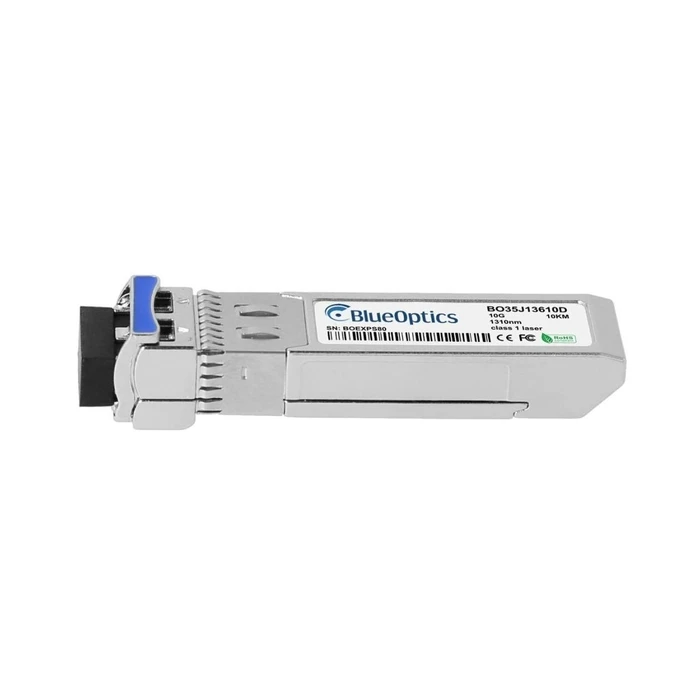

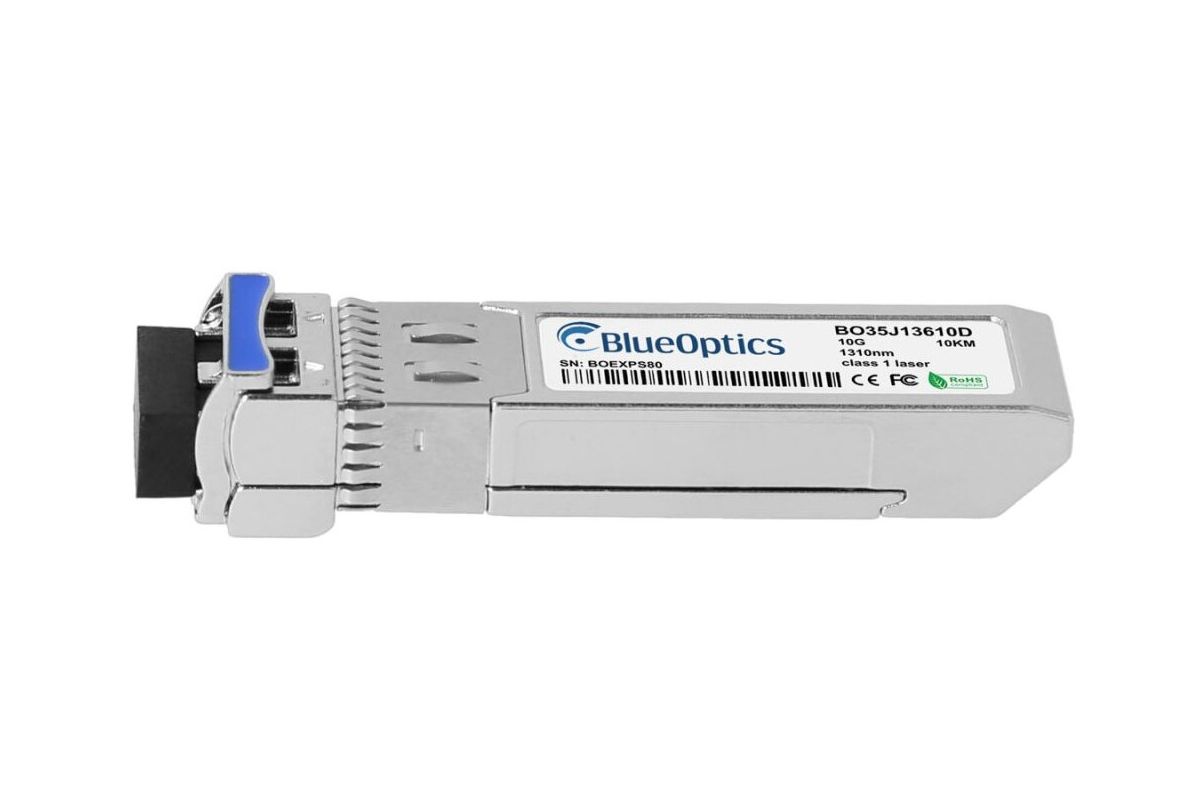

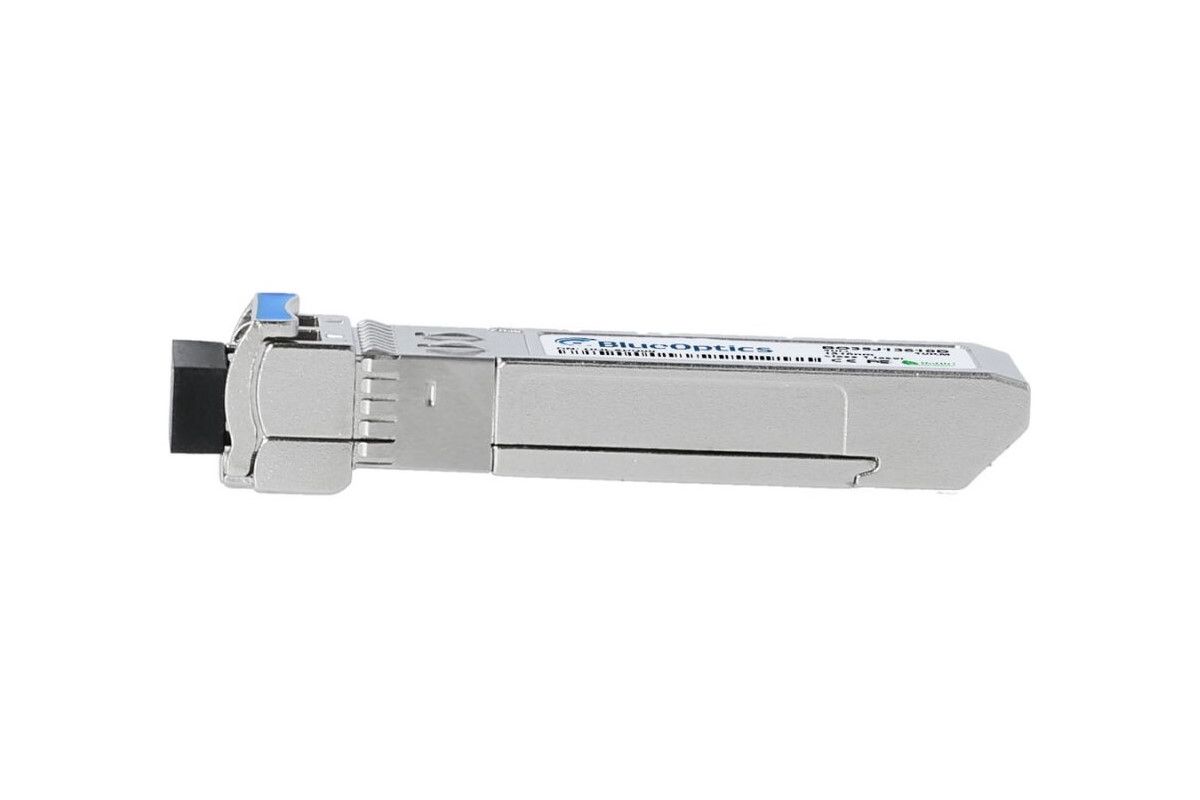

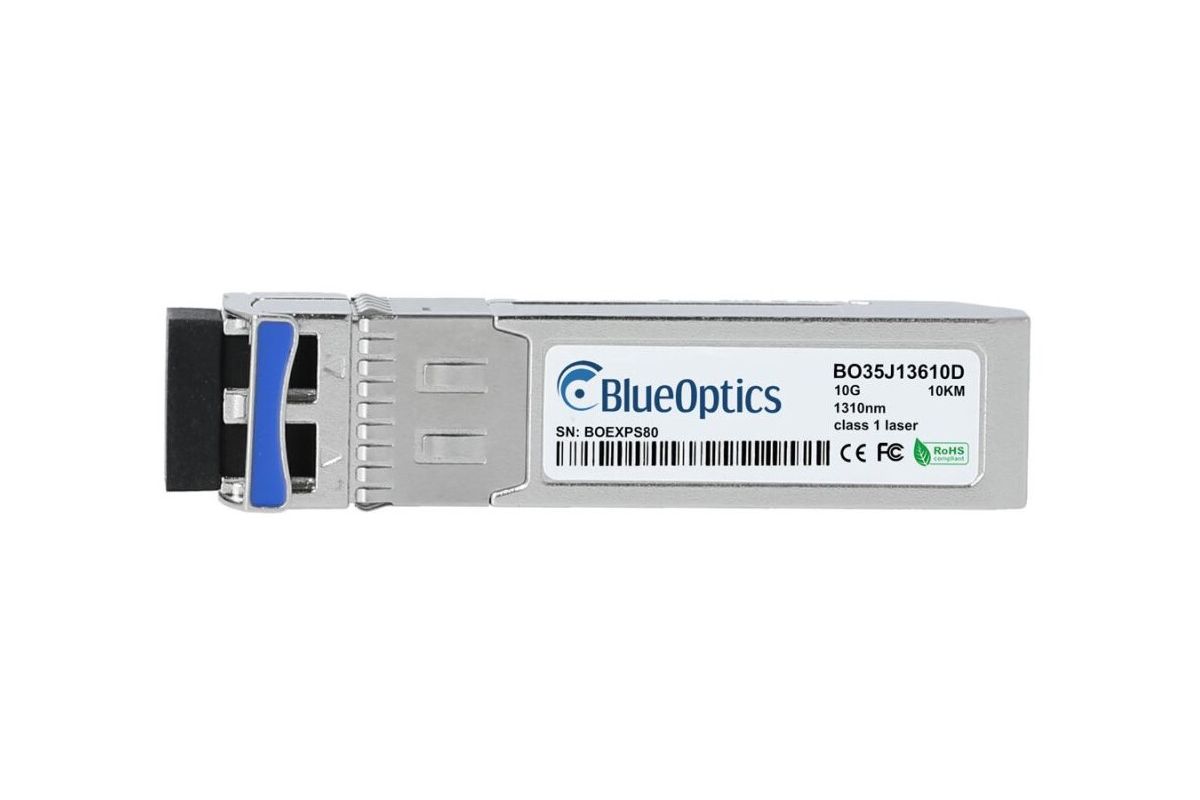

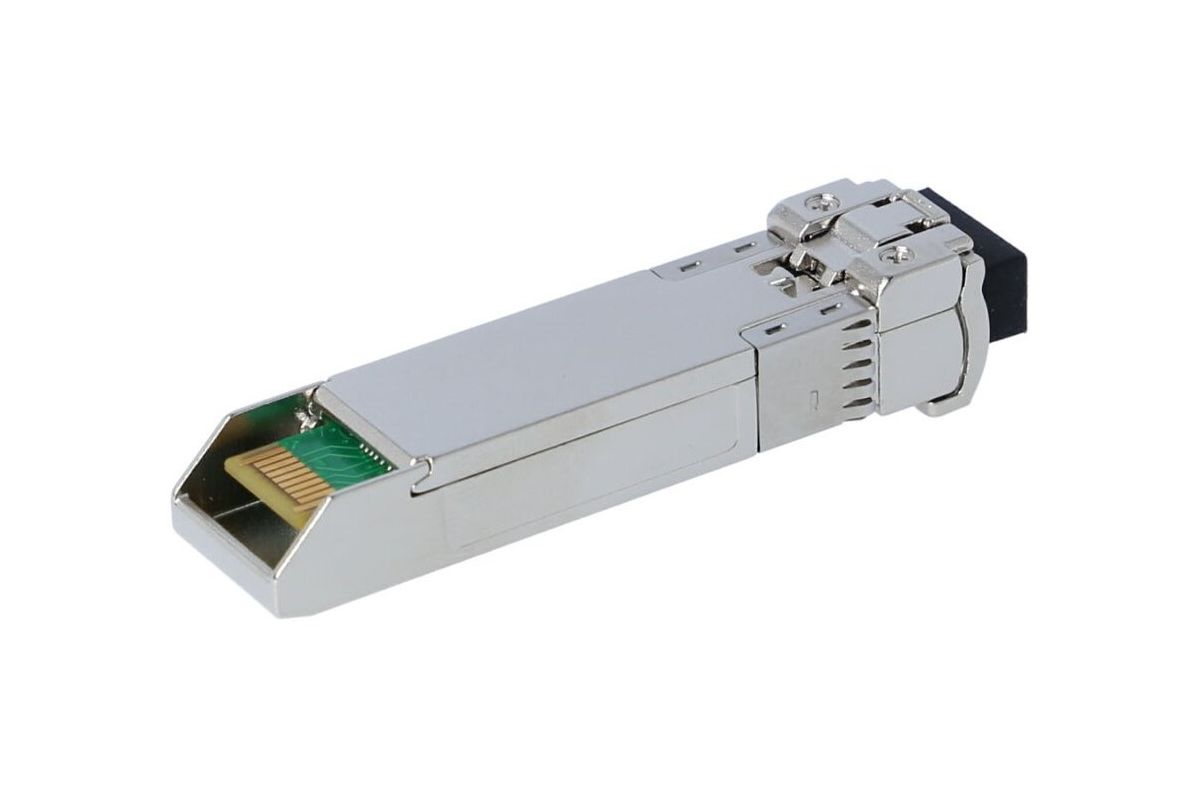

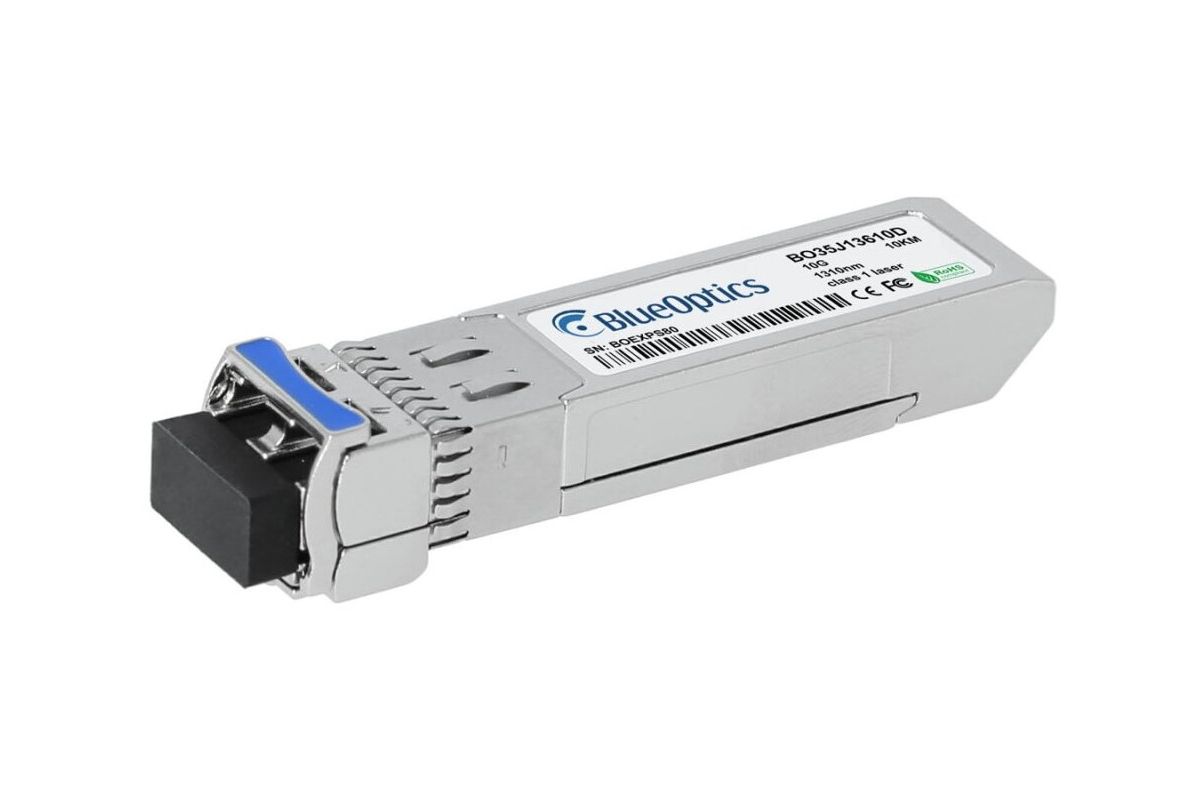

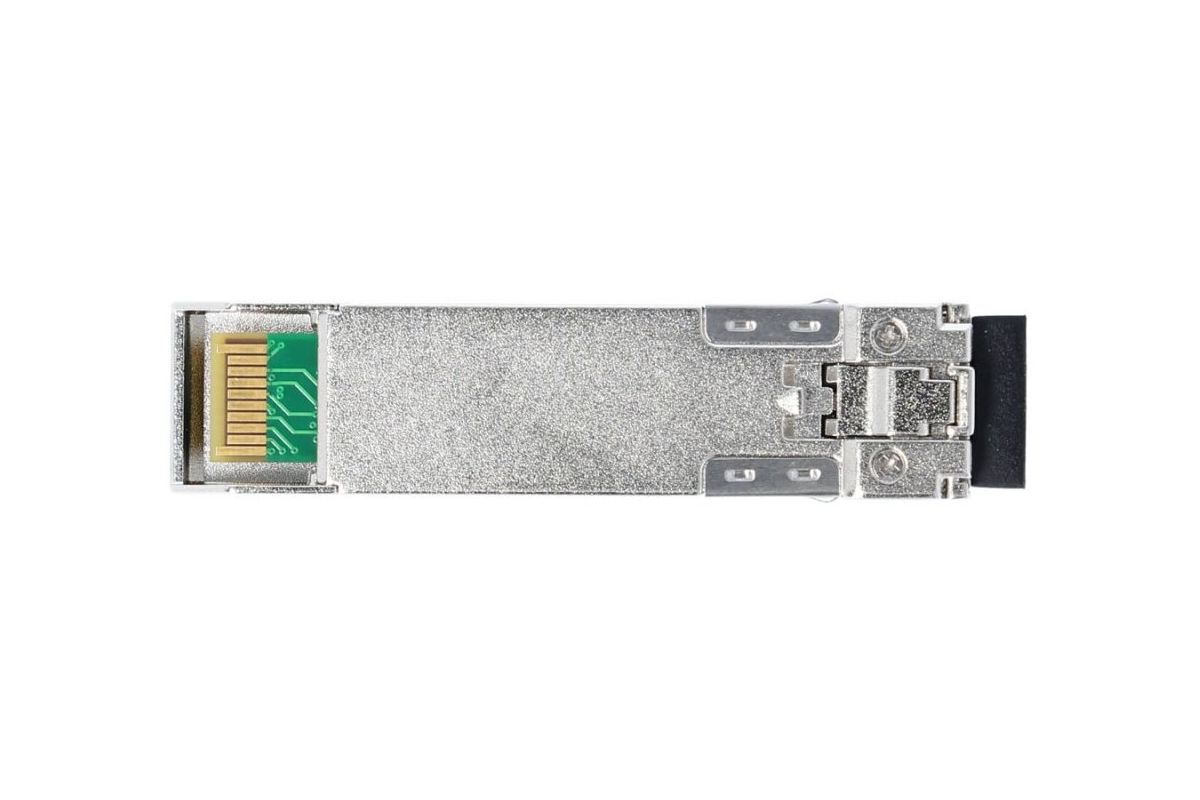

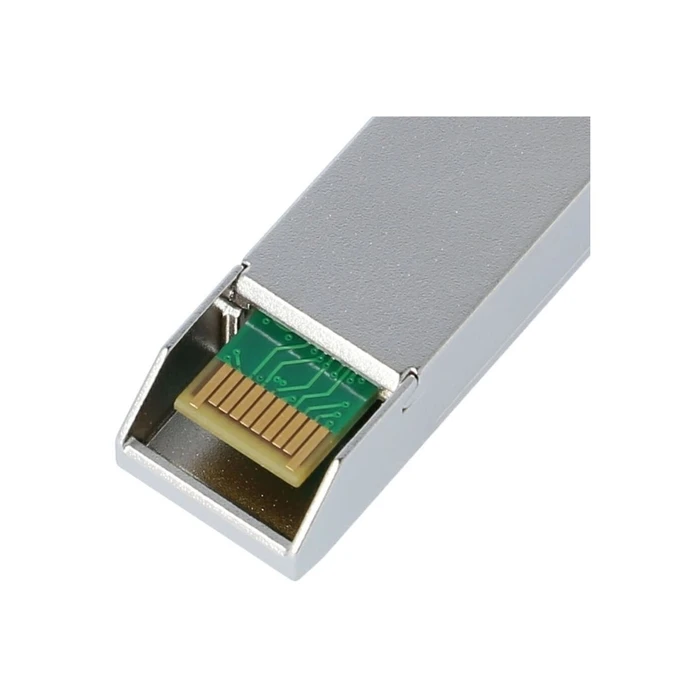

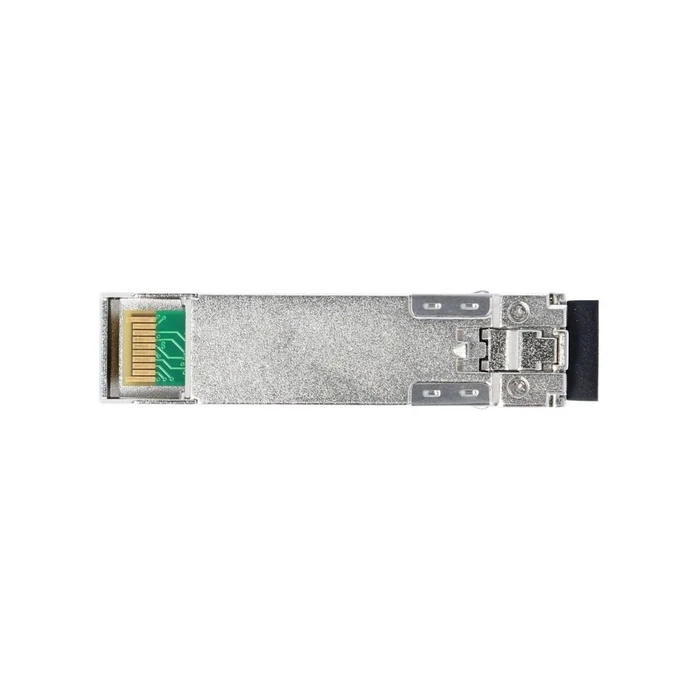

BlueOptics PAN-SFP-PLUS-LR (Palo Alto Networks compatible) SFP+ 10Gb 10km

Description

Technical Specifications

• Brand
  BlueOptics
• Compatible OEM
  Palo Alto Networks
• Model Name
  PAN-SFP-PLUS-LR (PAN-SFP-PLUS-LR-BO)
• SKU
  588872
• MPN
  PAN-SFP-PLUS-LR-BO
• EAN/Barcode
  4063232627915
• Form Factor
  SFP+
• Data Rate
  Up to 10.3125 Gbps (10GBASE-LR)
• Wavelength
  1310 nm (DFB Laser)
• Fiber Type
  Single-Mode Fiber (SMF)
• Maximum Reach
  10 km

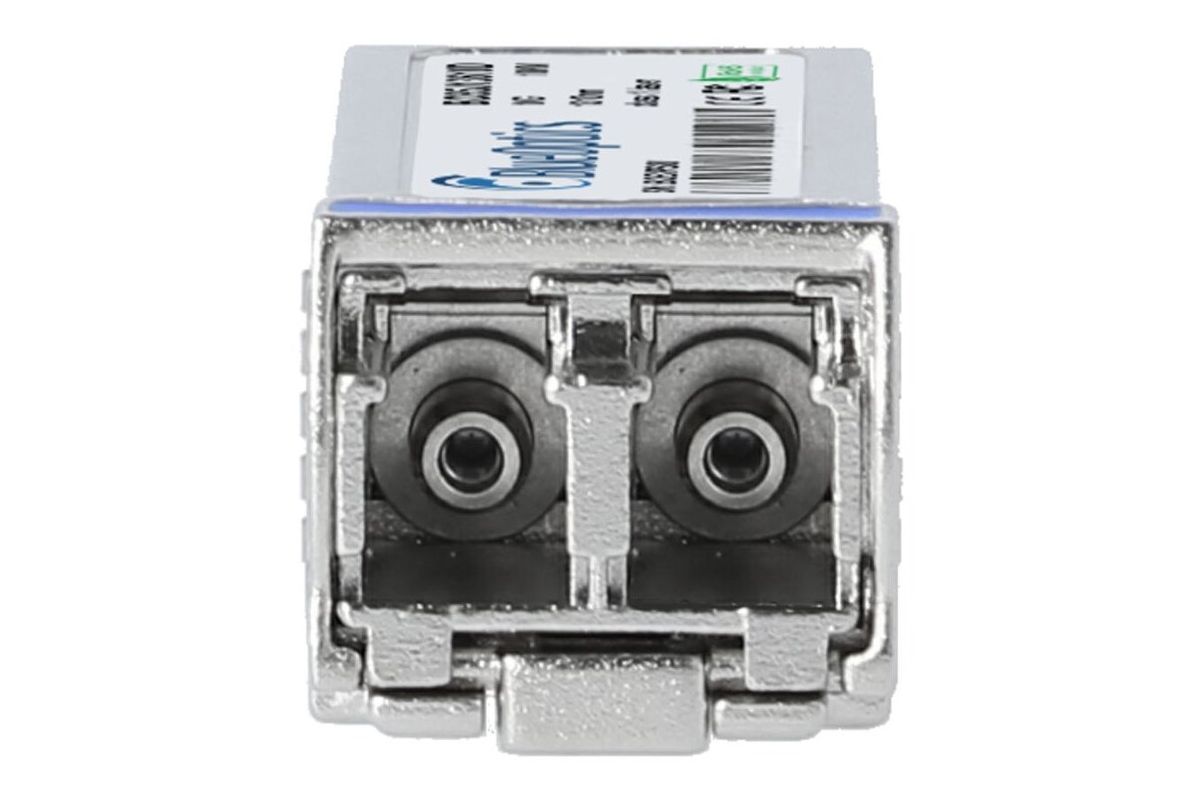

• Connector
  Duplex LC/UPC
• Transmit Power (Tx)
  -8.00 dBm (min) to 0.50 dBm (max)
• Receive Sensitivity (Rx)
  -14.00 dBm (min) to -3.00 dBm (max)
• Power Budget
  ~6.0 dB
• DDM/DOM
  Supported (Digital Optical Monitoring)
• Operating Temperature
  0°C to 70°C (standard)
• Hot-Pluggable
  Yes
• Standards Compliance
  IEEE 802.3ae (10GBASE-LR/LW), SFF-8472, MSA SFP+
• Transmitter Type
  1310 nm DFB-LD (Distributed Feedback Laser)
• Receiver Type
  PIN photodiode
• Fiber Count
  Duplex (2 strands)
• Applications
  10GBASE-LR (10.3125 Gbps), 10GBASE-LW (9.953 Gbps), compatible with Fibre Channel rates
• Warranty
  Limited lifetime / 5 year options (varies by supplier)
• Compliance
  RoHS, TAA compliant (supplier dependent)
• Unique Serialization
  Programmed and uniquely serialized to match OEM initialization
• Package Dimensions (packaged)
  ~3.05 x 6.99 x 12.07 cm (approx.)
• Shipping Weight (packaged)
  ~181 g
