The BLOW DM-26-139 is a 1-channel garage door/gate remote receiver (230V) supplied with one remote control. It operates at 433 MHz with a control range up to 70 meters and can store up to 16 remote transmitters. The unit features a switching relay rated 10A (3000W resistive, 1500W inductive),...
More

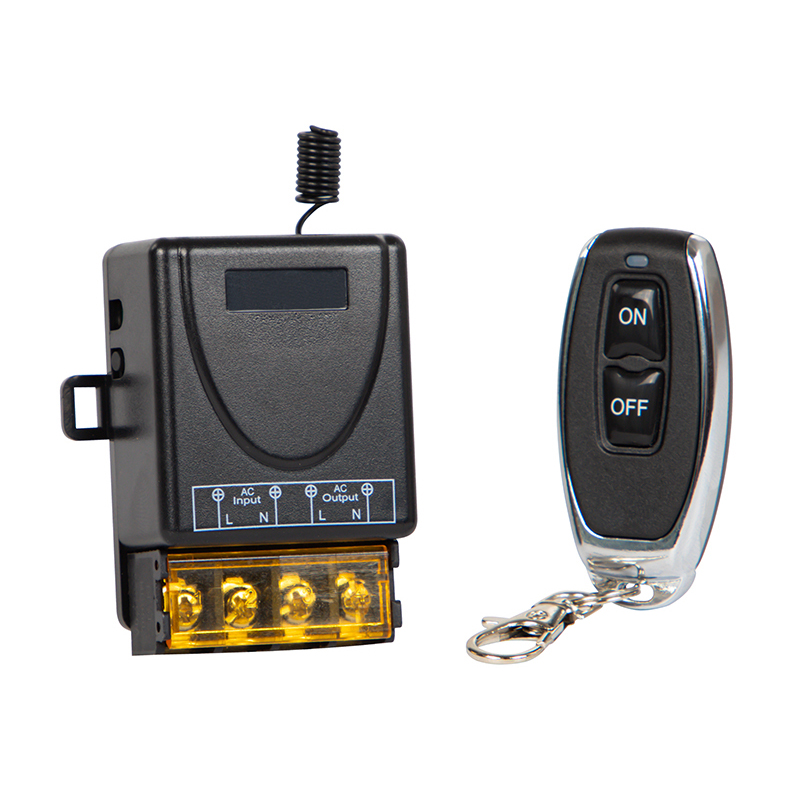

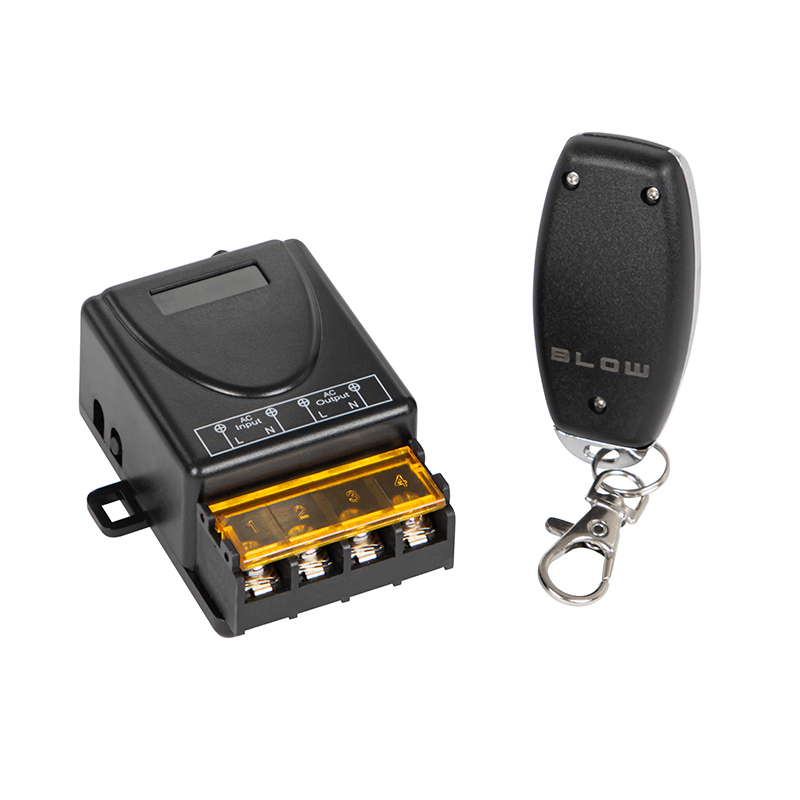

BLOW DM-26-139 1-Channel Garage Door Remote Receiver with 1 Remote (230V)
Product Code: 1143722652
Available in 4 - 6 days
22,31 €
With the purchase of this product you earn 67 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The BLOW DM-26-139 is a 1-channel garage door/gate remote receiver (230V) supplied with one remote control. It operates at 433 MHz with a control range up to 70 meters and can store up to 16 remote transmitters. The unit features a switching relay rated 10A (3000W resistive, 1500W inductive), adjustable pulse duration (approx. 5–20 s), LED indicator, manual learning/programming and operates in temperatures from -10°C to +50°C. Device dimensions: 105 x 51 x 30 mm. Package includes receiver, remote (with battery), user manual and mounting hardware.
-
BrandBLOW
-
ModelDM-26-139
-
SKUDM-26-139
-
EAN5900804149033
-
Number of channels1
-
Included remote controls1 (remote control with battery included)
-
Operating frequency433 MHz
-
Control rangeUp to 70 meters
-
Power supply230 V AC
-
Standby current consumption0.1 A
-
Relay rated current10 A (standard) — 3000W resistive, 1500W inductive
-
Optional relayCan be fitted with 30A relay for motor loads (per product information)
-
Memory capacityUp to 16 remote controls
-
Adjustable pulse durationApprox. 5–20 seconds (programmable)
-
Operating temperature range-10°C to +50°C
-
Dimensions (device)105 x 51 x 30 mm
-
Package contents1× receiver, 1× remote control with battery, 1× user manual, mounting screws/terminals
-
ProgrammingManual learning mode via remote; DIP/switch and learning programming supported
-
LED indicatorYes
-
MountingSurface mounting / installation inside enclosure
-
ApplicationGarage doors, gates and other remote-controlled motor/power circuits
Ratings
Description
The BLOW DM-26-139 is a 1-channel garage door/gate remote receiver (230V) supplied with one remote control. It operates at 433 MHz with a control range up to 70 meters and can store up to 16 remote transmitters. The unit features a switching relay rated 10A (3000W resistive, 1500W inductive), adjustable pulse duration (approx. 5–20 s), LED indicator, manual learning/programming and operates in temperatures from -10°C to +50°C. Device dimensions: 105 x 51 x 30 mm. Package includes receiver, remote (with battery), user manual and mounting hardware.
Technical Specifications
-
BrandBLOW
-
ModelDM-26-139
-
SKUDM-26-139
-
EAN5900804149033
-
Number of channels1
-
Included remote controls1 (remote control with battery included)
-
Operating frequency433 MHz
-
Control rangeUp to 70 meters
-
Power supply230 V AC
-
Standby current consumption0.1 A
-
Relay rated current10 A (standard) — 3000W resistive, 1500W inductive
-
Optional relayCan be fitted with 30A relay for motor loads (per product information)
-
Memory capacityUp to 16 remote controls
-
Adjustable pulse durationApprox. 5–20 seconds (programmable)
-
Operating temperature range-10°C to +50°C
-
Dimensions (device)105 x 51 x 30 mm
-
Package contents1× receiver, 1× remote control with battery, 1× user manual, mounting screws/terminals
-
ProgrammingManual learning mode via remote; DIP/switch and learning programming supported
-
LED indicatorYes
-
MountingSurface mounting / installation inside enclosure
-
ApplicationGarage doors, gates and other remote-controlled motor/power circuits
