Biostar A520MHP 2.0 is a Micro ATX motherboard with AMD AM4 socket and AMD A520 chipset. It supports AMD Ryzen processors (including Ryzen 5000-series with appropriate BIOS update via BIOS Flashback). Memory: 2x DDR4 DIMM slots, up to 64 GB total, dual-channel; supported frequencies include 2133 /...
More

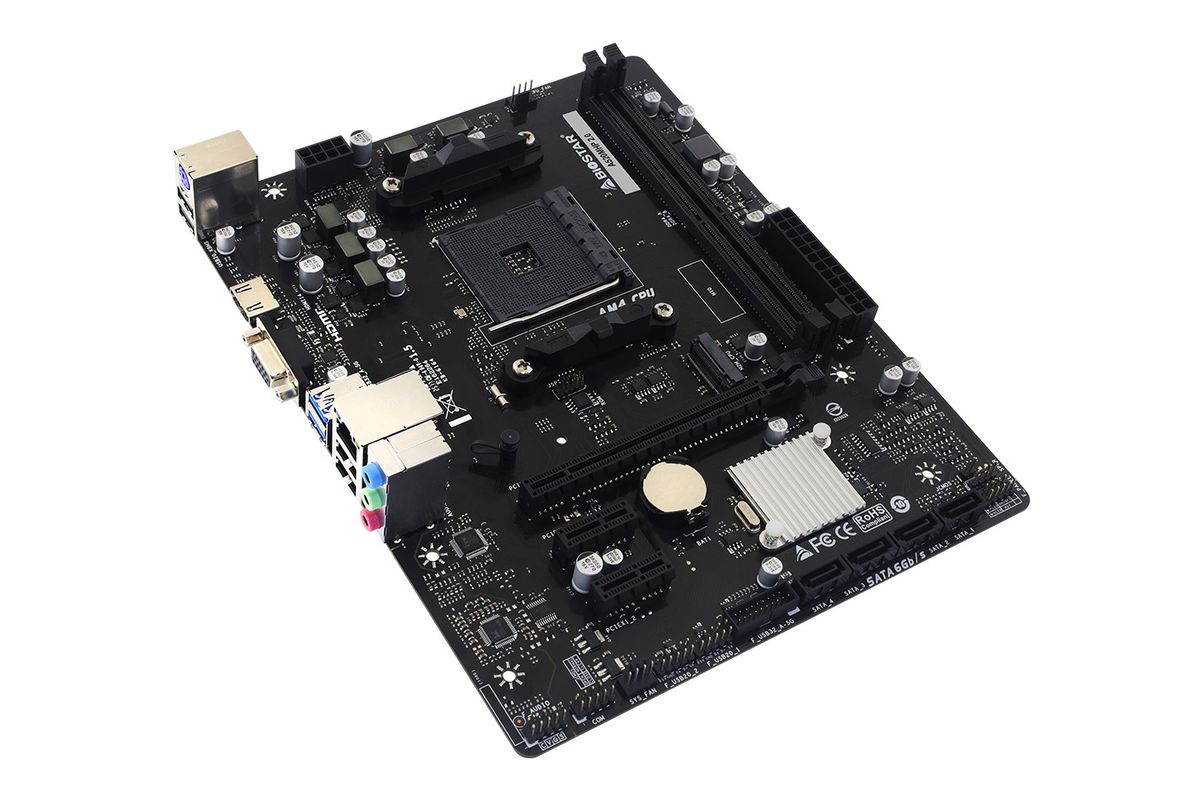

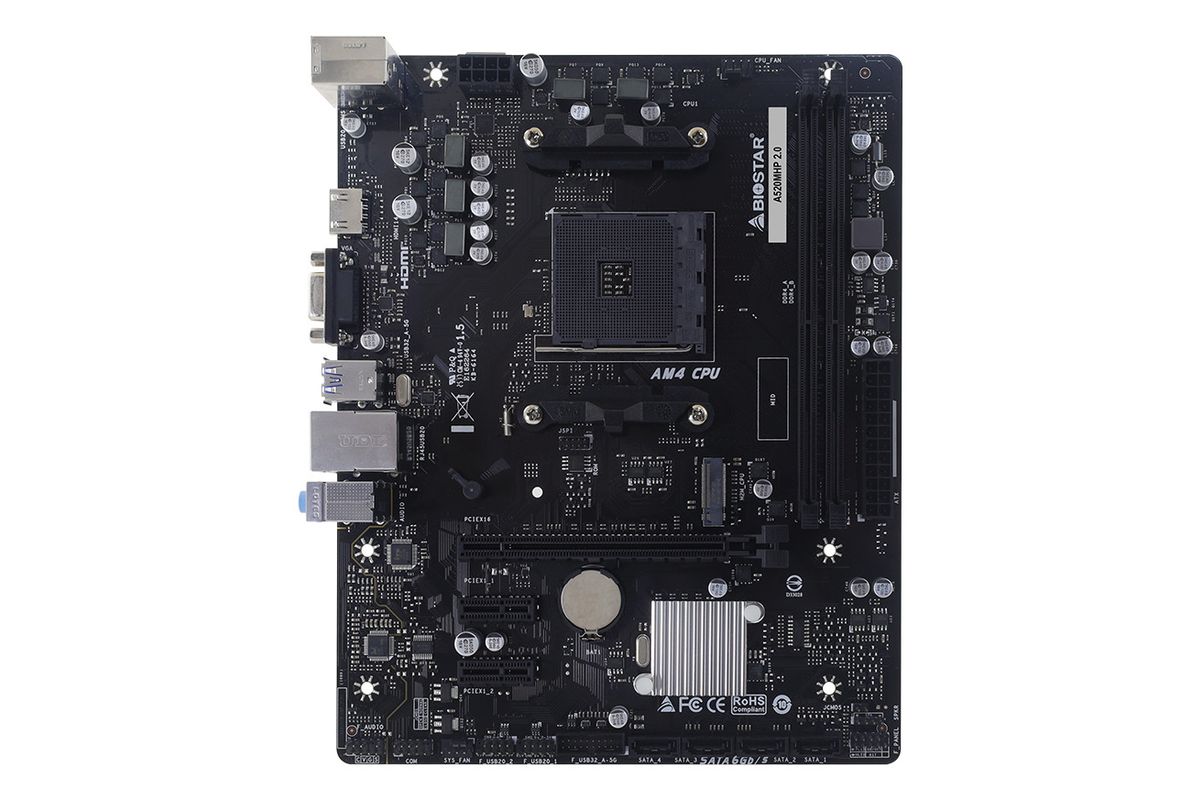

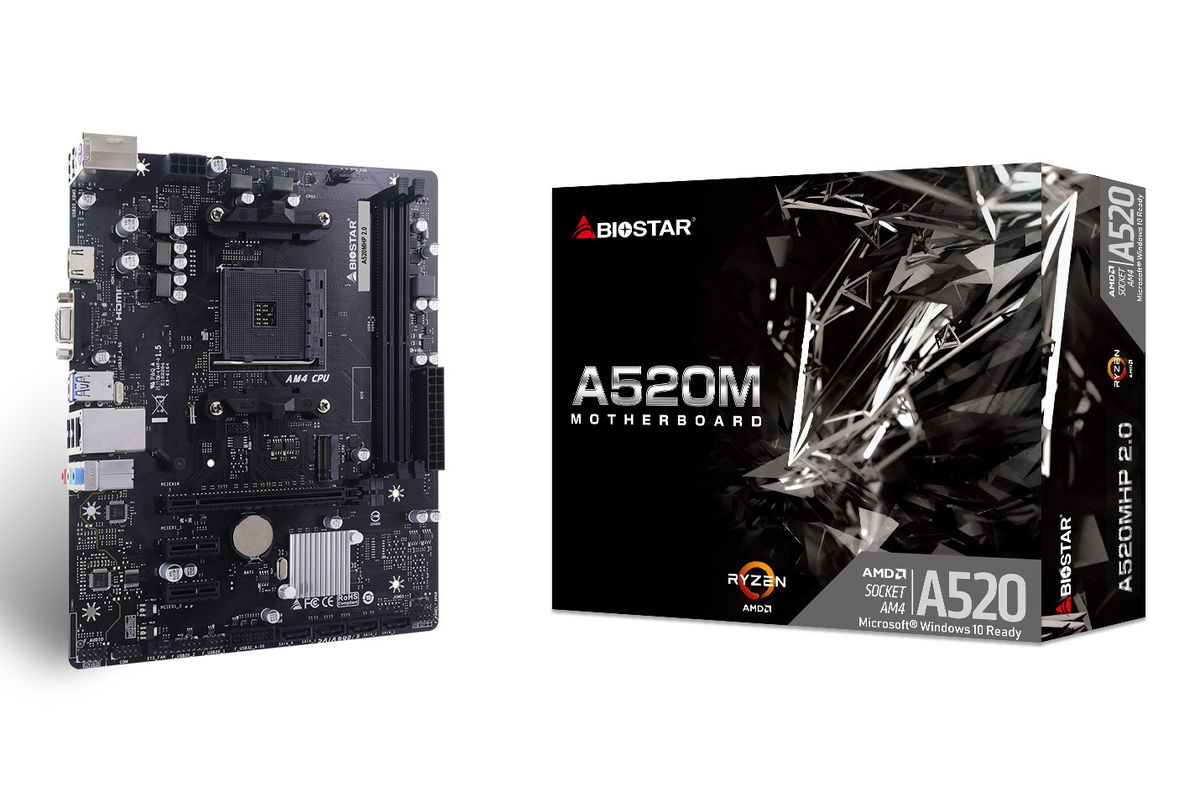

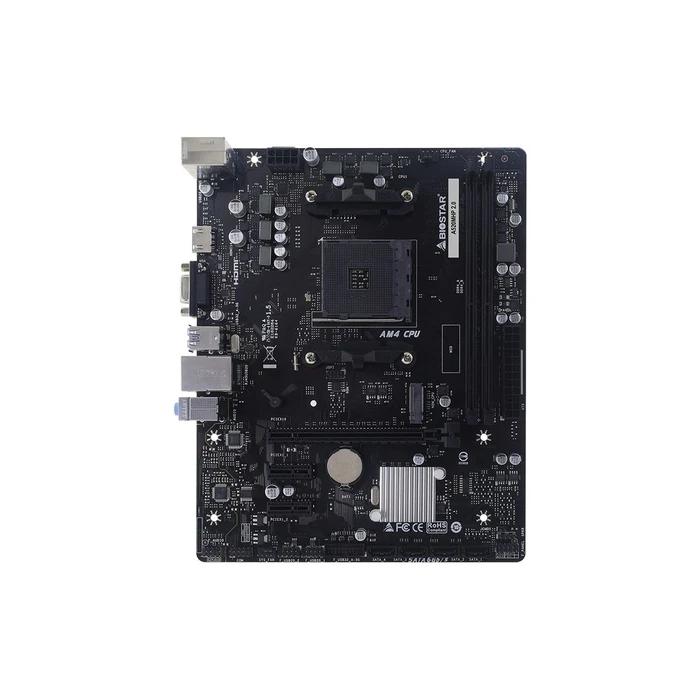

Biostar A520MHP 2.0 Micro ATX Motherboard (AMD A520, AM4, DDR4)
Product Code: 1117796473
Available in 1 - 3 days
85,44 €
or
2,67€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

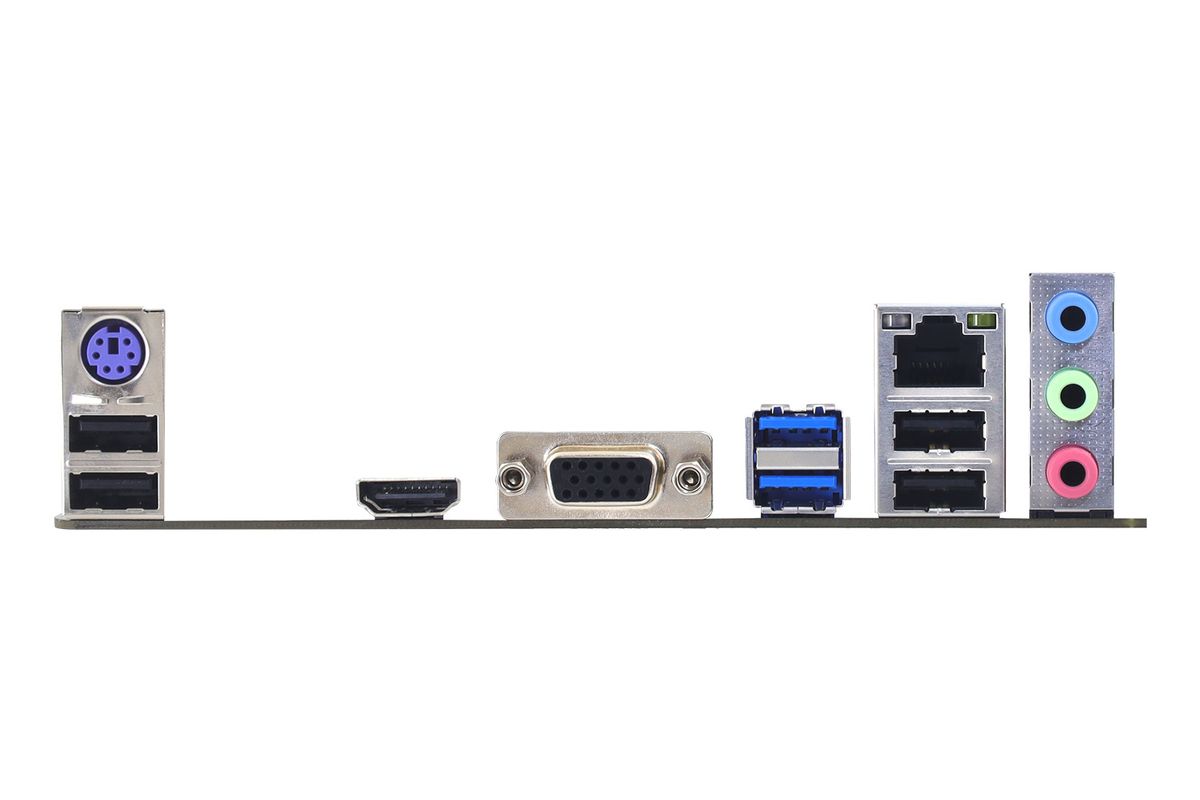

Biostar A520MHP 2.0 is a Micro ATX motherboard with AMD AM4 socket and AMD A520 chipset. It supports AMD Ryzen processors (including Ryzen 5000-series with appropriate BIOS update via BIOS Flashback). Memory: 2x DDR4 DIMM slots, up to 64 GB total, dual-channel; supported frequencies include 2133 / 2400 / 2667 / 2933 / 3200 MHz officially and various OC profiles up to 4133 MHz (OC). Expansion: 1 x PCI Express x16 (PCIe 3.0). Storage: 4 x SATA III 6 Gb/s ports; RAID 0/1/10 supported. Rear I/O: 2 x USB 3.2 (USB-A), 4 x USB 2.0, 1 x RJ-45 Gigabit LAN (10/100/1000), PS/2 combo, HDMI, D-Sub (VGA), 3x audio jacks (7.1 audio support). Features include BIOS Flashback, RGB header, CPU FAN 4-pin header (1), and no integrated Wi‑Fi/Bluetooth. Suitable for compact desktop builds requiring AM4 support. Package dimensions approx. 35 x 28 x 6 cm; package weight approx. 900 g. Manufacturer: Biostar. Model: A520MHP 2.0.
-
BrandBiostar
-
ModelA520MHP 2.0
-
Form FactorMicro ATX
-
SocketAMD AM4
-
ChipsetAMD A520
-
CPU SupportAMD Ryzen (includes support for Ryzen 5000 with BIOS update)
-
Memory TypeDDR4
-
Memory Slots2 DIMM
-
Maximum Memory64 GB
-
Memory Speeds Supported2133, 2400, 2667, 2933, 3200 MHz (official); OC support up to 3600/3800/4000/4133 depending on modules
-
Memory ChannelDual Channel
-
PCIe Slots1 x PCIe x16 (PCIe 3.0)
-
SATA Ports4 x SATA III 6 Gb/s
-
M.2 SlotNot specified / none listed
-
USB (Rear)2 x USB 3.2, 4 x USB 2.0
-
USB (Internal Headers)2 x USB 2.0 (internal)
-
LAN1 x Gigabit LAN (10/100/1000)
-
Video Outputs1 x HDMI, 1 x D-Sub (VGA)
-
Audio7.1 channel
-
Onboard Audio Jacks3
-
RAID SupportRAID 0, RAID 1, RAID 10
-
BIOS FeaturesBIOS Flashback supported
-
RGB HeaderYes (RGB header present)
-
Wi-Fi / BluetoothNo
-
Power Connectors24-pin ATX main power; 4-pin 12V CPU power (as listed)
-
CPU Fan Header1 x 4-pin CPU FAN
-
Chassis Fan HeadersNot specified
-
Max. Supported GraphicsDepends on PCIe GPU (PCIe x16 slot)
-
Special FeaturesCompact Micro ATX layout, BIOS Flashback, RGB header
-
Typical UseDesktop / compact builds / office and home systems
Ratings
Description
Biostar A520MHP 2.0 is a Micro ATX motherboard with AMD AM4 socket and AMD A520 chipset. It supports AMD Ryzen processors (including Ryzen 5000-series with appropriate BIOS update via BIOS Flashback). Memory: 2x DDR4 DIMM slots, up to 64 GB total, dual-channel; supported frequencies include 2133 / 2400 / 2667 / 2933 / 3200 MHz officially and various OC profiles up to 4133 MHz (OC). Expansion: 1 x PCI Express x16 (PCIe 3.0). Storage: 4 x SATA III 6 Gb/s ports; RAID 0/1/10 supported. Rear I/O: 2 x USB 3.2 (USB-A), 4 x USB 2.0, 1 x RJ-45 Gigabit LAN (10/100/1000), PS/2 combo, HDMI, D-Sub (VGA), 3x audio jacks (7.1 audio support). Features include BIOS Flashback, RGB header, CPU FAN 4-pin header (1), and no integrated Wi‑Fi/Bluetooth. Suitable for compact desktop builds requiring AM4 support. Package dimensions approx. 35 x 28 x 6 cm; package weight approx. 900 g. Manufacturer: Biostar. Model: A520MHP 2.0.
Technical Specifications
-
BrandBiostar
-
ModelA520MHP 2.0
-
Form FactorMicro ATX
-
SocketAMD AM4
-
ChipsetAMD A520
-
CPU SupportAMD Ryzen (includes support for Ryzen 5000 with BIOS update)
-
Memory TypeDDR4
-
Memory Slots2 DIMM
-
Maximum Memory64 GB
-
Memory Speeds Supported2133, 2400, 2667, 2933, 3200 MHz (official); OC support up to 3600/3800/4000/4133 depending on modules
-
Memory ChannelDual Channel
-
PCIe Slots1 x PCIe x16 (PCIe 3.0)
-
SATA Ports4 x SATA III 6 Gb/s
-
M.2 SlotNot specified / none listed
-
USB (Rear)2 x USB 3.2, 4 x USB 2.0
-
USB (Internal Headers)2 x USB 2.0 (internal)
-
LAN1 x Gigabit LAN (10/100/1000)
-
Video Outputs1 x HDMI, 1 x D-Sub (VGA)
-
Audio7.1 channel
-
Onboard Audio Jacks3
-
RAID SupportRAID 0, RAID 1, RAID 10
-
BIOS FeaturesBIOS Flashback supported
-
RGB HeaderYes (RGB header present)
-
Wi-Fi / BluetoothNo
-
Power Connectors24-pin ATX main power; 4-pin 12V CPU power (as listed)
-
CPU Fan Header1 x 4-pin CPU FAN
-
Chassis Fan HeadersNot specified
-
Max. Supported GraphicsDepends on PCIe GPU (PCIe x16 slot)
-
Special FeaturesCompact Micro ATX layout, BIOS Flashback, RGB header
-
Typical UseDesktop / compact builds / office and home systems
