BESSEY BEYCEPS BEY23 is a one‑hand mounting and lifting tool designed for lifting, lowering, aligning and — after quick tool‑free conversion — clamping/spreading workpieces. Rated lifting force up to 1,800 N (≈180 kg / 400 lb). Ergonomic one‑hand pump operation with separate release and fine...
More

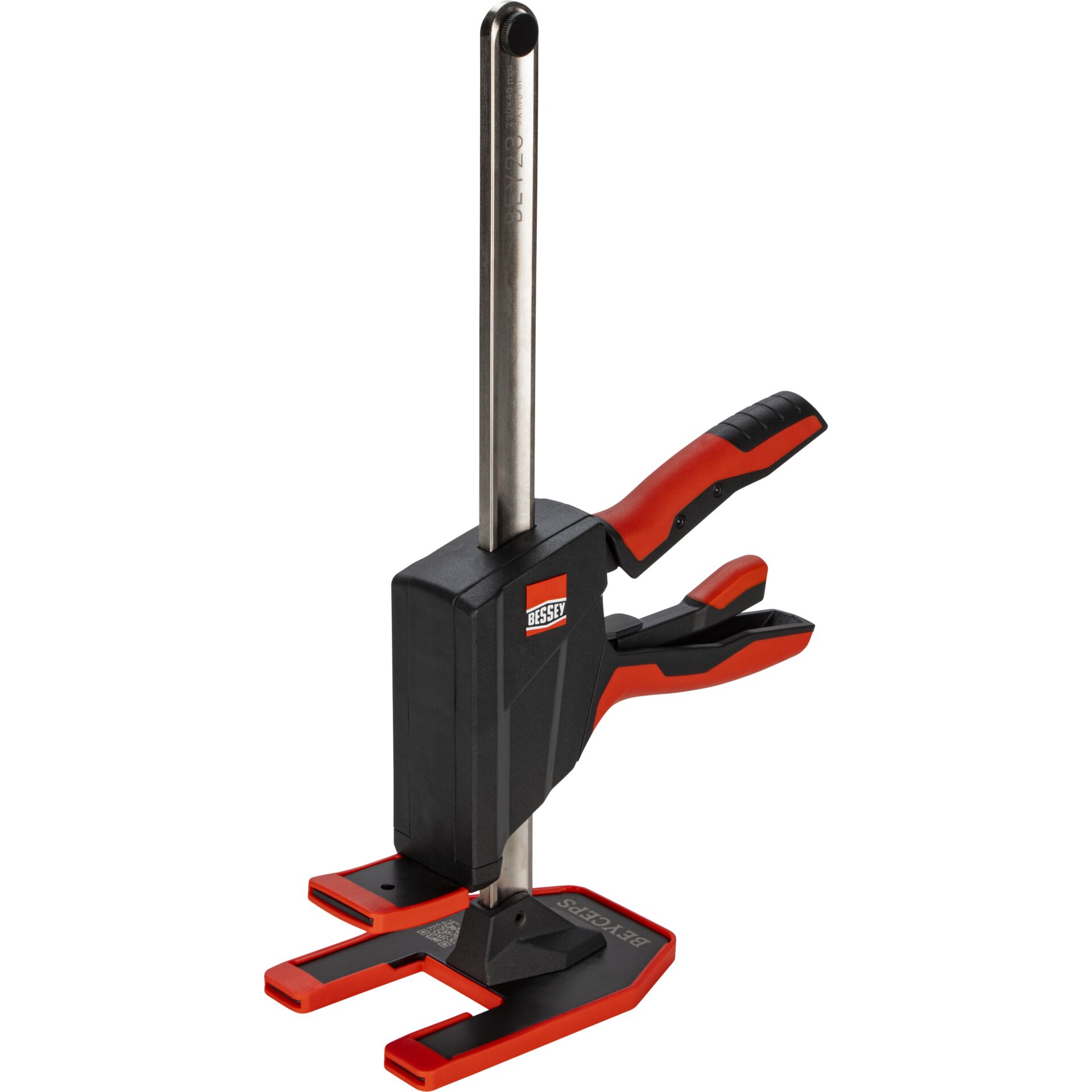

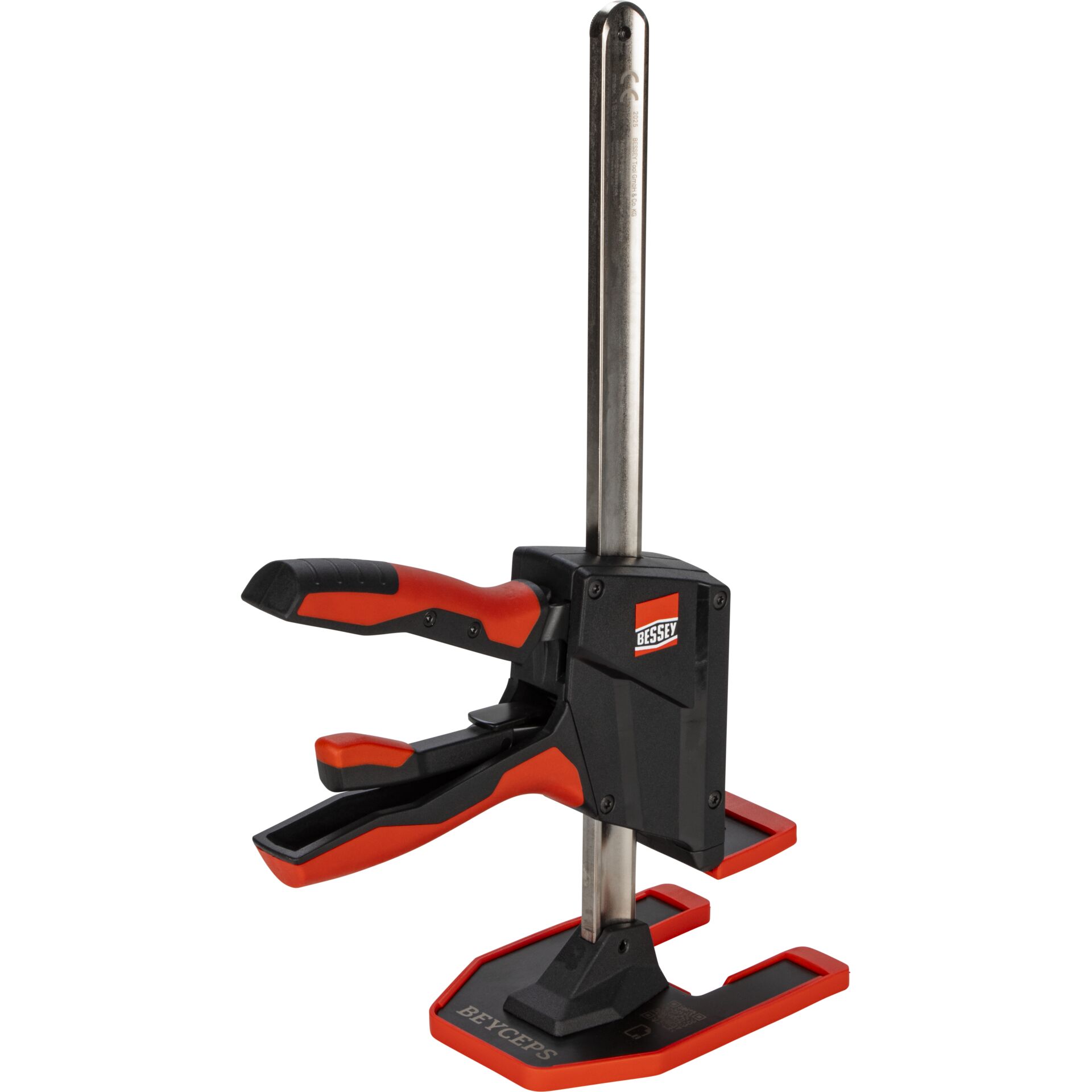

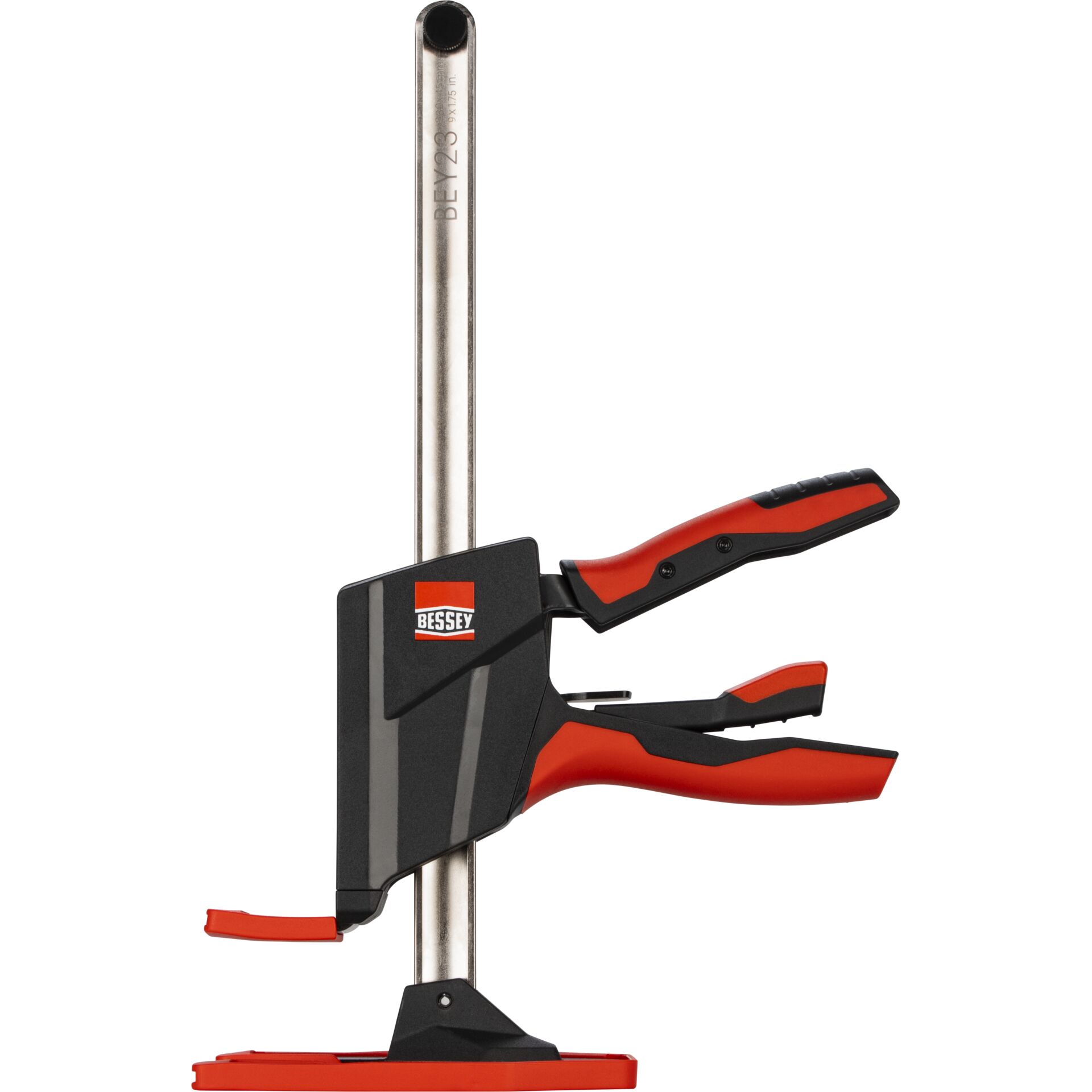

BESSEY BEYCEPS BEY23 One‑Hand Mounting / Lifting Tool
Product Code: 1116692891
Available in 4 - 6 days
138,10 €
or
4,31€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 415 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
BESSEY BEYCEPS BEY23 is a one‑hand mounting and lifting tool designed for lifting, lowering, aligning and — after quick tool‑free conversion — clamping/spreading workpieces. Rated lifting force up to 1,800 N (≈180 kg / 400 lb). Ergonomic one‑hand pump operation with separate release and fine lowering levers; closed plastic housing protects mechanism from dust and chips. Usable lifting/spreading range 5–230 mm (without foot protective cap); spanning/clamping usable range 170–390 mm after conversion. Lifting stroke per pump: up to 8 mm; lowering per release stroke: up to 4 mm. Rail/bar size 22 × 8 mm. Includes protective caps for base foot and lifting plate. CE marked. Product weight ≈1.6 kg. Ideal for installation, alignment and lifting of kitchens/cabinets, windows, doors, appliances, flooring, railings, cladding, beams and similar applications.
-
BrandBESSEY
-
Model / MPNBEY23
-
SKU211747
-
EAN / Barcode4008158050973
-
Product typeEinhand‑Montagewerkzeug (One‑hand mounting/lifting tool)
-
Max lifting force1,800 N / ≈180 kg / ≈400 lb
-
Lifting stroke per pumpUp to 8 mm per pump stroke
-
Lowering per release strokeUp to 4 mm per lowering lever actuation
-
Spanning / clamping usable range170–390 mm (after tool‑free conversion)
-
Lifting / spreading usable range5–230 mm (without foot protective cap mounted)
-
Rail / bar size22 × 8 mm
-
Weight≈1,600 g (product)
-
Package weight (est.)≈2,000 g
-
Material / constructionSteel mechanism with closed plastic housing; protective caps included
-
OperationErgonomic one‑hand pump handle on top; separate release and fine lowering levers below
-
ConversionTool‑free conversion from lifting/spreading to clamping
-
Included accessoriesProtective cap for base foot; protective cap for lifting plate
-
CertificationsCE marked
-
Typical applicationsInstallation, alignment and lifting of kitchens/cabinets, windows, doors, appliances, floors, fences/railings, cladding, support beams
-
Spare partsAvailable from manufacturer
Ratings
Description
BESSEY BEYCEPS BEY23 is a one‑hand mounting and lifting tool designed for lifting, lowering, aligning and — after quick tool‑free conversion — clamping/spreading workpieces. Rated lifting force up to 1,800 N (≈180 kg / 400 lb). Ergonomic one‑hand pump operation with separate release and fine lowering levers; closed plastic housing protects mechanism from dust and chips. Usable lifting/spreading range 5–230 mm (without foot protective cap); spanning/clamping usable range 170–390 mm after conversion. Lifting stroke per pump: up to 8 mm; lowering per release stroke: up to 4 mm. Rail/bar size 22 × 8 mm. Includes protective caps for base foot and lifting plate. CE marked. Product weight ≈1.6 kg. Ideal for installation, alignment and lifting of kitchens/cabinets, windows, doors, appliances, flooring, railings, cladding, beams and similar applications.
Technical Specifications
-
BrandBESSEY
-
Model / MPNBEY23
-
SKU211747
-
EAN / Barcode4008158050973
-
Product typeEinhand‑Montagewerkzeug (One‑hand mounting/lifting tool)
-
Max lifting force1,800 N / ≈180 kg / ≈400 lb
-
Lifting stroke per pumpUp to 8 mm per pump stroke
-
Lowering per release strokeUp to 4 mm per lowering lever actuation
-
Spanning / clamping usable range170–390 mm (after tool‑free conversion)
-
Lifting / spreading usable range5–230 mm (without foot protective cap mounted)
-
Rail / bar size22 × 8 mm
-
Weight≈1,600 g (product)
-
Package weight (est.)≈2,000 g
-
Material / constructionSteel mechanism with closed plastic housing; protective caps included
-
OperationErgonomic one‑hand pump handle on top; separate release and fine lowering levers below
-
ConversionTool‑free conversion from lifting/spreading to clamping
-
Included accessoriesProtective cap for base foot; protective cap for lifting plate
-
CertificationsCE marked
-
Typical applicationsInstallation, alignment and lifting of kitchens/cabinets, windows, doors, appliances, floors, fences/railings, cladding, support beams
-
Spare partsAvailable from manufacturer
