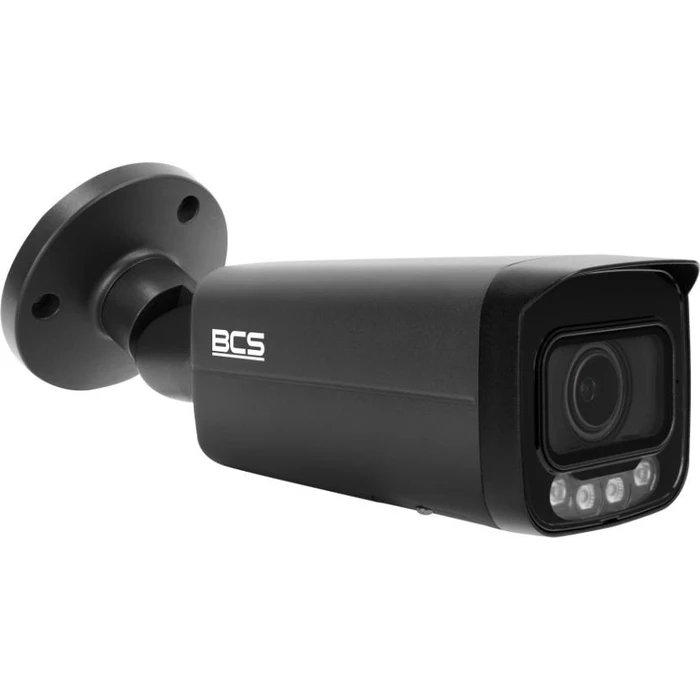

BCS LINE BCS-L-TIP58VCR6L6-Ai1-G IP Bullet Camera — 8MP NightColor WDR, 2.7–13.5 mm Motorized 5× Zoom, PoE, IP67

Description

Technical Specifications

• Brand
  BCS
• Model / MPN
  BCS-L-TIP58VCR6L6-Ai1-G
• SKU
  WLONONWCRSPJO
• EAN / Barcode
  5904890714885
• Product type
  IP bullet / tube camera
• Resolution
  8 Mpx (3840 × 2160)
• Image sensor
  1/2.7" PS CMOS (progressive scan)
• Lens type
  Motorized zoom (motozoom)
• Focal length
  2.7–13.5 mm
• Optical zoom
  5×
• Digital zoom
  16×
• Aperture
  F1.4 (sources vary F1.4–F1.5)
• Field of view H / V / D
  114° ~ 32° / 58° ~ 17° / 138° ~ 36°
• WDR
  120 dB
• Night vision / Illumination
  NightColor technology, IR LED + White Light up to 60 m
• Minimum illumination
  Color 0.007 lux; B/W 0.0007 lux; 0 lux with IR/white light
• Video compression
  H.265+, H.265, H.264+, H.264, MJPEG, AI Coding
• Max frame rate
  Up to 25 fps @ 8 MP
• S/N ratio
  56 dB
• AI features
  Intelligent motion detection, Perimeter protection, Face detection, Object recognition, SMD Plus, Smart search
• Audio
  Built-in microphone; Audio I/O 1/1
• Alarm I/O
  1 input / 1 output
• Storage
  microSD card up to 512 GB
• Network
  Ethernet; PoE (802.3af)
• Power supply
  DC 12V or PoE (802.3af)
• Ingress protection
  IP67
• Operating temperature
  -30 °C to +60 °C
• Dimensions
  238.5 × 90.7 × 90.7 mm
• Memory (internal)
  RAM 1 GB, ROM 256 MB
• Weight
  ~700 g (estimated)
• Accessories
  Typical package includes mounting screws, warranty card, quick start guide (varies by retailer)
