Barcode-Scanner Zebra DS9308 USB 2D.0-27.9cm.RS232.KBW.USB.RS485.IP52

The Zebra DS9308 is a high-performance fixed wired 2D imaging barcode scanner, ideally crafted for point-of-sale and various scanning applications. With its advanced imaging technology, this device is designed for efficient and reliable barcode reading.Key Features:Scanning Technology: 2D imager...

Barcode-Scanner Zebra DS9308 USB 2D.0-27.9cm.RS232.KBW.USB.RS485.IP52

Name: Barcode-Scanner Zebra DS9308 USB 2D.0-27.9cm.RS232.KBW.USB.RS485.IP52
Brand: Zebra
SKU: 1173619751
Price: 421.68 EUR
Availability: OutOfStock

Product Code: 1173619751

Available in 4 - 10 days

421,68 €

13,17€ / month

εως 36 δόσεις με πιστωτική κάρτα

Quantity:

Add

Need Help? Fill in your details so we can call you immediately!

Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:

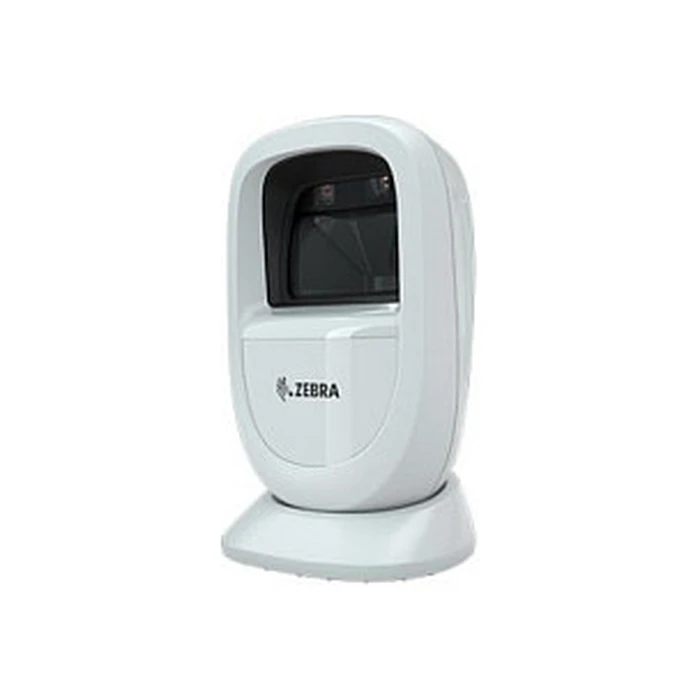

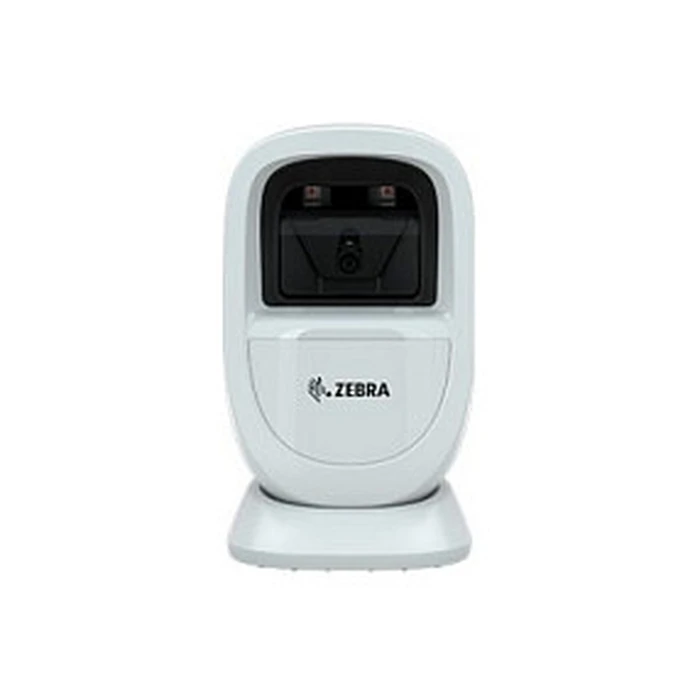

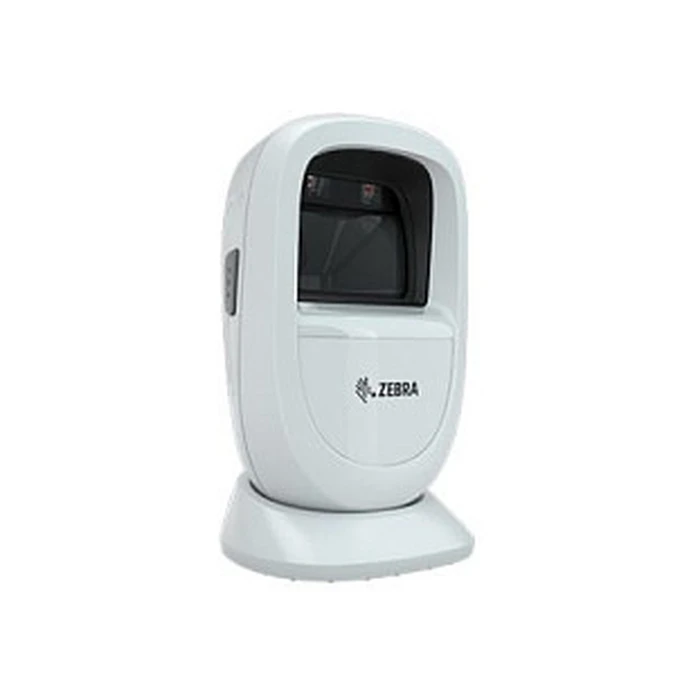

The Zebra DS9308 is a high-performance fixed wired 2D imaging barcode scanner, ideally crafted for point-of-sale and various scanning applications. With its advanced imaging technology, this device is designed for efficient and reliable barcode reading.

Key Features:

Scanning Technology: 2D imager capable of decoding both 1D and 2D barcodes.
Imaging Quality: Utilizes Zebra's PRZM intelligent imaging technology to read damaged and low-contrast barcodes.

Performance Specifications:

Scan Speed: Up to 120 inches per second.
Field of View: 52° horizontal x 33° vertical.

This scanner supports a wide range of symbologies, including various 1D and 2D formats, making it versatile for diverse applications. With an impressive durability rating of IP52, it is designed to withstand the rigors of daily use in retail environments.

In addition, the DS9308 offers robust connectivity options with its ability to interface through USB, RS232, and more. Its ergonomic design ensures comfort even during prolonged usage, making it the ideal choice for businesses looking to enhance efficiency and productivity.

Scan type

2D imager with 1D/2D decoding capability
Image sensor

1280 x 800 pixels
Processing power

800 MHz microprocessor
Scan speed

Up to 305 cm per second
Field of view

52° horizontal x 33° vertical
Skew tolerance

±60°
Pitch tolerance

±60°
Roll tolerance

360°
Minimum print contrast

15%
Code 39 Resolution

3 mil
Code 128 Resolution

3 mil
Data Matrix Resolution

5 mil
QR Code Resolution

5 mil
Supported 1D formats

Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, Interleaved 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32
Supported 2D formats

PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, securPharm, DotCode, Dotted DataMatrix
OCR support

OCR-A, OCR-B, MICR, US currency
Light source

617 nm amber LED
Illumination

660 nm hyper red LED
Waterproof/sealing rating

IP52
Drop resistance

Resists repeated drops from 1.5 meters
Color options

White (Alpine) and Deep Black

Ratings

How do you rate this product?

0/5

Description

Key Features:

Scanning Technology: 2D imager capable of decoding both 1D and 2D barcodes.
Imaging Quality: Utilizes Zebra's PRZM intelligent imaging technology to read damaged and low-contrast barcodes.

Performance Specifications:

Scan Speed: Up to 120 inches per second.
Field of View: 52° horizontal x 33° vertical.

Technical Specifications

Scan type

2D imager with 1D/2D decoding capability
Image sensor

1280 x 800 pixels
Processing power

800 MHz microprocessor
Scan speed

Up to 305 cm per second
Field of view

52° horizontal x 33° vertical
Skew tolerance

±60°
Pitch tolerance

±60°
Roll tolerance

360°
Minimum print contrast

15%
Code 39 Resolution

3 mil
Code 128 Resolution

3 mil
Data Matrix Resolution

5 mil
QR Code Resolution

5 mil
Supported 1D formats

Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, Interleaved 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32
Supported 2D formats

PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, securPharm, DotCode, Dotted DataMatrix
OCR support

OCR-A, OCR-B, MICR, US currency
Light source

617 nm amber LED
Illumination

660 nm hyper red LED
Waterproof/sealing rating

IP52
Drop resistance

Resists repeated drops from 1.5 meters
Color options

White (Alpine) and Deep Black
