Barcode Scanner Honeywell Emea USB Kit Omni-Directional 1D Pdf 2D Black (1470G2D-6)

Technical Specifications

• Maximum Operating Power Consumption
  950 mW
• Host Interface
  USB Serial
• Weight (Approximate)
  111 g
• Form Factor
  Handheld
• Product Type
  Barcode Scanner Kit
• Manufacturer Part Number
  NLS-HR2280-S5
• Manufacturer Website Address
  http://www.newland-id.com
• Manufacturer
  Newland
• Product Name
  HR22 Dorada II Corded
• Product Line
  HR22 Dorada II
• Brand Name
  Newland
• Application/Usage
  Asset Tracking Healthcare Hospitality Pharmacy Retail Ticketing Asset Tracking Healthcare Hospitality Pharmacy Retail Ticketing
• Package Contents

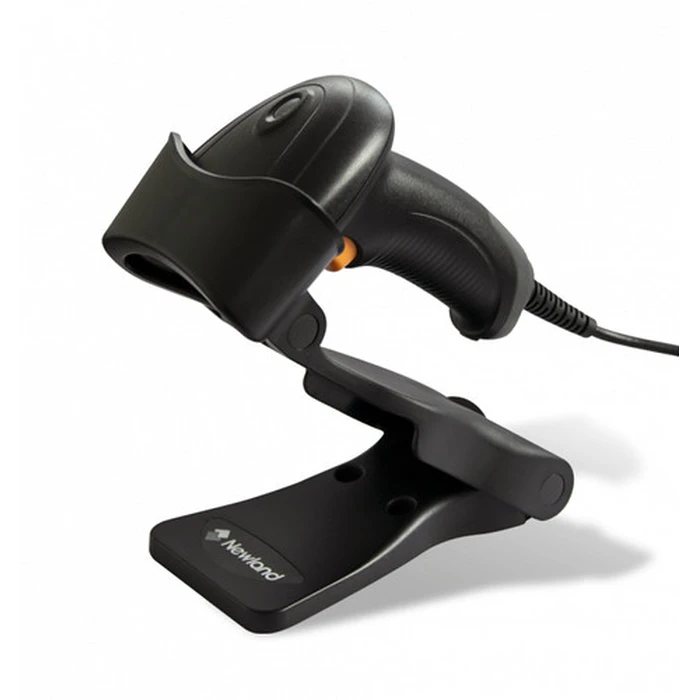

  • HR22 Dorada II Corded • 3.5 meter coiled USB cable • Smart stand
• Environmentally Friendly
  Yes
• Ingress Protection (IP) Rating
  IP42
• Barcode Symbology Supported
  • Code 11 • Code 128 • Code 39 • GS1-128 (UCC/EAN 128) • AIM 128 • ISBT 128 • Codabar • Code 93 • UPC-A • UPC-E • Coupon • GS1 Composite • EAN-8 • EAN-13 • ISBN/ISSN • Interleaved 2 of 5 • Matrix 2 of 5 • Industrial 25 • ITF6 • ITF-14 • Standard 25 • China Post 25 • MSI Plessey • Plessey • GS1 Databar (RSS) • PDF417 • Micro PDF417 • Micro QR • QR Code • Data Matrix • Aztec
• Connectivity Technology
  Cable
• Scanning Distance
  260 mm
• Light Source
  LED
• Drop Specification
  1.5m drop
• Depth of Field
  • EAN 13 (13mil) 50-260mm • Code 39 (5mil) 50-115mm • PDF417 (6.67mil) 50-120mm • Data Matrix (10mil) 35-125mm • QR (15mil) 30-170mm • EAN 13 (13mil) 50-260mm • Code 39 (5mil) 50-115mm • PDF417 (6.67mil) 50-120mm • Data Matrix (10mil) 35-125mm • QR (15mil) 30-170mm
• Image Sensor Type
  CMOS
• Stand Included
  Yes
• Cable Type Included
  USB
• Scanning Capability
  2D 1D
• Field of View (Horizontal)
  45°
• Field of View (Vertical)
  34°
• Reading Angle (Skew)
  55°
• Reading Angle (Pitch)
  55°
• Reading Angle (Roll)
  360°
• Minimum Print Contrast
  20%
• Maximum Element Resolution (Code 39)
  0.13 mm
• Maximum Element Resolution (DataMatrix)
  0.25 mm
• Maximum Element Resolution (PDF417)
  0.17 mm
