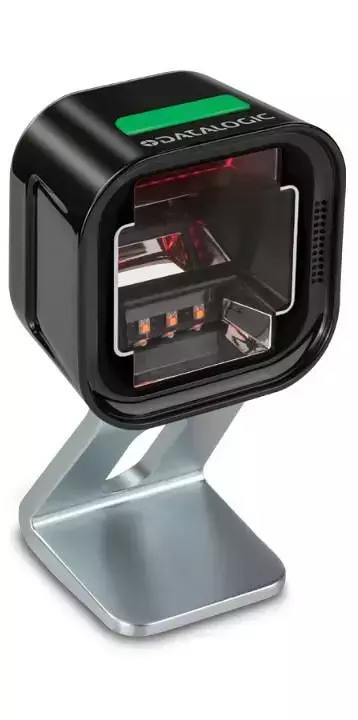

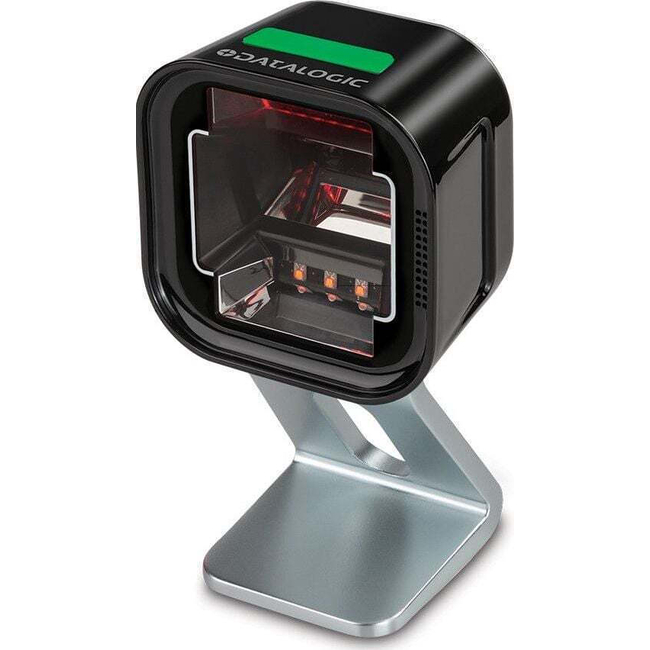

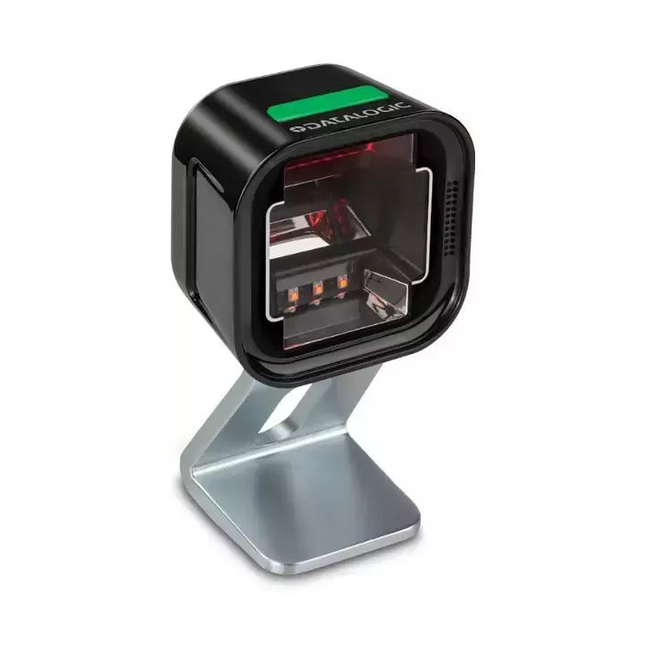

The Datalogic Magellan 1500i [MG1501-10211-0200] is a high-performance, omnidirectional 2D area imager barcode scanner primarily designed for retail point of sale, pharmacy, and customer service applications.

It employs advanced digital imaging technology that allows seamless reading of both 1D and 2D barcodes from printed labels and mobile devices, offering versatility for various environments.

Key Features and Technical Specifications:

• Scanner Type: Omnidirectional 2D area imager featuring a wide scanning field with a 1-megapixel sensor (1280 x 800 pixels).
• Imaging Technology: Advanced digital imaging for reliable decoding of multiple barcode symbologies, including optional Digimarc® Barcode decoding.
• Reading Performance:
• Maximum scan speed: up to 1500 cm/s (59.1 inches per second).
• Depth of field varies by barcode density, such as:
• 5 mil 1D codes: 2.5 to 9.0 cm.
• UPC 13 mil: 0 to 25.0 cm.
• PDF 2D codes 6.5 mil: 2.5 to 11.0 cm.
• Illumination: Adaptive LED lighting to reduce reflections and minimize eye strain.
• Connectivity: Wired interface with USB 2.0, optional RS-232 and OEM interfaces.
• Form Factor: Hands-free counter/desktop presentation scanner with an adjustable tilting stand.
• Additional Functionalities:
• LED aimer for precise scanning of small items.
• “Green Spot” technology for visual feedback upon successful scans.
• Image capture capabilities for records and process validation.
• Remote configuration supported via Scanalyzer™.

The combination of speed, accuracy, and ergonomic design positions the Magellan 1500i as a leading choice for fast-paced retail environments.
