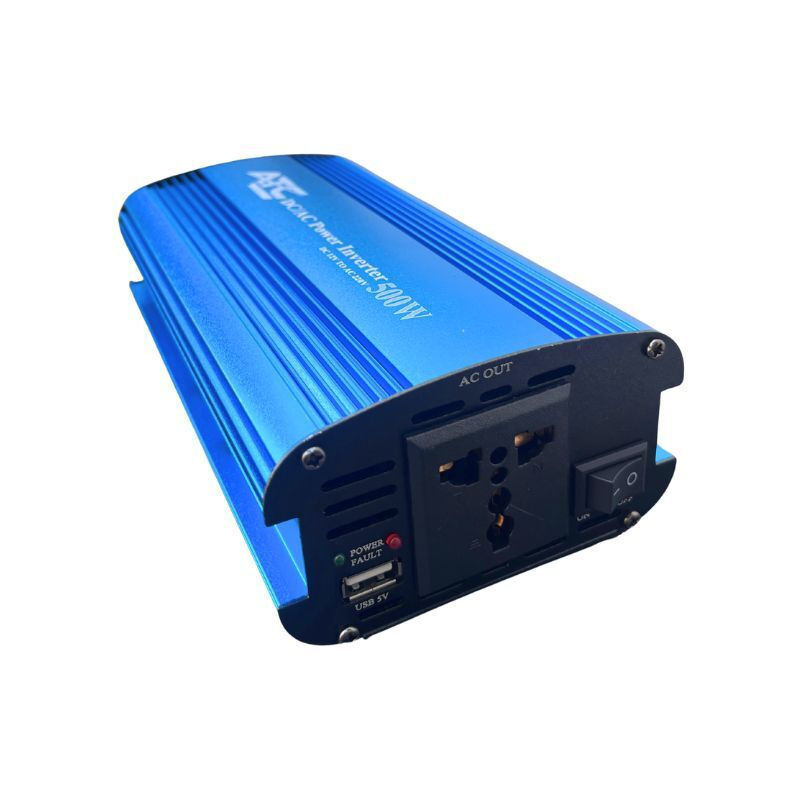

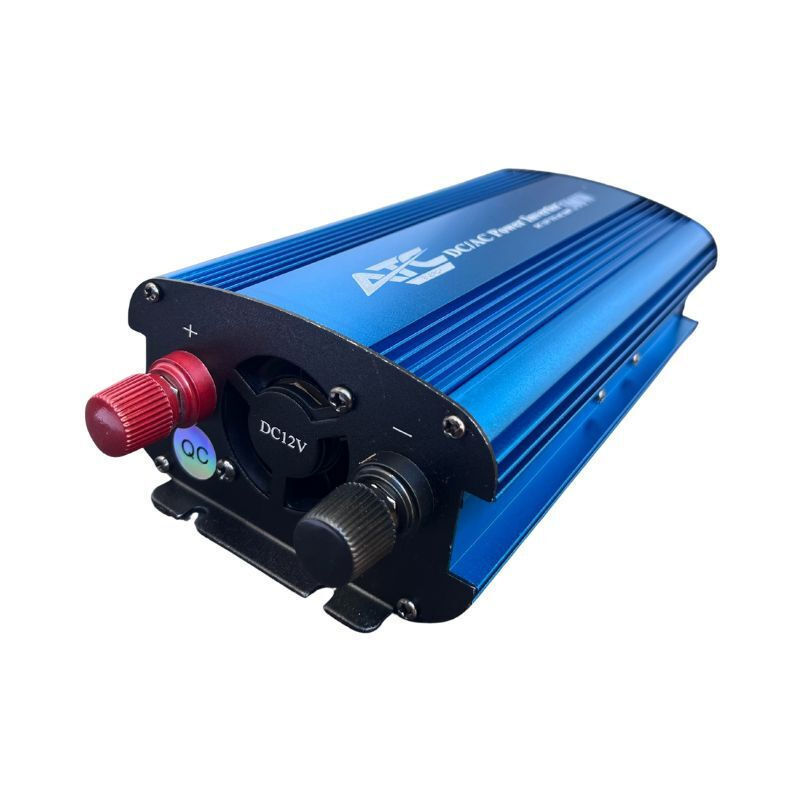

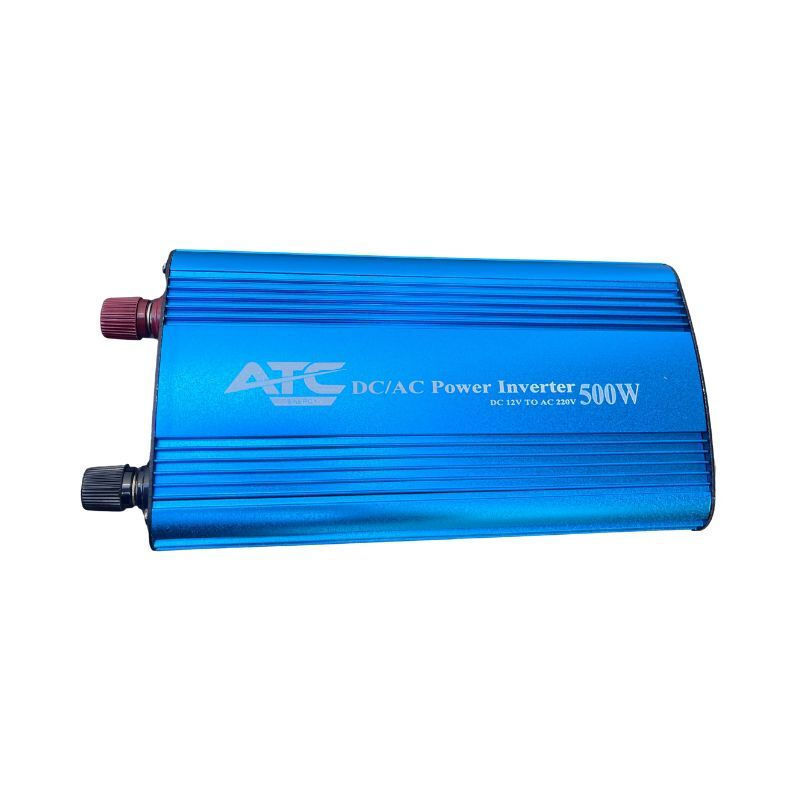

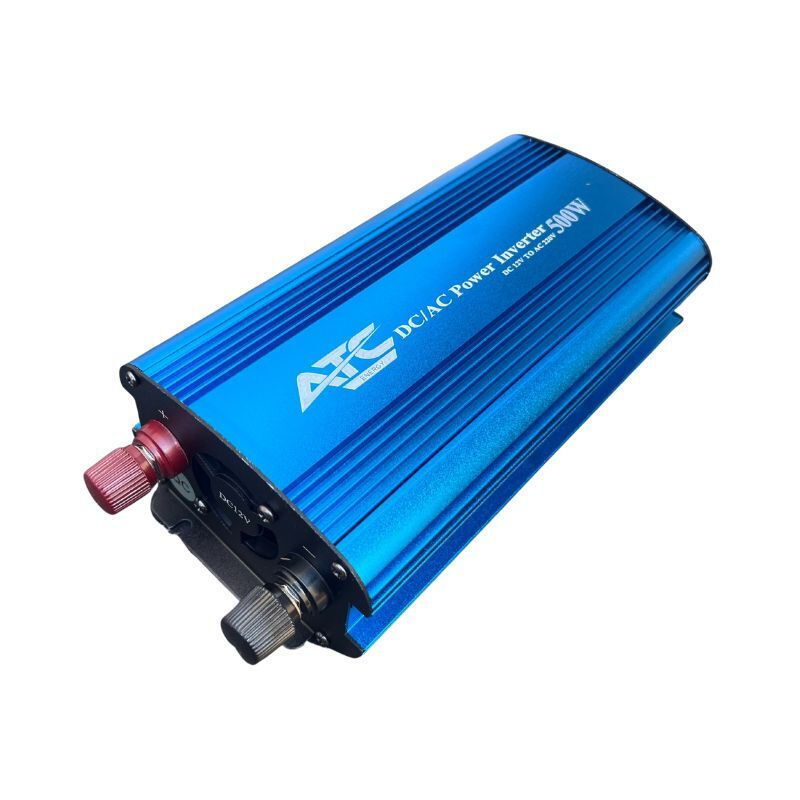

The ATC-IN500 is a 12V DC to 220–240V AC power inverter by Atc (model ATC-IN500, SKU 05.008.0002, MPN ATC-IN500, EAN 5200149941089). Rated continuous power is 500 W with a 1000 W peak (surge) capability. Output: 220–240 VAC, 50 Hz ±0.1%. Input: nominal 12 V DC with operating range ~10.0–15.0 VDC....
More
ATC-IN500 Power Inverter 500W 12V to 220V - Atc
Product Code: 1172727930
Available in 4 - 6 days
33,37 €
or
1,04€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 101 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The ATC-IN500 is a 12V DC to 220–240V AC power inverter by Atc (model ATC-IN500, SKU 05.008.0002, MPN ATC-IN500, EAN 5200149941089). Rated continuous power is 500 W with a 1000 W peak (surge) capability. Output: 220–240 VAC, 50 Hz ±0.1%. Input: nominal 12 V DC with operating range ~10.0–15.0 VDC. Includes low-battery alarm (10.0V ±0.2V), low-battery shutdown (9.5V ±0.2V) and over-voltage shutdown (15.5V DC). Typical conversion efficiency ~90%. Protections: low voltage, overload, over-temperature and short-circuit protection. Operating temperature -10°C to +50°C, storage -30°C to +70°C, humidity 20%–90% RH non-condensing. Compact housing (21.5 x 9.5 x 5.5 cm) and weight ~0.65 kg. Suitable for TVs, laptops, chargers, Hi‑Fi and other small appliances requiring AC power from a 12V battery source.
-
SKU05.008.0002
-
BrandAtc
-
ModelATC-IN500
-
EAN5200149941089
-
MPNATC-IN500
-
Rated Power (Continuous)500 W
-
Peak Power (Surge)1000 W
-
Input Voltage Nominal12 V DC
-
Input Voltage Operating Range10.0 - 15.0 V DC
-
Low Battery Alarm10.0 V DC ±0.2 V
-
Low Battery Shutdown9.5 V DC ±0.2 V
-
Over-voltage Shutdown15.5 V DC
-
Output Voltage220 - 240 V AC
-
Output Frequency50 Hz ±0.1%
-
Output WaveformModified sine wave
-
Conversion Efficiency~90%
-
ProtectionsLow voltage alarm/shutdown; Overload protection; Over-temperature protection; Short-circuit protection
-
Recommended UsesTVs, laptops, chargers, Hi‑Fi systems, small appliances
-
Operating Temperature-10°C to +50°C
-
Storage Temperature-30°C to +70°C
-
Operating Humidity20% - 90% RH non-condensing
-
Dimensions (L x W x H)21.5 x 9.5 x 5.5 cm
-
Product Weight~0.65 kg
-
Housing / MaterialsPlastic housing with internal metal components
Ratings
Description
The ATC-IN500 is a 12V DC to 220–240V AC power inverter by Atc (model ATC-IN500, SKU 05.008.0002, MPN ATC-IN500, EAN 5200149941089). Rated continuous power is 500 W with a 1000 W peak (surge) capability. Output: 220–240 VAC, 50 Hz ±0.1%. Input: nominal 12 V DC with operating range ~10.0–15.0 VDC. Includes low-battery alarm (10.0V ±0.2V), low-battery shutdown (9.5V ±0.2V) and over-voltage shutdown (15.5V DC). Typical conversion efficiency ~90%. Protections: low voltage, overload, over-temperature and short-circuit protection. Operating temperature -10°C to +50°C, storage -30°C to +70°C, humidity 20%–90% RH non-condensing. Compact housing (21.5 x 9.5 x 5.5 cm) and weight ~0.65 kg. Suitable for TVs, laptops, chargers, Hi‑Fi and other small appliances requiring AC power from a 12V battery source.
Technical Specifications
-
SKU05.008.0002
-
BrandAtc
-
ModelATC-IN500
-
EAN5200149941089
-
MPNATC-IN500
-
Rated Power (Continuous)500 W
-
Peak Power (Surge)1000 W
-
Input Voltage Nominal12 V DC
-
Input Voltage Operating Range10.0 - 15.0 V DC
-
Low Battery Alarm10.0 V DC ±0.2 V
-
Low Battery Shutdown9.5 V DC ±0.2 V
-
Over-voltage Shutdown15.5 V DC
-
Output Voltage220 - 240 V AC
-
Output Frequency50 Hz ±0.1%
-
Output WaveformModified sine wave
-
Conversion Efficiency~90%
-
ProtectionsLow voltage alarm/shutdown; Overload protection; Over-temperature protection; Short-circuit protection
-
Recommended UsesTVs, laptops, chargers, Hi‑Fi systems, small appliances
-
Operating Temperature-10°C to +50°C
-
Storage Temperature-30°C to +70°C
-
Operating Humidity20% - 90% RH non-condensing
-
Dimensions (L x W x H)21.5 x 9.5 x 5.5 cm
-
Product Weight~0.65 kg
-
Housing / MaterialsPlastic housing with internal metal components
