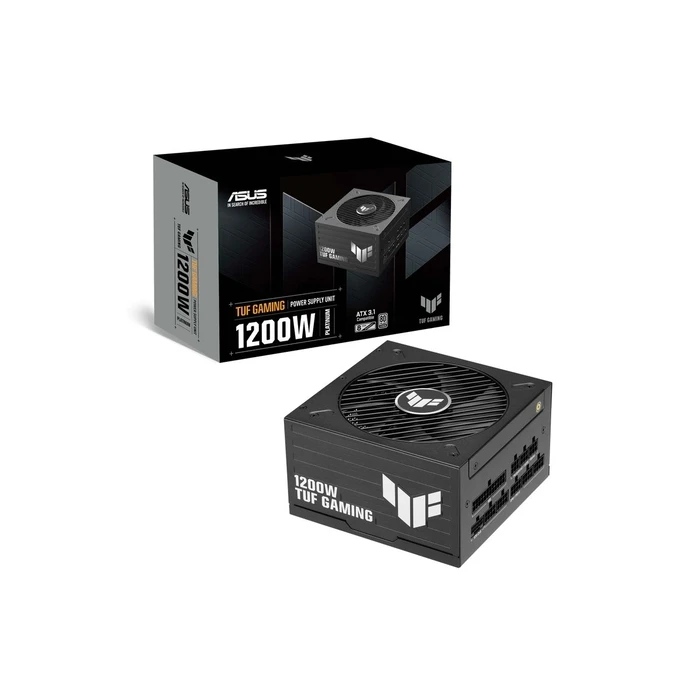

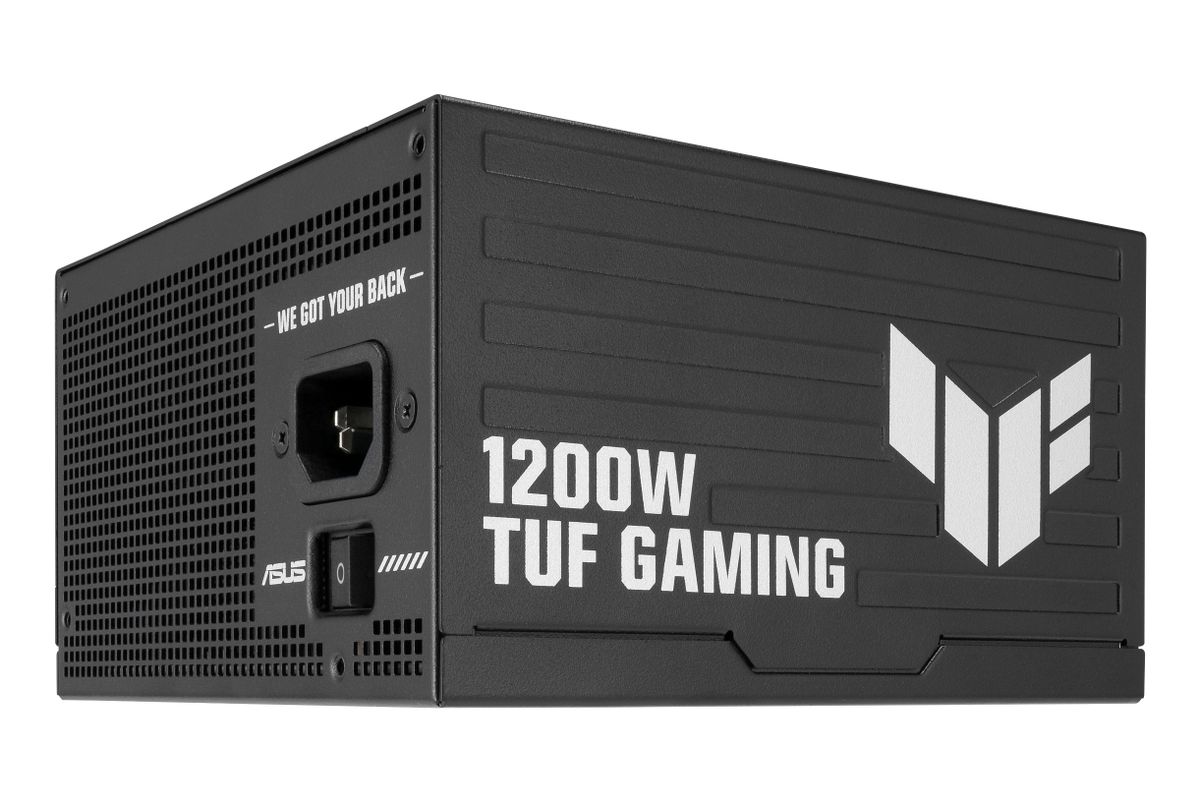

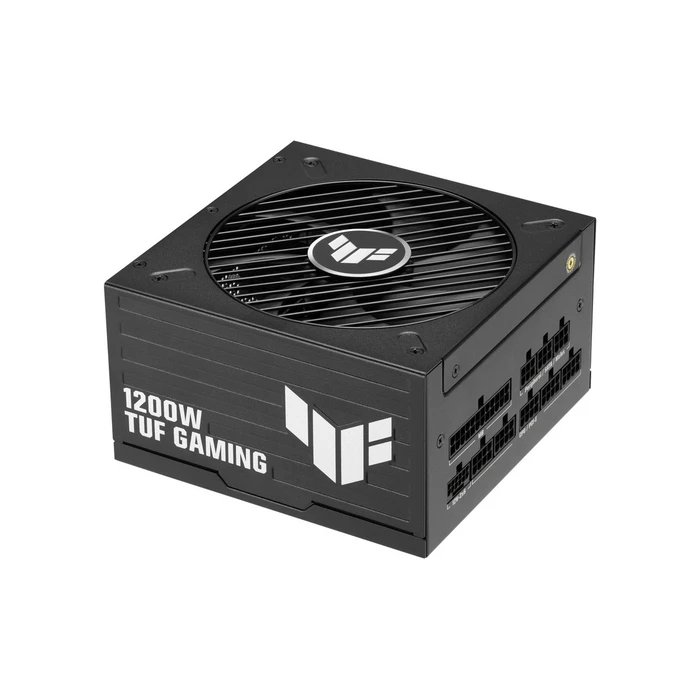

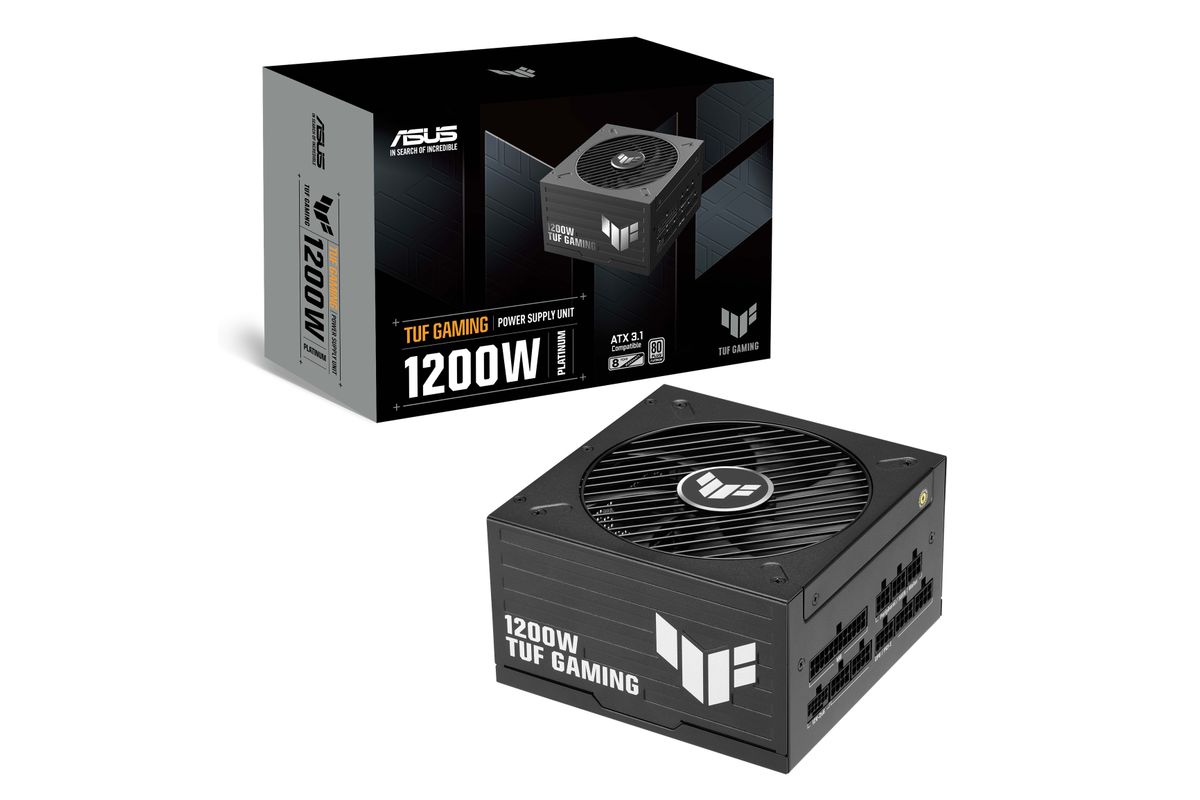

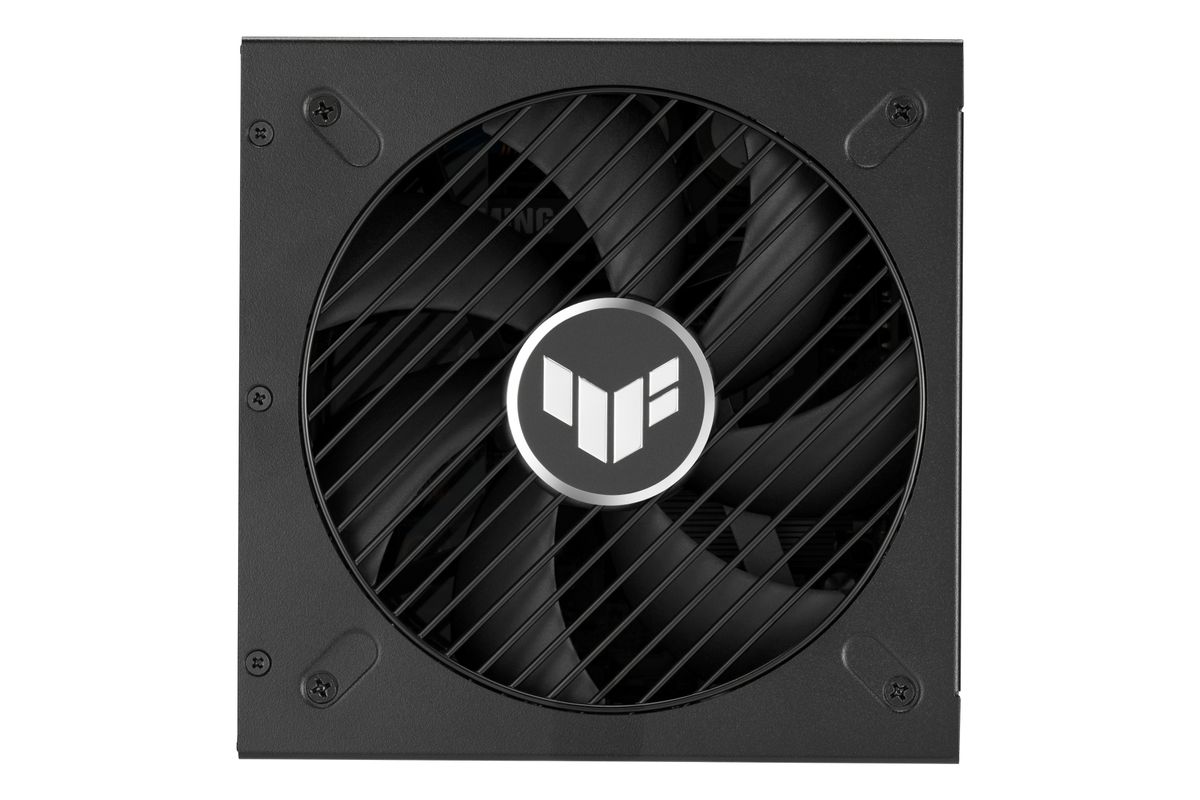

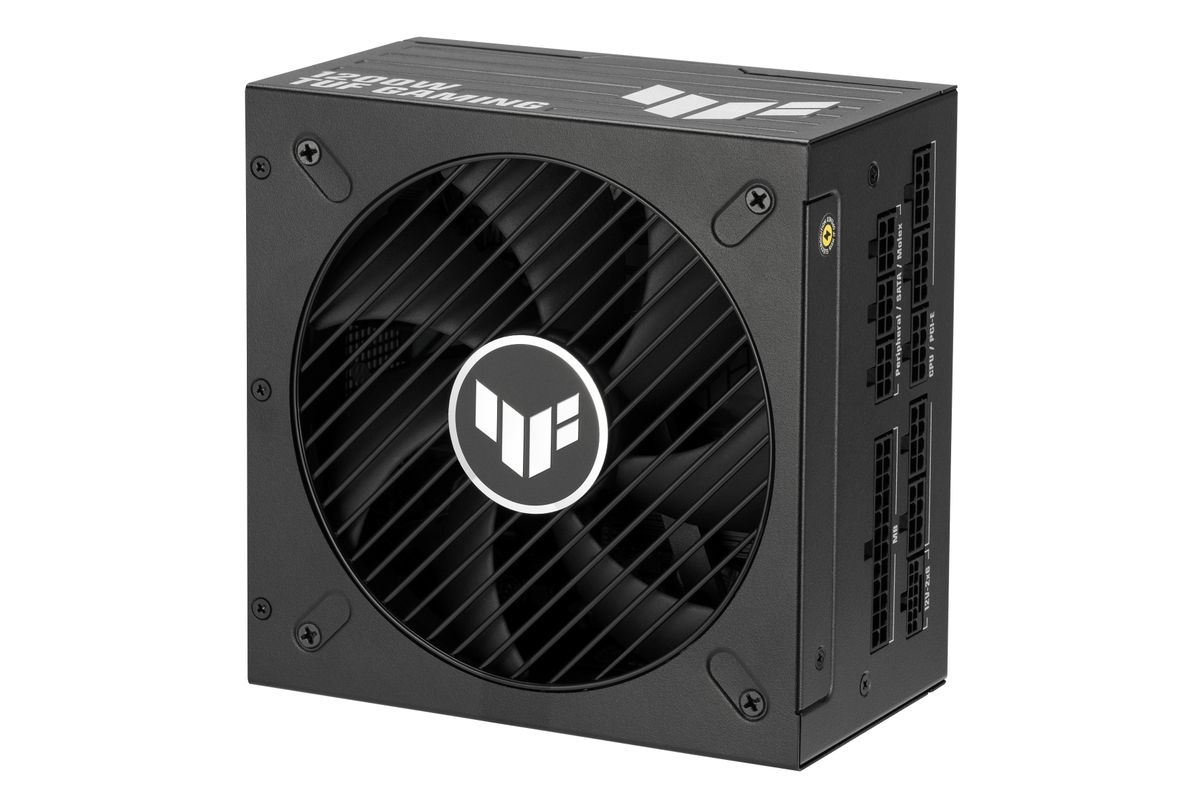

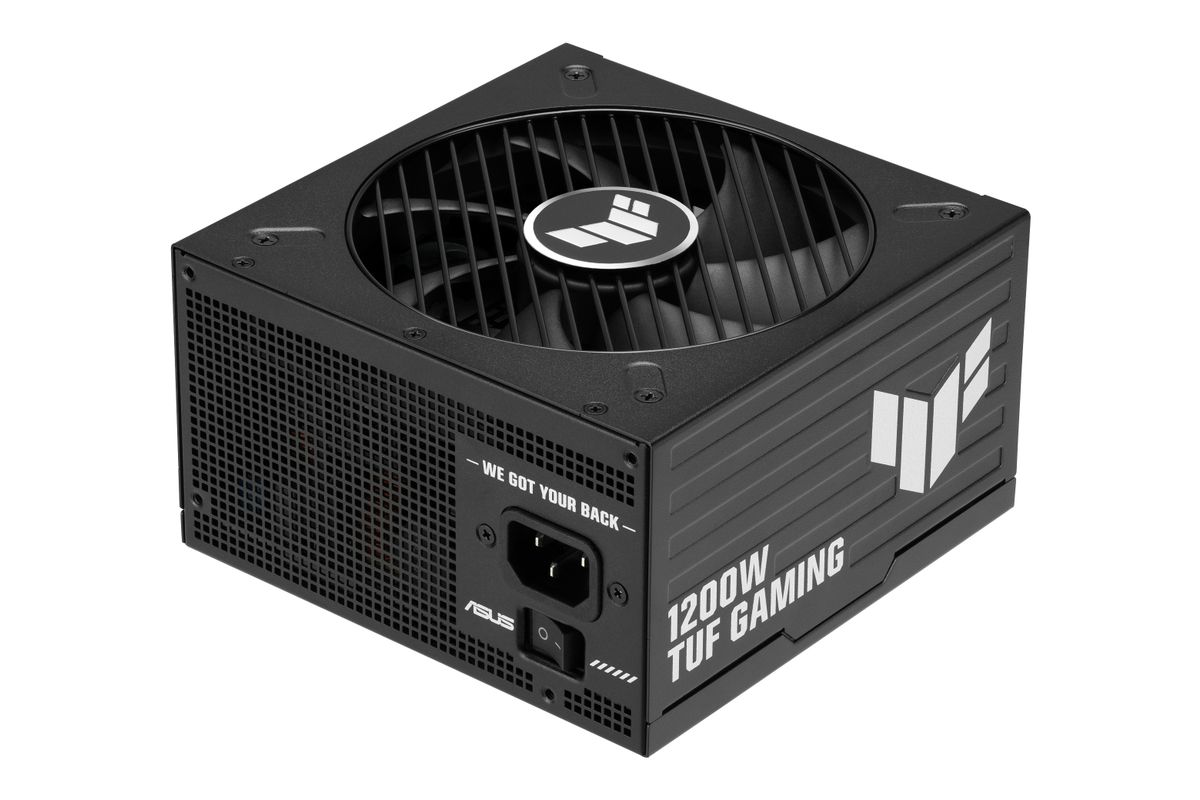

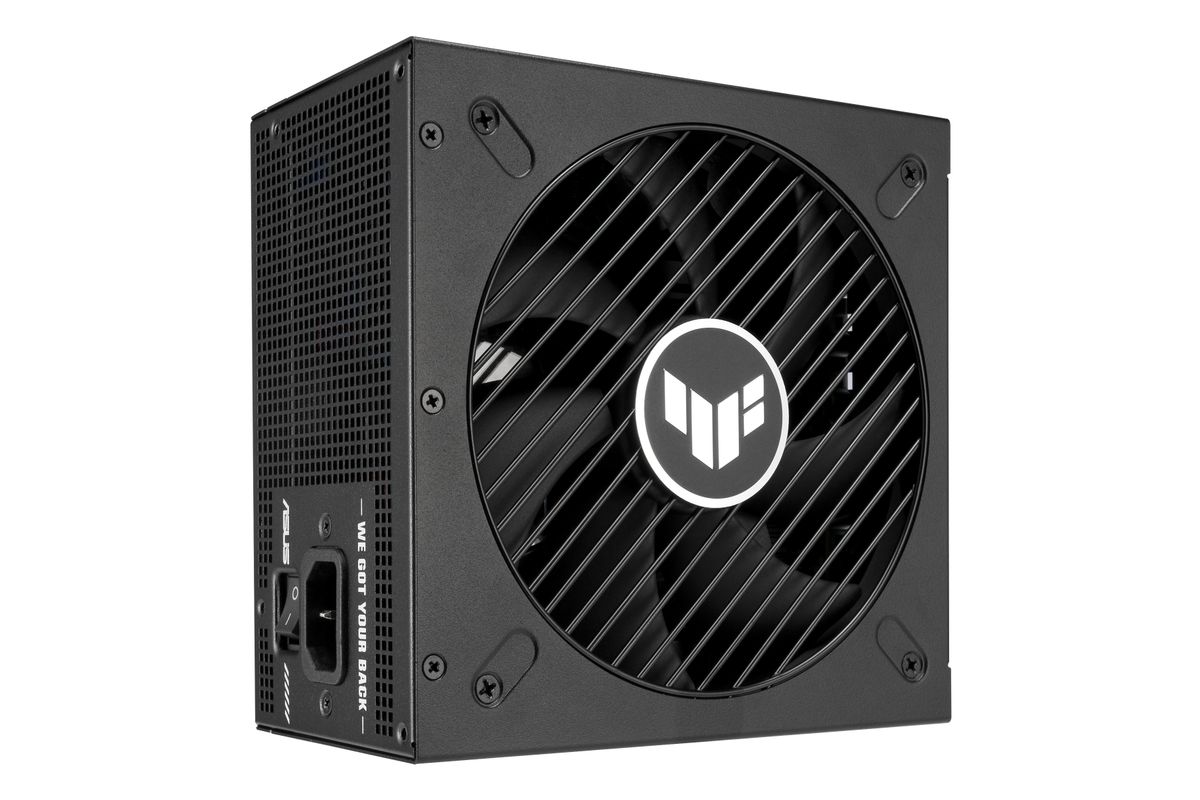

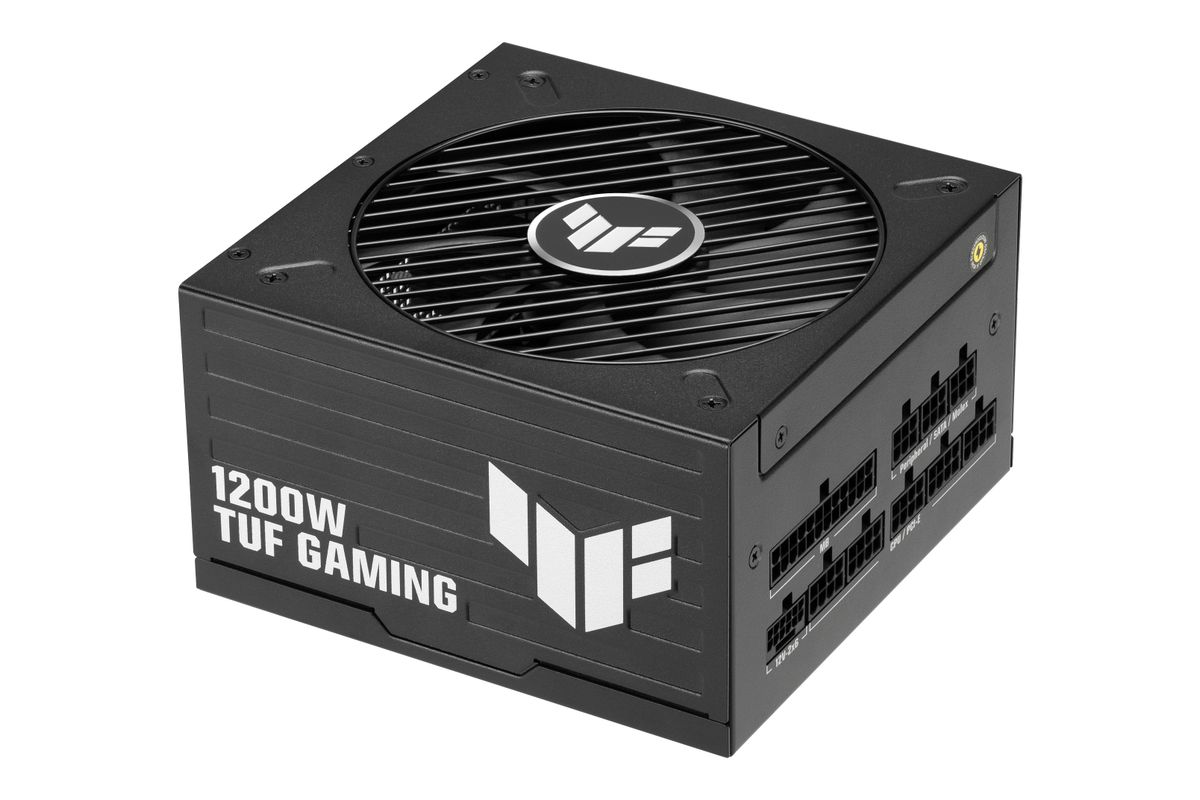

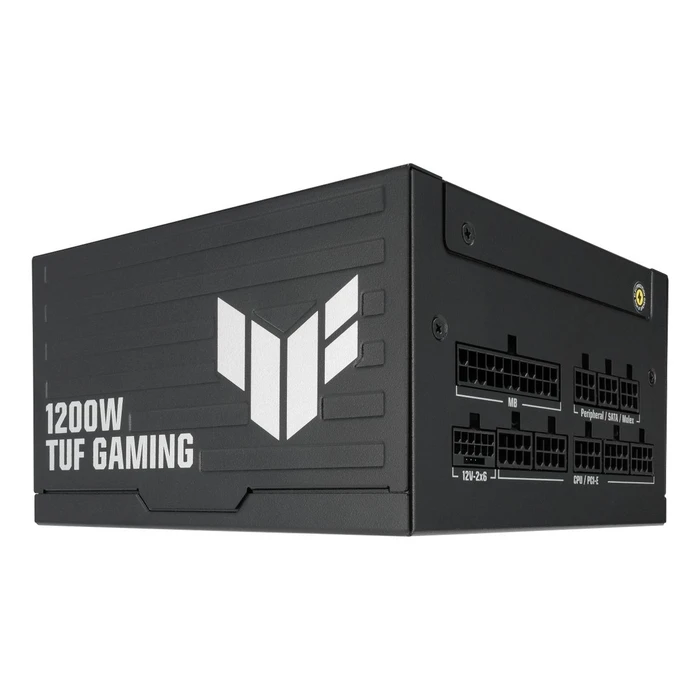

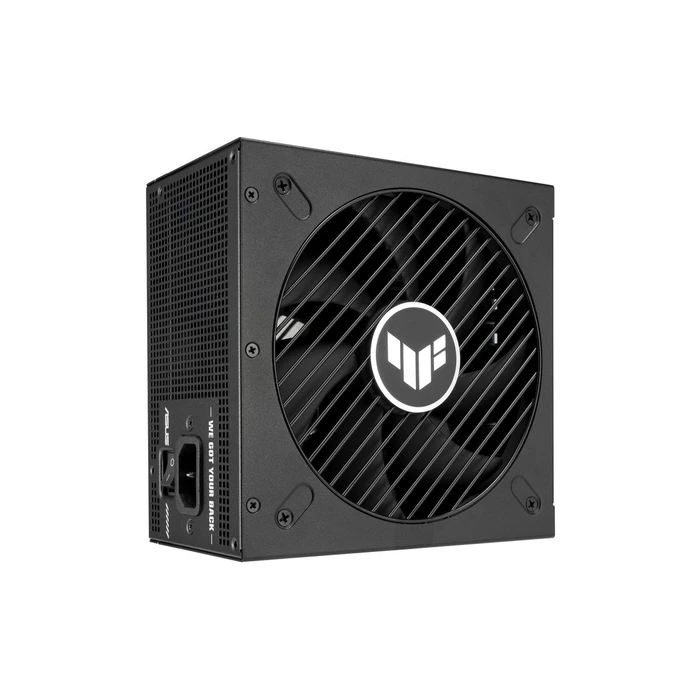

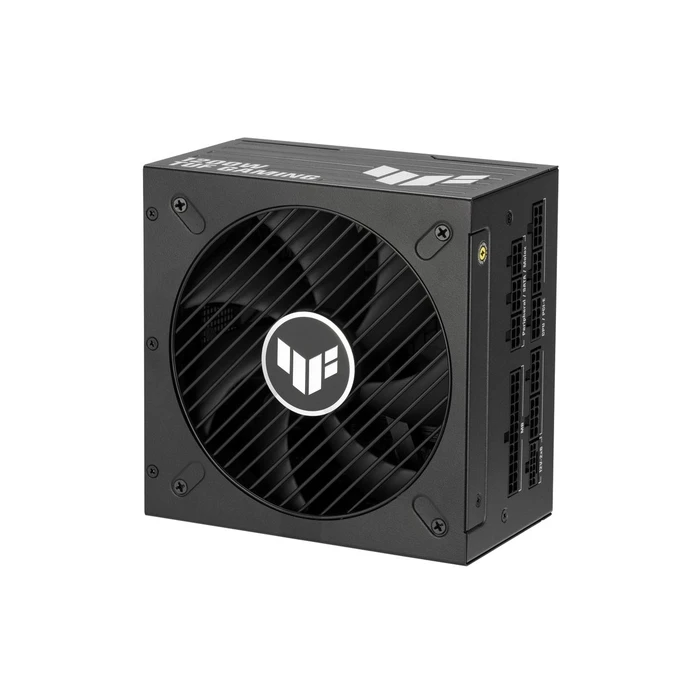

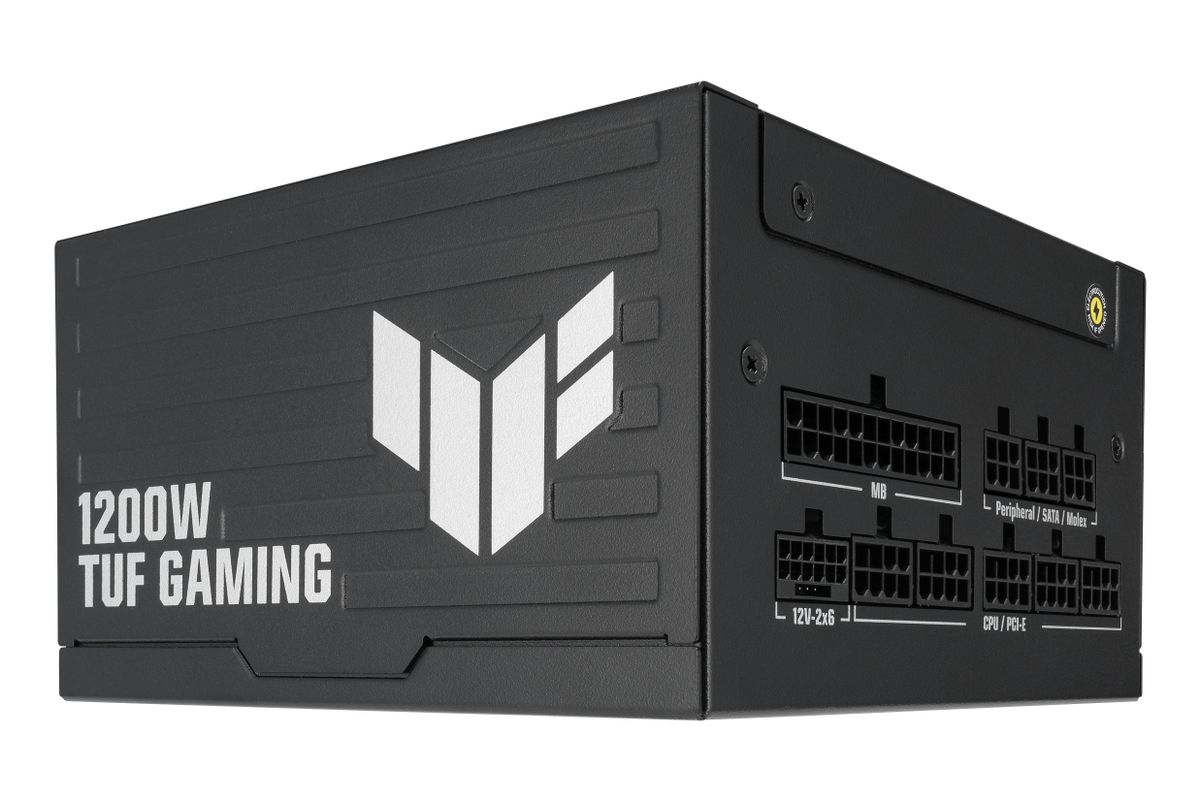

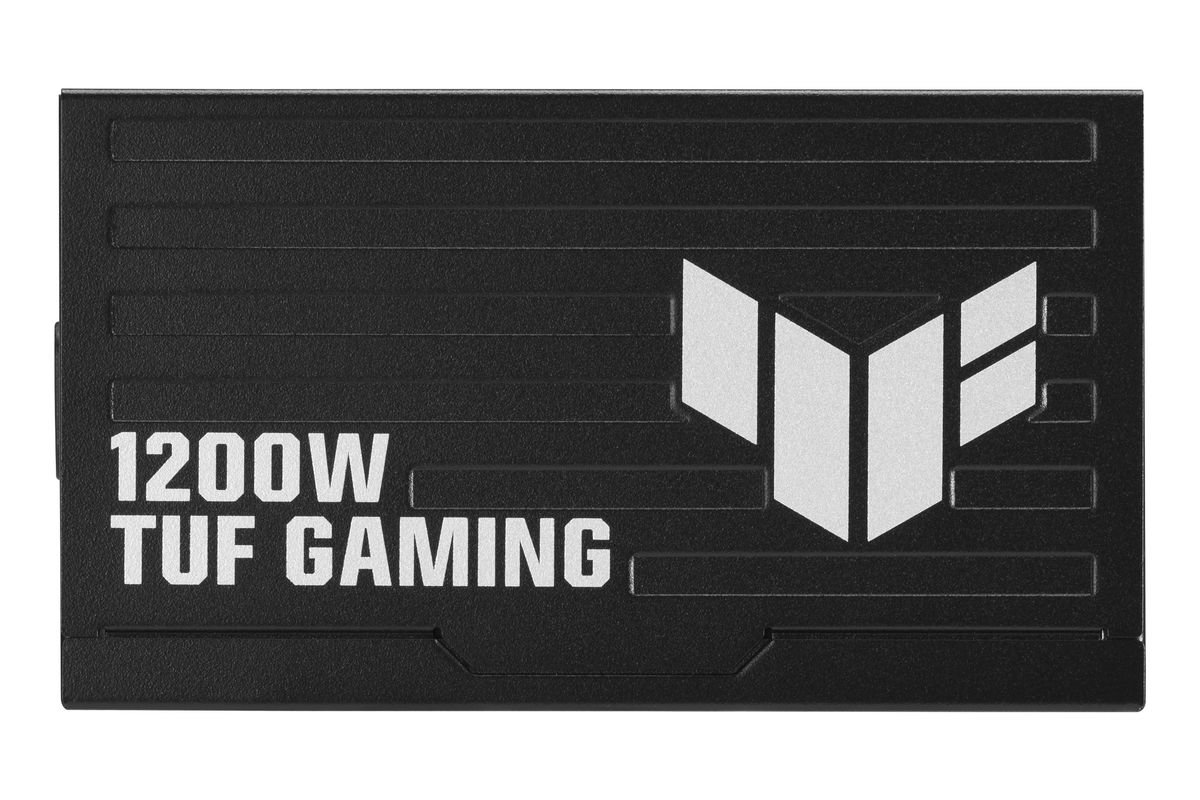

ASUS TUF Gaming 1200W Platinum (TUF-GAMING-1200P) - ATX 3.1 80 PLUS Platinum Fully Modular PSU

Description

Technical Specifications

• Brand
  ASUS
• Model
  TUF-GAMING-1200P
• Product Name
  TUF Gaming 1200W Platinum
• MPN
  90YE0100-B0NA00
• SKU
  593110
• EAN
  4711636489607
• Category
  PC power supply unit (Netzteile PC)
• Total Power
  1200W
• Efficiency Certification
  80 PLUS Platinum
• ATX Standard
  ATX 3.1
• Form Factor
  ATX12V
• Modularity
  Fully modular
• Input Voltage Range
  100–240 Vac
• PFC
  Active PFC
• DC Outputs
  +3.3V, +5V, +12V, -12V, +5Vsb
• Maximum Load +3.3V
  25 A
• Maximum Load +5V
  25 A
• Maximum Load +12V
  100 A
• Maximum Load -12V
  0.3 A
• Maximum Load +5Vsb
  3 A
• Combined Load +3.3V/+5V
  125 W
• Combined Load +12V
  1200 W
• Protection Features
  OPP, OVP, UVP, SCP, OCP, OTP
• Capacitors
  Low-ESR Japanese electrolytic capacitors
• Dimensions (PSU)
  150 x 150 x 86 mm
• Product Weight
  1580 g
• MTBF
  >120,000 hours at 40°C
• Warranty
  8 years

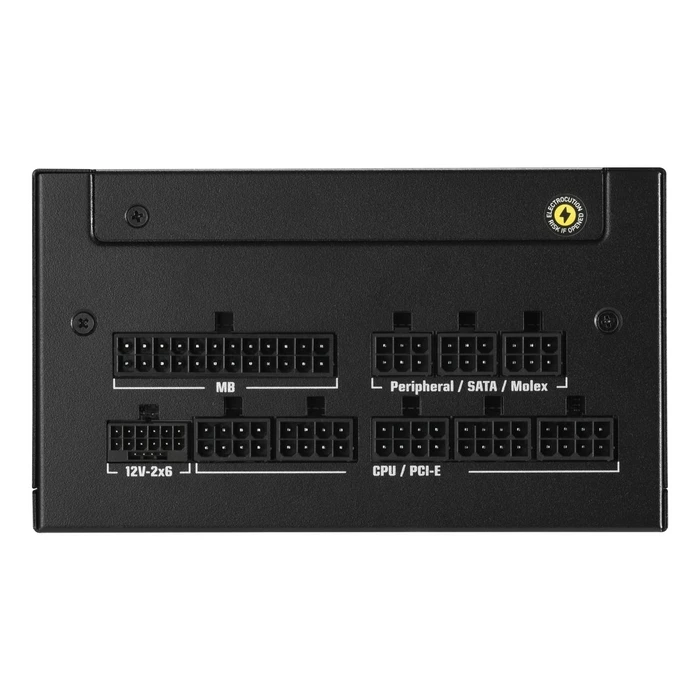

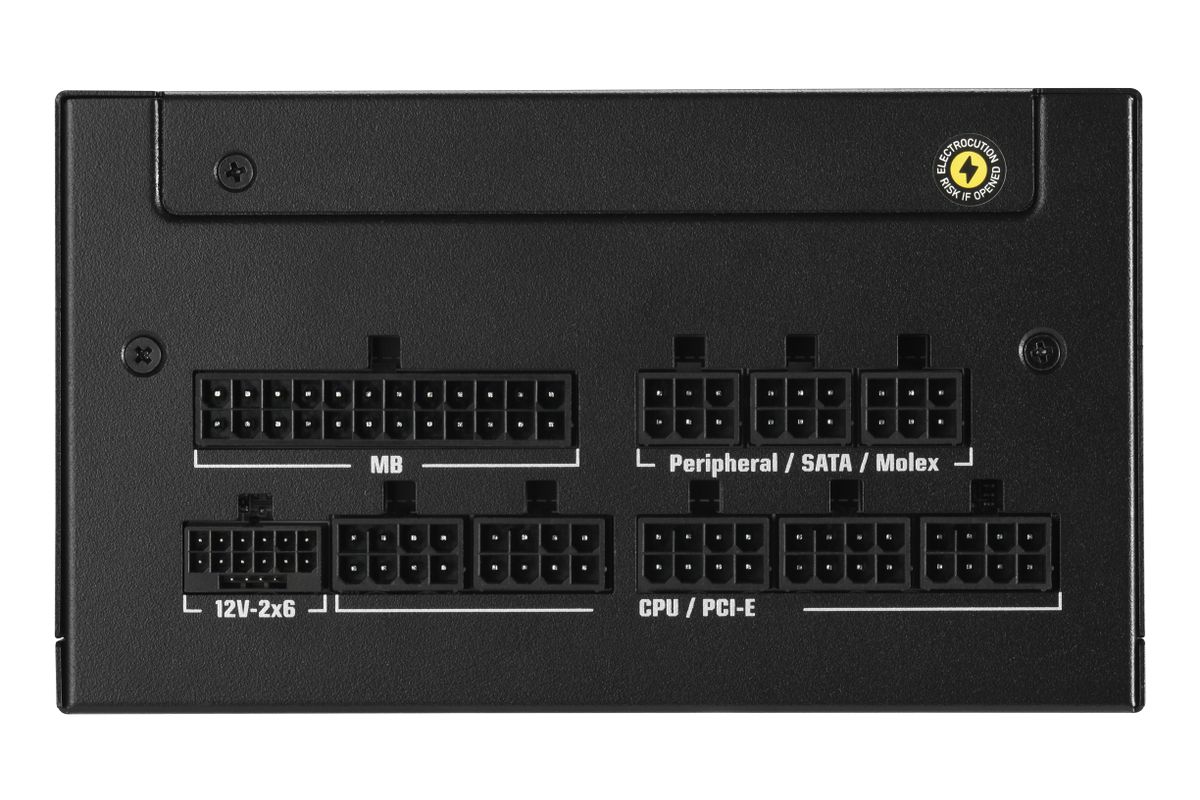

• Connectors
  1x 20+4-pin MB; 2x CPU 4+4-pin; 1x PCI?E 16?pin (12V?2x6); 3x PCI?E 6+2-pin; 6x SATA; 3x Peripheral (Molex)
• Use Case
  High-end gaming/workstation builds, supports modern GPUs and ATX 3.1 features
• Color
  Black (standard PSU finish)
• Notes on naming
  Model number TUF-GAMING-1200P corresponds to Platinum efficiency; a separate TUF-GAMING-1200G exists for Gold efficiency
