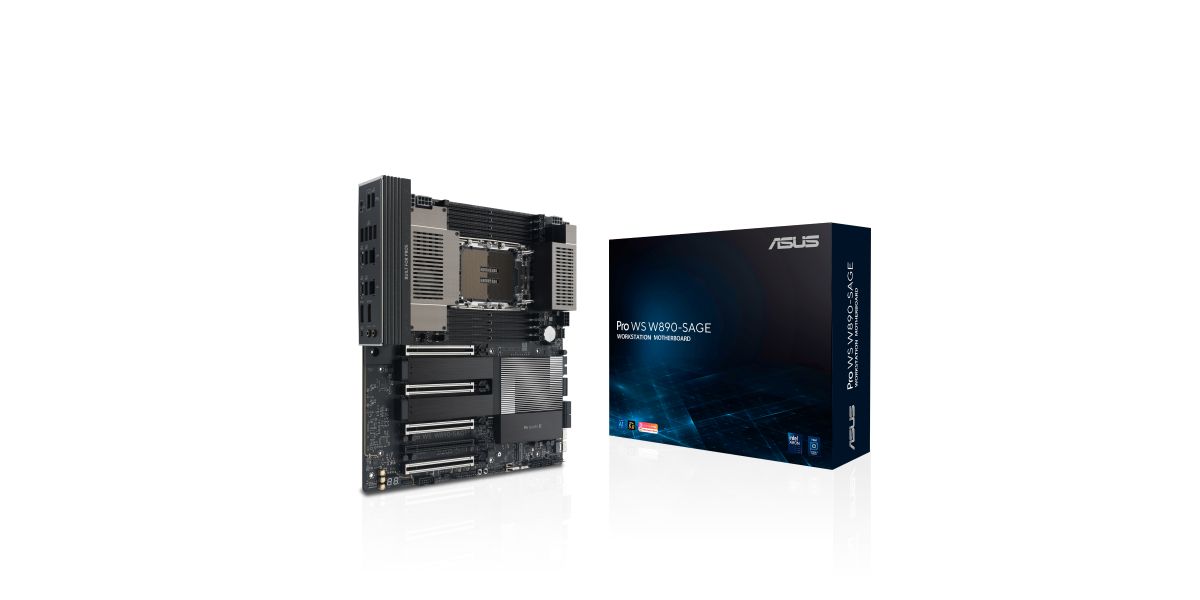

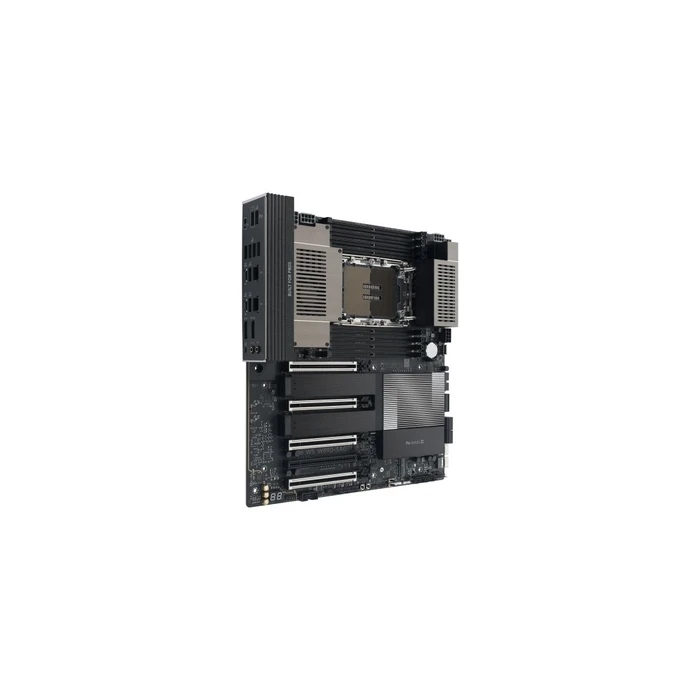

ASUS PRO WS W890E-SAGE SE (LGA 4710, DDR5, SSI EEB) Workstation Motherboard

Description

Technical Specifications

• Brand
  ASUS
• Model
  Pro WS W890E-SAGE SE
• MPN
  90MB1MW0-M0EAY0
• EAN
  4711636390453
• SKU
  587695
• Category
  Workstation Motherboard
• Chipset
  Intel W890
• CPU Socket
  LGA 4710-2 (Intel Xeon 650/670/690 Series support)
• Form Factor
  SSI EEB
• Board dimensions (approx.)
  33.02 cm x 30.48 cm x 5.08 cm
• Product Weight (approx.)
  3402 g
• Memory Slots
  8 x DIMM
• Memory Type
  DDR5 ECC Registered (RDIMM), 3DS-RDIMM, MRDIMM
• Memory Channels
  8-channel (1 DIMM per channel)
• Max Memory Capacity
  Up to 2048 GB

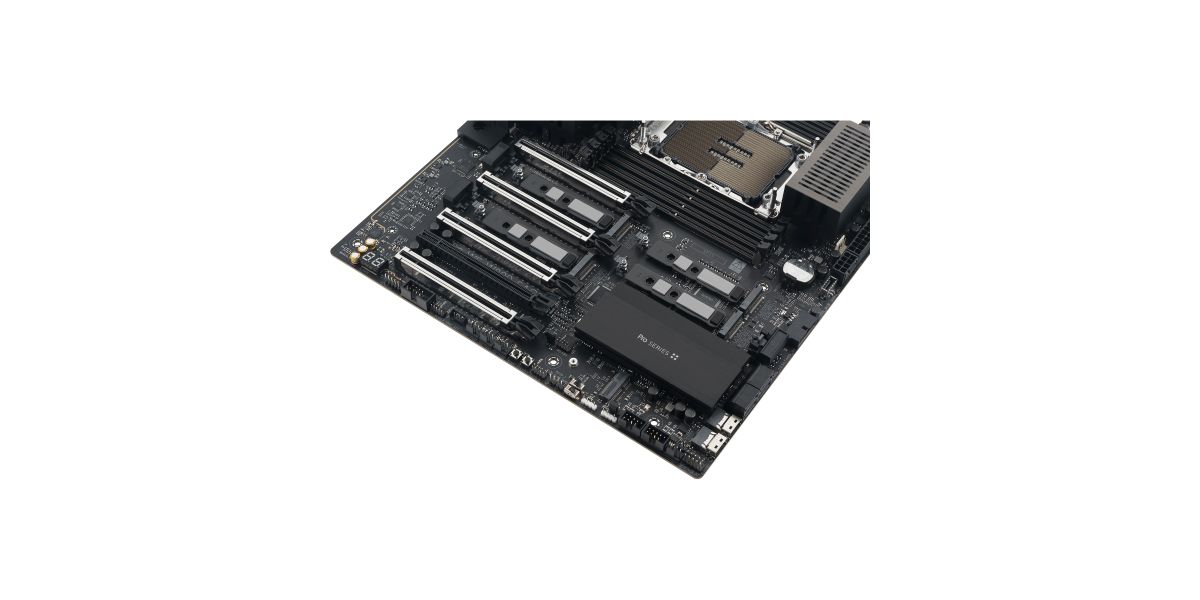

• PCIe Expansion
  7 x PCIe 5.0 x16 SafeSlots (total up to 8 PCIe slots supporting PCIe5.0/4.0 configurations)
• M.2 Slots
  4 x M.2 (PCIe 5.0 x4; includes 2x 2280 and 2x 22110 support)
• SATA Ports
  4 x SATA 6 Gb/s
• SlimSAS/MCIO
  2 x SlimSAS ports, 1 x MCIO connector
• Storage RAID
  SATA RAID 0, 1, 5, 10
• Networking (onboard)
  Dual Intel 10 Gb Ethernet (E810/E610 class), Realtek 1 GbBMC LAN (AST2600)
• USB Rear I/O
  2 x USB4 40Gbps Type-C, 6 x USB 10Gbps Type-A
• USB Internal Headers
  1 x USB 20Gbps Type-C header, 1 x USB 5Gbps header (supporting 2 ports), 2 x USB 2.0 headers
• Video Outputs
  1 x VGA, 2 x Mini DisplayPort IN (video depends on CPU/iGPU)
• Audio Codec
  Realtek ALC1220P 7.1 HD Audio
• BMC/Remote Management
  ASPEED AST2600 BMC with dedicated LAN
• Power Design
  Robust multi-phase VRM (specified 16+(2+2)+1+2 power stages), multiple 8-pin CPU/PCIe power connectors

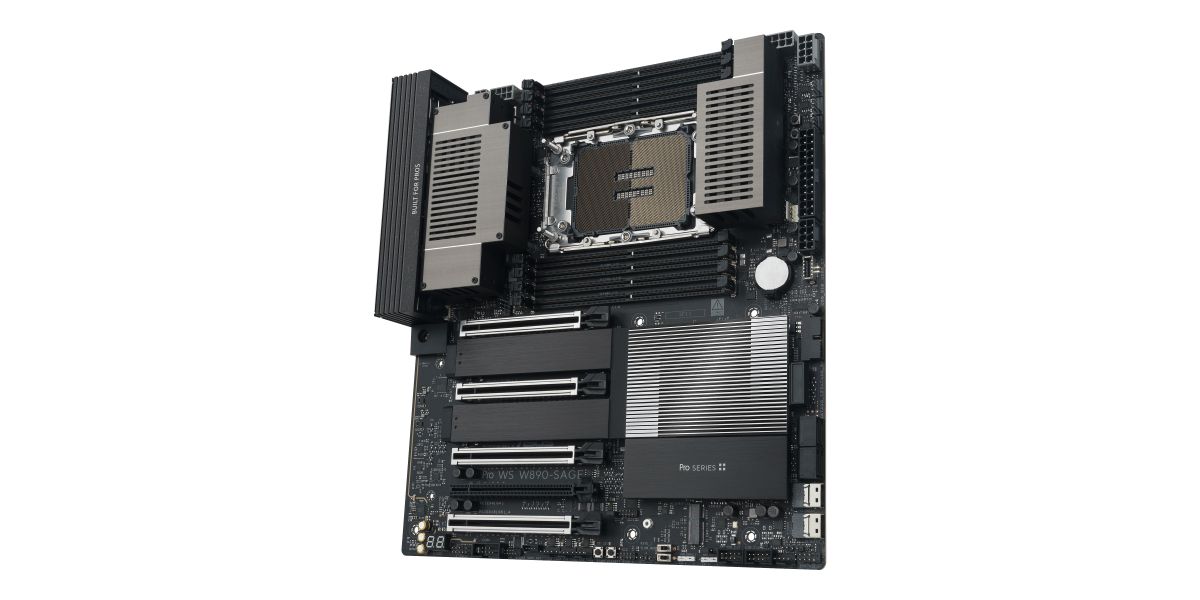

• Cooling
  Active cooling for VRM, M.2 SSDs, chipset, and memory
• Diagnostics
  Q-Code, Q-LED (CPU/DRAM/VGA/Boot), Q-Connector
• Special Features
  M.2 Q-Slide, PCIe SafeSlot Q-Release Slim, NitroPath DRAM optimization for DDR5, ASUS Control Center Express support
• Target Use
  AI workloads, content creation, engineering, professional workstation builds
• Compliance
  RoHS
