The ASUS P13R-M is a micro-ATX server motherboard (LGA 1700) built for Intel Xeon E-2400 and Intel Xeon 6300 series CPUs (up to 95W TDP). It uses the Intel C262 chipset and supports DDR5 ECC UDIMM memory (4 DIMM slots, dual-channel) up to 128 GB total and module speeds up to 4400 MT/s (supported...
More

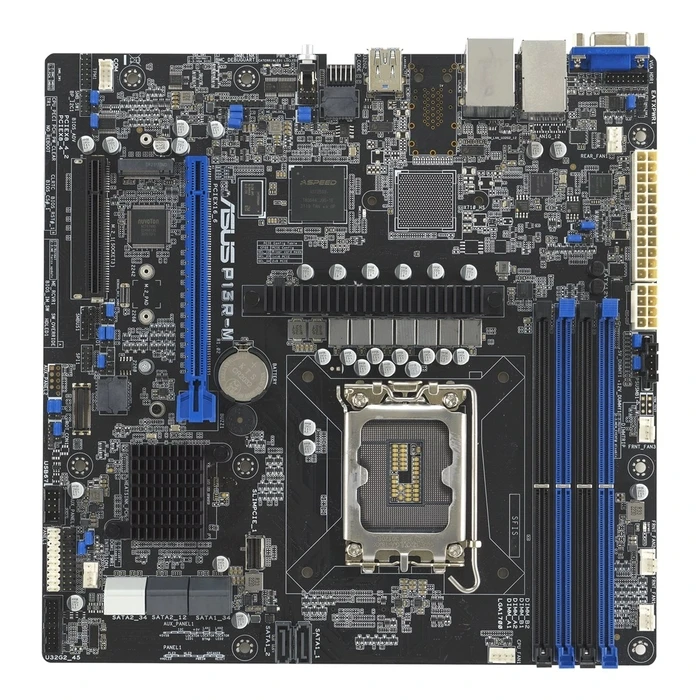

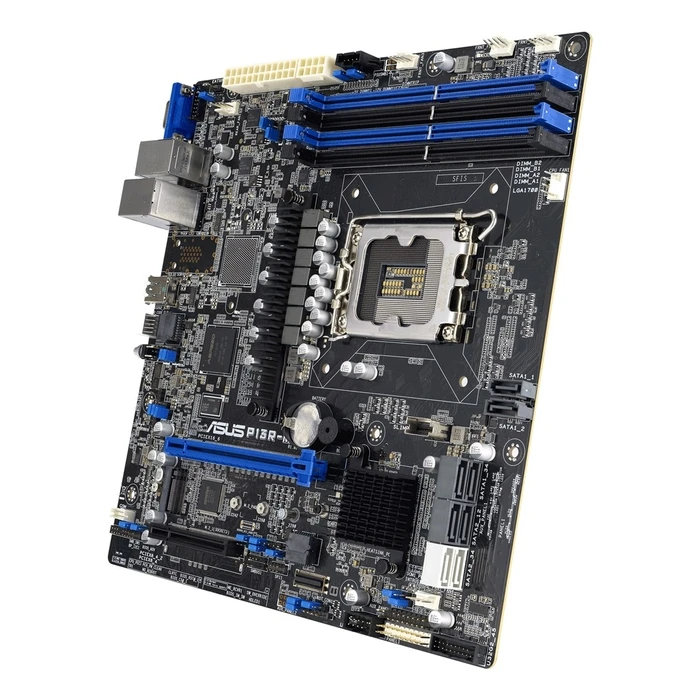

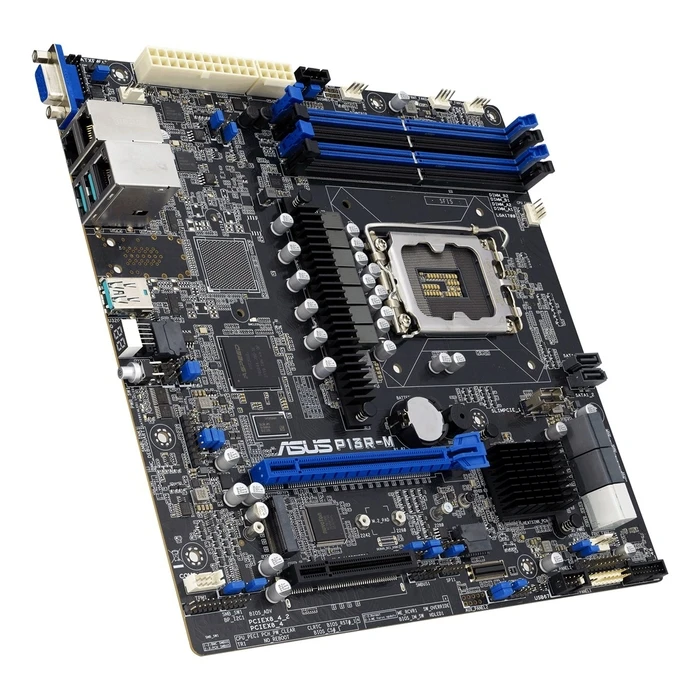

ASUS P13R-M Intel C262 LGA 1700 micro ATX Server Motherboard
Product Code: 1127717147
: Asus
Available in 1 - 3 days
580,48 €
or
18,13€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 1742 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The ASUS P13R-M is a micro-ATX server motherboard (LGA 1700) built for Intel Xeon E-2400 and Intel Xeon 6300 series CPUs (up to 95W TDP). It uses the Intel C262 chipset and supports DDR5 ECC UDIMM memory (4 DIMM slots, dual-channel) up to 128 GB total and module speeds up to 4400 MT/s (supported module sizes: 8GB, 16GB, 32GB). Storage: 1x M.2 (up to 32 Gbps NVMe) and 8x SATA III 6Gb/s ports. Expansion: 1x PCIe x16 Gen5 slot and 1x PCIe x16 Gen4 slot. Networking: Intel I210-AT Gigabit Ethernet with teaming and 2x RJ-45 ports. Remote management: ASUS ASMB11-iKVM with ASPEED AST2600 BMC. Security: Platform Firmware Resilience (PFR) FPGA providing a root-of-trust for firmware. Rear I/O: 3x USB 3.2 Gen2 Type-A, 3x USB 3.2 Gen2 Type-C, VGA, Gigabit LAN, audio (7.1). Internal headers: USB 3.2 Gen1 header, USB 2.0 header, serial header. Power connectors: 24-pin ATX and 8-pin EPS. Operating temperature 10–50 °C, storage -40–70 °C. Dimensions: 244 x 244 mm. Weight: 760 g. Brand: ASUS. Model: P13R-M.
-
BrandASUS
-
ModelP13R-M
-
SKUPLGASUSIN0049
-
MPN90SB0C70-M0UAY0
-
EAN4711636234337
-
CategoryIntel server motherboards (Micro ATX)
-
Form FactorMicro ATX
-
ChipsetIntel C262
-
SocketLGA 1700
-
Supported CPUsIntel Xeon E-2400 series, Intel Xeon 6300 series (also compatible with certain Intel Pentium lines as indicated)
-
Maximum CPU TDP supportedUp to 95 W
-
Memory TypeDDR5 ECC UDIMM
-
Memory Slots4 DIMM slots
-
Maximum Memory128 GB
-
Supported Module Capacities8GB, 16GB, 32GB
-
Memory ChannelsDual-channel
-
Supported Memory Speeds3600, 4000, 4400 MT/s
-
Onboard Graphics/BMCASPEED AST2600
-
Remote ManagementASUS ASMB11-iKVM (with ASPEED AST2600)
-
Security FeaturePlatform Firmware Resilience (PFR) FPGA - Root-of-Trust for firmware
-
M.2 Slots1 (supports up to 32 Gbps NVMe)
-
SATA III Ports8 x SATA III (6 Gb/s)
-
Supported Storage InterfacesM.2, SATA III
-
Number of HDDs supported8
-
PCIe Slots1 x PCIe x16 Gen5, 1 x PCIe x16 Gen4
-
Ethernet ControllerIntel I210-AT (supports teaming)
-
Ethernet Ports (RJ-45)2
-
Ethernet TypesGigabit Ethernet, Fast Ethernet
-
USB Rear (Type-A)3 x USB 3.2 Gen2 Type-A
-
USB Rear (Type-C)3 x USB 3.2 Gen2 Type-C
-
Internal USB 3.2 Gen1 headers1
-
Internal USB 2.0 headers1
-
Serial Port Headers1
-
VGA (D-Sub)1
-
Audio Channels7.1 surround
-
TPM ConnectorYes
-
ATX Power Connector24-pin ATX
-
EPS Power Connector8-pin EPS (CPU power)
-
Operating Temperature10 - 50 °C
-
Storage Temperature-40 - 70 °C
-
Storage Relative Humidity20 - 90%
-
Dimensions (WxD)244 x 244 mm
-
Weight (product)760 g
-
Package Weight1300 g
Ratings
Description
The ASUS P13R-M is a micro-ATX server motherboard (LGA 1700) built for Intel Xeon E-2400 and Intel Xeon 6300 series CPUs (up to 95W TDP). It uses the Intel C262 chipset and supports DDR5 ECC UDIMM memory (4 DIMM slots, dual-channel) up to 128 GB total and module speeds up to 4400 MT/s (supported module sizes: 8GB, 16GB, 32GB). Storage: 1x M.2 (up to 32 Gbps NVMe) and 8x SATA III 6Gb/s ports. Expansion: 1x PCIe x16 Gen5 slot and 1x PCIe x16 Gen4 slot. Networking: Intel I210-AT Gigabit Ethernet with teaming and 2x RJ-45 ports. Remote management: ASUS ASMB11-iKVM with ASPEED AST2600 BMC. Security: Platform Firmware Resilience (PFR) FPGA providing a root-of-trust for firmware. Rear I/O: 3x USB 3.2 Gen2 Type-A, 3x USB 3.2 Gen2 Type-C, VGA, Gigabit LAN, audio (7.1). Internal headers: USB 3.2 Gen1 header, USB 2.0 header, serial header. Power connectors: 24-pin ATX and 8-pin EPS. Operating temperature 10–50 °C, storage -40–70 °C. Dimensions: 244 x 244 mm. Weight: 760 g. Brand: ASUS. Model: P13R-M.
Technical Specifications
-
BrandASUS
-
ModelP13R-M
-
SKUPLGASUSIN0049
-
MPN90SB0C70-M0UAY0
-
EAN4711636234337
-
CategoryIntel server motherboards (Micro ATX)
-
Form FactorMicro ATX
-
ChipsetIntel C262
-
SocketLGA 1700
-
Supported CPUsIntel Xeon E-2400 series, Intel Xeon 6300 series (also compatible with certain Intel Pentium lines as indicated)
-
Maximum CPU TDP supportedUp to 95 W
-
Memory TypeDDR5 ECC UDIMM
-
Memory Slots4 DIMM slots
-
Maximum Memory128 GB
-
Supported Module Capacities8GB, 16GB, 32GB
-
Memory ChannelsDual-channel
-
Supported Memory Speeds3600, 4000, 4400 MT/s
-
Onboard Graphics/BMCASPEED AST2600
-
Remote ManagementASUS ASMB11-iKVM (with ASPEED AST2600)
-
Security FeaturePlatform Firmware Resilience (PFR) FPGA - Root-of-Trust for firmware
-
M.2 Slots1 (supports up to 32 Gbps NVMe)
-
SATA III Ports8 x SATA III (6 Gb/s)
-
Supported Storage InterfacesM.2, SATA III
-
Number of HDDs supported8
-
PCIe Slots1 x PCIe x16 Gen5, 1 x PCIe x16 Gen4
-
Ethernet ControllerIntel I210-AT (supports teaming)
-
Ethernet Ports (RJ-45)2
-
Ethernet TypesGigabit Ethernet, Fast Ethernet
-
USB Rear (Type-A)3 x USB 3.2 Gen2 Type-A
-
USB Rear (Type-C)3 x USB 3.2 Gen2 Type-C
-
Internal USB 3.2 Gen1 headers1
-
Internal USB 2.0 headers1
-
Serial Port Headers1
-
VGA (D-Sub)1
-
Audio Channels7.1 surround
-
TPM ConnectorYes
-
ATX Power Connector24-pin ATX
-
EPS Power Connector8-pin EPS (CPU power)
-
Operating Temperature10 - 50 °C
-
Storage Temperature-40 - 70 °C
-
Storage Relative Humidity20 - 90%
-
Dimensions (WxD)244 x 244 mm
-
Weight (product)760 g
-
Package Weight1300 g
