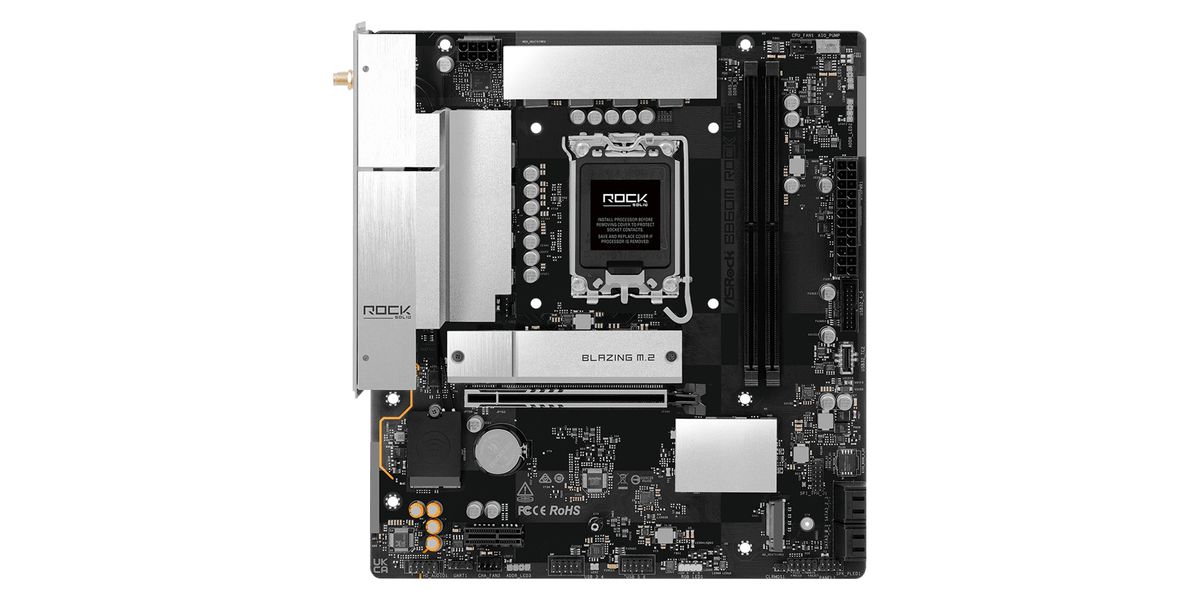

The ASRock B860M Rock WiFi is a Micro-ATX (mATX) motherboard based on the Intel B860 chipset for LGA1851 (Intel Core Ultra Series 2) processors. It supports DDR5 memory in 2 DIMM slots (dual-channel, high OC speeds), a PCIe 5.0 x16 slot for graphics, two M.2 slots (including PCIe Gen5 M.2 support),...
More

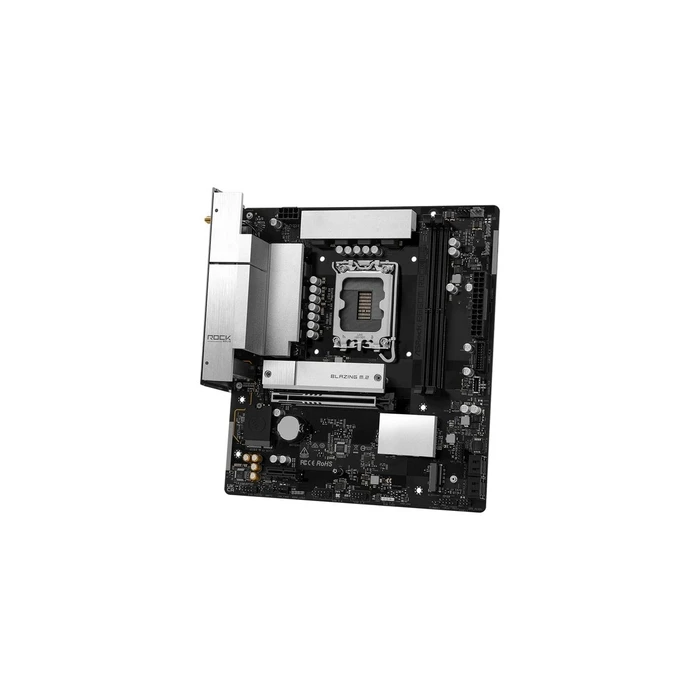

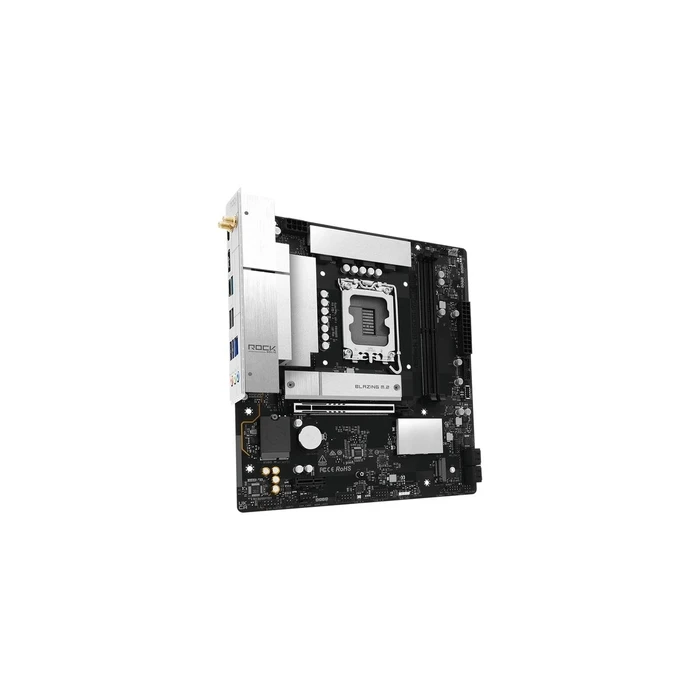

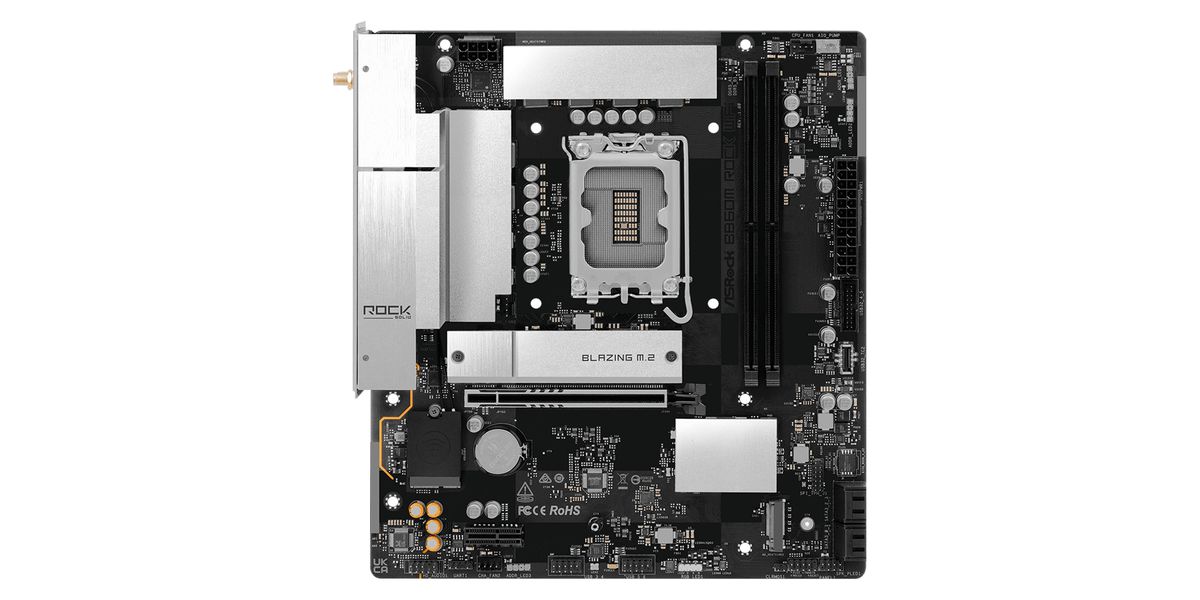

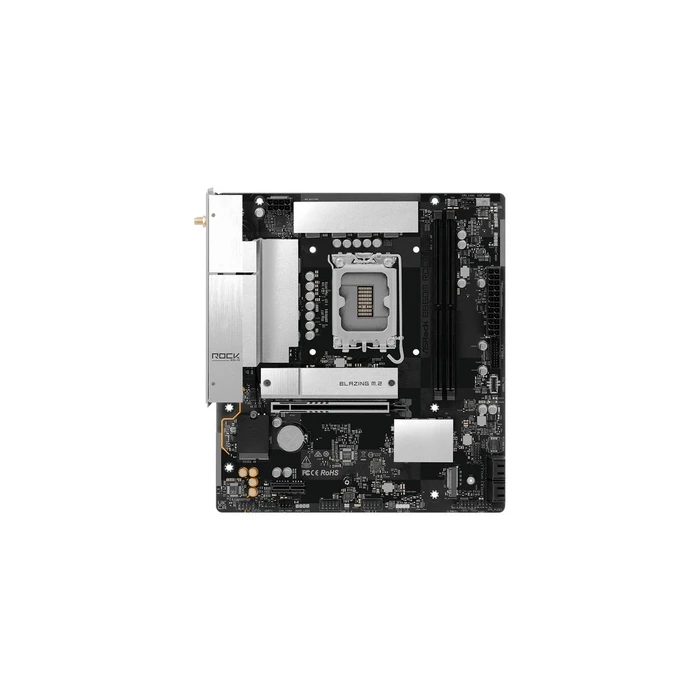

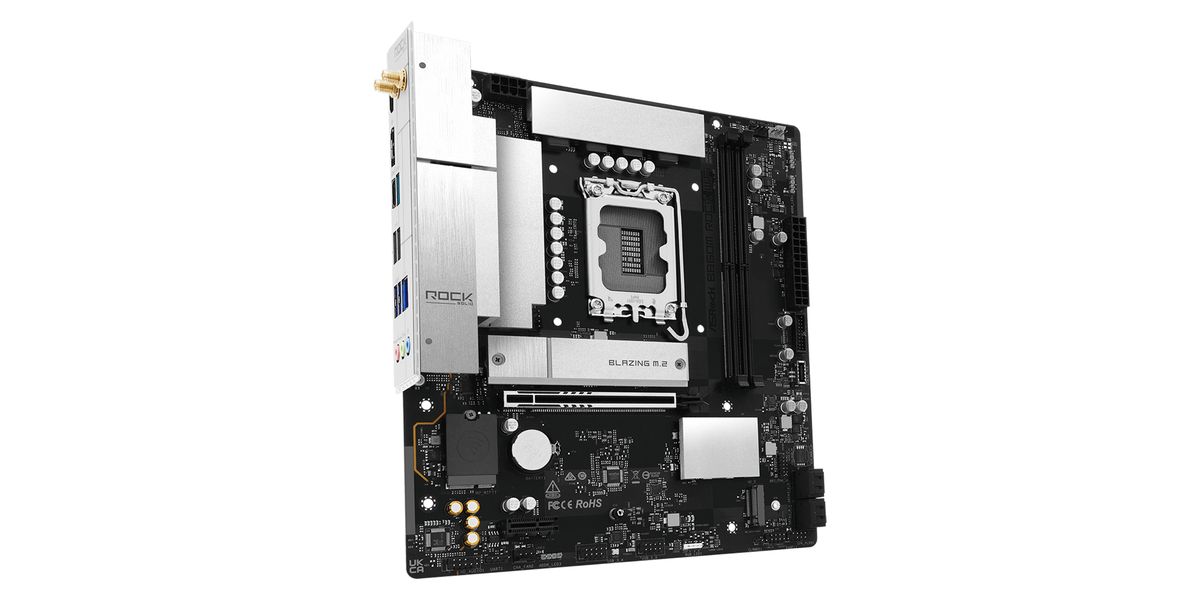

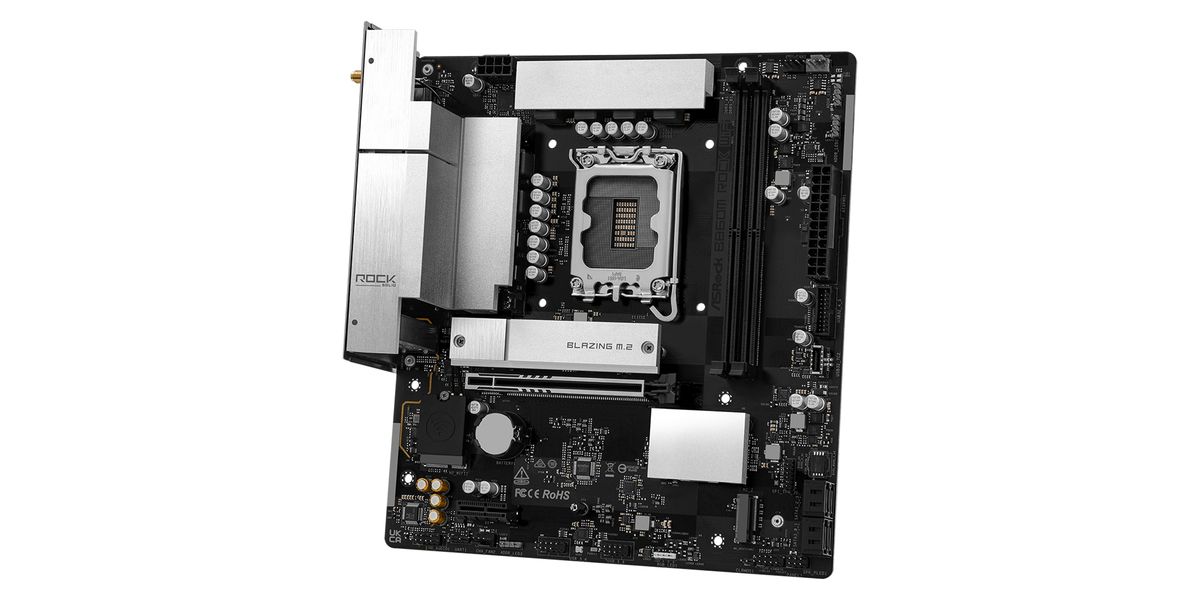

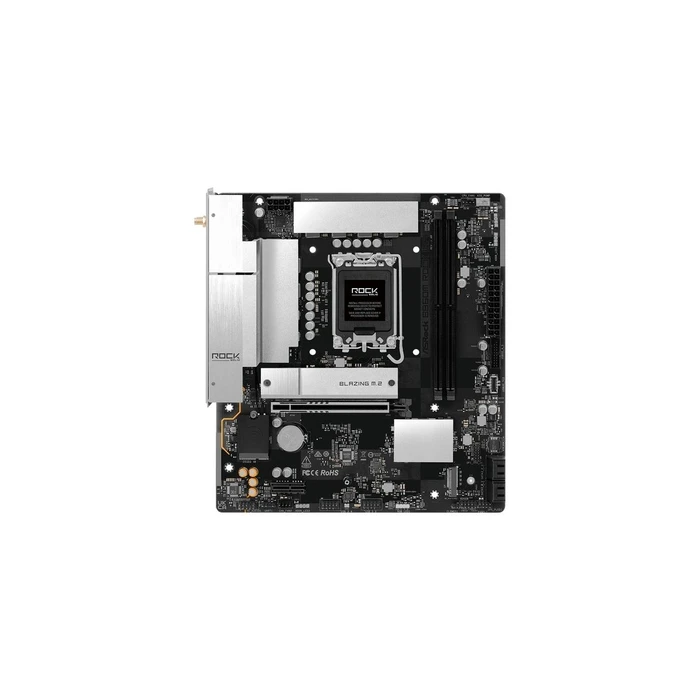

ASRock B860M Rock WiFi
Product Code: 1117581965
Available in 1 - 3 days
177,74 €
or
5,55€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

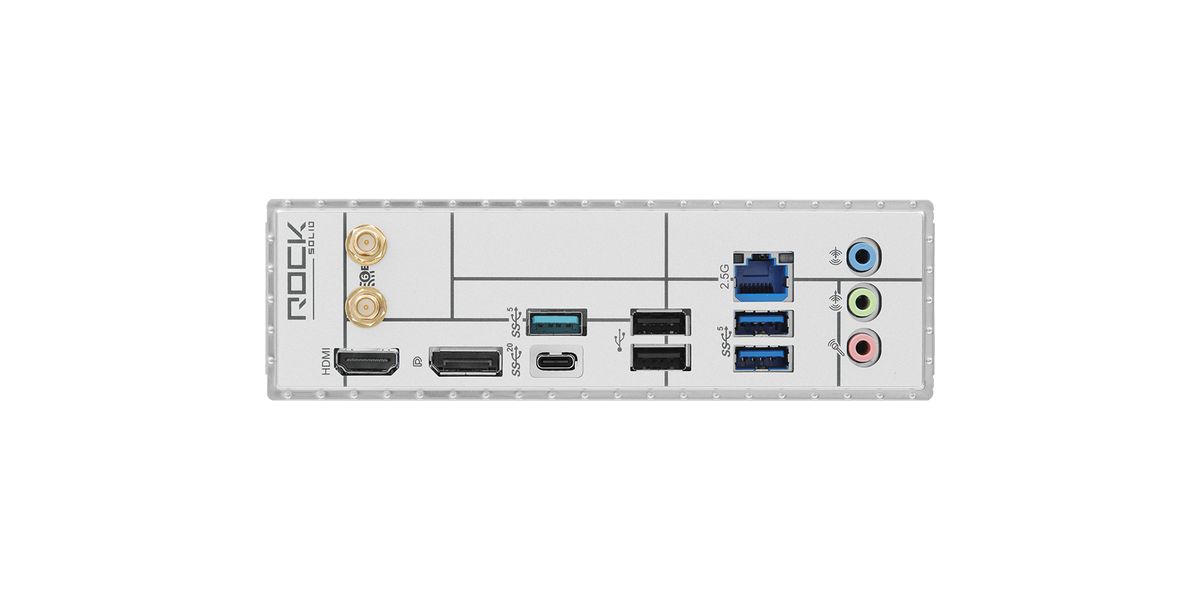

The ASRock B860M Rock WiFi is a Micro-ATX (mATX) motherboard based on the Intel B860 chipset for LGA1851 (Intel Core Ultra Series 2) processors. It supports DDR5 memory in 2 DIMM slots (dual-channel, high OC speeds), a PCIe 5.0 x16 slot for graphics, two M.2 slots (including PCIe Gen5 M.2 support), 4x SATA3 ports, integrated Wi‑Fi 6E (2x2) with Bluetooth 5.3, and 2.5 Gb Ethernet. Rear I/O includes HDMI and DisplayPort, multiple USB ports including USB 3.2 Gen2x2 Type‑C, and HD audio (Realtek ALC897). The board measures 244 x 218 mm, includes antennas and SATA cables in the box, and carries a 36‑month warranty.
-
BrandASRock
-
ModelB860M Rock WiFi
-
MPN90-MXBU60-A0UAYZ
-
EAN4711581494152
-
SKU581965
-
CategoryMotherboard / Micro ATX (mATX)
-
ChipsetIntel B860
-
CPU SocketLGA 1851 (Socket V1) - Intel Core Ultra (Series 2)
-
Form FactorMicro ATX (244 mm x 218 mm)
-
Memory TypeDDR5
-
Memory Slots2 x DDR5 DIMM
-
Memory ChannelsDual Channel
-
Max Memory SpeedUp to 8333+ MHz (OC) (listings vary)
-
PCI Express1 x PCIe 5.0 x16
-
M.2 Slots2 x M.2 (including PCIe Gen5 M.2 support; 1 x vertical M.2 Key E for WiFi/BT)
-
SATA Ports4 x SATA3 (6 Gb/s)
-
Internal USB Headers2 x USB 2.0, 1 x USB 3.0, 1 x USB Type-C internal
-
Rear USB Ports1 x USB 3.2 Gen2x2 Type-C (20 Gb/s), 3 x USB 3.2 Gen1, 2 x USB 2.0
-
Video Outputs1 x HDMI, 1 x DisplayPort 1.4
-
Audio CodecRealtek ALC897 (7.1 CH HD Audio)
-
LAN2.5 Gb Ethernet (Realtek)
-
Wi‑FiWi‑Fi 6E (802.11ax/axe) 2x2 (requires OS/router/regulatory support for 6GHz)
-
BluetoothBluetooth 5.3
-
Antenna Ports2 x external antenna connectors (antennas included)
-
Audio JacksHD audio jacks (Line in / Front Speaker / Microphone)
-
BIOS FeaturesBIOS Flashback supported, EZ Update
-
Power Connectors24‑pin ATX, CPU power connectors (as standard)
-
Power DesignPower phase design listed variably (commonly 5+1+1+1+1)
-

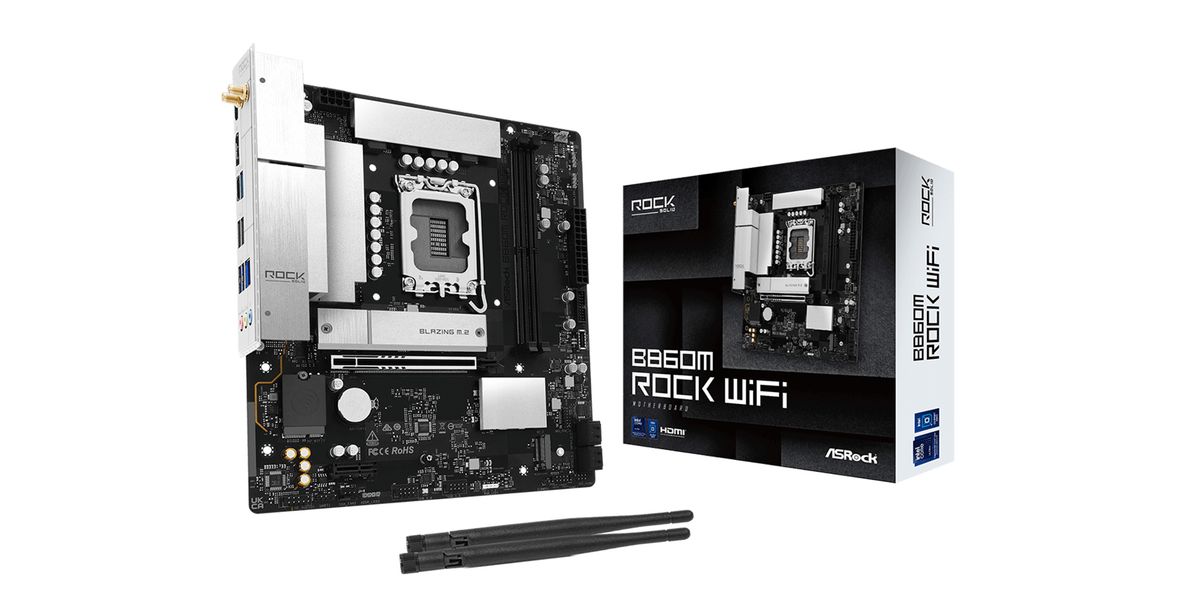

Included Accessories2 x Wi‑Fi antennas, 2 x SATA cables, I/O shield, manual
-
Dimensions (Board)244 mm x 218 mm (9.6 in x 8.6 in)
-
Product Weight800
-
Package Weight1500
-
Warranty36 months
Ratings
Description
The ASRock B860M Rock WiFi is a Micro-ATX (mATX) motherboard based on the Intel B860 chipset for LGA1851 (Intel Core Ultra Series 2) processors. It supports DDR5 memory in 2 DIMM slots (dual-channel, high OC speeds), a PCIe 5.0 x16 slot for graphics, two M.2 slots (including PCIe Gen5 M.2 support), 4x SATA3 ports, integrated Wi‑Fi 6E (2x2) with Bluetooth 5.3, and 2.5 Gb Ethernet. Rear I/O includes HDMI and DisplayPort, multiple USB ports including USB 3.2 Gen2x2 Type‑C, and HD audio (Realtek ALC897). The board measures 244 x 218 mm, includes antennas and SATA cables in the box, and carries a 36‑month warranty.
Technical Specifications
-
BrandASRock
-
ModelB860M Rock WiFi
-
MPN90-MXBU60-A0UAYZ
-
EAN4711581494152
-
SKU581965
-
CategoryMotherboard / Micro ATX (mATX)
-
ChipsetIntel B860
-
CPU SocketLGA 1851 (Socket V1) - Intel Core Ultra (Series 2)
-
Form FactorMicro ATX (244 mm x 218 mm)
-
Memory TypeDDR5
-
Memory Slots2 x DDR5 DIMM
-
Memory ChannelsDual Channel
-
Max Memory SpeedUp to 8333+ MHz (OC) (listings vary)
-
PCI Express1 x PCIe 5.0 x16
-
M.2 Slots2 x M.2 (including PCIe Gen5 M.2 support; 1 x vertical M.2 Key E for WiFi/BT)
-
SATA Ports4 x SATA3 (6 Gb/s)
-
Internal USB Headers2 x USB 2.0, 1 x USB 3.0, 1 x USB Type-C internal
-
Rear USB Ports1 x USB 3.2 Gen2x2 Type-C (20 Gb/s), 3 x USB 3.2 Gen1, 2 x USB 2.0
-
Video Outputs1 x HDMI, 1 x DisplayPort 1.4
-
Audio CodecRealtek ALC897 (7.1 CH HD Audio)
-
LAN2.5 Gb Ethernet (Realtek)
-
Wi‑FiWi‑Fi 6E (802.11ax/axe) 2x2 (requires OS/router/regulatory support for 6GHz)
-
BluetoothBluetooth 5.3
-
Antenna Ports2 x external antenna connectors (antennas included)
-
Audio JacksHD audio jacks (Line in / Front Speaker / Microphone)
-
BIOS FeaturesBIOS Flashback supported, EZ Update
-
Power Connectors24‑pin ATX, CPU power connectors (as standard)
-
Power DesignPower phase design listed variably (commonly 5+1+1+1+1)
-
Included Accessories2 x Wi‑Fi antennas, 2 x SATA cables, I/O shield, manual
-
Dimensions (Board)244 mm x 218 mm (9.6 in x 8.6 in)
-
Product Weight800
-
Package Weight1500
-
Warranty36 months
