The ASRock B860M Challenger WiFi is a Micro ATX motherboard based on the Intel B860 chipset with LGA 1851 socket supporting Intel Core Ultra (200S series) processors. Key features include 4x DDR5 DIMMs (high-speed/OC support), PCIe 5.0 x16 primary slot, PCIe Gen5 & Gen4 M.2 storage support (one...
More

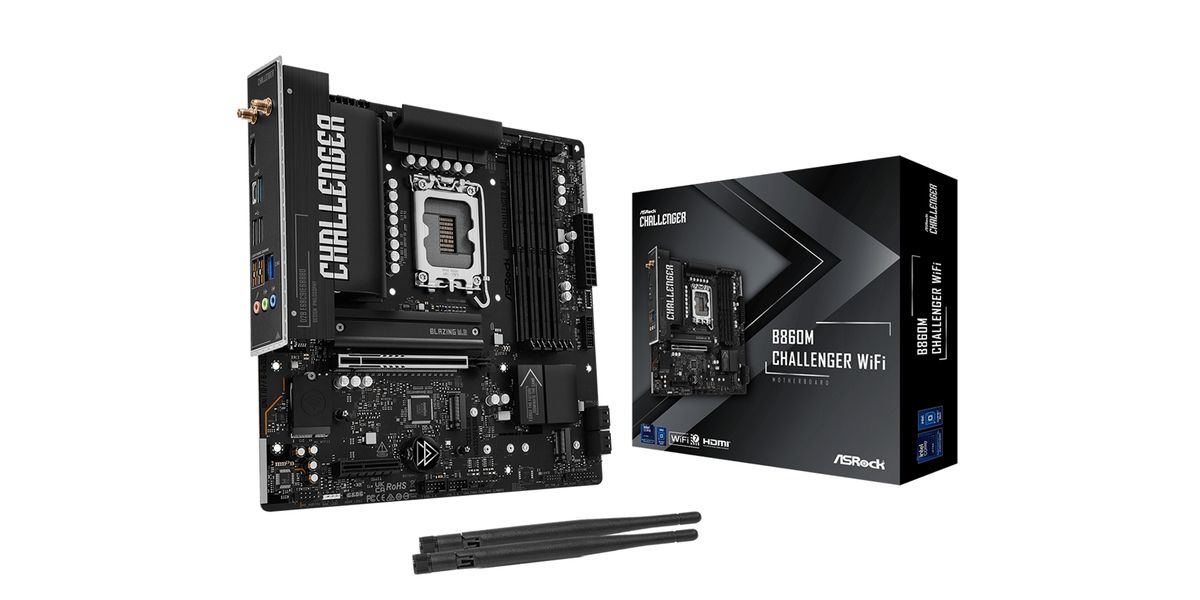

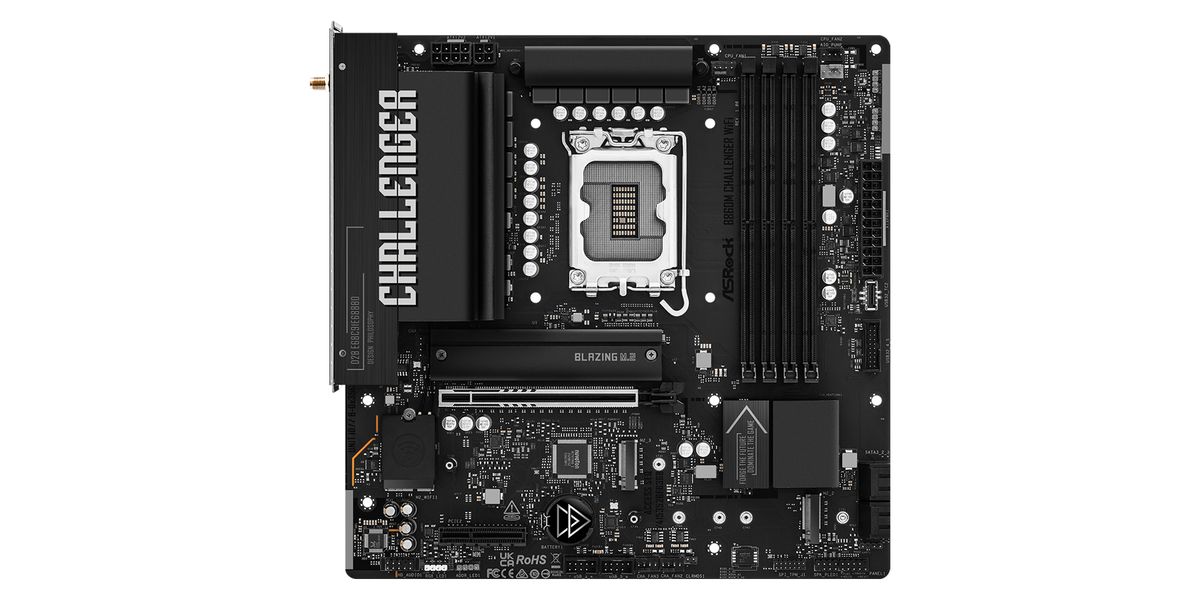

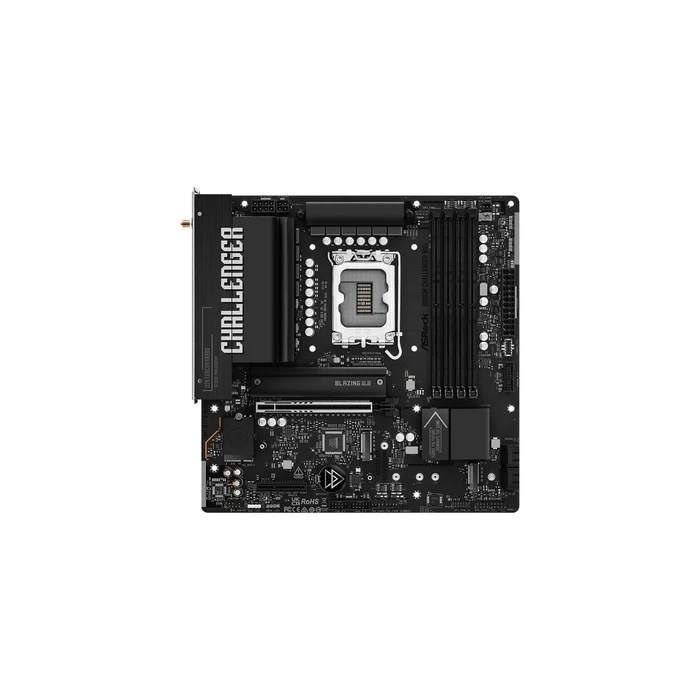

ASRock B860M Challenger WiFi
Product Code: 1117591064
Available in 1 - 3 days
185,63 €
or
5,80€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

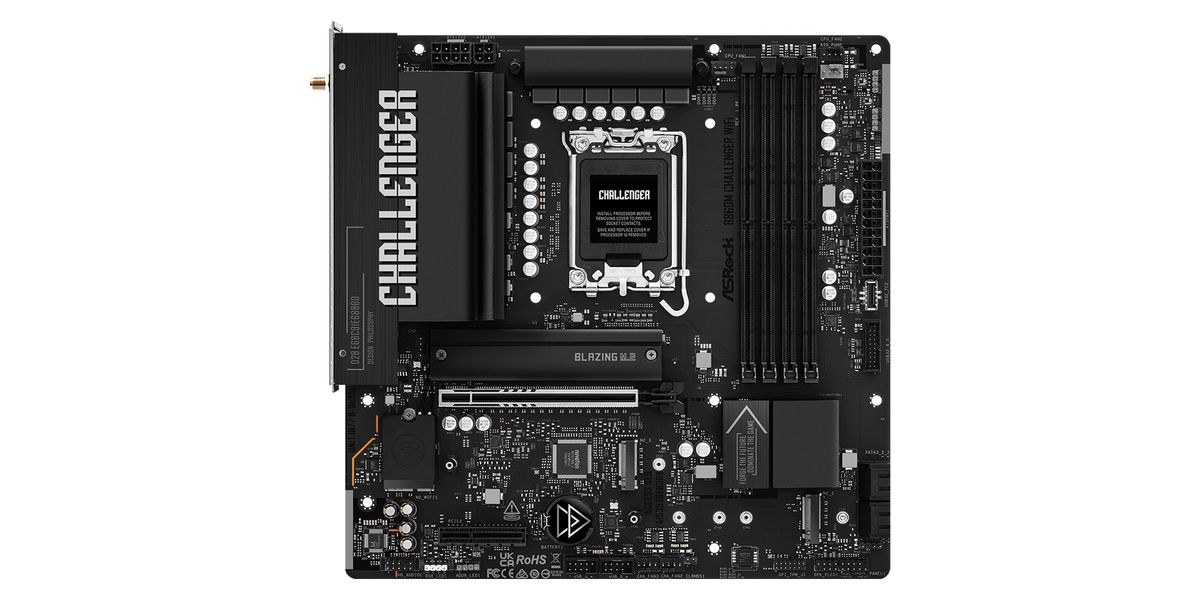

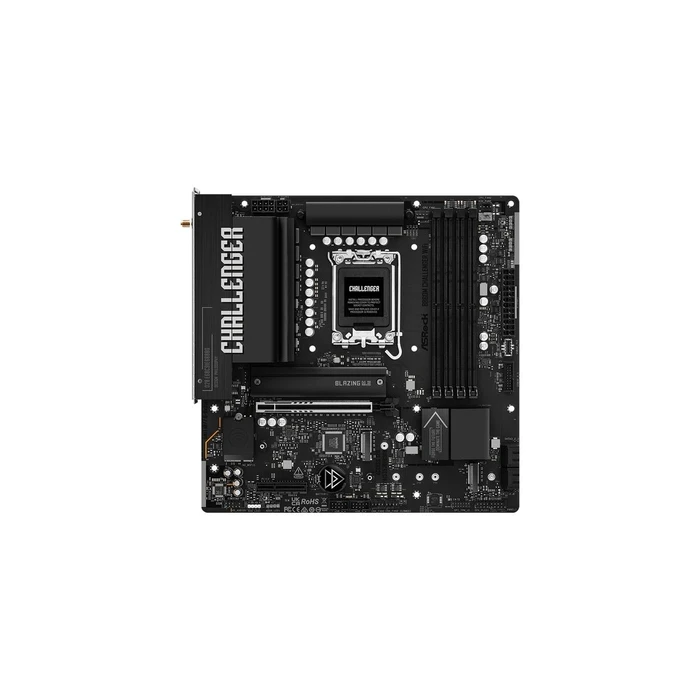

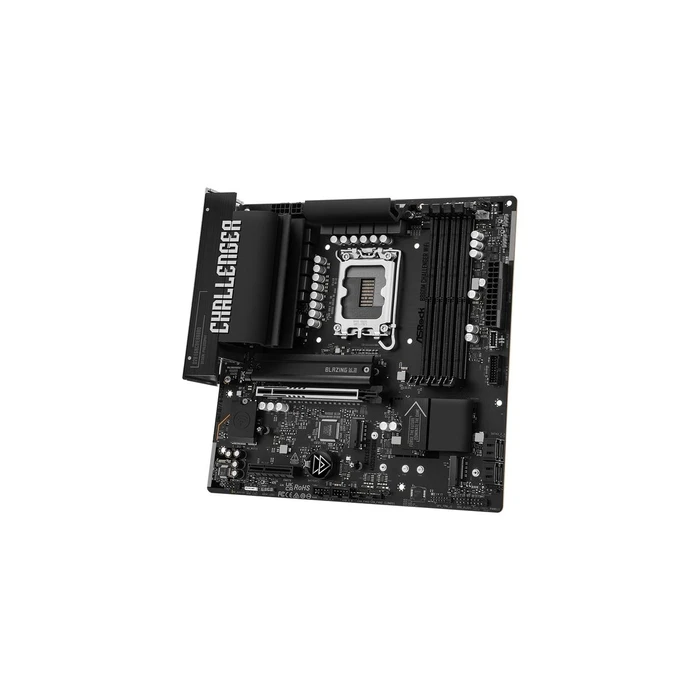

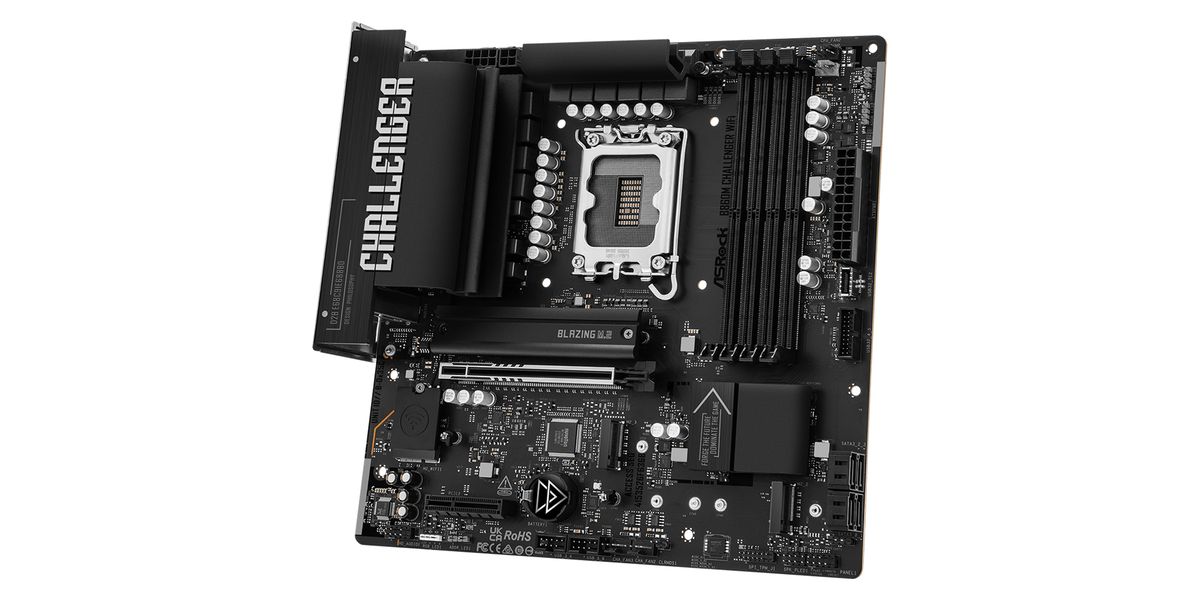

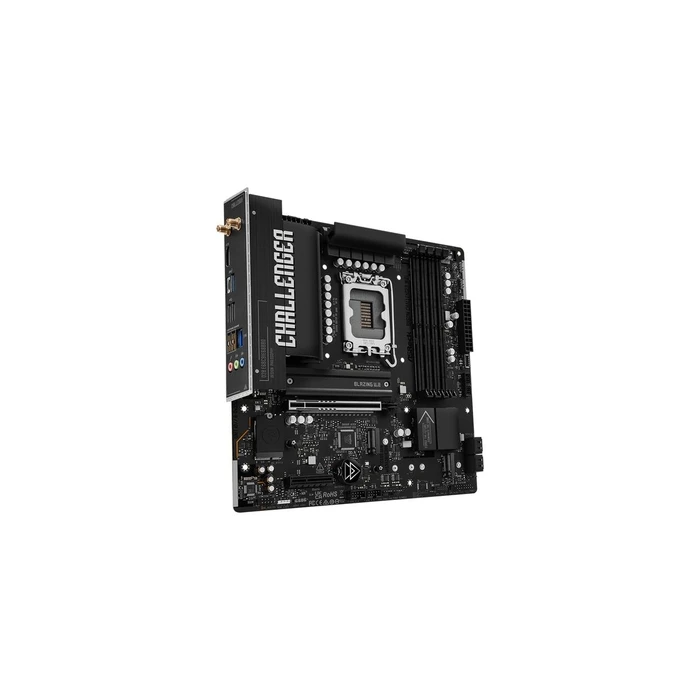

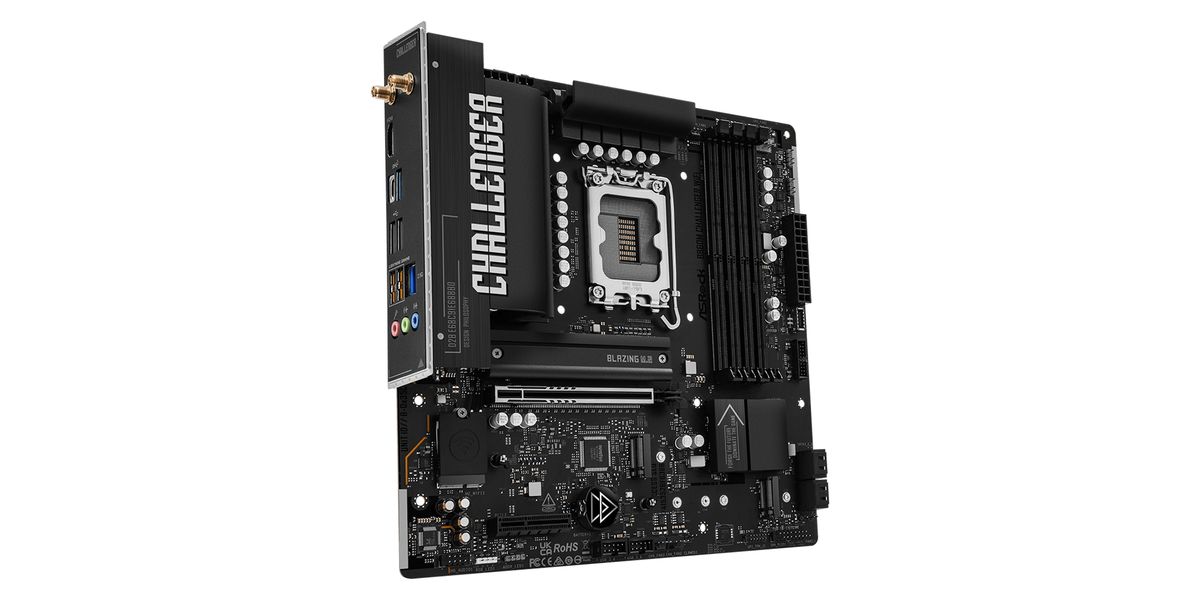

The ASRock B860M Challenger WiFi is a Micro ATX motherboard based on the Intel B860 chipset with LGA 1851 socket supporting Intel Core Ultra (200S series) processors. Key features include 4x DDR5 DIMMs (high-speed/OC support), PCIe 5.0 x16 primary slot, PCIe Gen5 & Gen4 M.2 storage support (one Gen5 x4 and two Gen4 x4), Realtek 2.5G LAN, Wi‑Fi 7 (802.11be) + Bluetooth, Realtek ALC897 7.1 audio with Nahimic, HDMI and DisplayPort video outputs, extensive USB connectivity including front Type‑C, and a 10+1+1+1+1 Dr.MOS power design. The board is Micro ATX (244 x 244 mm), ships with typical accessories (I/O shield, SATA cables, M.2 screws, Wi‑Fi antenna), and carries a 3‑year limited warranty.
-
BrandASRock
-
ModelB860M Challenger WiFi
-
MPN90-MXBUP0-A0UAYZ
-
EAN4711581494602
-
SKU591064
-
CategoryMotherboard (Micro ATX)
-
Form FactorMicro ATX (244 x 244 mm)
-
ChipsetIntel B860
-
CPU SocketLGA 1851
-
Supported CPUsIntel Core Ultra (200S series) / LGA 1851 compatible processors
-
Memory TypeDDR5
-
Memory Slots4 x DDR5 DIMM (Dual Channel)
-
Memory SpeedUp to 8666+ MHz (OC) / supports high-speed DDR5 modules
-
PCIe Slots1 x PCIe 5.0 x16 (primary), additional PCIe 4.0 x4 expansion slot
-
M.2 Slots1 x PCIe Gen5 x4 (Blazing M.2) + 2 x PCIe Gen4 x4 (Hyper M.2)
-
SATA Ports4 x SATA3 6.0 Gb/s
-
LANRealtek 2.5 Gigabit LAN
-
WirelessWi‑Fi 7 (802.11be) + Bluetooth (includes external antenna)
-
Audio CodecRealtek ALC897 7.1 CH HD Audio + Nahimic audio enhancements
-

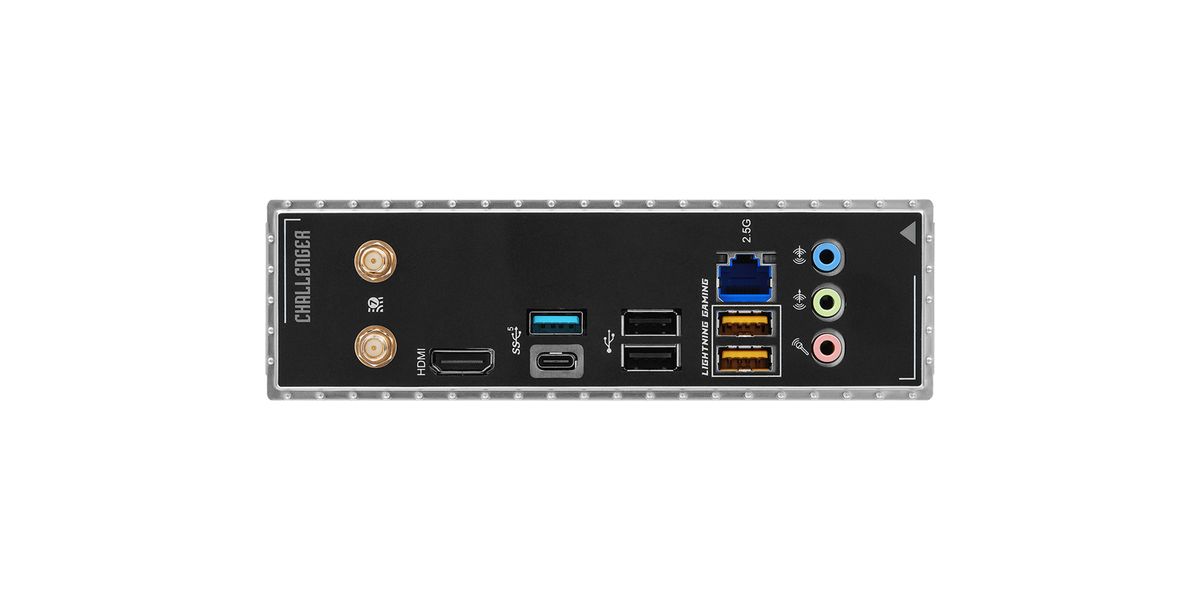

Rear Video OutputsHDMI (x1), DisplayPort (x1)
-
USB PortsMultiple USB 3.2 Gen1 and USB 2.0; front panel USB 3.2 Gen1 Type‑C support; total up to ~16 ports depending on I/O layout
-
Power Design10+1+1+1+1 Power Phase design with Dr.MOS
-
Storage SupportNVMe PCIe Gen5 & Gen4 M.2, SATA HDD/SSD
-
Onboard HeadersRGB LED header (12V), front USB headers including Type‑C, fan headers
-

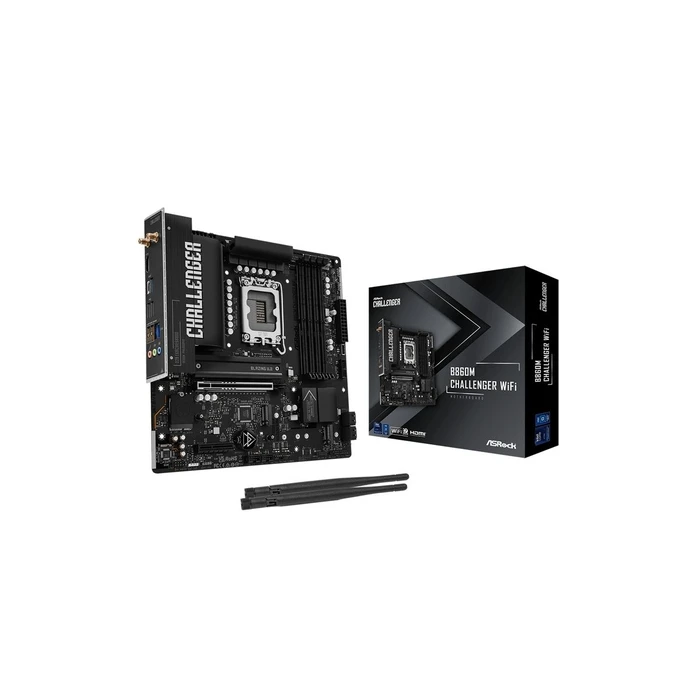

Accessories IncludedI/O shield, SATA cables, M.2 screws, Wi‑Fi antenna
-
Warranty3 years limited (parts & labor)
-
Board Dimensions244 x 244 mm (Micro ATX)
-
Product Weight~600 g (board only)
-
Package Weight~1200 g (estimated boxed)
-
Box Dimensions~30 x 23 x 6 cm (estimated boxed)
-
MaterialsFR‑4 PCB, aluminum heatsinks on VRM and chipset
-
Typical Use CaseMainstream / budget gaming builds, compact systems with high‑speed DDR5 and PCIe Gen5 storage
-
Ratings
Description
The ASRock B860M Challenger WiFi is a Micro ATX motherboard based on the Intel B860 chipset with LGA 1851 socket supporting Intel Core Ultra (200S series) processors. Key features include 4x DDR5 DIMMs (high-speed/OC support), PCIe 5.0 x16 primary slot, PCIe Gen5 & Gen4 M.2 storage support (one Gen5 x4 and two Gen4 x4), Realtek 2.5G LAN, Wi‑Fi 7 (802.11be) + Bluetooth, Realtek ALC897 7.1 audio with Nahimic, HDMI and DisplayPort video outputs, extensive USB connectivity including front Type‑C, and a 10+1+1+1+1 Dr.MOS power design. The board is Micro ATX (244 x 244 mm), ships with typical accessories (I/O shield, SATA cables, M.2 screws, Wi‑Fi antenna), and carries a 3‑year limited warranty.
Technical Specifications
-
BrandASRock
-
ModelB860M Challenger WiFi
-
MPN90-MXBUP0-A0UAYZ
-
EAN4711581494602
-
SKU591064
-
CategoryMotherboard (Micro ATX)
-
Form FactorMicro ATX (244 x 244 mm)
-
ChipsetIntel B860
-
CPU SocketLGA 1851
-
Supported CPUsIntel Core Ultra (200S series) / LGA 1851 compatible processors
-
Memory TypeDDR5
-
Memory Slots4 x DDR5 DIMM (Dual Channel)
-
Memory SpeedUp to 8666+ MHz (OC) / supports high-speed DDR5 modules
-
PCIe Slots1 x PCIe 5.0 x16 (primary), additional PCIe 4.0 x4 expansion slot
-
M.2 Slots1 x PCIe Gen5 x4 (Blazing M.2) + 2 x PCIe Gen4 x4 (Hyper M.2)
-
SATA Ports4 x SATA3 6.0 Gb/s
-
LANRealtek 2.5 Gigabit LAN
-
WirelessWi‑Fi 7 (802.11be) + Bluetooth (includes external antenna)
-
Audio CodecRealtek ALC897 7.1 CH HD Audio + Nahimic audio enhancements
-
Rear Video OutputsHDMI (x1), DisplayPort (x1)
-
USB PortsMultiple USB 3.2 Gen1 and USB 2.0; front panel USB 3.2 Gen1 Type‑C support; total up to ~16 ports depending on I/O layout
-
Power Design10+1+1+1+1 Power Phase design with Dr.MOS
-
Storage SupportNVMe PCIe Gen5 & Gen4 M.2, SATA HDD/SSD
-
Onboard HeadersRGB LED header (12V), front USB headers including Type‑C, fan headers
-
Accessories IncludedI/O shield, SATA cables, M.2 screws, Wi‑Fi antenna
-
Warranty3 years limited (parts & labor)
-
Board Dimensions244 x 244 mm (Micro ATX)
-
Product Weight~600 g (board only)
-
Package Weight~1200 g (estimated boxed)
-
Box Dimensions~30 x 23 x 6 cm (estimated boxed)
-
MaterialsFR‑4 PCB, aluminum heatsinks on VRM and chipset
-
Typical Use CaseMainstream / budget gaming builds, compact systems with high‑speed DDR5 and PCIe Gen5 storage
-
