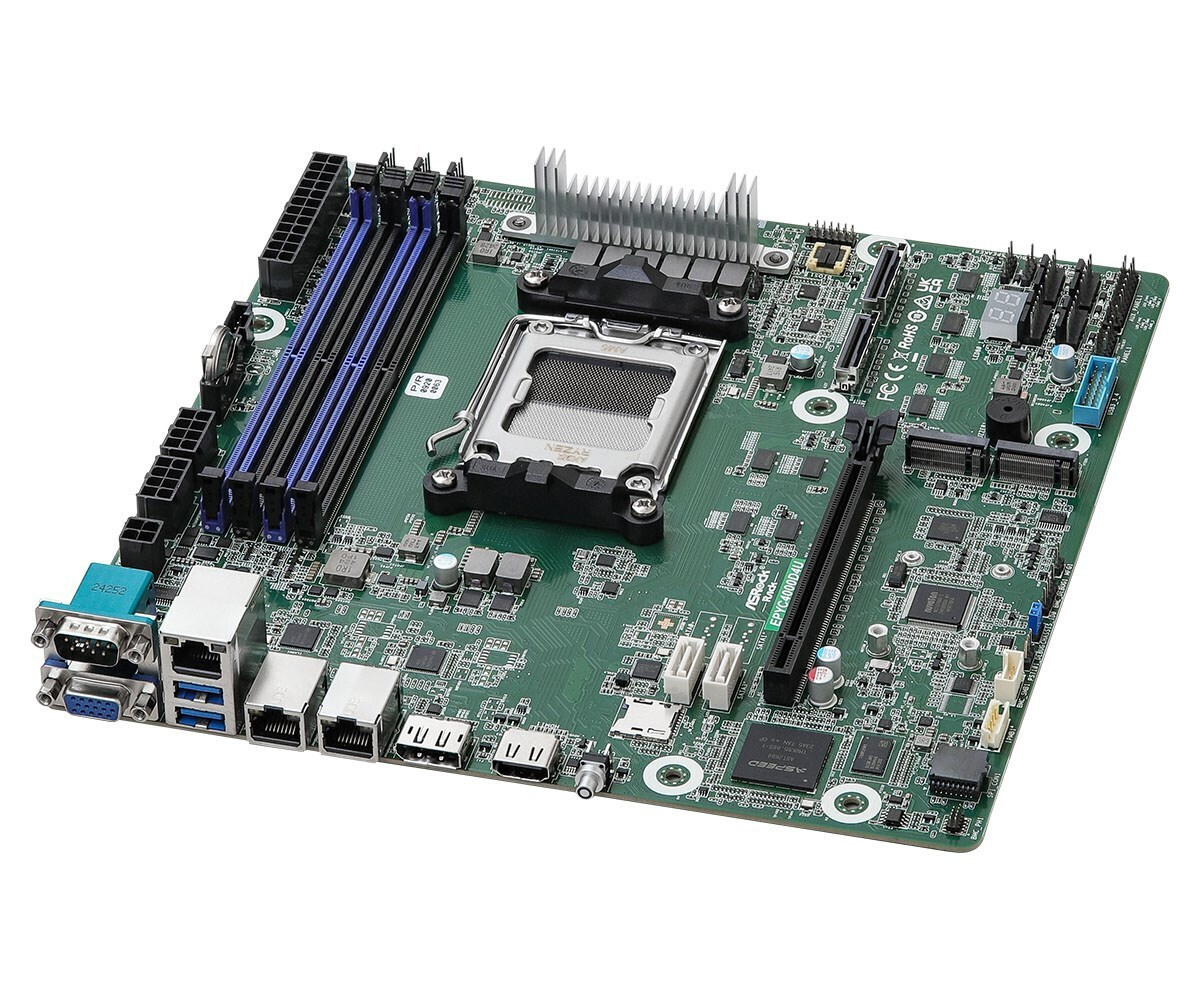

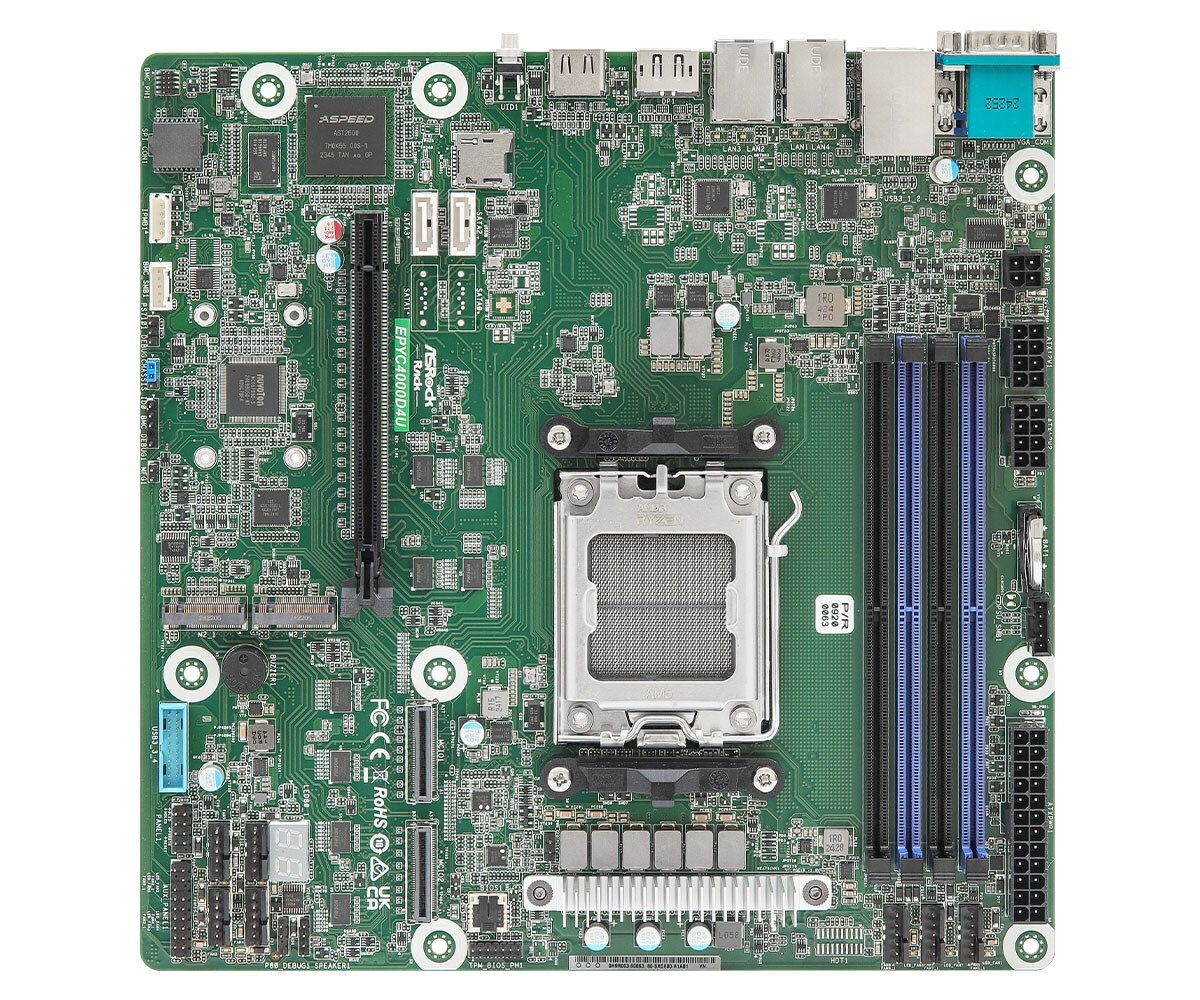

ASR KNOLL3 is a Micro ATX server motherboard with Socket AM5 and KNOLL3 X300 chipset. Compatible with AMD processors including EPYC 4004 and Ryzen 7000/8000/9000 series (Maximum SMP processors: 1). Board size: Micro ATX (244 x 244 mm). Memory: 4x DDR5 DIMM slots, Dual Channel, ECC & Non-ECC...
More
ASR KNOLL3 Micro ATX Server Motherboard - Socket AM5 (KNOLL3 X300), MPN: EPYC4000D4U
Product Code: 1127679240
Upon Order
432,91 €
or
13,52€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
ASR KNOLL3 is a Micro ATX server motherboard with Socket AM5 and KNOLL3 X300 chipset. Compatible with AMD processors including EPYC 4004 and Ryzen 7000/8000/9000 series (Maximum SMP processors: 1). Board size: Micro ATX (244 x 244 mm). Memory: 4x DDR5 DIMM slots, Dual Channel, ECC & Non-ECC support, up to 48 GB total, supported speeds 3600 and 5600 MT/s. Expansion: 1x PCIe x16 Gen5 slot. Storage: 2x SATA III 6 Gb/s ports. On-board management and graphics: ASPEED AST2600 (BMC) with DisplayPort, HDMI and VGA outputs. Networking: Intel I210 gigabit LAN, 2x RJ45 LAN ports plus dedicated IPMI LAN. Rear I/O includes 2x USB 3.2 Gen1 Type-A, serial port. Connectors: 24-pin ATX power, TPM connector. BIOS: UEFI AMI (256 Mbit), ACPI 6.4, SMBIOS 3.5. Environmental specs: operating 10–35°C, storage -40–70°C, humidity 20–90%. Targeted for server applications requiring compact, managed motherboards.
-
Product TypeServer Motherboard
-
Form FactorMicro ATX (244 x 244 mm)
-
ChipsetKNOLL3 X300
-
Processor SocketSocket AM5
-
Compatible Processor SeriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD EPYC 4004
-
Maximum number of SMP processors1
-
On-board Graphics / BMCASPEED AST2600 (on-board graphics/BMC)
-
Memory TypeDDR5-SDRAM
-
Memory Slots4 x DIMM
-
Maximum Internal Memory48 GB
-
Memory ChannelDual Channel
-
Supported Memory Speeds3600 MT/s, 5600 MT/s
-
ECC SupportECC & Non-ECC
-
Memory Voltage1.1 V
-
Memory Slot Pin Count288
-
PCI Express Slots1 x PCIe x16 Gen5
-
SATA Connectors2 x SATA III 6 Gb/s
-
Supported Storage InterfacesSATA III
-

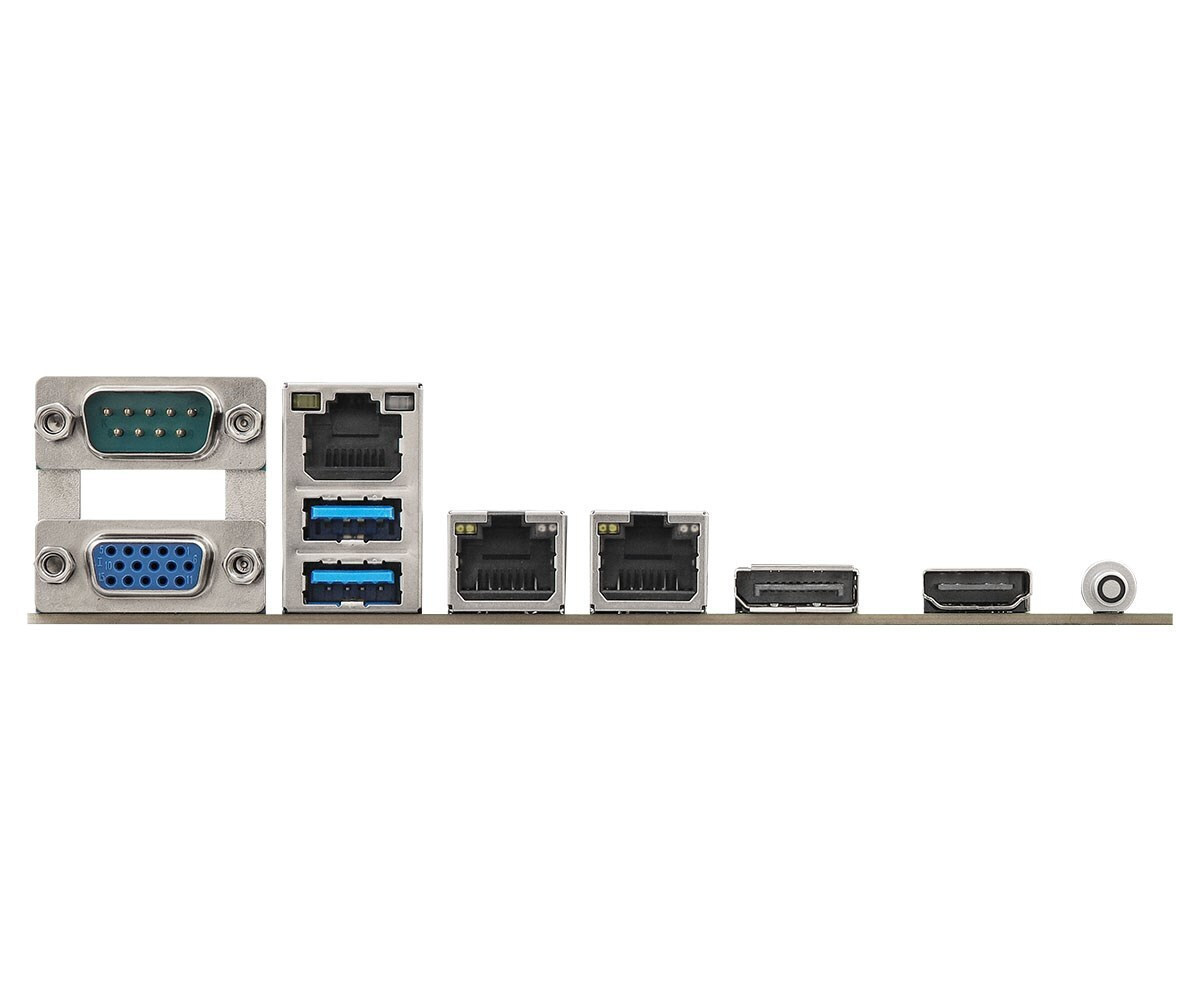

USB Ports (rear)2 x USB 3.2 Gen1 (Type-A)
-
Video Outputs1 x DisplayPort, 1 x HDMI, 1 x VGA (D-Sub)
-
Serial Ports1
-
LAN ControllerIntel I210
-
Ethernet Ports (RJ-45)2 (Gigabit Ethernet)
-
IPMIYes (dedicated IPMI LAN port)
-
Wi-Fi/BluetoothNo
-
ATX Power Connector24-pin ATX power connector (Yes)
-
TPM ConnectorYes
-
BIOS TypeUEFI AMI
-
BIOS Memory Size256 Mbit
-
ACPI Version6.4
-
SMBIOS Version3.5
-
BIOS Management FeaturesIPMI / BMC (AST2600)
-
Audio Channels7.1
-
Operating Temperature10 - 35 °C
-
Storage Temperature-40 - 70 °C
-
Operating Relative Humidity20 - 90%
-
Board Width244 mm
-
Board Depth244 mm
-
Intended UseServer
-
Top Specs SummaryMicro ATX, Socket AM5, KNOLL3 X300, 4x DDR5, 1x PCIe Gen5 x16, IPMI/BMC (AST2600)
Ratings
Description
ASR KNOLL3 is a Micro ATX server motherboard with Socket AM5 and KNOLL3 X300 chipset. Compatible with AMD processors including EPYC 4004 and Ryzen 7000/8000/9000 series (Maximum SMP processors: 1). Board size: Micro ATX (244 x 244 mm). Memory: 4x DDR5 DIMM slots, Dual Channel, ECC & Non-ECC support, up to 48 GB total, supported speeds 3600 and 5600 MT/s. Expansion: 1x PCIe x16 Gen5 slot. Storage: 2x SATA III 6 Gb/s ports. On-board management and graphics: ASPEED AST2600 (BMC) with DisplayPort, HDMI and VGA outputs. Networking: Intel I210 gigabit LAN, 2x RJ45 LAN ports plus dedicated IPMI LAN. Rear I/O includes 2x USB 3.2 Gen1 Type-A, serial port. Connectors: 24-pin ATX power, TPM connector. BIOS: UEFI AMI (256 Mbit), ACPI 6.4, SMBIOS 3.5. Environmental specs: operating 10–35°C, storage -40–70°C, humidity 20–90%. Targeted for server applications requiring compact, managed motherboards.
Technical Specifications
-
Product TypeServer Motherboard
-
Form FactorMicro ATX (244 x 244 mm)
-
ChipsetKNOLL3 X300
-
Processor SocketSocket AM5
-
Compatible Processor SeriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD EPYC 4004
-
Maximum number of SMP processors1
-
On-board Graphics / BMCASPEED AST2600 (on-board graphics/BMC)
-
Memory TypeDDR5-SDRAM
-
Memory Slots4 x DIMM
-
Maximum Internal Memory48 GB
-
Memory ChannelDual Channel
-
Supported Memory Speeds3600 MT/s, 5600 MT/s
-
ECC SupportECC & Non-ECC
-
Memory Voltage1.1 V
-
Memory Slot Pin Count288
-
PCI Express Slots1 x PCIe x16 Gen5
-
SATA Connectors2 x SATA III 6 Gb/s
-
Supported Storage InterfacesSATA III
-
USB Ports (rear)2 x USB 3.2 Gen1 (Type-A)
-
Video Outputs1 x DisplayPort, 1 x HDMI, 1 x VGA (D-Sub)
-
Serial Ports1
-
LAN ControllerIntel I210
-
Ethernet Ports (RJ-45)2 (Gigabit Ethernet)
-
IPMIYes (dedicated IPMI LAN port)
-
Wi-Fi/BluetoothNo
-
ATX Power Connector24-pin ATX power connector (Yes)
-
TPM ConnectorYes
-
BIOS TypeUEFI AMI
-
BIOS Memory Size256 Mbit
-
ACPI Version6.4
-
SMBIOS Version3.5
-
BIOS Management FeaturesIPMI / BMC (AST2600)
-
Audio Channels7.1
-
Operating Temperature10 - 35 °C
-
Storage Temperature-40 - 70 °C
-
Operating Relative Humidity20 - 90%
-
Board Width244 mm
-
Board Depth244 mm
-
Intended UseServer
-
Top Specs SummaryMicro ATX, Socket AM5, KNOLL3 X300, 4x DDR5, 1x PCIe Gen5 x16, IPMI/BMC (AST2600)
