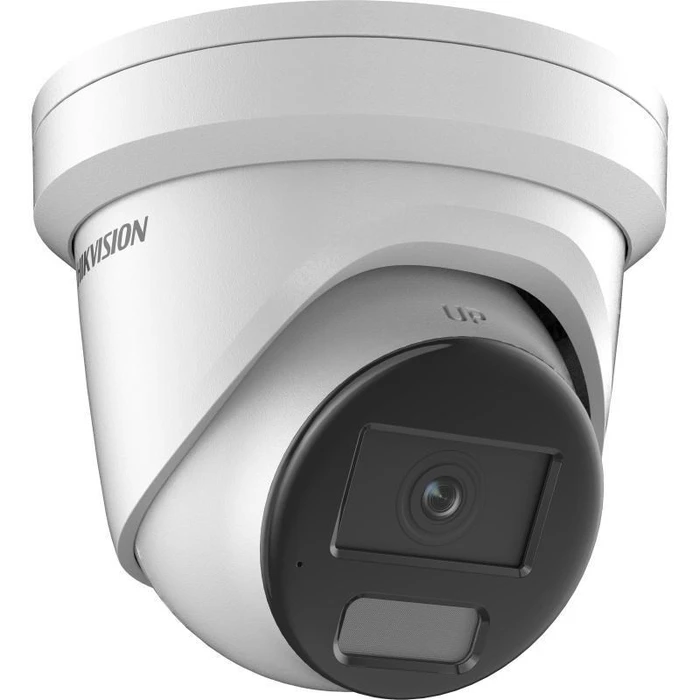

Κάμερα Παρακολούθησης Hikvision Pro Acusense DS-2CD2346G2H-IU(2.8mm)(eF) Turre

Technical Specifications

• Lens mount interface
  M12
• Mounting type
  Ceiling/wall
• International Protection (IP) code
  IP67
• Protection features
  Water resistant
• Form factor
  Turret
• Product colour
  White
• Housing material
  Aluminium
• Power consumption (Power over Ethernet (PoE))
  9 W
• DC output current
  0.6 A
• DC output voltage
  12
• Power consumption (max)
  7.2 W
• Power source type
  DC, PoE
• IP address filtering
  Yes
• Password protection
  Yes
• Intelligent Video Surveillance (IVS) system features
  Face detection
• HTTPS encryption
  Yes
• Mirror
  Yes
• Heartbeat
  Yes
• Active tampering alarm
  Yes
• Privacy protection
  Yes
• Video motion detection
  Yes
• Human and vehicle targets classification
  Yes
• Password reset via email
  Yes
• Pixel counter
  Yes
• Digest authentication
  Yes
• Security algorithms
  TLS
• Audit log
  Yes
• Network access storage (NAS)
  Yes
• Flash log
  Yes
• Automatic Network Replenishment (ANR)
  Yes
• Operating relative humidity (H-H)
  0 - 95%
• Storage relative humidity (H-H)
  0 - 95%
• Storage temperature (T-T)
  -30 - 60 °C
• Operating temperature (T-T)
  -30 - 60 °C
• Behavior analysis
  Intrusion detection, Line crossing detection
• Reset button
  Yes
• Web-based management
  Yes
• Diameter
  13.8 cm
• Weight
  550 g
• Height
  115.4 mm
• Live view
  Yes
• Number of users
  32 user(s)
• User access level
  Administrator, Operator, User
• Client interoperability
  iVMS-4200, Hik-Connect, Hik-Central
• Number of simultaneous live view channels
  6 channels
• Wi-Fi
  No
• Networking standards
  IEEE 802.3af
• Ethernet LAN
  Yes
• Ethernet interface type
  Fast Ethernet
• Bluetooth
  No
• Quality of Service (QoS) support
  Yes
• Placement supported
  Outdoor
• Languages support
  Multi
• Infrared (IR) cut-off filter
  Yes
• Number of languages
  33
• Dynamic range
  120 dB
• Day/night mode
  Yes
• Type
  IP security camera
• Connectivity technology
  Wired
• Wide Dynamic Range (WDR)
  Yes
• Package weight
  800 g
• Package width
  170 mm
• Package depth
  170 mm
• Package height
  160 mm
• Number of cameras
  1
• Audio formats supported
  AAC-LC
• Bit rate range
  8 - 320 Kbit/s
• Signal-to-Noise Ratio (SNR)
  52 dB
• Sample rates
  8 - 48 kHz
• Built-in microphone
  Yes
• Built-in HDD
  No
• Maximum memory card size
  512 GB
• Compatible memory cards
  MicroSDHC
• Card reader integrated
  Yes
• Ethernet LAN (RJ-45) ports
  1
• Angle of rotation
  360°
• Camera shutter speed
  1/3 - 1/100000 s
• Pan range
  0 - 360°
• Minimum illumination
  0 lx
• Lens viewing angle, horizontal
  100.2°
• Lens viewing angle, diagonal
  119.7°
• Lens viewing angle, vertical
  54.7°
• Tilt angle range
  0 - 75°
• Number of Privacy masking areas
  4
• Browser supported
  IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
• Optical sensor size
  25.4 / 3 mm (1 / 3")
• Sensor type
  CMOS
• Progressive scan
  Yes
• Number of sensors
  1
• Region of Interest (ROI) encoding
  Yes
• Total megapixels
  4 MP
• Image quality adjustment
  Brightness
• Noise reduction technology
  3D noise reduction
• Frame rate
  30 fps
• Highlight Compensation (HLC)
  Yes
• Noise reduction
  Yes
• Bit rate control
  Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
• Video compression formats
  H.264
• Privacy masking
  Yes
• Video streaming
  Yes
• Smart IR
  Yes
• Supported graphics resolutions
  1920 x 1080 (HD 1080)
• Maximum resolution
  2688 x 1520 pixels
• Bit rate
  32 Kbps - 8192 Kbps
• Back Light Compensation (BLC)
  Yes
• Infra-red wavelength
  850 nm
• Night vision
  Yes
• Night vision distance
  30 m
• LED type
  IR
• Observe distance
  25 m
• Fixed focal length
  2.8 mm
• Recognize distance
  12 m
• Number of lenses
  1
• Detect distance
  63 m
• Maximum aperture number
  1
• Identify distance
  6 m
• Warnings
  Avoid direct contact with water to prevent electrical damage.
• Compliance certificates
  RoHS
