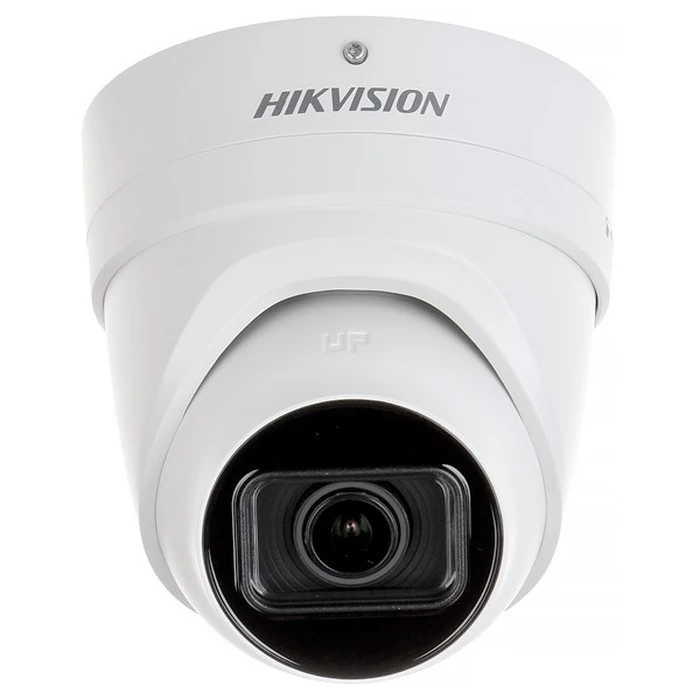

Hikvision Camera DS-2CD2H46G2-IZS(2.8-12mm)(C) - 4MP AcuSense Motorized Varifocal Turret Camera

Description

Technical Specifications

• Brand
  Hikvision
• Model
  DS-2CD2H46G2-IZS(2.8-12mm)(C)
• MPN
  311331064
• EAN / Barcode
  6936422132002
• SKU
  WLONONWCROPPY
• Series / Line
  Hikvision Pro Series - AcuSense
• Product type
  Network turret / turret-dome camera
• Image sensor
  1/3" Progressive Scan CMOS
• Resolution
  4 MP (2688 × 1520)
• Lens
  Motorized varifocal 2.8–12 mm, F1.4
• Field of view (approx.)
  Horizontal 108° – 30° (varies by source)
• Low-light technology
  DarkFighter
• Minimum illumination
  Color: 0.003 Lux @ F1.4 (AGC ON); B/W: 0 Lux with IR
• IR / Night vision
  Built-in IR LEDs, range up to ~40 m
• WDR
  120 dB
• Video compression
  H.265+, H.265, H.264+, H.264, MJPEG
• Frame rate
  Up to 25/30 fps (region-dependent listings)
• Analytics
  AcuSense human & vehicle classification; Motion Detection
• Audio / Alarm
  Audio in/out and alarm interfaces (line-in/line-out)
• Storage
  microSD card slot, up to 512 GB
• Network interface
  1 × RJ45 10/100 Mbps
• Protocols
  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTSP, RTP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, SNMP
• ONVIF compatibility
  Yes (reported in reseller listings)
• Power supply
  12 V DC or PoE (IEEE 802.3af)
• Power consumption
  ~11–12.5 W (depending on source)
• Ingress protection
  IP66
• Vandal resistance
  IK10
• Material
  Metal (housing)
• Dimensions
  Ø135.8 mm × 145.5 mm (datasheet listing)
• Product weight
  1,075 g
• Package dimensions (approx.)
  17 × 17 × 17 cm (common packaging size reported)
• Use case
  Indoor / Outdoor surveillance, perimeter protection, general security
• DORI (example values)
  Wide detection 60 m; Tele detection 190 m (reseller listing)
• Compression efficiency
  H.265+ for bandwidth and storage savings
• Additional features
  Power-off memory, motorized zoom for remote adjustment, face capture (listed by some resellers)
