Detailed Description

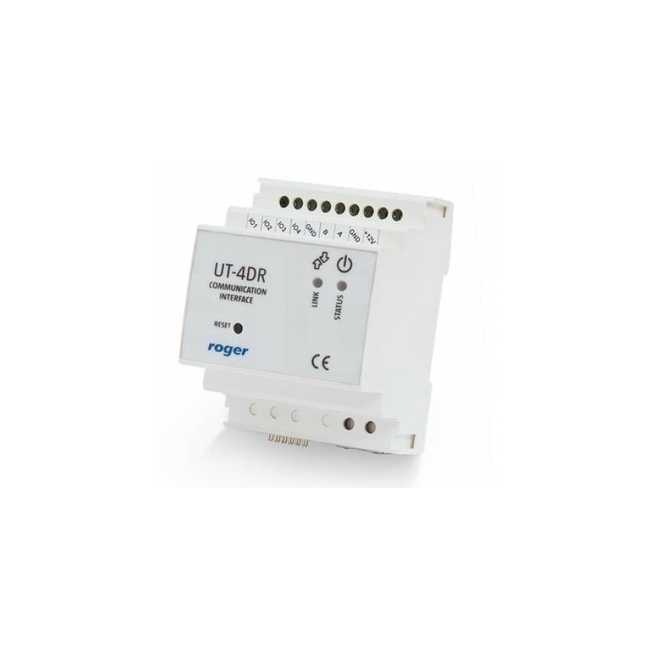

The Roger UT-4DR Interface is a versatile communication device designed to bridge the RS485 protocol with the Ethernet network, enabling seamless integration with the RACS 4 access control system.
This compact electronic module is housed in a plastic enclosure and is specifically designed for mounting onto standard DIN rail 35mm. The UT-4DR facilitates communication between access control devices and the PR Master managing software via a 10/100 BaseT Ethernet network.
One of the significant features of the UT-4DR is its four universal Input/Output (I/O) lines. These lines can be managed conveniently using a web browser or the Telnet protocol, allowing for remote I/O management and control.
- Power Supply: Operates within a range of 10-15 VDC with an average current consumption of 55 mA.
- Communication Interface: IP/Ethernet support for LAN/WAN at speeds of 100/10 Mbit/s.
- I/O Configuration: Can be configured as inputs or outputs with a maximum load of 15VDC/500mA.
With its robust design, the UT-4DR Interface is an excellent choice for integrating RS485-based access control systems with modern Ethernet networks, ensuring reliable communication and effective I/O management.
Specifications
-
Power Supply
- 10-15 VDC
-
Average Current Consumption
- 55 mA
-
Communication Interface
- IP/Ethernet, 100/10 Mbit/s
-
I/O Lines
- 4 universal I/O lines
-
Trigger Level
- 3.5 V
-
Maximum Load
- 15VDC/500mA
-
Operating Temperature Range
- -10 to +40 °C
-
Relative Humidity
- 0% to 75%
-
IP Rating
- IP41
-
Dimensions
- 62 x 85 x 73 mm
-
Weight
- 110 grams
-
Certifications
- CE and RoHS
