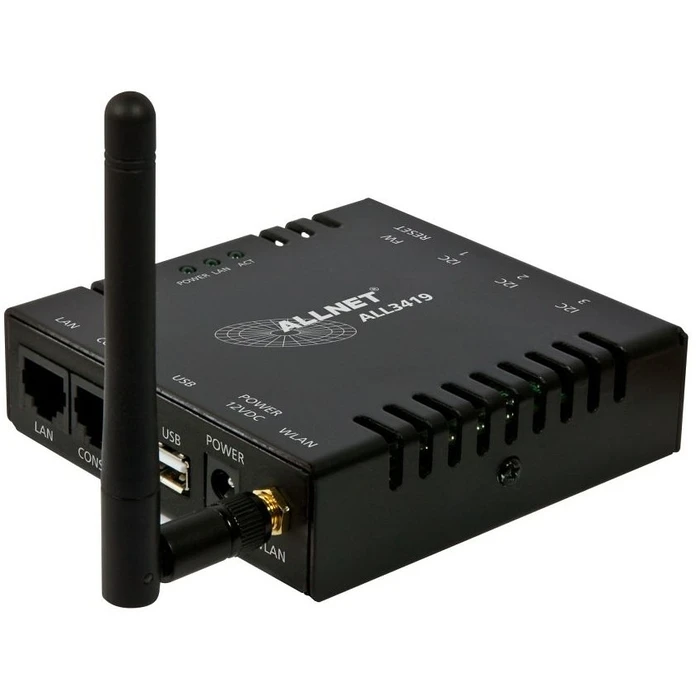

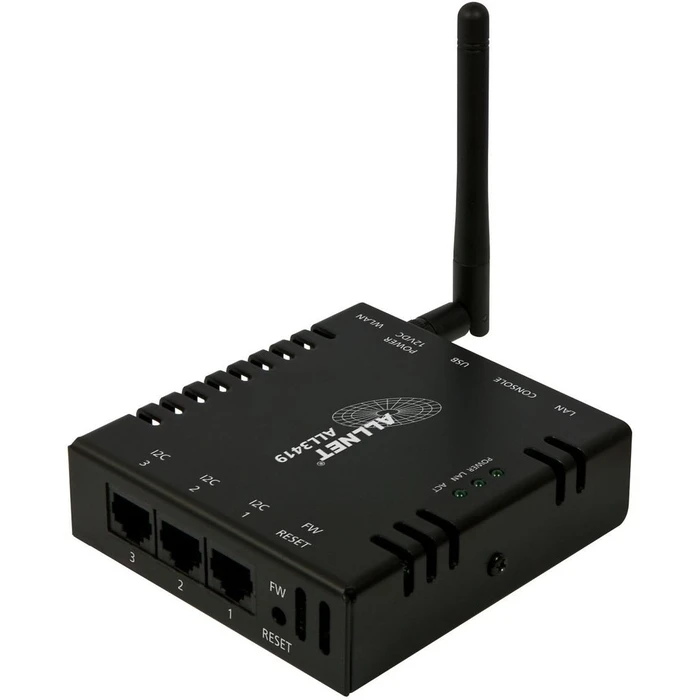

The ALLNET MSR Zentrale ALL3419 is a versatile and economical solution for temperature measurement and automation in building environments. Designed to integrate into a computer network via cable or wireless LAN, this IP thermometer/sensor center ensures easy access through an IP address. Housed in a robust metal casing, it provides protection against mechanical damage and ensures straightforward installation in confined spaces.

Key Features

Temperature Measurement: Equipped with the ALL3006 temperature sensor, it measures temperature through an I2C RJ45 interface and features an internal sensor for monitoring system temperature.
Humidity Detection: An optional ALL3018 sensor allows for humidity detection, enhancing monitoring capabilities.
Flexible Installation: Supports multiple installations of various ALLNET units controlled through a single web GUI using JSON API.
Network Connectivity: Features 3x RJ45 ports for sensor/actor modules, and a USB 2.0 port for additional wireless dongles.
Wireless LAN: Supports 2.4 GHz wireless N with speeds up to 150 Mbps, complying with various security protocols.
Power Supply: Operates on an external power supply (100~240 VAC, 50/60 Hz) with low power consumption.
Environmental Specifications: Functions in a temperature range of 0~40 °C and stores within -20~60 °C, with specified humidity levels.

Additional Capabilities

Software Modules: Supports optional free-software modules including SNMP and FTP Upload through JSON API.
Web-Based Access: No extra software needed; access measured values directly through a web browser on the device.

Packaging Contents

ALLNET ALL3419 IP Thermometer/Automation-Building-Main-Unit
ALLNET ALL3006 temperature sensor
WLAN antenna
External power supply (12V, 1A)
User instructions

The ALLNET MSR Zentrale ALL3419 stands out as a comprehensive solution for building automation. It combines robust temperature measurement with flexible installations and seamless network integration.

Temperature Sensor

ALL3006
I2C Interface

RJ45
Internal Temperature Sensor

Yes
Optional Humidity Sensor

ALL3018
Network Ports

3x RJ45
USB Ports

1x USB 2.0
WLAN Frequency

2.4 GHz
Maximum WLAN Speed

150 Mbps
Power Supply

100~240 VAC
Power Consumption

< 3 watts
Operating Temperature Range

0 ~ 40 °C
Storage Temperature Range

-20 ~ 60 °C
Operating Humidity Range

10% ~ 85%
Storage Humidity Range

5% ~ 90%

Ratings

How do you rate this product?

0/5

Description

Key Features

Temperature Measurement: Equipped with the ALL3006 temperature sensor, it measures temperature through an I2C RJ45 interface and features an internal sensor for monitoring system temperature.
Humidity Detection: An optional ALL3018 sensor allows for humidity detection, enhancing monitoring capabilities.
Flexible Installation: Supports multiple installations of various ALLNET units controlled through a single web GUI using JSON API.
Network Connectivity: Features 3x RJ45 ports for sensor/actor modules, and a USB 2.0 port for additional wireless dongles.
Wireless LAN: Supports 2.4 GHz wireless N with speeds up to 150 Mbps, complying with various security protocols.
Power Supply: Operates on an external power supply (100~240 VAC, 50/60 Hz) with low power consumption.
Environmental Specifications: Functions in a temperature range of 0~40 °C and stores within -20~60 °C, with specified humidity levels.

Additional Capabilities

Software Modules: Supports optional free-software modules including SNMP and FTP Upload through JSON API.
Web-Based Access: No extra software needed; access measured values directly through a web browser on the device.

Packaging Contents

ALLNET ALL3419 IP Thermometer/Automation-Building-Main-Unit
ALLNET ALL3006 temperature sensor
WLAN antenna
External power supply (12V, 1A)
User instructions

Technical Specifications

Temperature Sensor

ALL3006
I2C Interface

RJ45
Internal Temperature Sensor

Yes
Optional Humidity Sensor

ALL3018
Network Ports

3x RJ45
USB Ports

1x USB 2.0
WLAN Frequency

2.4 GHz
Maximum WLAN Speed

150 Mbps
Power Supply

100~240 VAC
Power Consumption

< 3 watts
Operating Temperature Range

0 ~ 40 °C
Storage Temperature Range

-20 ~ 60 °C
Operating Humidity Range

10% ~ 85%
Storage Humidity Range

5% ~ 90%
