ARCTIC TP-4 silicone-based thermal pad designed to provide premium thermal performance and to fill gaps between heat-generating components and heatsinks. Soft and conformable material with electrical insulation properties. Operating temperature range: -40 to 200 °C. Available thickness options: 0.5...
More

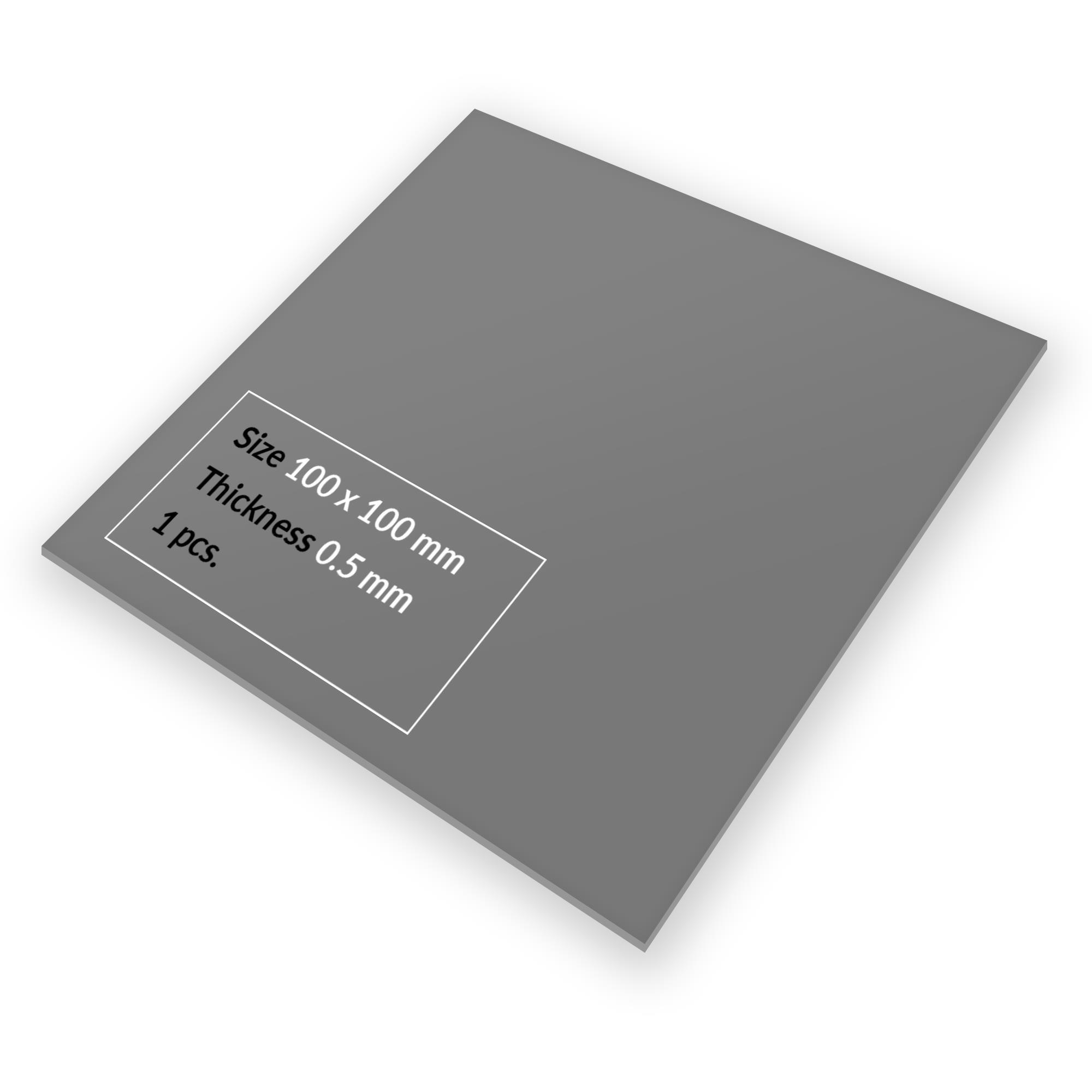

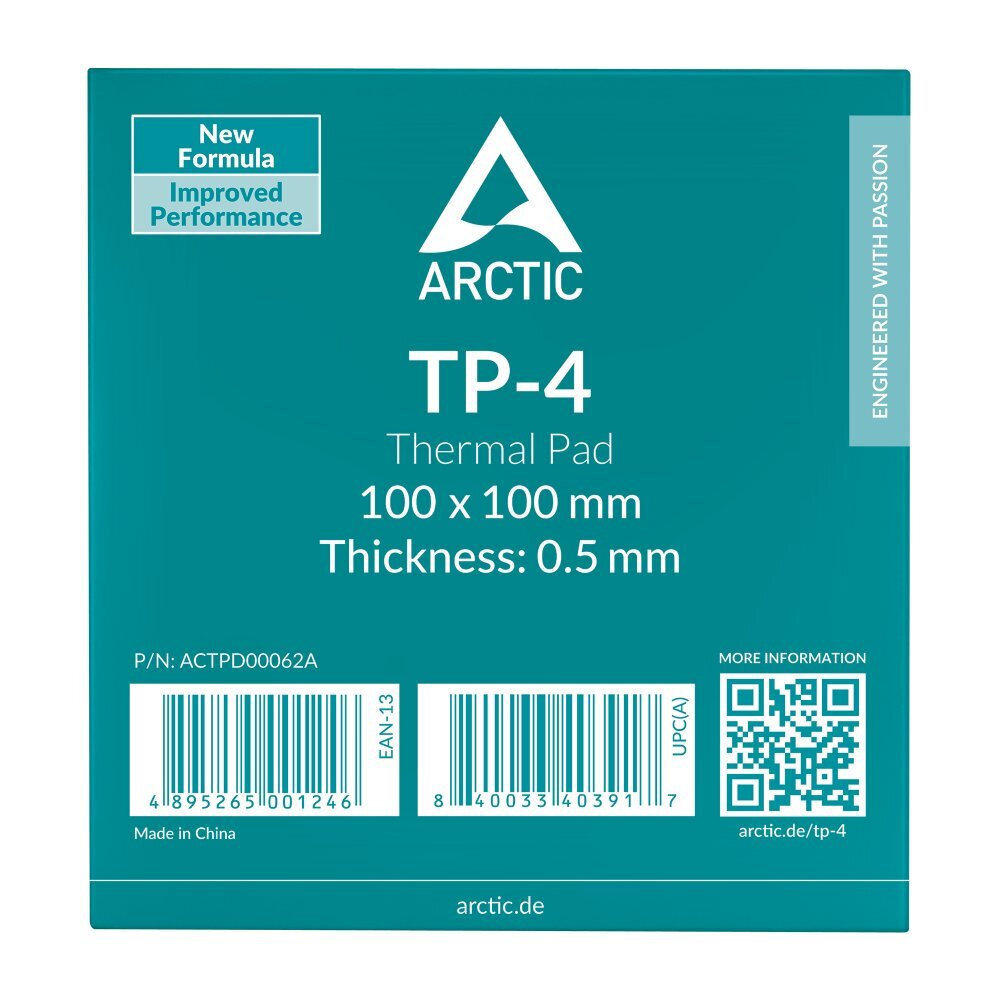

ARCTIC TP-4 Premium Performance Thermal Pad 100 x 100 x 0.5 mm (Grey) - ACTPD00062A
Product Code: 1171727285
Upon Order
13,59 €
With the purchase of this product you earn 41 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
ARCTIC TP-4 silicone-based thermal pad designed to provide premium thermal performance and to fill gaps between heat-generating components and heatsinks. Soft and conformable material with electrical insulation properties. Operating temperature range: -40 to 200 °C. Available thickness options: 0.5 mm, 1.0 mm and 1.5 mm. Technical properties include Shore OO hardness 50, specific gravity 3.4 g/cm³, dielectric strength 8620 V/mil, dielectric constant 7.2 @1 MHz, volume resistivity 1.52 × 10^13 Ω·cm, and flammability rating UL 94 V-0. Net product weight approx. 30 g. Dimensions: 100 x 100 x 0.5 mm. Colour: Grey. Model/MPN: ACTPD00062A.
-
Product TypeThermal Pad
-
BrandARCTIC
-
Model / MPNTP-4 / ACTPD00062A
-
MaterialSilicone-based thermal compound
-
ColorGrey
-
Dimensions (WxLxT)100 x 100 x 0.5 mm
-
Available Thicknesses0.5 mm, 1.0 mm, 1.5 mm
-
Operating Temperature Range-40 to 200 °C
-
Hardness50 Shore OO
-
Specific Gravity3.4 g/cm³
-
Dielectric Strength8620 V/mil
-
Dielectric Constant7.2 @1 MHz
-
Volume Resistivity1.52 × 10^13 Ω·cm
-
Flammability RatingUL 94 V-0
-
Product Weight30 g
-
Typical UseFill gaps between components and heatsinks; thermal interface for cooling while providing electrical insulation
Ratings
Description
ARCTIC TP-4 silicone-based thermal pad designed to provide premium thermal performance and to fill gaps between heat-generating components and heatsinks. Soft and conformable material with electrical insulation properties. Operating temperature range: -40 to 200 °C. Available thickness options: 0.5 mm, 1.0 mm and 1.5 mm. Technical properties include Shore OO hardness 50, specific gravity 3.4 g/cm³, dielectric strength 8620 V/mil, dielectric constant 7.2 @1 MHz, volume resistivity 1.52 × 10^13 Ω·cm, and flammability rating UL 94 V-0. Net product weight approx. 30 g. Dimensions: 100 x 100 x 0.5 mm. Colour: Grey. Model/MPN: ACTPD00062A.
Technical Specifications
-
Product TypeThermal Pad
-
BrandARCTIC
-
Model / MPNTP-4 / ACTPD00062A
-
MaterialSilicone-based thermal compound
-
ColorGrey
-
Dimensions (WxLxT)100 x 100 x 0.5 mm
-
Available Thicknesses0.5 mm, 1.0 mm, 1.5 mm
-
Operating Temperature Range-40 to 200 °C
-
Hardness50 Shore OO
-
Specific Gravity3.4 g/cm³
-
Dielectric Strength8620 V/mil
-
Dielectric Constant7.2 @1 MHz
-
Volume Resistivity1.52 × 10^13 Ω·cm
-
Flammability RatingUL 94 V-0
-
Product Weight30 g
-
Typical UseFill gaps between components and heatsinks; thermal interface for cooling while providing electrical insulation
