Arctic TP-4 silicone thermal pad (Thermal Pad) sized 100 x 100 mm. Designed to provide thermal interface with very low hardness for reliable contact between heatsinks and components. Available thickness options: 0.5 mm, 1.0 mm and 1.5 mm. Technical characteristics: operating temperature -40 to 200...
More

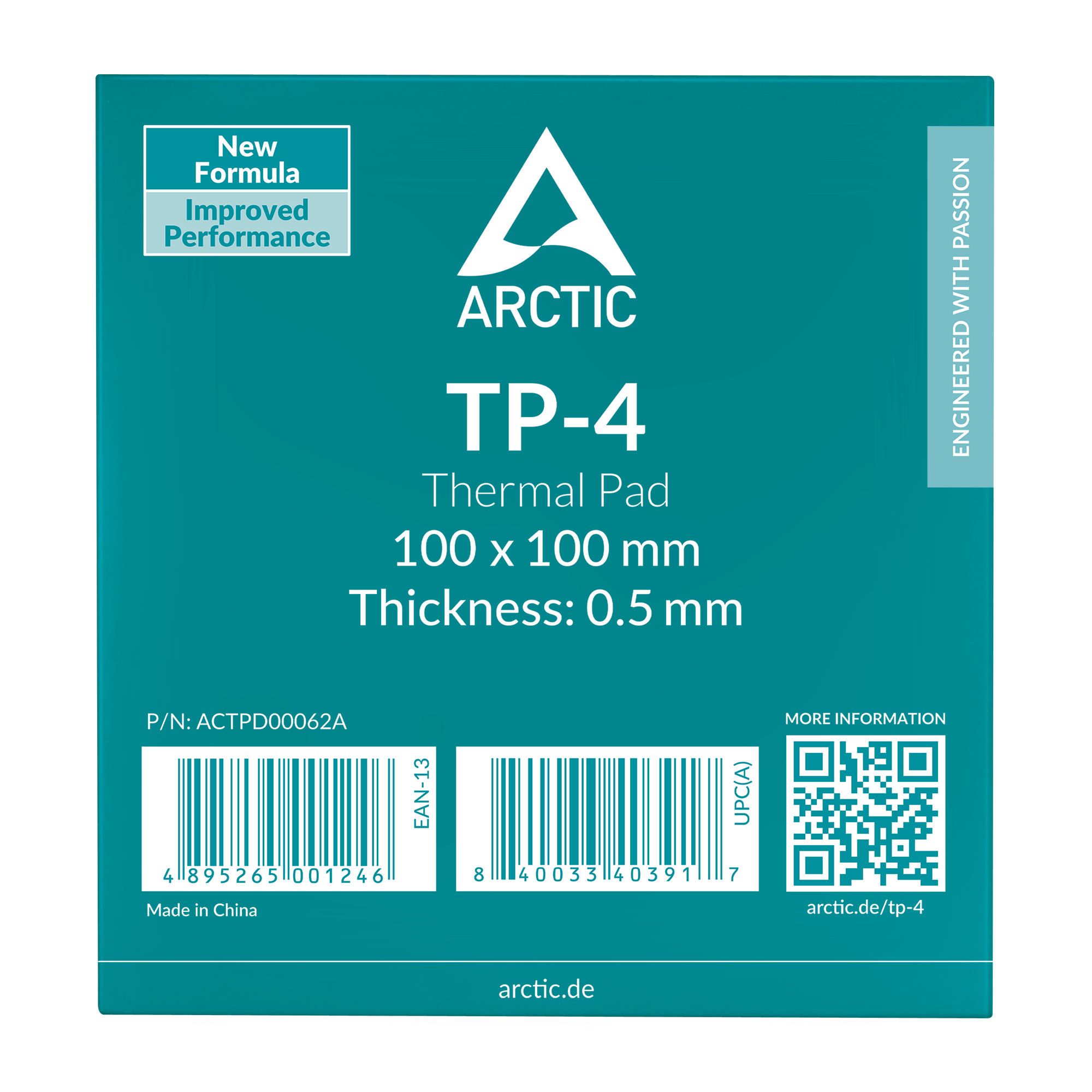

Arctic Thermal Pad TP-4 ACTPD00062A - 100 x 100 mm, 0.5 mm
Product Code: 1111728094
Available in 1 - 3 days
10,54 €
With the purchase of this product you earn 32 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

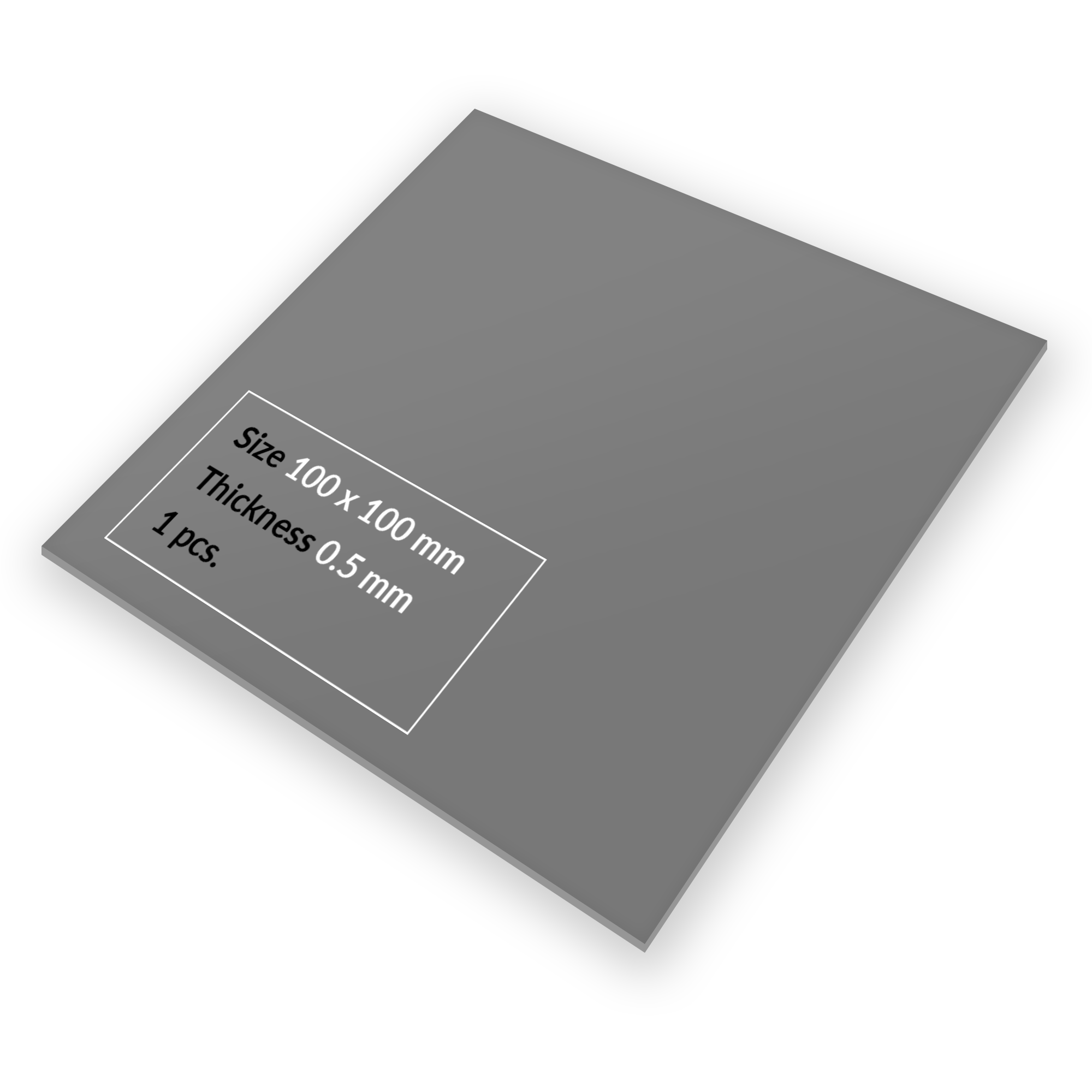

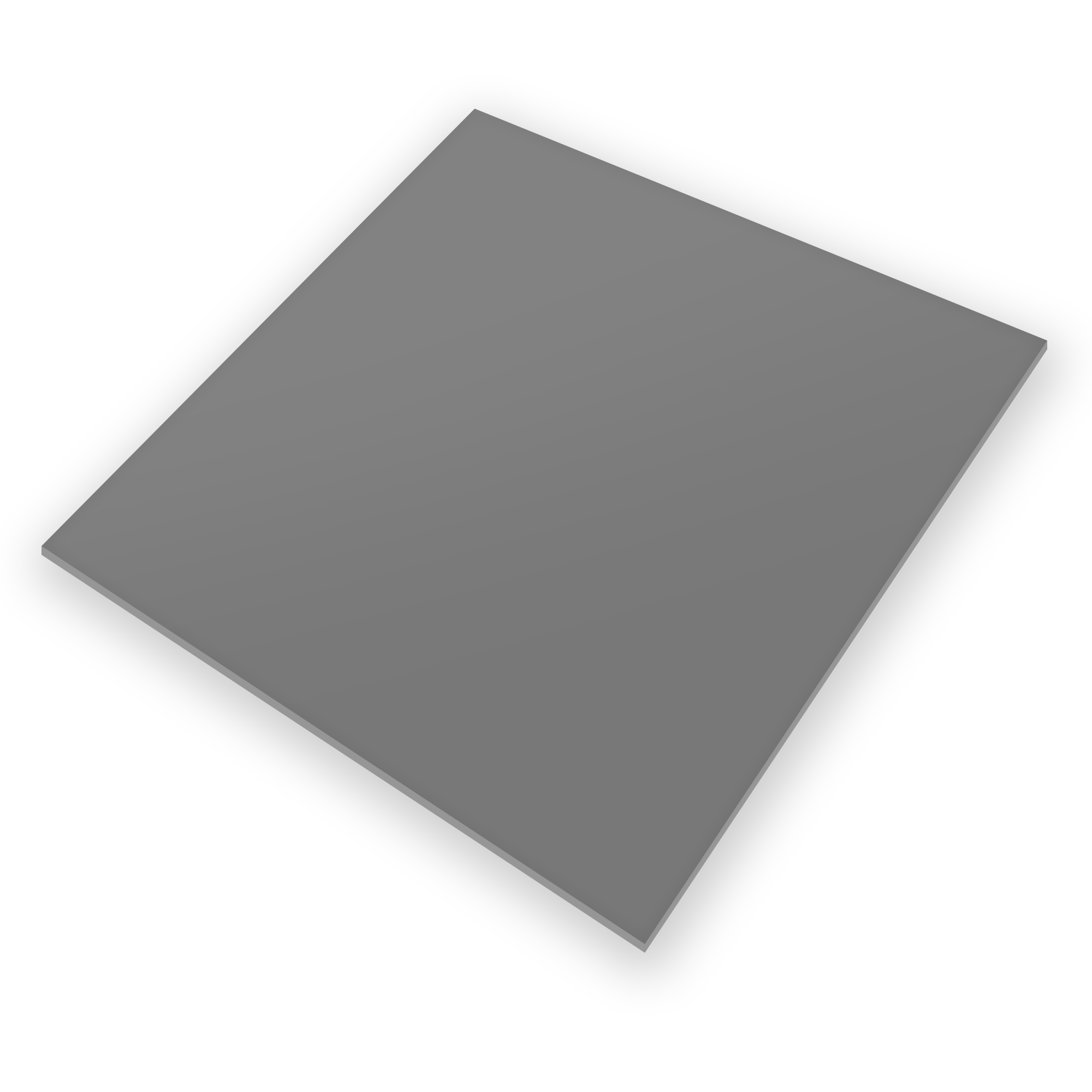

Arctic TP-4 silicone thermal pad (Thermal Pad) sized 100 x 100 mm. Designed to provide thermal interface with very low hardness for reliable contact between heatsinks and components. Available thickness options: 0.5 mm, 1.0 mm and 1.5 mm. Technical characteristics: operating temperature -40 to 200 °C, hardness 50 Shore OO, specific gravity 3.4 g/cm³, dielectric strength 8620 V/mil, dielectric constant 7.2 @1 MHz, volume resistivity 1.52 x 10^13 Ω-cm, flammability rating UL 94 V-0. Product weight approx. 30 g. Suitable for CPU/GPU cooling and other electronic thermal interface applications requiring thermal conduction and electrical insulation.
-
Product TypeThermal Pad (TP-4 silicone)
-
BrandArctic
-
Model/MPNACTPD00062A
-
SKU280436
-
EAN4895265001246
-
Dimensions100 x 100 mm
-
Thickness Options0.5 mm, 1.0 mm, 1.5 mm
-
MaterialThermally conductive silicone
-
Operating Temperature Range-40 to 200 °C
-
Hardness50 Shore OO
-
Specific Gravity3.4 g/cm³
-
Dielectric Strength8620 V/mil
-
Dielectric Constant7.2 @1 MHz
-
Volume Resistivity1.52 x 10^13 Ω-cm
-
Flammability RatingUL 94 V-0
-
Product Weight30 g
-
Package Weight30 g
Ratings
Description
Arctic TP-4 silicone thermal pad (Thermal Pad) sized 100 x 100 mm. Designed to provide thermal interface with very low hardness for reliable contact between heatsinks and components. Available thickness options: 0.5 mm, 1.0 mm and 1.5 mm. Technical characteristics: operating temperature -40 to 200 °C, hardness 50 Shore OO, specific gravity 3.4 g/cm³, dielectric strength 8620 V/mil, dielectric constant 7.2 @1 MHz, volume resistivity 1.52 x 10^13 Ω-cm, flammability rating UL 94 V-0. Product weight approx. 30 g. Suitable for CPU/GPU cooling and other electronic thermal interface applications requiring thermal conduction and electrical insulation.
Technical Specifications
-
Product TypeThermal Pad (TP-4 silicone)
-
BrandArctic
-
Model/MPNACTPD00062A
-
SKU280436
-
EAN4895265001246
-
Dimensions100 x 100 mm
-
Thickness Options0.5 mm, 1.0 mm, 1.5 mm
-
MaterialThermally conductive silicone
-
Operating Temperature Range-40 to 200 °C
-
Hardness50 Shore OO
-
Specific Gravity3.4 g/cm³
-
Dielectric Strength8620 V/mil
-
Dielectric Constant7.2 @1 MHz
-
Volume Resistivity1.52 x 10^13 Ω-cm
-
Flammability RatingUL 94 V-0
-
Product Weight30 g
-
Package Weight30 g
