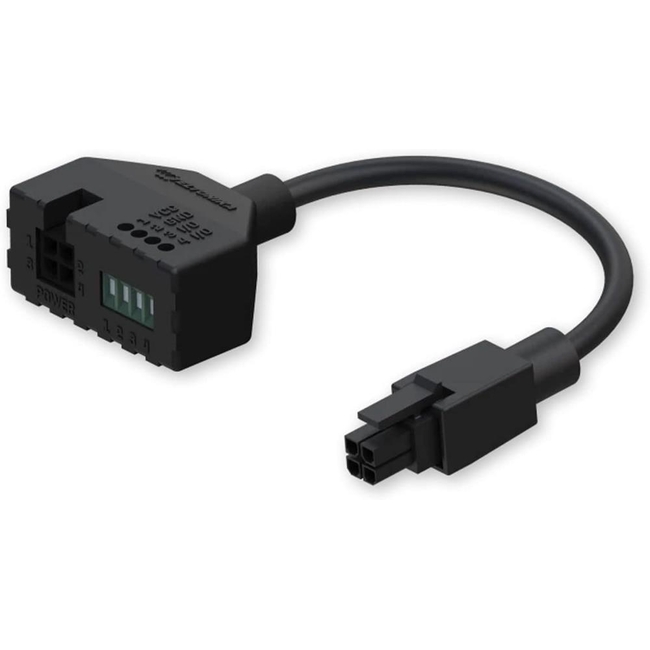

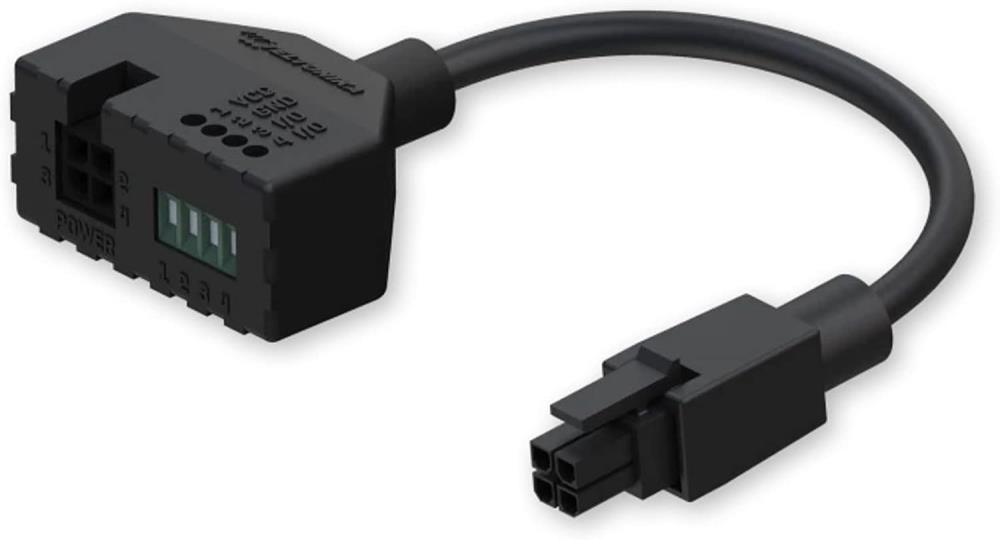

The Cable Adapter 4-PIN with I/O/PR5MEC21 Teltonika is a versatile power adapter designed for easy access to I/O functionality for compatible Teltonika Networks devices.
Key Features:
- Input Connector: 4-pin input connector with a 3 mm pitch and a 4-way screw terminal block.
- Output Connector: Compatible with various devices featuring a 4-pin, 3 mm pitch.
- Cable Length: 100 mm long cable with 4 conductors (0.20 mm²).
- Screwdriver Type: Requires a micro slotted screwdriver for assembly.
- Weight: Lightweight at only 15 grams.
Connection Data:
The adapter supports conductors with various cross-sectional areas:
- Solid/Flexible: 0.14 to 0.50 mm² (20 to 26 AWG).
- Flexible with Ferrule/Plastic Sleeve: 0.25 to 0.30 mm² (23 to 22 AWG).
Pinout Configuration:
- Pin 1: Power +
- Pin 2: Ground -
- Pin 3: Input/Output
- Pin 4: Input/Output
With its compact design and versatile connectivity options, this adapter enhances the functionality of Teltonika Networks devices, providing a straightforward method to access and configure digital inputs and outputs.
-
Input Connector4-pin, 3 mm pitch
-
Output Connector4-pin, 3 mm pitch
-
Cable Length100 mm
-
Conductor Cross Section0.20 mm²
-
Weight15 g
-
Solid/Flexible Conductor Range0.14 to 0.50 mm²
-
Flexible with Ferrule/Plastic Sleeve Range0.25 to 0.30 mm²
-
Dimensions32 mm x 30 mm
Ratings
Description
The Cable Adapter 4-PIN with I/O/PR5MEC21 Teltonika is a versatile power adapter designed for easy access to I/O functionality for compatible Teltonika Networks devices.
Key Features:
- Input Connector: 4-pin input connector with a 3 mm pitch and a 4-way screw terminal block.
- Output Connector: Compatible with various devices featuring a 4-pin, 3 mm pitch.
- Cable Length: 100 mm long cable with 4 conductors (0.20 mm²).
- Screwdriver Type: Requires a micro slotted screwdriver for assembly.
- Weight: Lightweight at only 15 grams.
Connection Data:
The adapter supports conductors with various cross-sectional areas:
- Solid/Flexible: 0.14 to 0.50 mm² (20 to 26 AWG).
- Flexible with Ferrule/Plastic Sleeve: 0.25 to 0.30 mm² (23 to 22 AWG).
Pinout Configuration:
- Pin 1: Power +
- Pin 2: Ground -
- Pin 3: Input/Output
- Pin 4: Input/Output
With its compact design and versatile connectivity options, this adapter enhances the functionality of Teltonika Networks devices, providing a straightforward method to access and configure digital inputs and outputs.
Technical Specifications
-
Input Connector4-pin, 3 mm pitch
-
Output Connector4-pin, 3 mm pitch
-
Cable Length100 mm
-
Conductor Cross Section0.20 mm²
-
Weight15 g
-
Solid/Flexible Conductor Range0.14 to 0.50 mm²
-
Flexible with Ferrule/Plastic Sleeve Range0.25 to 0.30 mm²
-
Dimensions32 mm x 30 mm
