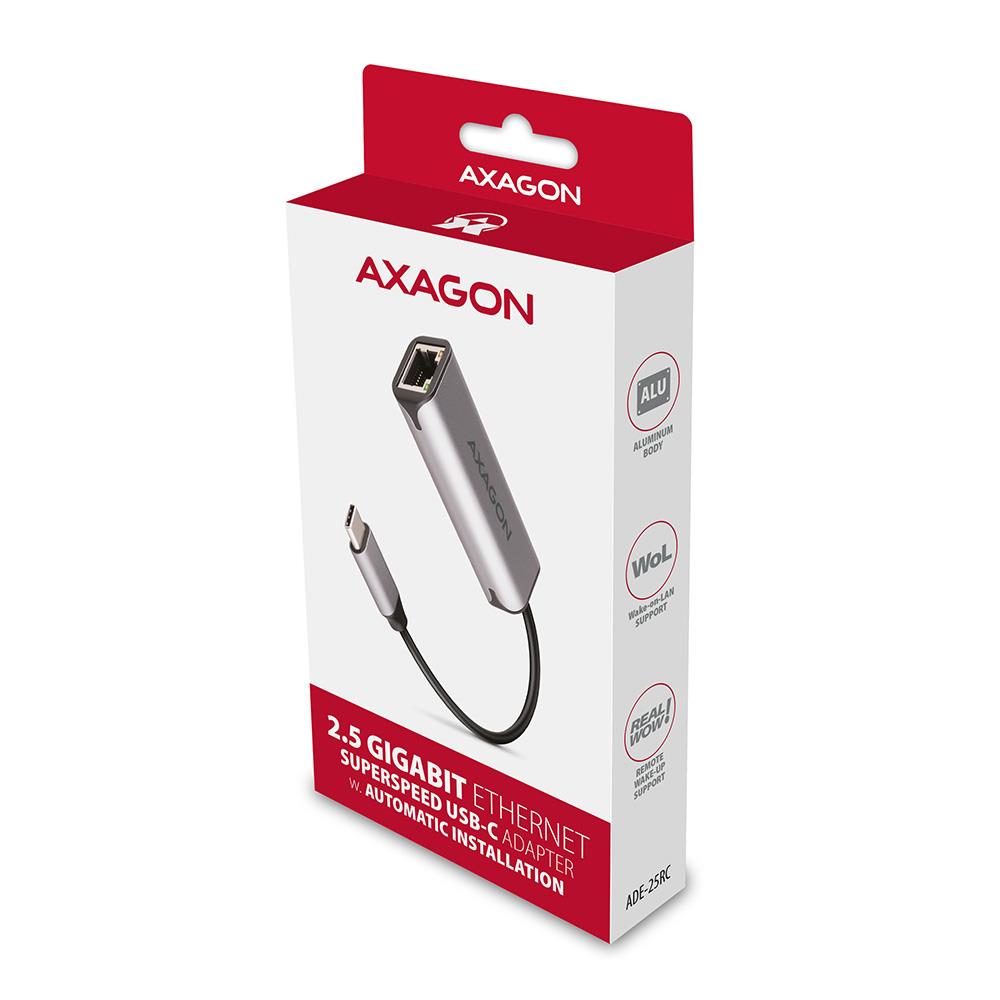

The AXAGON ADE-25RC is a compact and efficient USB-C 3.2 Gen 1 network adapter that delivers a remarkable 2.5 Gigabit Ethernet connection through an RJ-45 port. This device is ideal for achieving high-speed wired network connectivity for computers and devices lacking an Ethernet port.

One of its standout features is the support for various auto-negotiation speeds including 10/100/1000/2500 Mbps. It complies with IEEE standards such as 802.3 and is compatible with standard Cat5e or Cat6 cables, allowing lengths up to 100 meters.

Technical Specifications

• Chipset: Realtek RTL8156B
• Interface: USB-C 3.2 Gen 1 (5 Gbps SuperSpeed USB)
• Network Port: 1 × RJ-45 Ethernet (2.5GBase-T)
• Network Speeds Supported: 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps

Standards Supported

• IEEE 802.3/802.3u/802.3ab/802.3bz (2.5GBase-T)
• TCP Large Send Offload V1 and V2
• IEEE 802.1P Layer 2 priority encoding & decoding
• IEEE 802.1Q VLAN tagging
• IEEE 802.3az Energy Efficient Ethernet (EEE)

Notable Features

• IPv4/IPv6 checksum offload to minimize CPU load
• Auto MDI/MDI-X crossover detection
• Jumbo frame support for enhanced performance
• Advanced power management features
• Wake-on-LAN support

This adapter comes with a permanently attached USB cable and is designed for plug-and-play functionality, making it easy to use across various operating systems. The sleek aluminum casing not only ensures durability but also enhances the device's aesthetic appeal.
