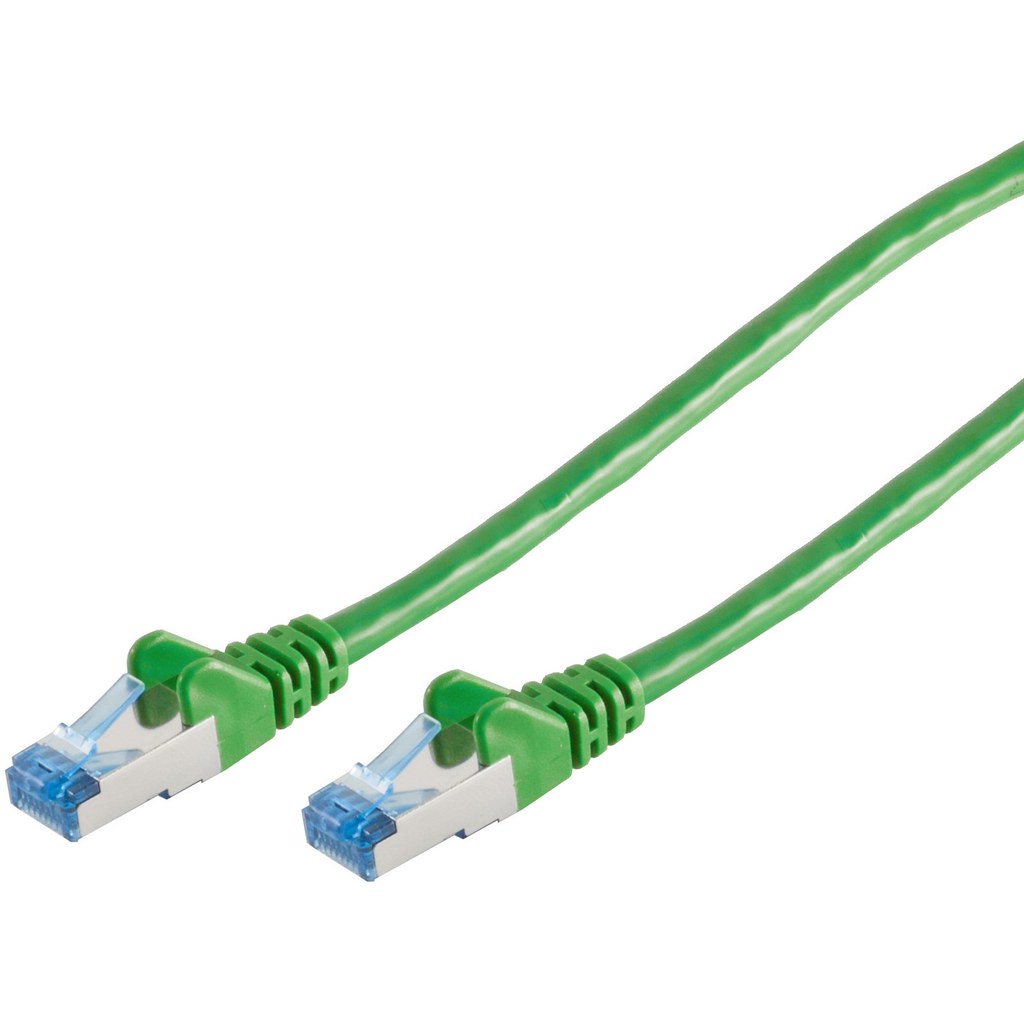

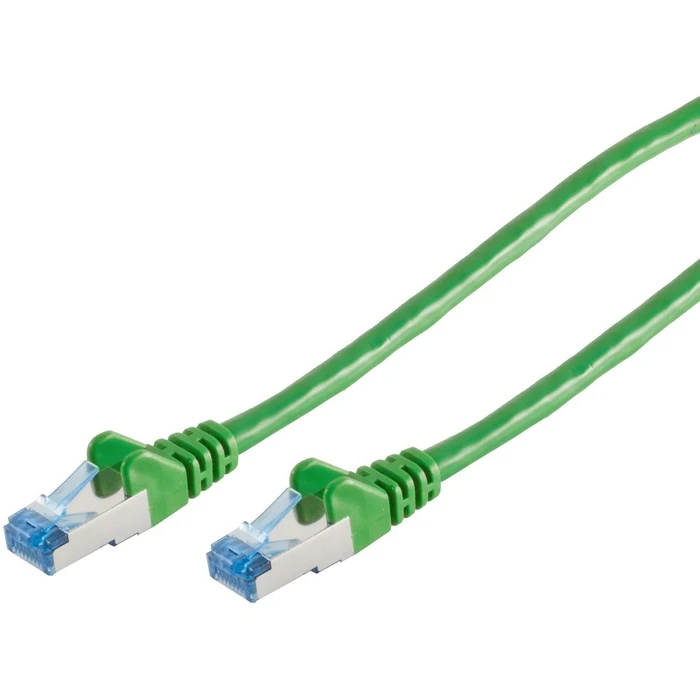

The Patchkabel CAT6a RJ45 S/FTP PiMF 5m Gr?n is a high-performance Ethernet patch cable designed for reliable and efficient network connections. This double-shielded LAN cable features two RJ45 connectors and is tailored for a multitude of high-speed Ethernet applications.
Its technical specifications highlight its exceptional capabilities:
- Cable Type: Round, stranded copper conductor with an AWG rating of 27/7 to minimize crosstalk.
- Shielding Class: S/FTP (Shielded Foil and Braided) with dual layers. The aluminum foil shield provides individual wire pair protection, while the aluminum braid shields the cable sheath.
- Material and Construction:
- Inner Conductor: High-quality copper (CU).
- Contacts: Gold-plated RJ45 connectors (3 μm thickness) for superior corrosion resistance.
Furthermore, the design includes a Low Smoke Zero Halogen (LSZH) cable sheath that complies with safety standards and minimizes toxic fume emissions in fire scenarios.
In addition to its construction and shielding, the cable is compatible with Power over Ethernet (PoE and PoE+) applications, ensuring versatility across various network configurations.
-
Cable TypeRound stranded copper conductor
-
AWG Rating27/7
-
Shielding ClassS/FTP
-
Inner ConductorHigh-quality copper (CU)
-
Contact PlatingGold-plated (3 μm)
-
Cable Sheath MaterialLow Smoke Zero Halogen (LSZH)
-
Cable Sheath Diameter5.9 ± 0.2 mm
-
Kink ProtectionYes
-
Anschluss SchirmungConnection shielding
-
RJ45 Housing MaterialPVC
-
Latch ProtectionYes
-
Contacting StandardEIA/TIA-568B
-
Bending Radius> 59 mm
-
Operating Temperature Range-20 °C to +65 °C
-
BandwidthUp to 500 MHz
-
CompatibilityPower over Ethernet (PoE and PoE+)
-
Test StandardISO/IEC 11801 CAT 6A Class Ea Channel Link
Ratings
Description
The Patchkabel CAT6a RJ45 S/FTP PiMF 5m Gr?n is a high-performance Ethernet patch cable designed for reliable and efficient network connections. This double-shielded LAN cable features two RJ45 connectors and is tailored for a multitude of high-speed Ethernet applications.
Its technical specifications highlight its exceptional capabilities:
- Cable Type: Round, stranded copper conductor with an AWG rating of 27/7 to minimize crosstalk.
- Shielding Class: S/FTP (Shielded Foil and Braided) with dual layers. The aluminum foil shield provides individual wire pair protection, while the aluminum braid shields the cable sheath.
- Material and Construction:
- Inner Conductor: High-quality copper (CU).
- Contacts: Gold-plated RJ45 connectors (3 μm thickness) for superior corrosion resistance.
Furthermore, the design includes a Low Smoke Zero Halogen (LSZH) cable sheath that complies with safety standards and minimizes toxic fume emissions in fire scenarios.
In addition to its construction and shielding, the cable is compatible with Power over Ethernet (PoE and PoE+) applications, ensuring versatility across various network configurations.
Technical Specifications
-
Cable TypeRound stranded copper conductor
-
AWG Rating27/7
-
Shielding ClassS/FTP
-
Inner ConductorHigh-quality copper (CU)
-
Contact PlatingGold-plated (3 μm)
-
Cable Sheath MaterialLow Smoke Zero Halogen (LSZH)
-
Cable Sheath Diameter5.9 ± 0.2 mm
-
Kink ProtectionYes
-
Anschluss SchirmungConnection shielding
-
RJ45 Housing MaterialPVC
-
Latch ProtectionYes
-
Contacting StandardEIA/TIA-568B
-
Bending Radius> 59 mm
-
Operating Temperature Range-20 °C to +65 °C
-
BandwidthUp to 500 MHz
-
CompatibilityPower over Ethernet (PoE and PoE+)
-
Test StandardISO/IEC 11801 CAT 6A Class Ea Channel Link
