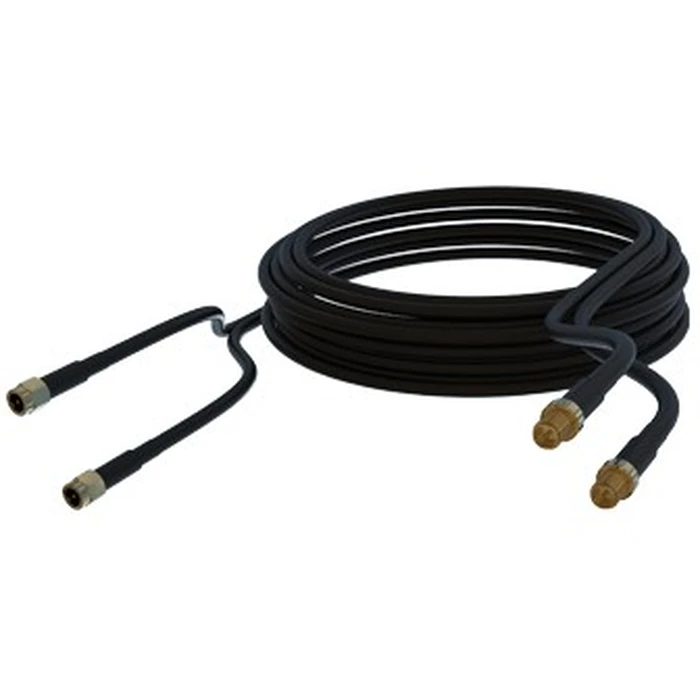

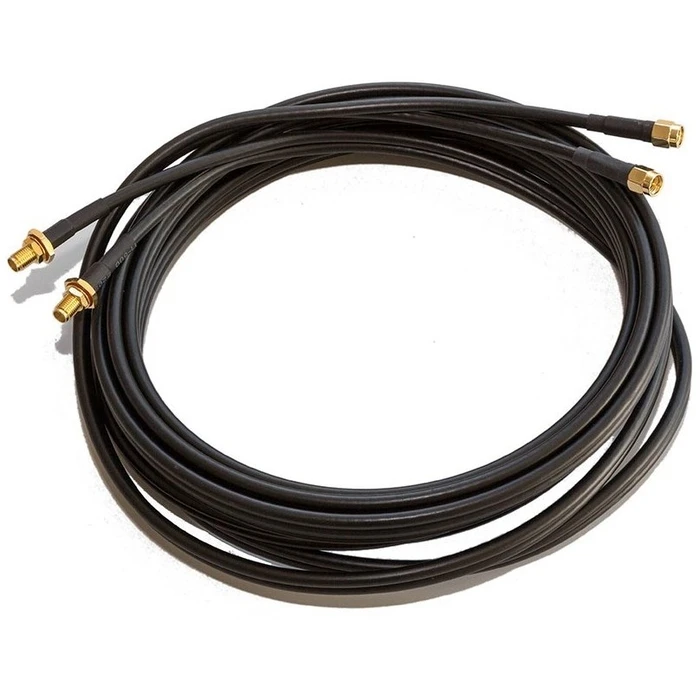

Καλώδιο A-CAB-92 5m twin HDF-195 Low Loss Cable SMA-Male to SMA-Female
The Poynting A-CAB-092 is an exceptional choice for those in need of a reliable coaxial cable solution. This 5-meter twin-bonded HDF-195 low-loss coaxial cable is engineered to minimize signal loss, making it ideal for various antenna applications.
Key Features:
- Length: 5 meters
- Connectors: SMA Male to SMA Female
- Impedance: 50 Ω
- Low attenuation across multiple frequency bands
- Capacitance of 78.4 pF/m
- Temperature range: -30°C to +70°C
In terms of mechanical construction, the cable is built with tinned copper inner and outer conductors and a solid polyethylene dielectric. The design includes:
- Inner conductor diameter: 0.94 mm
- Dielectric diameter: 2.95 mm
- Outer conductor diameter: 3.45 mm
- Overall cable diameter: 4.95 mm
The packaging dimensions are well thought out, ensuring practical usage and storage. The assembly features two SMA connectors on one end and two SMA connectors on the opposite end, supporting simultaneous dual-channel connections.
-
Cable TypeHDF-195
-
Impedance50 Ω
-
Attenuation 0.4 GHz0.095 dB/m
-
Attenuation 5.8 GHz0.38 dB/m
-
Capacitance78.4 pF/m
-
Velocity of Propagation82%
-
Minimum Bending Radius50 mm
-
Temperature Range-30°C to +70°C
Ratings
Description
The Poynting A-CAB-092 is an exceptional choice for those in need of a reliable coaxial cable solution. This 5-meter twin-bonded HDF-195 low-loss coaxial cable is engineered to minimize signal loss, making it ideal for various antenna applications.
Key Features:
- Length: 5 meters
- Connectors: SMA Male to SMA Female
- Impedance: 50 Ω
- Low attenuation across multiple frequency bands
- Capacitance of 78.4 pF/m
- Temperature range: -30°C to +70°C
In terms of mechanical construction, the cable is built with tinned copper inner and outer conductors and a solid polyethylene dielectric. The design includes:
- Inner conductor diameter: 0.94 mm
- Dielectric diameter: 2.95 mm
- Outer conductor diameter: 3.45 mm
- Overall cable diameter: 4.95 mm
The packaging dimensions are well thought out, ensuring practical usage and storage. The assembly features two SMA connectors on one end and two SMA connectors on the opposite end, supporting simultaneous dual-channel connections.
Technical Specifications
-
Cable TypeHDF-195
-
Impedance50 Ω
-
Attenuation 0.4 GHz0.095 dB/m
-
Attenuation 5.8 GHz0.38 dB/m
-
Capacitance78.4 pF/m
-
Velocity of Propagation82%
-
Minimum Bending Radius50 mm
-
Temperature Range-30°C to +70°C
