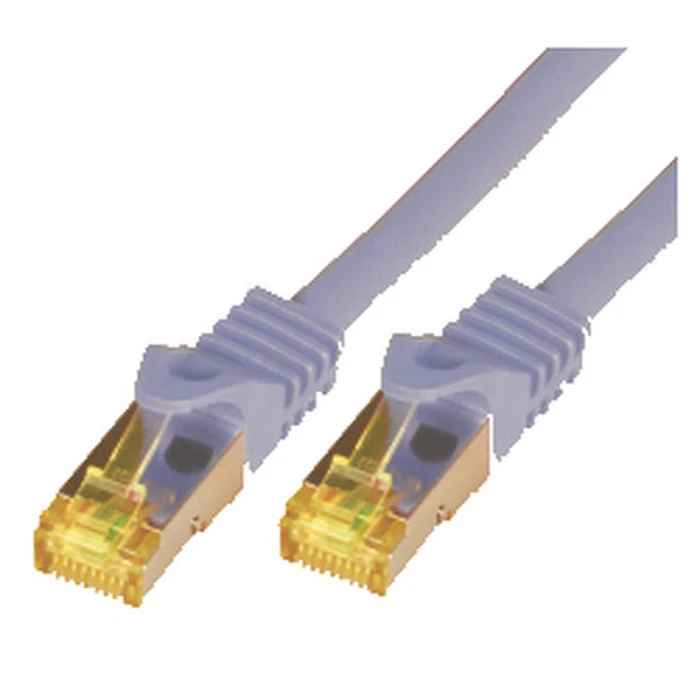

Καλώδιο Δικτύου M-CAB Cat7 Sftp Rj45 Lszh 0.5M Grey
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The CAT7 SFTP RJ45 LSZH 0.5M Grey is a high-performance Ethernet cable designed specifically for reliable and fast data transmission. This cable features enhanced shielding and construction to tackle the challenges of modern networking.
Conductor and Insulation
Each cable consists of 4 pairs of stranded bare copper conductors, insulated individually with PE insulation, available in various colors for easy identification.
Shielding
This cable employs dual shielding, with each twisted pair shielded by aluminum/polyethylene terephthalate foil and an overall shield of either TC or Al_Mg for reducing electromagnetic interference (EMI).
Technical Specifications
- Frequency Range: Supports frequencies up to 600 MHz
- Impedance: 100 Ω for optimal signal integrity
- Max Resistance: 2%
- Current Rating: 1.5A maximum
- Operating Temperature: -40°C to +65°C
Connector Details
The RJ45 plug features polycarbonate construction and phosphor bronze blades for reliable connections. The cable is built to endure at least 750 mating cycles, ensuring longevity.
Additional Features
This cable supports Power over Ethernet (PoE) standards, making it versatile for networking applications. It is color-coded for ease of installation and features a running 'M' count for measuring lengths accurately.
Compatibility
The CAT7 cable meets various high-speed data network standards, including IEC/ISO 61156-5, and maintains backward compatibility with CAT5E and CAT6 networks.
-
Conductor4 pairs of stranded bare copper
-
InsulationSkin-foam-skin PE
-
Individual ShieldAluminum/polyethylene terephthalate foil
-
Overall ShieldTin-copper or aluminum-magnesium braiding
-
Out JacketLow Smoke Zero Halogen (LSZH) or PVC
-
BootLSZH or PVC
-
Frequency RangeUp to 600 MHz
-
Impedance100 Ω
-
Max Resistance2%
-
Current Rating1.5 A
-
Operating Temperature-40°C to +65°C
-
PlugRJ45 made of polycarbonate
-
Durability750 mating cycles minimum
-
Supports PoEYes
-
Color CodingColor-coded pairs
-
Running M CountPrinted on the cable
Ratings
Description
The CAT7 SFTP RJ45 LSZH 0.5M Grey is a high-performance Ethernet cable designed specifically for reliable and fast data transmission. This cable features enhanced shielding and construction to tackle the challenges of modern networking.
Conductor and Insulation
Each cable consists of 4 pairs of stranded bare copper conductors, insulated individually with PE insulation, available in various colors for easy identification.
Shielding
This cable employs dual shielding, with each twisted pair shielded by aluminum/polyethylene terephthalate foil and an overall shield of either TC or Al_Mg for reducing electromagnetic interference (EMI).
Technical Specifications
- Frequency Range: Supports frequencies up to 600 MHz
- Impedance: 100 Ω for optimal signal integrity
- Max Resistance: 2%
- Current Rating: 1.5A maximum
- Operating Temperature: -40°C to +65°C
Connector Details
The RJ45 plug features polycarbonate construction and phosphor bronze blades for reliable connections. The cable is built to endure at least 750 mating cycles, ensuring longevity.
Additional Features
This cable supports Power over Ethernet (PoE) standards, making it versatile for networking applications. It is color-coded for ease of installation and features a running 'M' count for measuring lengths accurately.
Compatibility
The CAT7 cable meets various high-speed data network standards, including IEC/ISO 61156-5, and maintains backward compatibility with CAT5E and CAT6 networks.
Technical Specifications
-
Conductor4 pairs of stranded bare copper
-
InsulationSkin-foam-skin PE
-
Individual ShieldAluminum/polyethylene terephthalate foil
-
Overall ShieldTin-copper or aluminum-magnesium braiding
-
Out JacketLow Smoke Zero Halogen (LSZH) or PVC
-
BootLSZH or PVC
-
Frequency RangeUp to 600 MHz
-
Impedance100 Ω
-
Max Resistance2%
-
Current Rating1.5 A
-
Operating Temperature-40°C to +65°C
-
PlugRJ45 made of polycarbonate
-
Durability750 mating cycles minimum
-
Supports PoEYes
-
Color CodingColor-coded pairs
-
Running M CountPrinted on the cable
