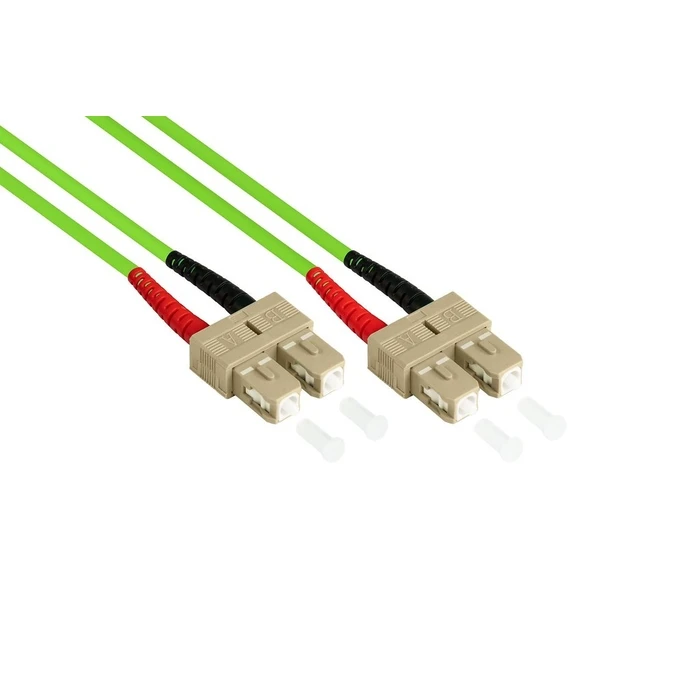

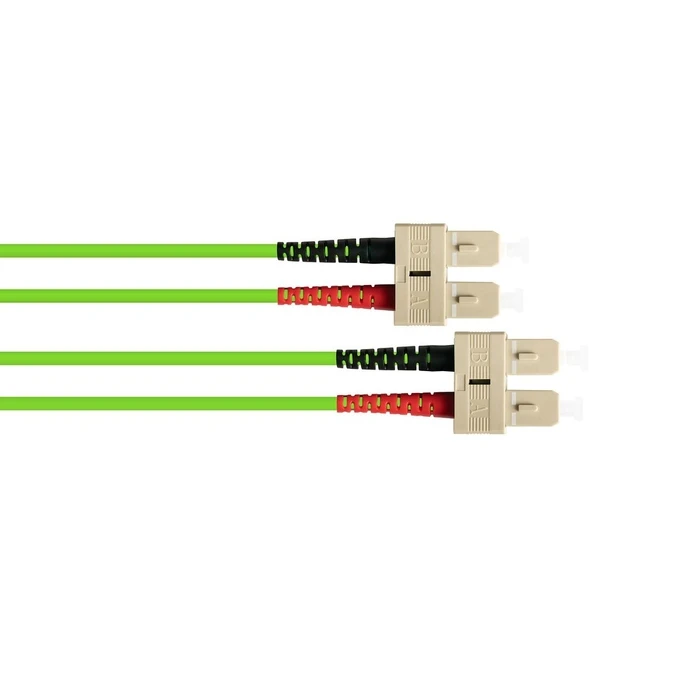

Καλώδιο Οπτικής Ίνας Good Connections LWL Dpx Patchk. OM5 MM 50/125? SC/SC 0,5m
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
DIGITUS Fiber Optic DIN Rail Box OS2 Equipped with SC Adapter Pigtail
Default StarTech CAT8 Ethernet Cable LSZH 25G 40G S FTP LSZH 100W PoE
The Good Connections LWL Dpx Patchk. OM5 MM 50/125? SC/SC 0.5m is a high-performance multimode fiber optic patch cable that adheres to the latest data transmission standards.
Key Technical Specifications:
- Optical Mode: OM5
- Fiber Type: Multimode 50/125 μm
- Cable Length: 0.5 meters
- Connectors: SC/SC Duplex
- Cable Jacket Material: LSZH
- Color of Cable Jacket: Lime Green
This patch cable is designed with backward compatibility with OM3 and OM4 applications, ensuring synergy with existing networks. It effectively supports high-speed data transmission applications by managing multiple wavelengths in the 850-950 nm range.
Key Features:
- Wideband Multimode Fiber Solution
- Reliable Performance with premium materials
- Laser-Optimized for VCSEL light sources
- Lifetime Warranty for user peace of mind
This cable is ideal for local area networks (LANs) and data centers that demand high bandwidth and long-distance data clarity.
-
Optical ModeOM5
-
Fiber TypeMultimode 50/125 μm
-
Cable Length0.5 m
-
ConnectorsSC/SC Duplex
-
Endface PolishPC
-
Cable Jacket MaterialLSZH
-
Cable Jacket RatingOFNR
-
Cable Outer Diameter1.9 ± 0.1 mm x 3.8 ± 0.2 mm
-
Clad Diameter125 μm
-
Core Diameter50 μm
-
Number of Fibers2
-
Minimum Bend Radius (Dynamic)20 mm
-
Minimum Bend Radius (Static)10 mm
-
Color of Cable JacketLime Green
-
Color of ConnectorsAqua
-
Operating Temperature Range-20°C to 60°C
-
Storage Temperature Range-20°C to 60°C
-
Relative Humidity Range (Operating)4% to 98% RH
-
Relative Humidity Range (Non-Condensing)5% to 85% RH
Ratings
Description
The Good Connections LWL Dpx Patchk. OM5 MM 50/125? SC/SC 0.5m is a high-performance multimode fiber optic patch cable that adheres to the latest data transmission standards.
Key Technical Specifications:
- Optical Mode: OM5
- Fiber Type: Multimode 50/125 μm
- Cable Length: 0.5 meters
- Connectors: SC/SC Duplex
- Cable Jacket Material: LSZH
- Color of Cable Jacket: Lime Green
This patch cable is designed with backward compatibility with OM3 and OM4 applications, ensuring synergy with existing networks. It effectively supports high-speed data transmission applications by managing multiple wavelengths in the 850-950 nm range.
Key Features:
- Wideband Multimode Fiber Solution
- Reliable Performance with premium materials
- Laser-Optimized for VCSEL light sources
- Lifetime Warranty for user peace of mind
This cable is ideal for local area networks (LANs) and data centers that demand high bandwidth and long-distance data clarity.
Technical Specifications
-
Optical ModeOM5
-
Fiber TypeMultimode 50/125 μm
-
Cable Length0.5 m
-
ConnectorsSC/SC Duplex
-
Endface PolishPC
-
Cable Jacket MaterialLSZH
-
Cable Jacket RatingOFNR
-
Cable Outer Diameter1.9 ± 0.1 mm x 3.8 ± 0.2 mm
-
Clad Diameter125 μm
-
Core Diameter50 μm
-
Number of Fibers2
-
Minimum Bend Radius (Dynamic)20 mm
-
Minimum Bend Radius (Static)10 mm
-
Color of Cable JacketLime Green
-
Color of ConnectorsAqua
-
Operating Temperature Range-20°C to 60°C
-
Storage Temperature Range-20°C to 60°C
-
Relative Humidity Range (Operating)4% to 98% RH
-
Relative Humidity Range (Non-Condensing)5% to 85% RH
