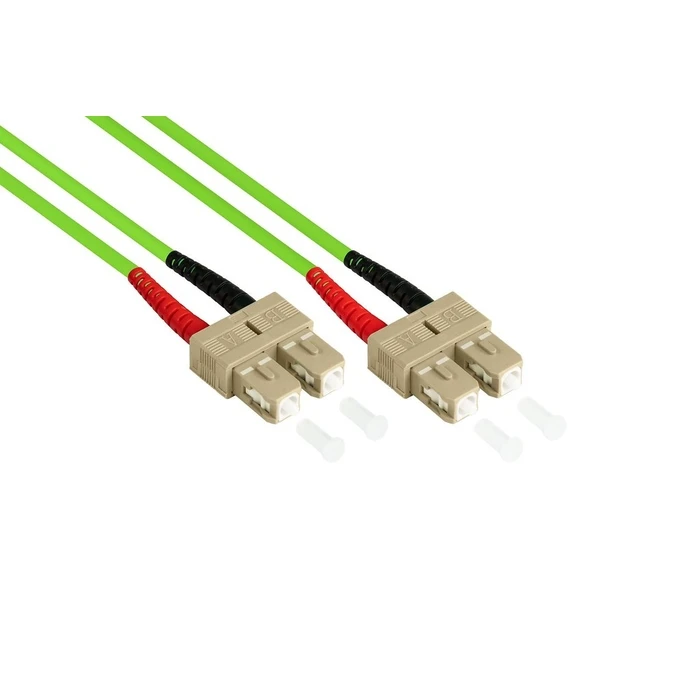

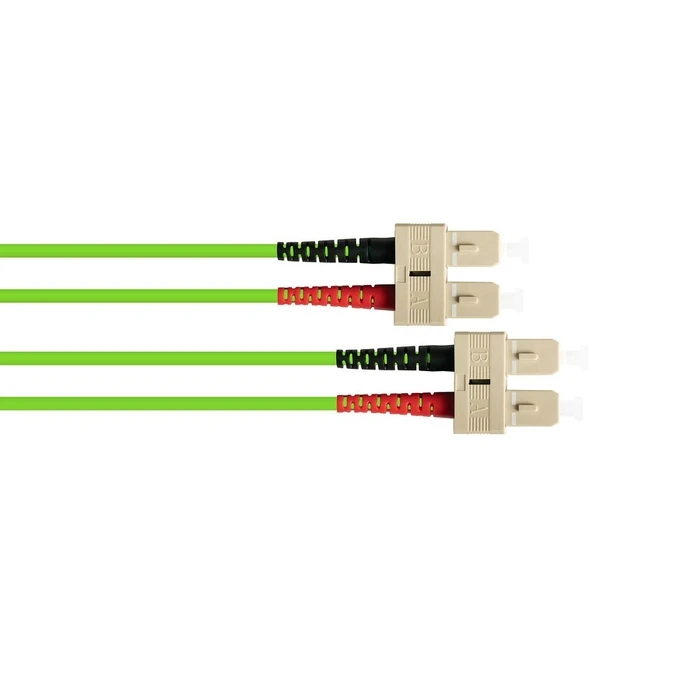

Καλώδιο Οπτικής Ίνας Good Connections LWL Dpx PatchCable OM5 MM 50/125? SC/SC 5m
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
The Good Connections LWL Dpx Patchkabel OM5 MM 50/125΅ SC/SC 5m is a top-tier, pre-terminated fiber optic patch cable, ideal for use in data centers, telecommunications, and high-speed networking environments.
Key Features:
- Fiber Type: OM5 Wideband Multimode Fiber
- Core Diameter: 50 ΅m
- Cladding Diameter: 125 ΅m
This cable ensures optimal optical performance with a minimum Effective Modal Bandwidth (EMB) of 4,700 MHz*km at 850 nm.
Connector Details:
- Termination: SC/SC connectors
- Polish Type: Ultra Physical Contact (UPC)
The quality of the cable is ensured through rigorous inspection and adherence to ANSI/TIA/EIA standards. Additionally, it is offered with a lifetime warranty.
Applications:
- 100GBase-SR10
- 40GBase-eSR4 QSFP+
- 10GBase-SR
- 1GBase-SX Ethernet
With its lime green jacket, the cable is easily identifiable, while its PVC construction allows for flexibility and easy installation.
-
EAN Code4014619741427
-
MPNLW-805SC5
-
Fiber TypeOM5 Wideband Multimode Fiber
-
Core Diameter50 ΅m
-
Cladding Diameter125 ΅m
-
TerminationSC/SC connectors
-
Connector TypeSC duplex connectors with ceramic ferrules
-
Polish TypeUltra Physical Contact (UPC)
-
Effective Modal Bandwidth (EMB)Minimum 4,700 MHz*km at 850 nm
-
Overfilled Launch (OFL) BandwidthMinimum 3,500 MHz*km at 850 nm
-
Typical Connector Loss0.30 dB
-
Max Connector Loss0.50 dB
-
Typical Return Loss-25 dB
-
Jacket ColorLime green
-
Jacket MaterialPVC
-
Jacket OD2.0 mm
-
UL RatingOFNR
-
Supported Applications100GBase-SR10, 40GBase-eSR4 QSFP+, 40GBase-SR4, 10GBase-SR, 1GBase-SX Ethernet
-
Supported Distances 100GbEUp to 150 meters
-
Supported Distances 40GbEUp to 550 meters
-
Supported Distances 10GbEUp to 400 meters
-
Supported Distances 1GbEUp to 550 meters with mode-conditioning
-
Laser-OptimizedYes
-
SWDM SupportYes
-
Backward CompatibilityYes
-
Quality ControlInspected and tested in accordance with ANSI/TIA/EIA-455-171-A
-
WarrantyLifetime warranty
Ratings
Description
The Good Connections LWL Dpx Patchkabel OM5 MM 50/125΅ SC/SC 5m is a top-tier, pre-terminated fiber optic patch cable, ideal for use in data centers, telecommunications, and high-speed networking environments.
Key Features:
- Fiber Type: OM5 Wideband Multimode Fiber
- Core Diameter: 50 ΅m
- Cladding Diameter: 125 ΅m
This cable ensures optimal optical performance with a minimum Effective Modal Bandwidth (EMB) of 4,700 MHz*km at 850 nm.
Connector Details:
- Termination: SC/SC connectors
- Polish Type: Ultra Physical Contact (UPC)
The quality of the cable is ensured through rigorous inspection and adherence to ANSI/TIA/EIA standards. Additionally, it is offered with a lifetime warranty.
Applications:
- 100GBase-SR10
- 40GBase-eSR4 QSFP+
- 10GBase-SR
- 1GBase-SX Ethernet
With its lime green jacket, the cable is easily identifiable, while its PVC construction allows for flexibility and easy installation.
Technical Specifications
-
EAN Code4014619741427
-
MPNLW-805SC5
-
Fiber TypeOM5 Wideband Multimode Fiber
-
Core Diameter50 ΅m
-
Cladding Diameter125 ΅m
-
TerminationSC/SC connectors
-
Connector TypeSC duplex connectors with ceramic ferrules
-
Polish TypeUltra Physical Contact (UPC)
-
Effective Modal Bandwidth (EMB)Minimum 4,700 MHz*km at 850 nm
-
Overfilled Launch (OFL) BandwidthMinimum 3,500 MHz*km at 850 nm
-
Typical Connector Loss0.30 dB
-
Max Connector Loss0.50 dB
-
Typical Return Loss-25 dB
-
Jacket ColorLime green
-
Jacket MaterialPVC
-
Jacket OD2.0 mm
-
UL RatingOFNR
-
Supported Applications100GBase-SR10, 40GBase-eSR4 QSFP+, 40GBase-SR4, 10GBase-SR, 1GBase-SX Ethernet
-
Supported Distances 100GbEUp to 150 meters
-
Supported Distances 40GbEUp to 550 meters
-
Supported Distances 10GbEUp to 400 meters
-
Supported Distances 1GbEUp to 550 meters with mode-conditioning
-
Laser-OptimizedYes
-
SWDM SupportYes
-
Backward CompatibilityYes
-
Quality ControlInspected and tested in accordance with ANSI/TIA/EIA-455-171-A
-
WarrantyLifetime warranty
