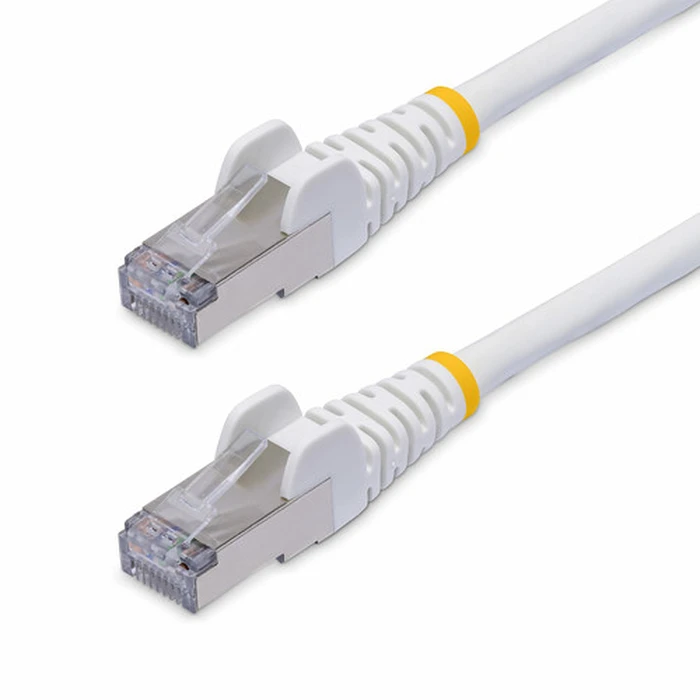

Καλώδιο Δικτύου StarTech Cat8 Ethernet Lszh

Description

Technical Specifications

• Data Transfer Rate
  Up to 40 Gbps
• Maximum Frequency
  2000 MHz
• Shielding Type
  S/FTP
• Conductor Material
  Cu, bare
• Insulation Material
  Aluminum-mylar foil and tinned copper braid
• Jacket Material
  Low Smoke Zero Halogen (LSZH)
• Operating Temperature Range
  -20°C to +60°C
• Installation Temperature Range
  0°C to +50°C
• Impedance
  100±15 Ohm @ 1 – 2000 MHz
• Capacitance
  99 pF/30m nominal @ 1 KHz
• Insulation Resistance
  5 GOhm x km min
• DC Resistance
  2.4 Ohm/30m max
• DC Loop Resistance
  5.6 Ohm/24m max
• Voltage Resistance
  72 Vdc max
• Coupling Attenuation
  CA-Type 1
• Signal Propagation Delay
  171 nS/30 m max
• Propagation Delay
  13.5 nS/130 m max
• Separating Class
  'd' acc. to EN 50174-2
• Nominal Cross-Section Conductor
  0.3019 mm²
• Core Insulation
  Foam-Skin-PE
• Core Identification
  Colour
• Flame Retardant
  In accordance with EN 60332-3-24
• Stranding Element
  Pairs
• Diameter Conductor
  0.62 mm
• Screen Over Stranding Element
  Foil
• Screen Over Stranding
  Braiding
• Material Outer Sheath
  Polyolefin
• Conductor Category
  Class 1 = solid
• Permitted Cable Outer Temperature, in Movement
  -20 … 75°C
• Permitted Cable Outer Temperature, Fixed
  -20 … 60°C
• AWG Size
  22
• Number of Cores
  8
• Outer Diameter Approx.
  7.8 mm
• Low Smoke
  Yes
• Halogen-Free
  Yes
