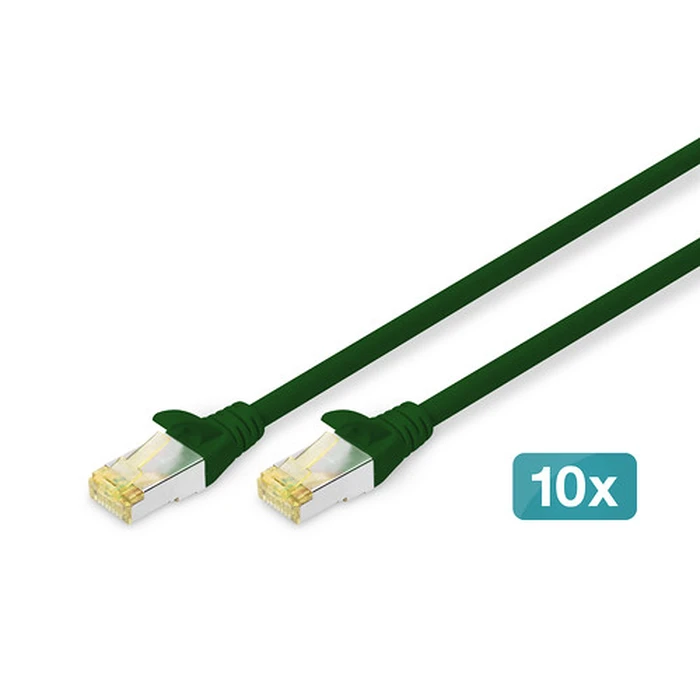

Καλώδιο Δικτύου Digitus Cat 6A S/Ftp Patch Cord10P Awg
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
The CAT 6A S/FTP Patch Cord is a high-performance networking cable that meets the stringent requirements of modern data centers and SMB applications. This cable is specifically engineered to support 10GBase-T Ethernet, ensuring exceptional bandwidth and reliable signal transmission.
Key Features:
- Shielding Type: Individual shield for each pair made of aluminum/polyethylene terephthalate (Al/PET) foil with an overall shield comprising at least 30% aluminum braiding. This dual shielding enhances signal integrity and minimizes EMI and crosstalk.
- Conductor Material: Stranded bare copper conductors for optimal conductivity and durability.
- Insulation: High-density polyethylene (HDPE) ensures robust signal transmission and mechanical stability.
- Color Coding: Standard color code scheme with insulation colors: White-Blue, White-Orange, White-Green, White-Brown.
- Outer Jacket: Made of low-smoke zero-halogen (LSZH) material, flame-retardant, and compliant with IEC 60332-1 and IEC 61034 standards.
- Termination: Gold-plated RJ45 connectors for reliable and durable connections.
This patch cord is suited for applications requiring high data rates, mechanical strength, and compliance with recognized international standards.
-
Frequency Bandwidth500 MHz
-
Data Rate Support10 Gbps
-
Outer Jacket Tensile Strength?13.5 MPa
-
Outer Jacket Elongation?150%
-
Aging Period100°C ? 24h ? 7d
-
After Aging Tensile Strength?12.5 MPa
-
After Aging Elongation?125%
-
Cold BendNo visible cracks at -20°C ± 2°C ? 4h
-
Min. Bend Radius4.34 ± 0.2 cm
-
Max. DC Conductor Resistance Unbalance5%
-
1-500 MHz Delay Skew?45 ns/100m
-
Max. Conductor Resistance at 20°C145 Ω/km
-
Compliance StandardsISO/IEC 11801, DIN EN 50173 Category 6A
Ratings
Description
The CAT 6A S/FTP Patch Cord is a high-performance networking cable that meets the stringent requirements of modern data centers and SMB applications. This cable is specifically engineered to support 10GBase-T Ethernet, ensuring exceptional bandwidth and reliable signal transmission.
Key Features:
- Shielding Type: Individual shield for each pair made of aluminum/polyethylene terephthalate (Al/PET) foil with an overall shield comprising at least 30% aluminum braiding. This dual shielding enhances signal integrity and minimizes EMI and crosstalk.
- Conductor Material: Stranded bare copper conductors for optimal conductivity and durability.
- Insulation: High-density polyethylene (HDPE) ensures robust signal transmission and mechanical stability.
- Color Coding: Standard color code scheme with insulation colors: White-Blue, White-Orange, White-Green, White-Brown.
- Outer Jacket: Made of low-smoke zero-halogen (LSZH) material, flame-retardant, and compliant with IEC 60332-1 and IEC 61034 standards.
- Termination: Gold-plated RJ45 connectors for reliable and durable connections.
This patch cord is suited for applications requiring high data rates, mechanical strength, and compliance with recognized international standards.
Technical Specifications
-
Frequency Bandwidth500 MHz
-
Data Rate Support10 Gbps
-
Outer Jacket Tensile Strength?13.5 MPa
-
Outer Jacket Elongation?150%
-
Aging Period100°C ? 24h ? 7d
-
After Aging Tensile Strength?12.5 MPa
-
After Aging Elongation?125%
-
Cold BendNo visible cracks at -20°C ± 2°C ? 4h
-
Min. Bend Radius4.34 ± 0.2 cm
-
Max. DC Conductor Resistance Unbalance5%
-
1-500 MHz Delay Skew?45 ns/100m
-
Max. Conductor Resistance at 20°C145 Ω/km
-
Compliance StandardsISO/IEC 11801, DIN EN 50173 Category 6A
